Copy| Product Name | (STEAM) FLYDARGONpro Flight Control ICM42688 |
| Item NO. | F54281-A1 F54281-A2 F54281-A3 |
| Weight | 0.11 kg = 0.2425 lb = 3.8801 oz |
| Category | DIY RC Drone Accessories > Flight Control |
| Brand | STEAM |
| Creation Time | 2025-07-18 |

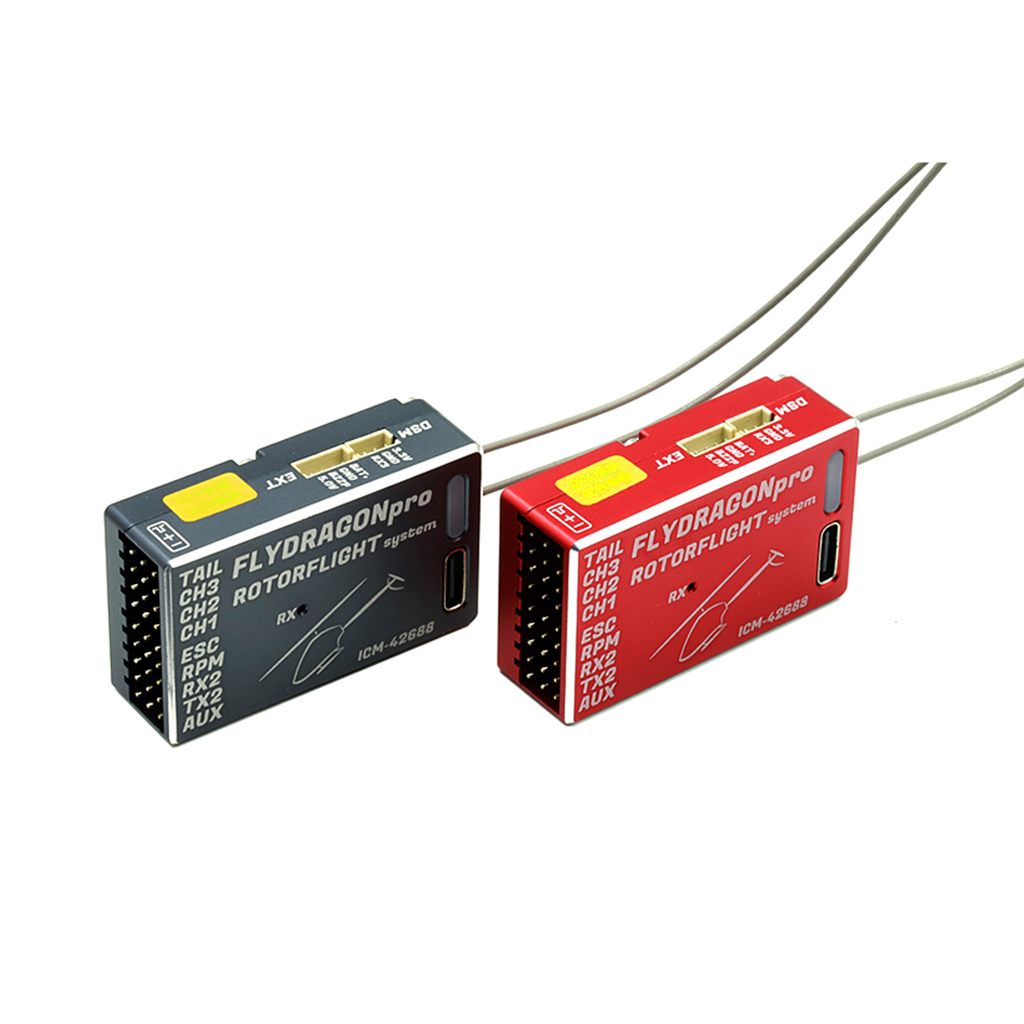

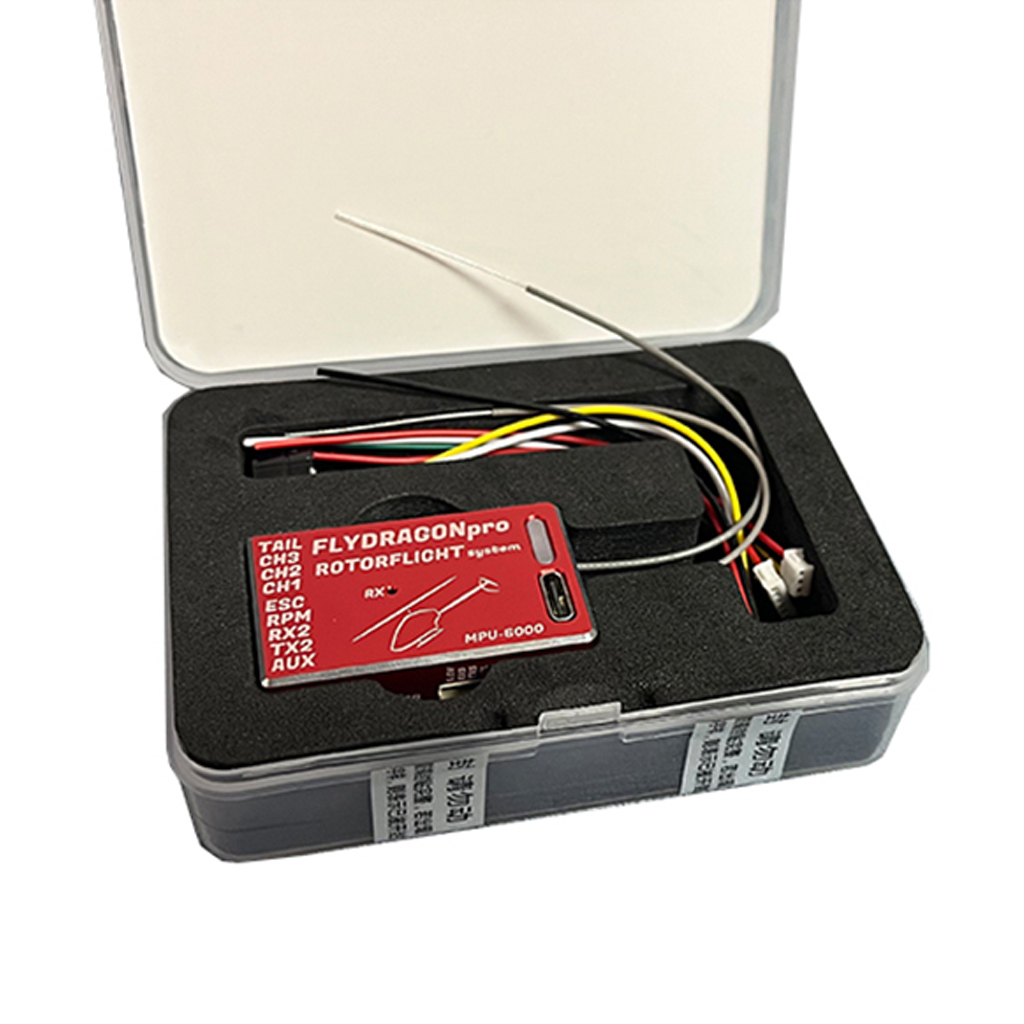

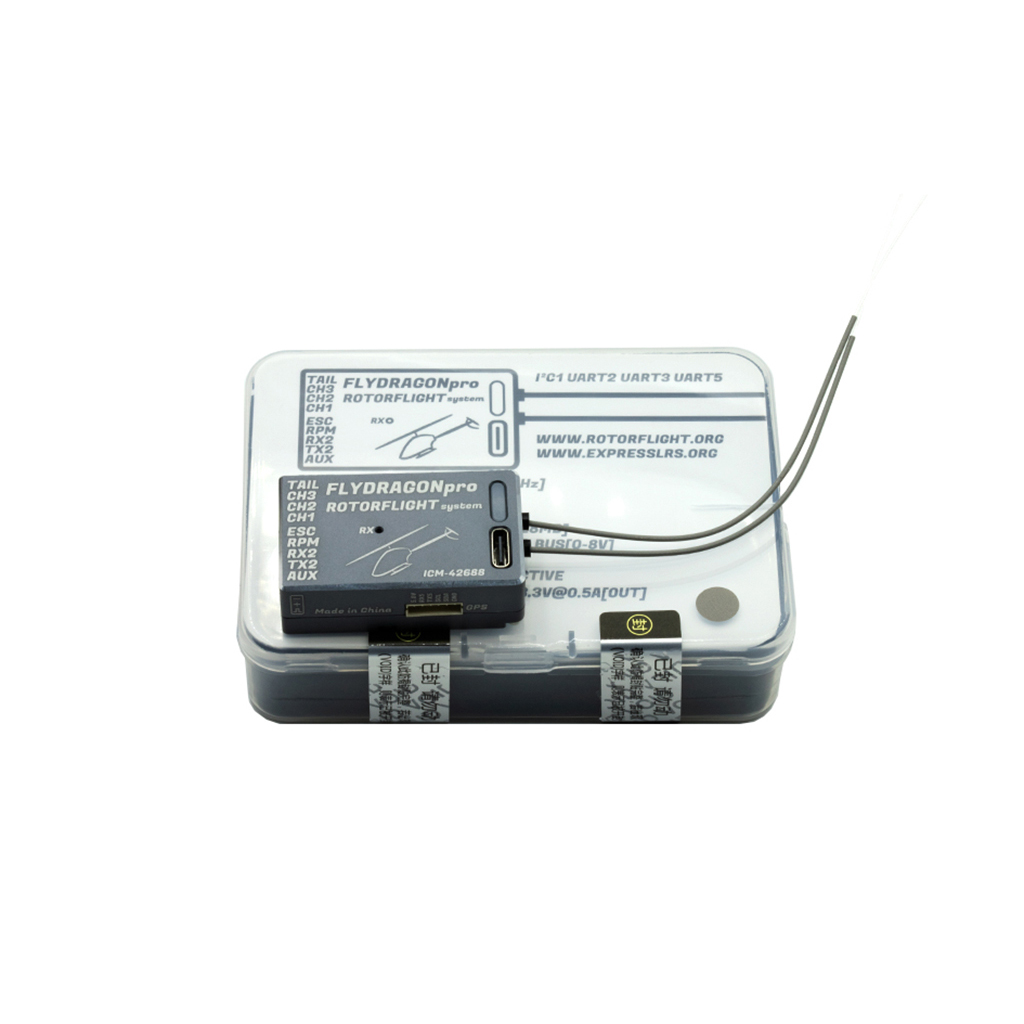

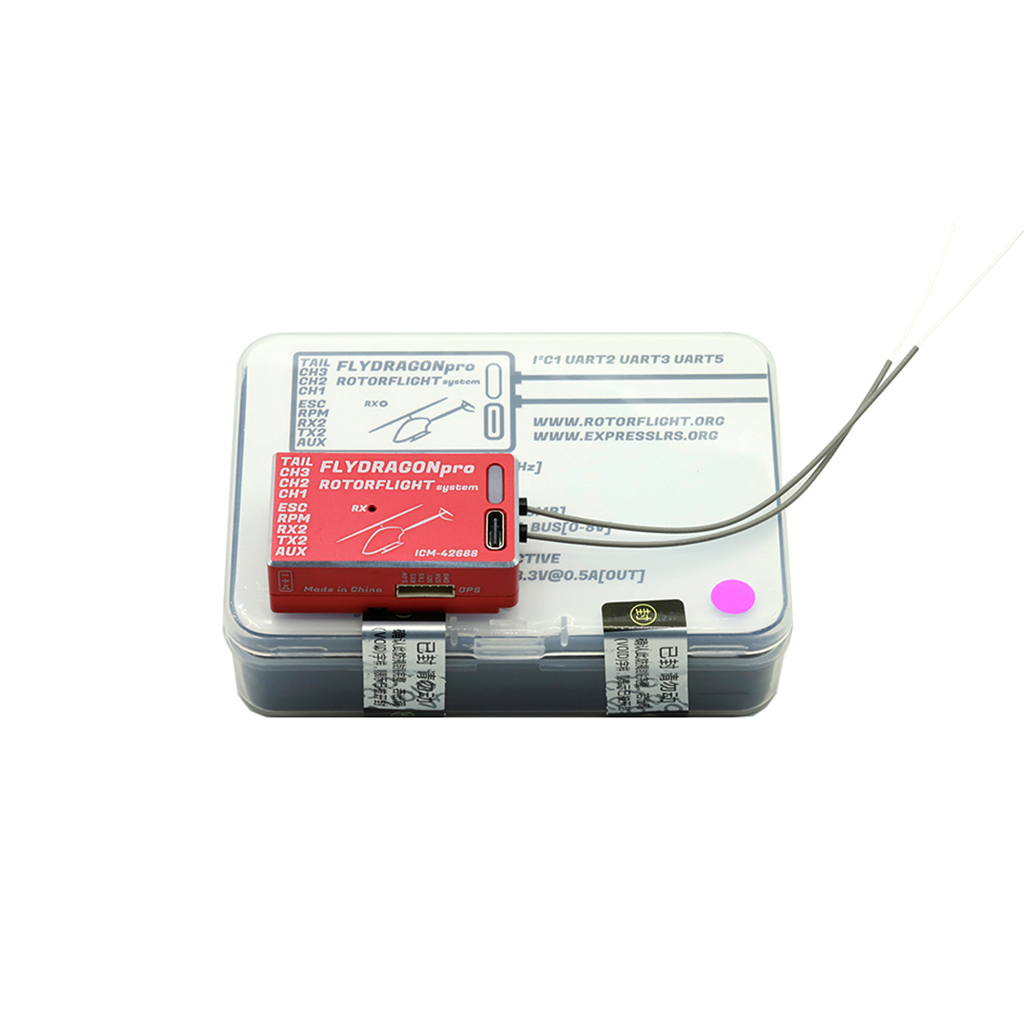

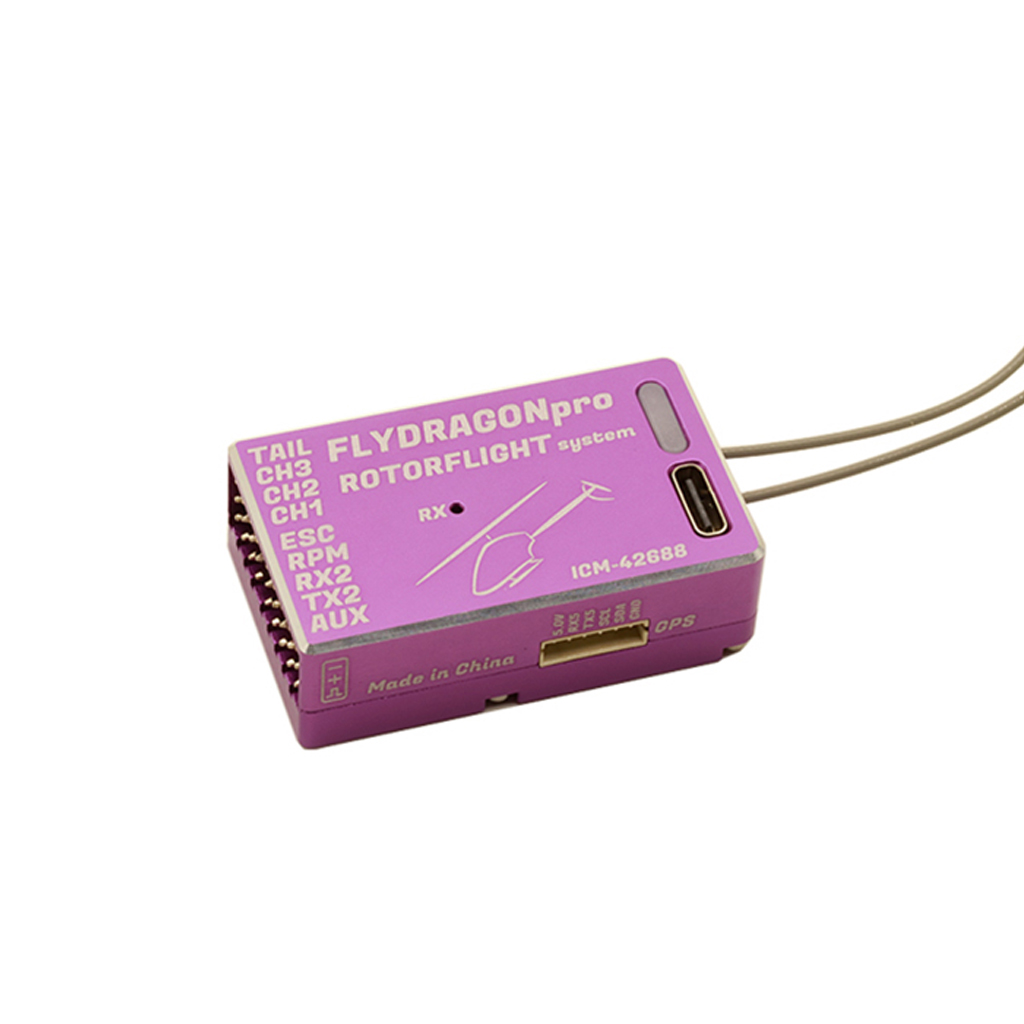

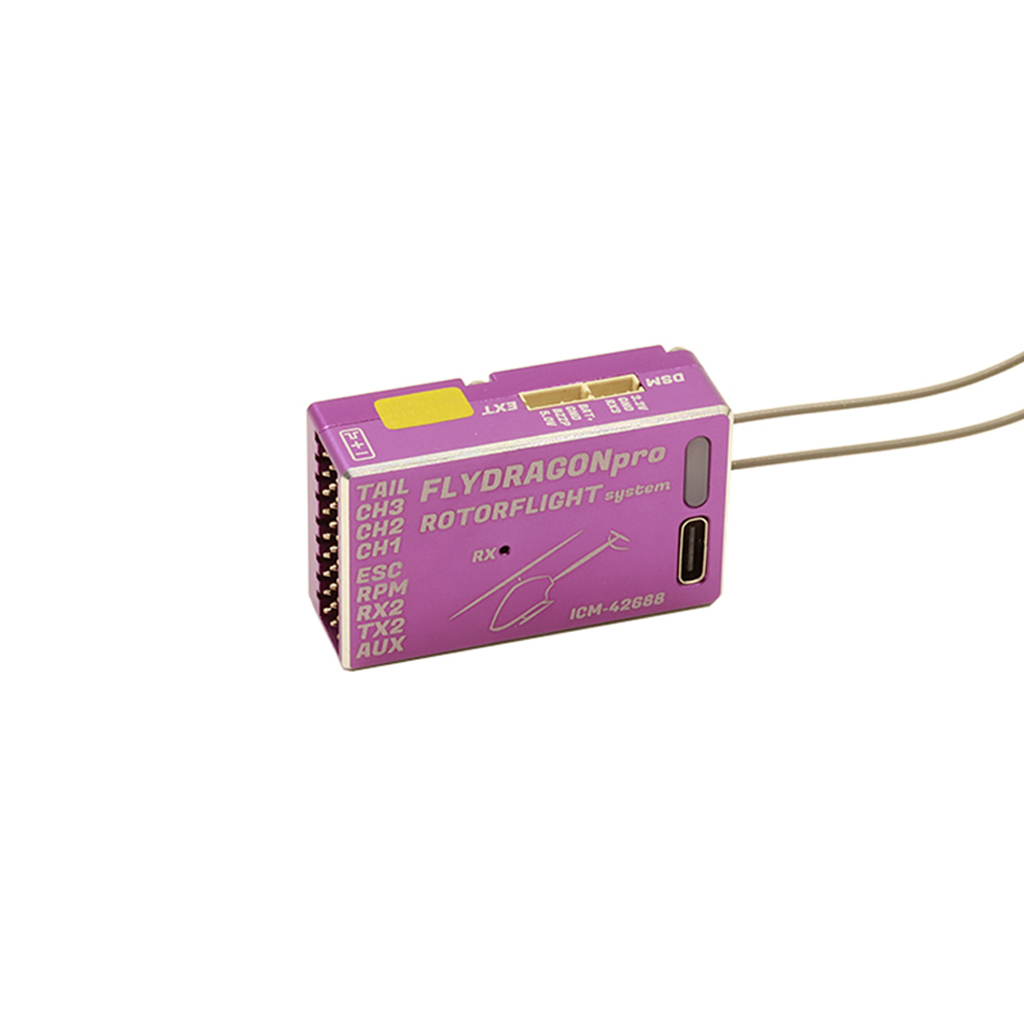

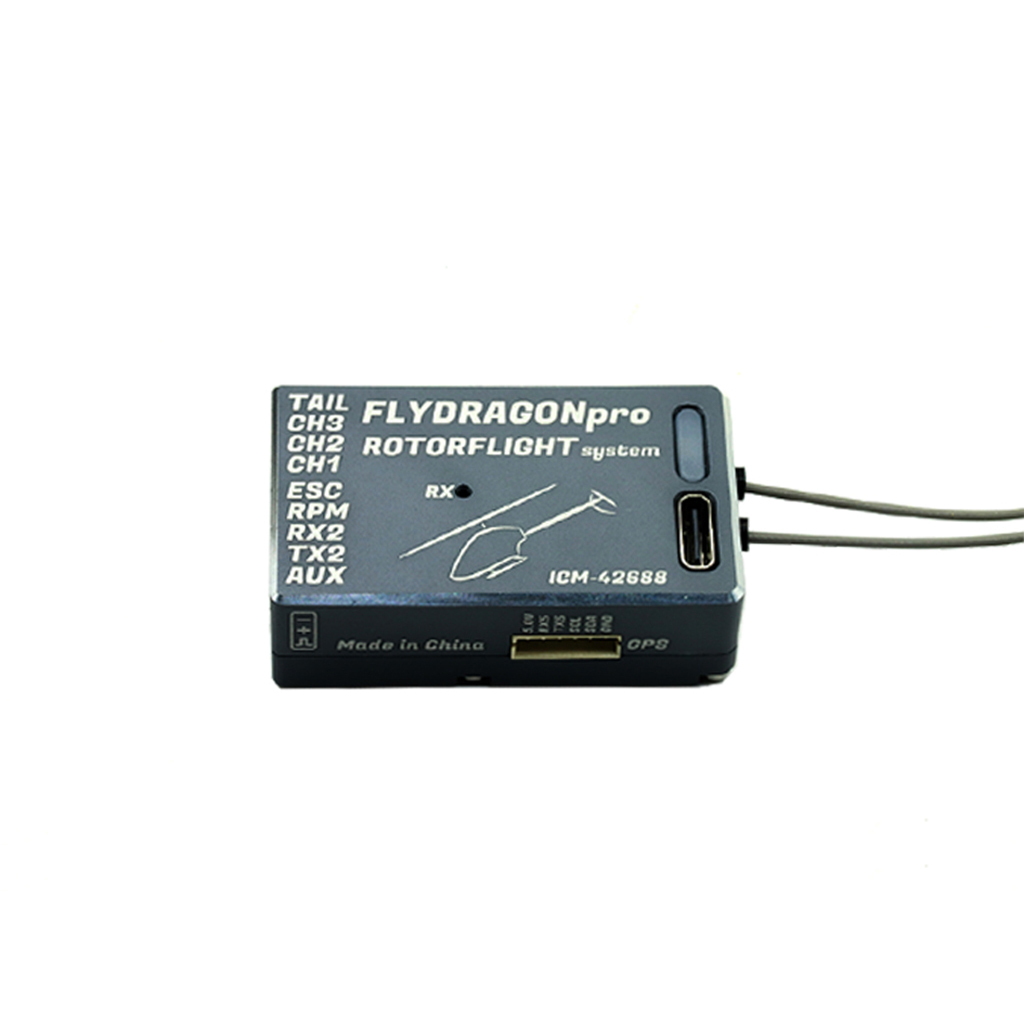

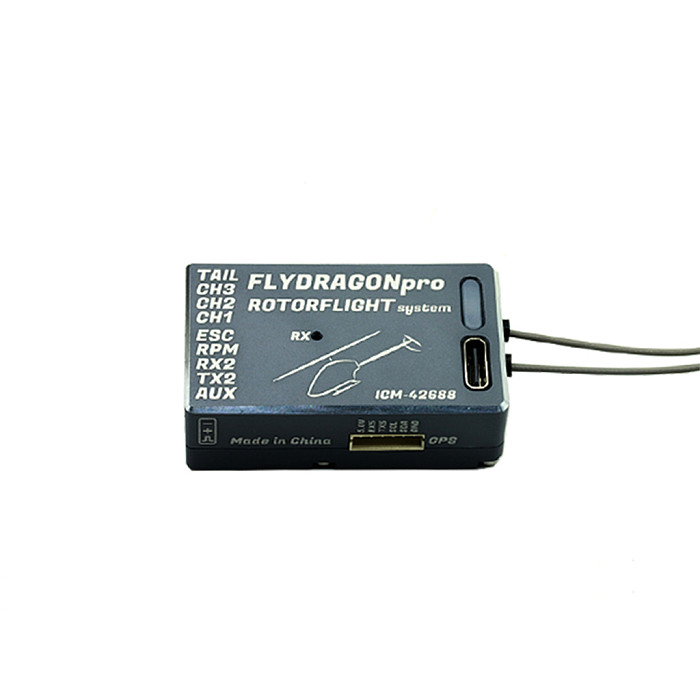

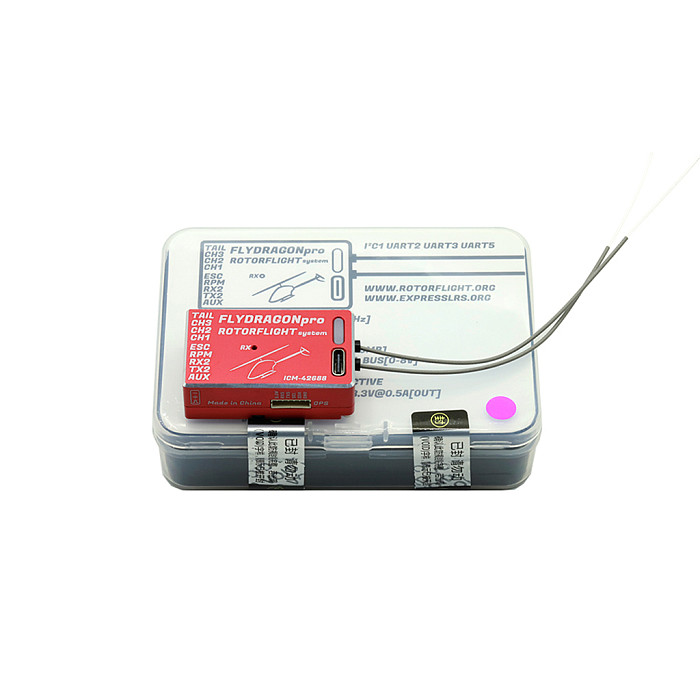

(STEAM) FLYDARGONpro Flight Control ICM42688
Introduction: FLYDRAGONpro gyroscope uses the open-source Rotorlight firmware, which is based on Betaflight 4.5 and enjoys all the powerful features of the Betaflight platform, as well as many new features added to helicopters. Rotorlight also draws on the ideas and code of Heliflight 3D
Driving modes: self stabilizing mode, semi self stabilizing mode, 3D mode, rescue mode.
Hardware configuration:
Main controller: STM32F72RET6
Gyroscope: MPU-6000/ICM-42688-P
Black Box: W25N01G (128MB)
Barometer: SPL06-001 (I2C2)
Lantern: WS2812B
Buzzer: 5V active buzzer
USB：Type-C
Serial ports: UART2, UART3, UART5
I2C：I2C1
ADC：ADC_BATT（0-62V），ADC_BEC(0-30V)，ADC_BUS(0-8V)
Servo Channel: CH1-CH2-CH3-TAIL
Speed input: RPM
Auxiliary channel: AUX
Built in receiver: ELRS dual antenna receiver 2.4G (serial port 1)
External receiver: TBS CRSF, Futaba S.BUS, Futaba S.BUS2, FrSky F.PORT, FrSky F.PORT2, FrSky FBUS, Spektrum DSM/1024, Spektrum DSM/2048, Spektrum DSMSRXL, Spektrum DSMSRXL2, ImmersionRC GHOST, Graupner SUMD, Graupner SUMH, Flysky IBUS, JR XBUS Mode A, JR XBUS Mode B, JR XBUSIRJ01, Jeti EXBUS, CPPM
BEC voltage: 5-18V
5V power output: 5V-2A
Electric tuning protocol: PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT, CASTLE
Support electrically adjustable feedback: BLHeli32, Hobbywing Platinum V4 / FlyFun V5, Hobbywing Platinum V5, Scorpion, Kontronik, OMPHobby, ZTW, APD
OpenYGE, FLYROTOR, Graupner, XDFLY
Size: 45x27x14.5mm
Weight: 27g
Factory firmware version:
Main control: RF2 v2.1.1 Receiver: v3.5.3
Rotorfly is free software and does not guarantee or imply the quality and reliability of this firmware. It is supported by the user as a community. Rotorfly is licensed under GPLv3 license. If operated improperly, the RC model may cause serious injury or even death. If you decide to use the Rotorfly firmware, you will be fully responsible for your model. Any injury or damage caused by the use of Rotorlight firmware is not the responsibility of the Rotorlight author, FLYDRAGONpro gyroscope designer, or distributor. Please use with caution.
