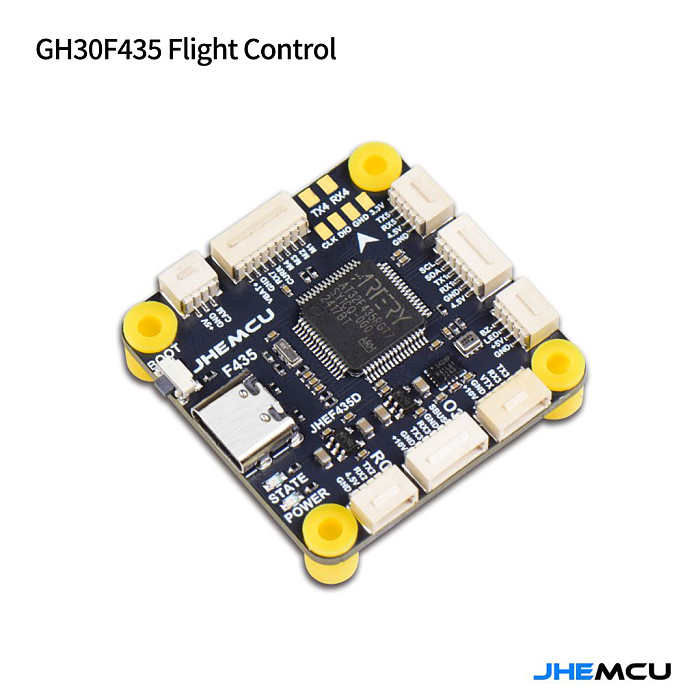

JHEMCU GF30F435 Flight Controller ICM42688P Support OSD GPS Black Box 16M Barometer SPL06 3-6S LIPO 30.5Mx4M for RC FPV Drone
-
Detail
- Product Name: JHEMCU GF30F435 Flight Controller ICM42688P Support OSD GPS Black Box 16M Barometer SPL06 3-6S LIPO 30.5Mx4M for RC FPV Drone
- Item NO.: F53366
- Weight: 0.03 kg = 0.0661 lb = 1.0582 oz
- Category: DIY RC Drone Accessories > Flight Control
- Brand: JHEMCU
- Creation Time: 2024-11-27
- JHEMCU GF30F435 Flight Controller ICM42688P Support OSD GPS Black Box 16M Barometer SPL06 3-6S LIPO 30.5Mx4M for RC FPV Drone
JHEMCU GF30F435 Flight Controller ICM42688P Support OSD GPS Black Box 16M Barometer SPL06 3-6S LIPO 30.5Mx4M for RC FPV Drone
MCU：AT32F435RGT7
Power supply: 3-6S (11V-26.1V)
Signal Protocol: PWM. (Oneshot125，Oneshot42，Multishot，Dshot150，Dshot300， Dshot600
Sensor: ICM-42688-P

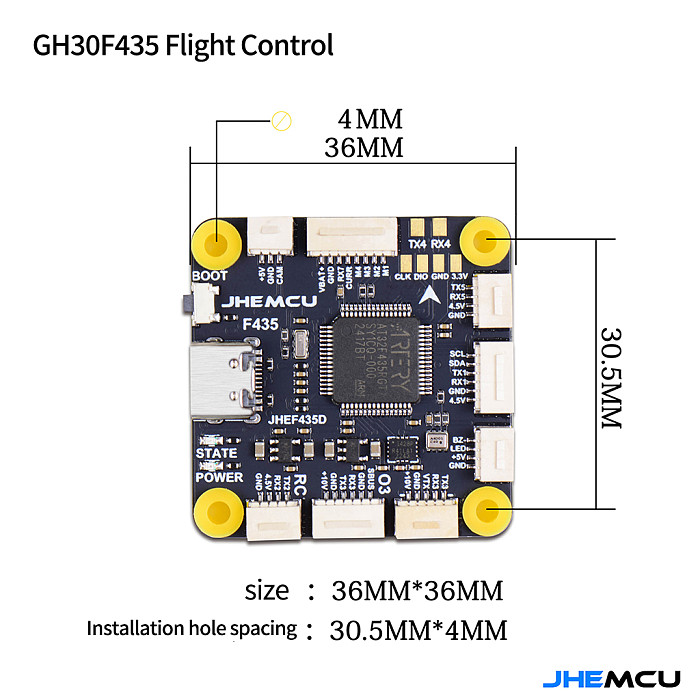

Size: 36*36mm N (30.5mm mounting hole, diameter 4MM)
Firmware version: Betaflight JHEF435
Black box: 16MB
Barometer: SPL06
OSD: Yes
DJI VTX: Reserved interface, supported
USB: TYPE-C PORT
IIC: Yes
GPS: Yes
Electronic Compass: Yes
UART: 4 channels, UART1, 2, 3, 5. (Note: UART4, 6, and 8 on the flight controller are reserved ports, and are not defined in the firmware for the time being)
BEC: BEC 5V/3A and 10V/2A
Receivers: SBUS, IBUS, DSM2/X, TBS, CRSF, etc
Support WS2812 programmable LED
Buzzer support is supported
Built-in voltage sensor with current sensing port
Weight: 8.5 grams
