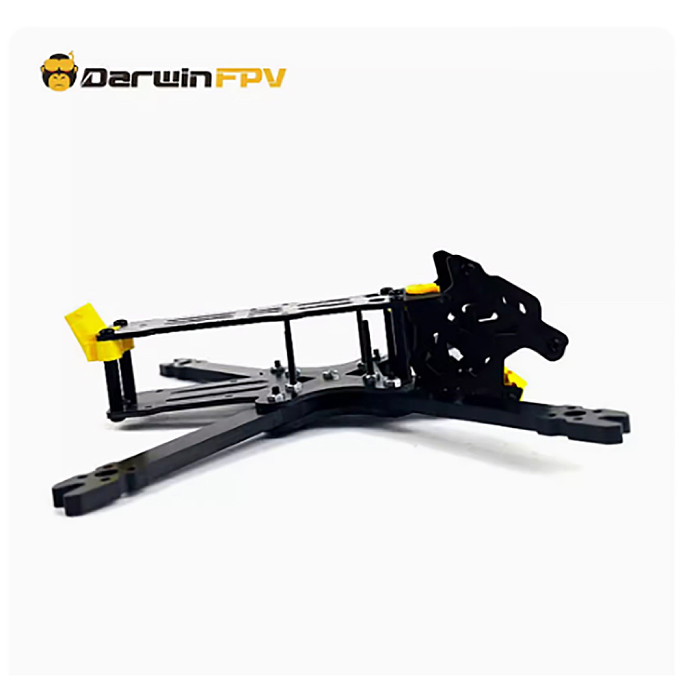

DarwinFPV BabyApe Ⅱ Freestyle FPV Drone frame kit 3.5 Inch 156MM Wheelbase For Drone Quadcopter Parts Item NO.: F52070

DarwinFPV BabyApe Ⅱ Freestyle FPV Drone frame kit 3.5 Inch 156MM Wheelbase For Drone Quadcopter Parts

●Top Plate: 1.5mm

●Middle Plate: 1.5mm

●Bottom Plate: 2.0mm

●Arm Plate: 3.5mm

●FC mounting holes: 20mmx20mm

●VTX mounting holes: 28mmx15mm/20mm x 20mm

●Motor mounting holes: 9mmx9mm

●Camera spacing: 19mm

●Weight: 46.7g

●Support Propeller: 3.5 inch

● Support motors：14xx-18xx

Packing list

Frame:

1 x Top Plate

1 x Bottom Plate

1 X Middle Plate

4 X Arms

2 x Camera Side Plate

1 x Battery Anti-skid Pad

2 x battery cable tie10 x 170mm

Screws:

3 x M2 * 18mm aluminum columns

3 x M2 * 19mm aluminum columns

3 x M2 * 23mm aluminum columns

2 x M2 x 4mm nylon support columns

2 x M2 nylon nuts

14 x M2 x 6 Hexagon socket head screws

5 x M2 x 7 Hexagon socket head screws

1 x M2 x 8 Hexagon socket head screws

4 x M2 x 9 Hexagon socket head screws

3 x M2 x 10 Hexagon socket head screws

4 x M2 x 14 Hexagon socket head screws

4 x M2 x 22 Hexagon socket head screws
