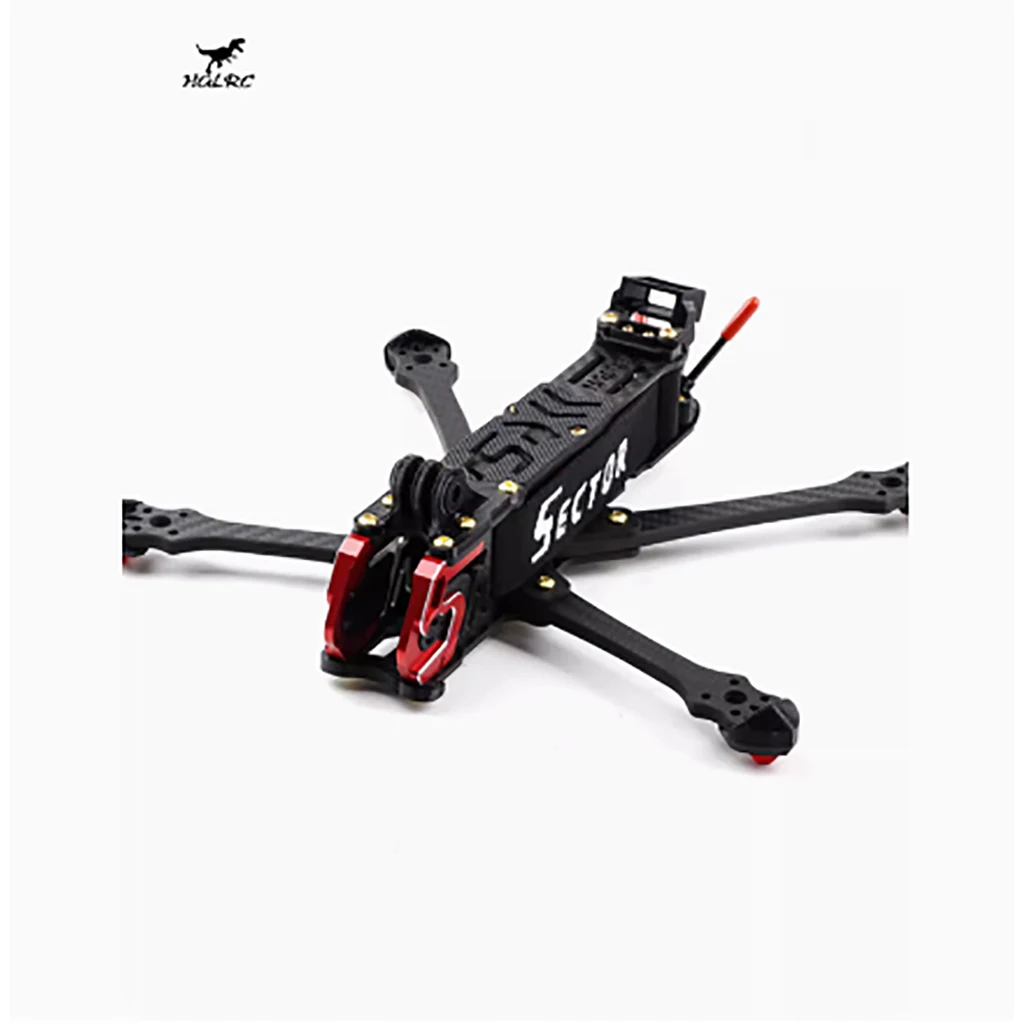

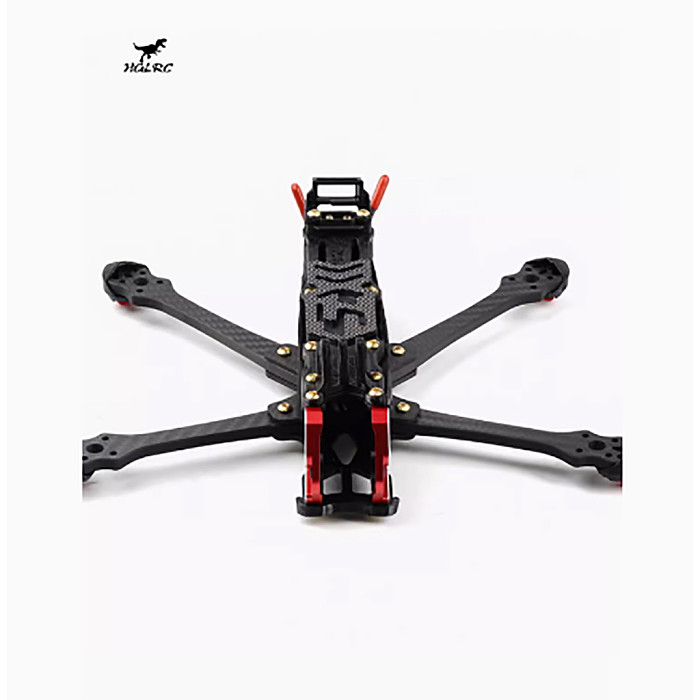

HGLRC Sector D5 FR O3 HD 5-inch Freestyle FPV Frame Use for Sector D5 Analog/HD/ For DJI O3 AIR UNIT FRAME KIT
Features
*Replaceable arms for quick disassembly without taking apart the whole frame
*A fixed power outlet for convenience and protecting your power cable from cutting by propellers
*Dust-proof straps covering both sides to better protect your rig and keep them clean
*CNC aluminum side plates combined with 3D printed parts to make your drone look dope!
*The Sector D5 optimized body aluminum parts for DJI O3 VTX and with the print fixing method,the lens is fixed by the print to effectively reduce low-frequency vibration, enhance shooting stability and reduce in-flight video jelly.
Specification
Brand name :HGLRC
Model :Sector D5 Freestyle Frame
Material :3K Carbon Fiber
Type:5-inch
Wheelbase:225 mm
Size:230 * 184 mm
Top plate: 2.5 mm
Middle plate: 2 mm
Bottom plate: 2.5 mm
Top and middle plate space :25mm
FC mounting hole :30.5mmx30.5mm/20x20mm M3
Camera mount :19 x 19mm
Motor mounting hole :Φ16*4
Weight: 121.7g
Shipping List
1 x 2.5 mm Top plate
1 x 2 mm Mid plate
1 x 2.5 mm Base plate
2x 5 mm Front arm
2x 5 mm Rear arm
1x 2.5mm Arm limit plate
2x 2mm Camera side panel
1x Frame head CNC aluminum parts (one pair)
1x TPU Black for GOPRO holder mount
1X TPU black Cam Conversion board (one pair)
1x TPU black SMA antenna mount
1x TPU black GPS mount
1x TPU black bottom mount
4x TPU black arm protection
4x TPU Red footpad
2x Battery straps 20x250mm
1x Battery Anti-slip pad
1x Screw Accessory package
