Copy| Product Name | JX PDI-4503HB Plastic Gear 120°330Hz Digital Standard Large Torque Servo For Helicopter Drone Tank Car Robot Accessories |
| Item NO. | F39843 |
| Weight | 0.059 kg = 0.1301 lb = 2.0812 oz |
| Category | DIY RC Drone Accessories > Servo |
| Brand | JX |
| Creation Time | 2020-07-21 |

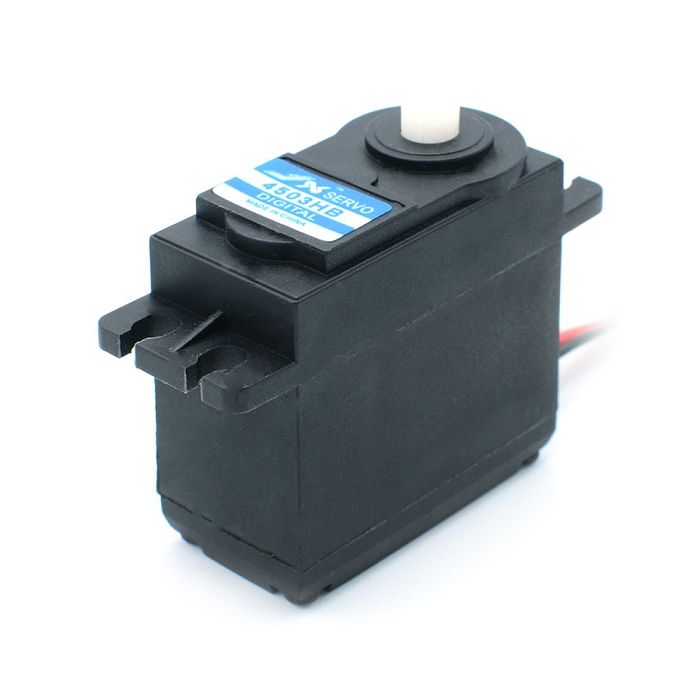

JX PDI-4503HB Plastic Gear 120°330Hz Digital Standard Large Torque Servo For Helicopter Drone Tank Car Robot Accessories
Brand: JX
Model: PDI-4503HB
Product name: Digital Core Plastic Gear servo
Working voltage: DC4.8-6.0v
Working temperature: -20to+60℃
Dead setting: 2μs
Maximum pulse width: 900-2100μs subtle
Maximum angle: 120°
Working frequency: 330Hz
Motor or motor: Core Motor iron core motor
Operating speed (4.8v): 0.15sec/60°
Operating speed (6.0v): 0.12sec/60°
Torque (4.8v): 3.25kg/cm(45.13oz/in)
Torque (6.0v): 3.95kg/cm(54.58oz/in)
Size: 40.5mm*20.2mm*38mm
Weight: 45.5g (1.60oz)
Cable length: JR 265MM (10.43inch)
Gear material: Plastic Gear
Bearing: 2BB double ball bearing
Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models
The package contains:
1xservo
1xservo spare parts set
