Copy| Product Name | iFlight BLITZ Mini ATF435 Stack/ BLITZ Mini ATF435 Flight Controller / BLITZ Mini E55S 4-IN-1 2-6S ESC for FPV |
| Item NO. | F50815-D1 D2 D3 F50816-D1 D2 D3 |
| Weight | 0.045 kg = 0.0992 lb = 1.5873 oz |
| Category | DIY RC Drone Accessories > Flight Control |
| Brand | iFlight |
| Creation Time | 2023-09-19 |
iFlight BLITZ Mini ATF435 Stack/ BLITZ Mini ATF435 Flight Controller / BLITZ Mini E55S 4-IN-1 2-6S ESC for FPV
Version:BLITZ Mini ATF435 Flight Controller
Specifications：
MCU: AT32F435RGT7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A
Wiring Suggestion：
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Packing List：
1 x BLITZ Mini ATF435 Flight Controller

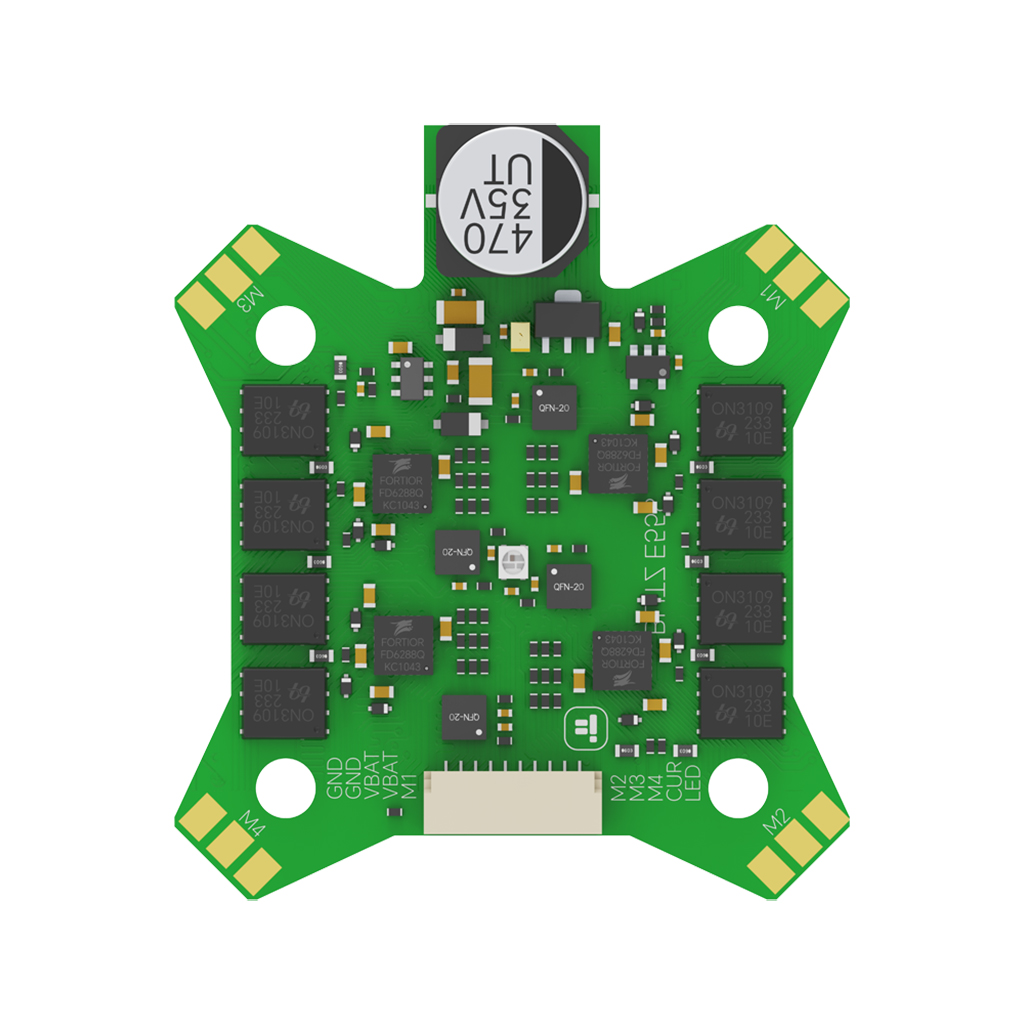

Version：BLITZ Mini E55S 4-IN-1 ESC
Specifications：
Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
BEC: No
Current rate: 300
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Packing List：
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
Version：Mini ATF435 Stack
Packing List：
1 x BLITZ Mini ATF435 Flight Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires

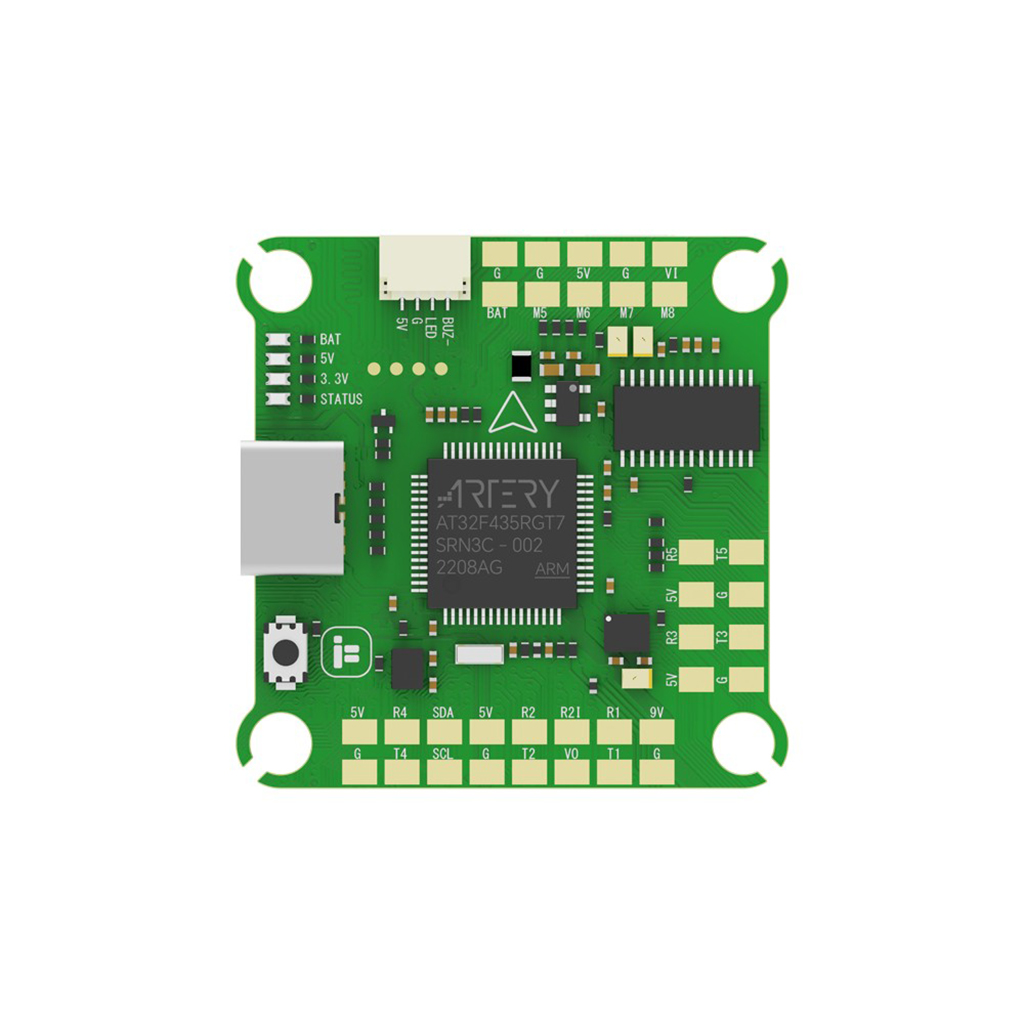

Version：BLITZ ATF435 Flight Controller
Specifications：
MCU: AT32F435CGU7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
Wiring Suggestion：
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
Packing List：
1 x BLITZ ATF435 Flight Controller

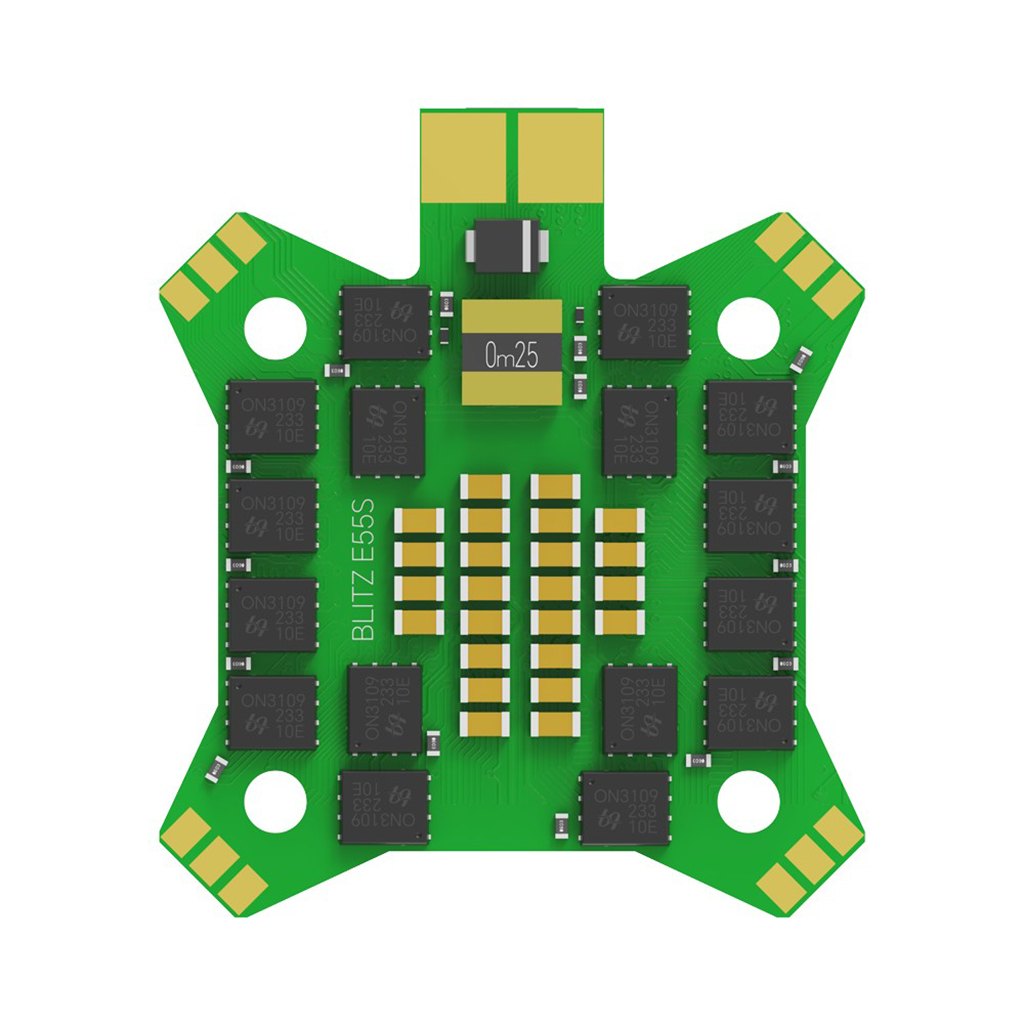

Version:E55S 4-IN-1 ESC
Specifications:
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Packing List
1 x BLITZ E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires

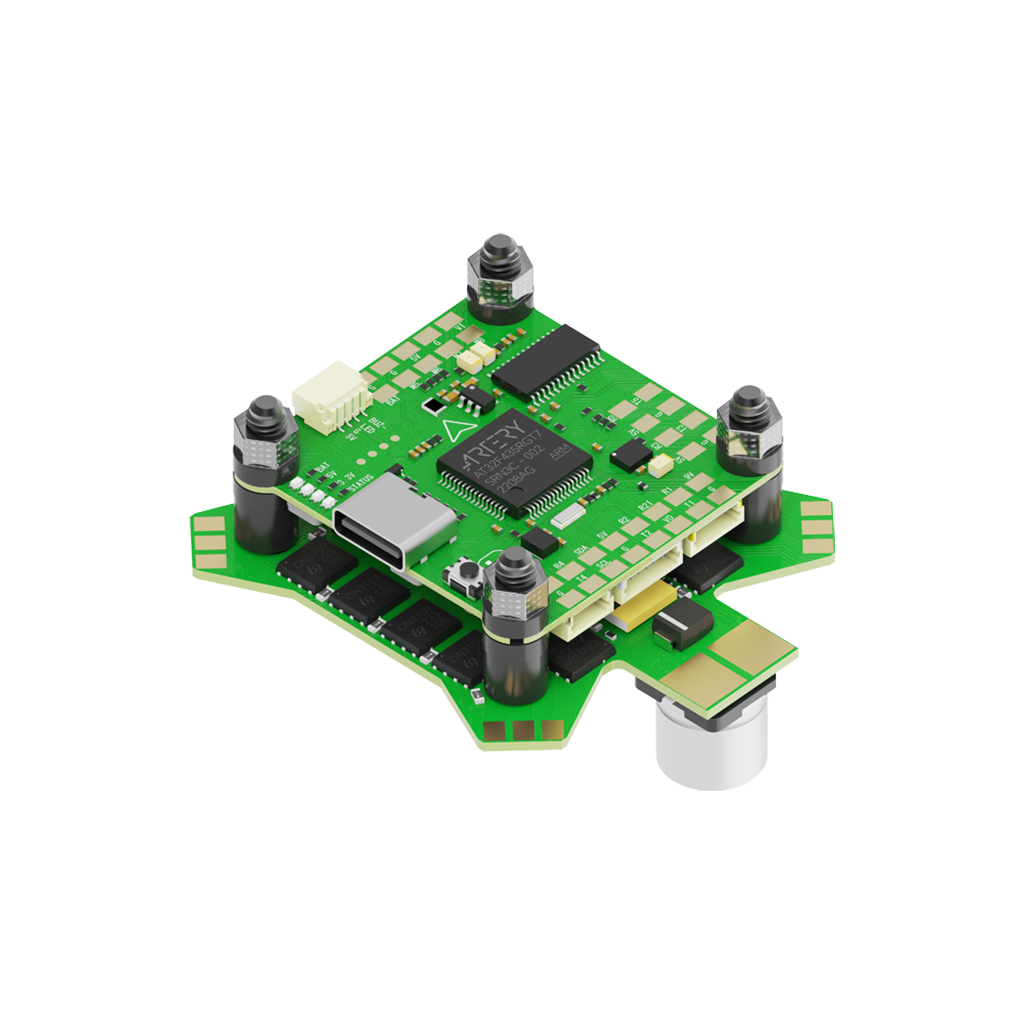

Version:ATF435 Stack
Packing List
1 x BLITZ ATF435 Flight Controller
1 x BLITZ E55S 4-IN-1 2-6S ESC
