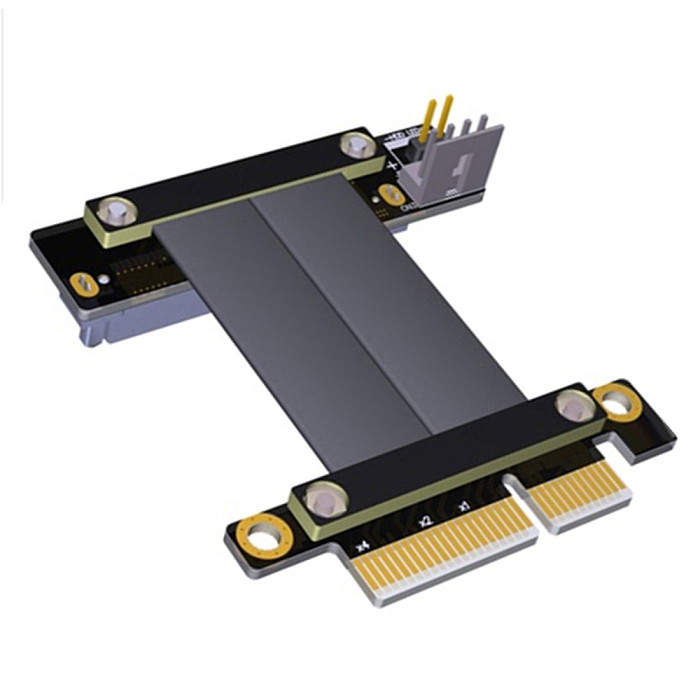

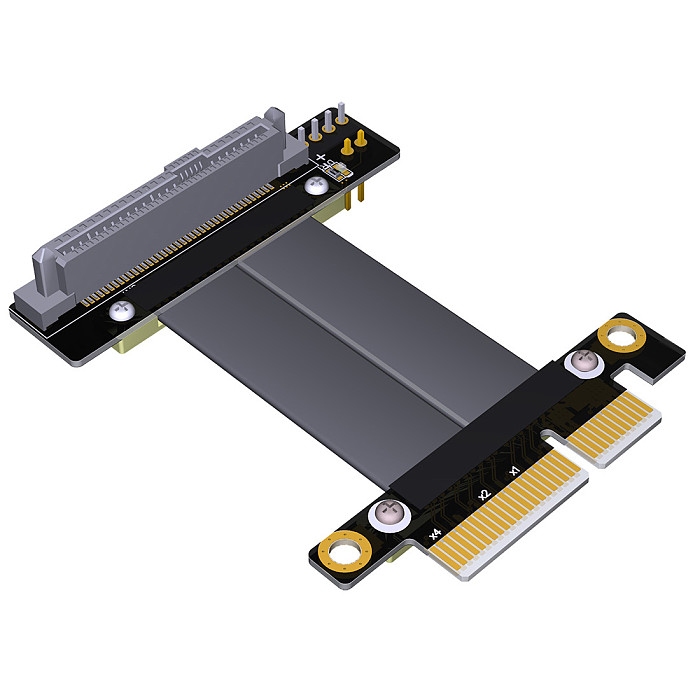

XT-XINTE Riser SFF-8639 U.2 Interface U2 to Motherboard PCI-E 3.0 x4 Interface Transfer Extension Data Gen3.0 Cable For NVME U.2 SSD 2.5 Item NO.: F29500-B2D2 F29500-B2D3 F45327-D1 F45327-D2

US$ 13.33

Color

Quantity: Stock ( 39999996 )

Product Name	XT-XINTE Riser SFF-8639 U.2 Interface U2 to Motherboard PCI-E 3.0 x4 Interface Transfer Extension Data Gen3.0 Cable For NVME U.2 SSD 2.5
Item NO.	F29500-B2D2 F29500-B2D3 F45327-D1 F45327-D2
Weight	0.063 kg = 0.1389 lb = 2.2223 oz
Category	Consumer Electronics > Computer Accessories
Brand	XT-XINTE
Creation Time	2021-11-13

Length is customizable, cable prices of different lengths are not the same ,pls contact us if you need!

Product name: PCIe graphics card extension cord

Product model: R27SL

Connector 1: PCIe x4

Connector 2: SFF-8639 (U.2)

Length:30cm

Model Instructions

Description	Item	Support
SFF-8639（U.2） to PCIe x4 Line up	R27SL	U.2 NVME SSD
SFF-8639（U.2）to PCIe x4 Line down	R27SL-TU	U.2 NVME SSD


The length of the wire instructions:

Our wire length refers to the visual wire part, does not include the PCB and connector.

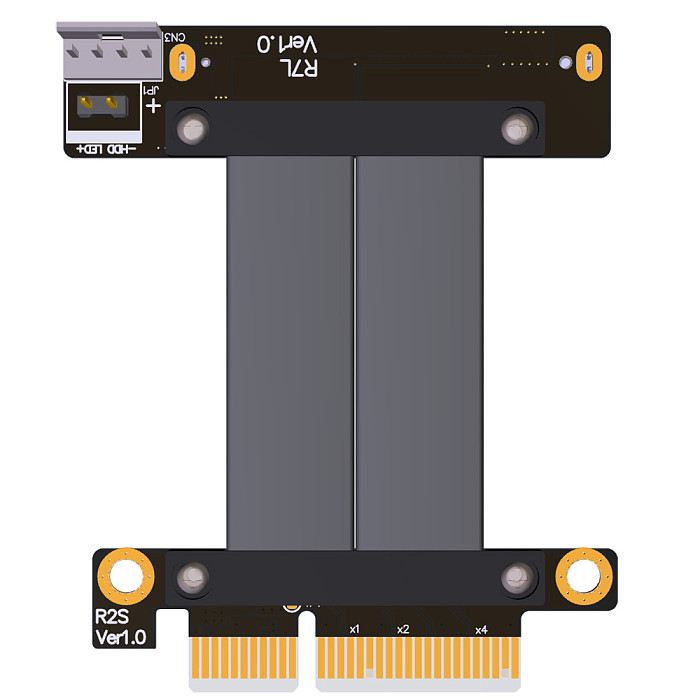

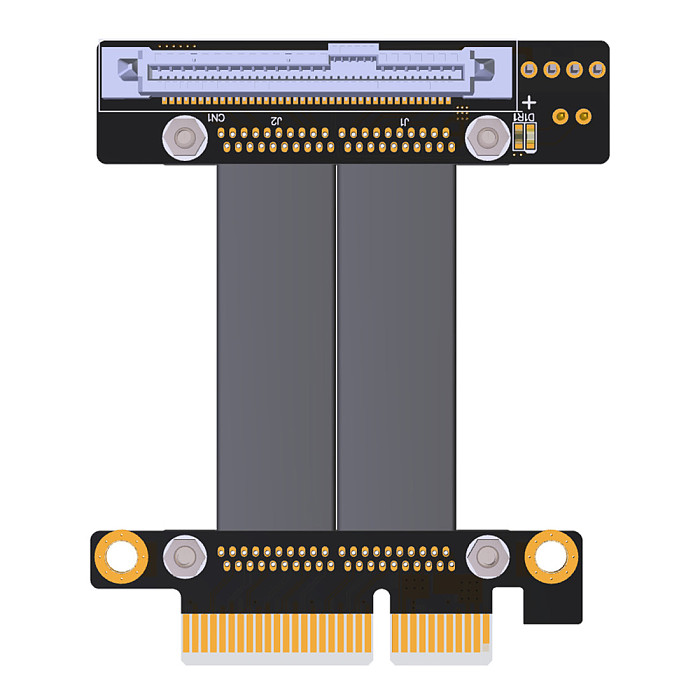

The following models for R27SL - 5 cm, refer to the below dimension.


This M2 SFF-8643 adapter card can convert the M2 PCIe SSD interface of the motherboard into 36-pin SFF - 8643 interface, Use for connecting all kinds of devices with a SFF-8643 interface. It can also be connected to the high performance 2.5 "NVMe U. 2 (SFF - 8639) SSD solid-state drives Through a SFF-8643 to SFF-8639 data cable.

Features:

Transfer PCIe x4 SSD interface to SFF-8639 interface (R27SL)

Connect the 2.5 "NVMe U.2 (SFF-8639) SSD to the motherboard PCIe x4 connector via SFF-8643 to SFF-8639 cable

Don't need a driver.

Specifications:

PCIe x4 interface

SFF-8639 U.2 connector

Operating temperature / humidity: - 40 ° C - 80 ° C / 5-95% relative humidity (non-condensing)

Storage temperature / relative humidity: - 40 ° C - 85 ° C / 0 - 90% relative humidity (non-condensing)

RoHS compliant

Product advantage:

1. Wire advantages: using the German patent imported wire, using the Lotes connectors which imported from Taiwan, high frequency support PCIe 3.0 x4 32G/bps stable transfer
3.Differential signal without hole design, there is no problem of signal attenuation interference in a parasitic capacitance and parasitic inductance, there will be no more CAF micro short circuit, cable is durability.
4.PCB use high frequency low resistance of materials with high quality, PCB using high TG board, copper thickness thicken to 1oz, gold finger plating enough gold, Good conductive performance, can reduce oxidize higher impedance caused by the crash blue screen.
