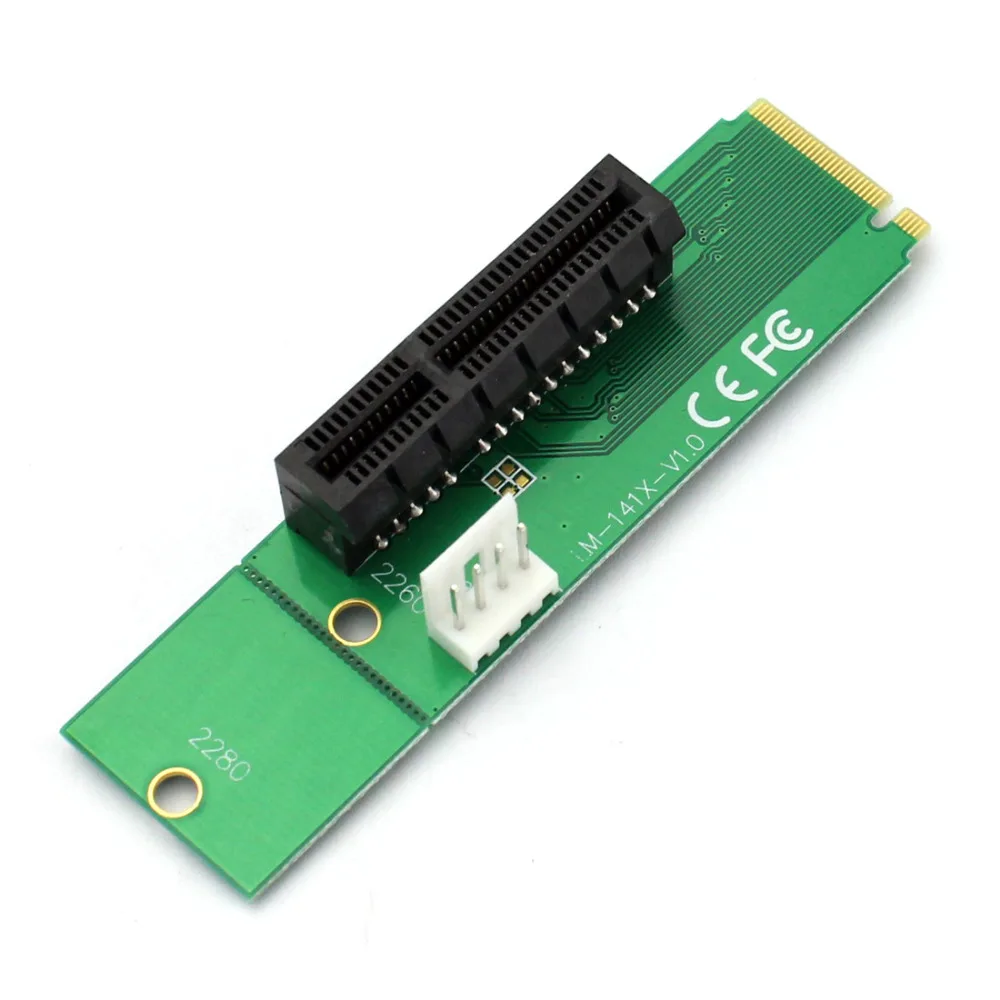

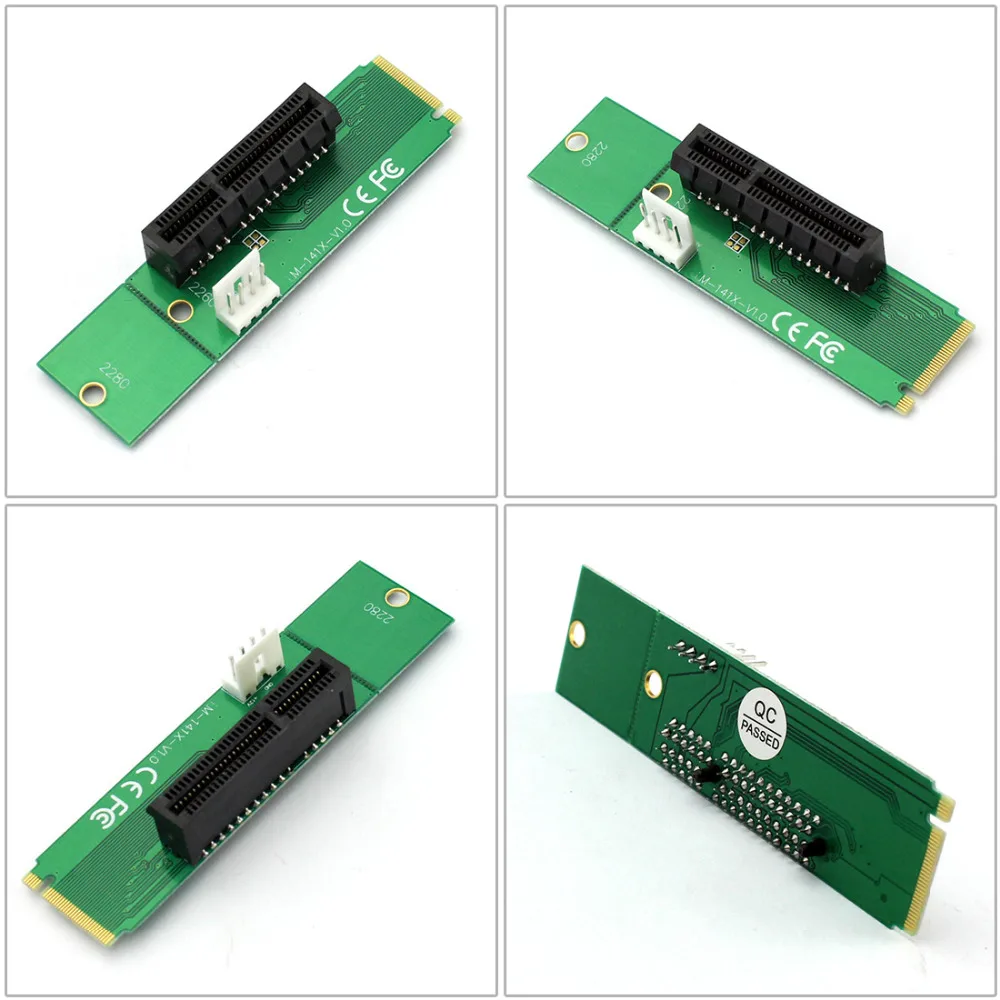

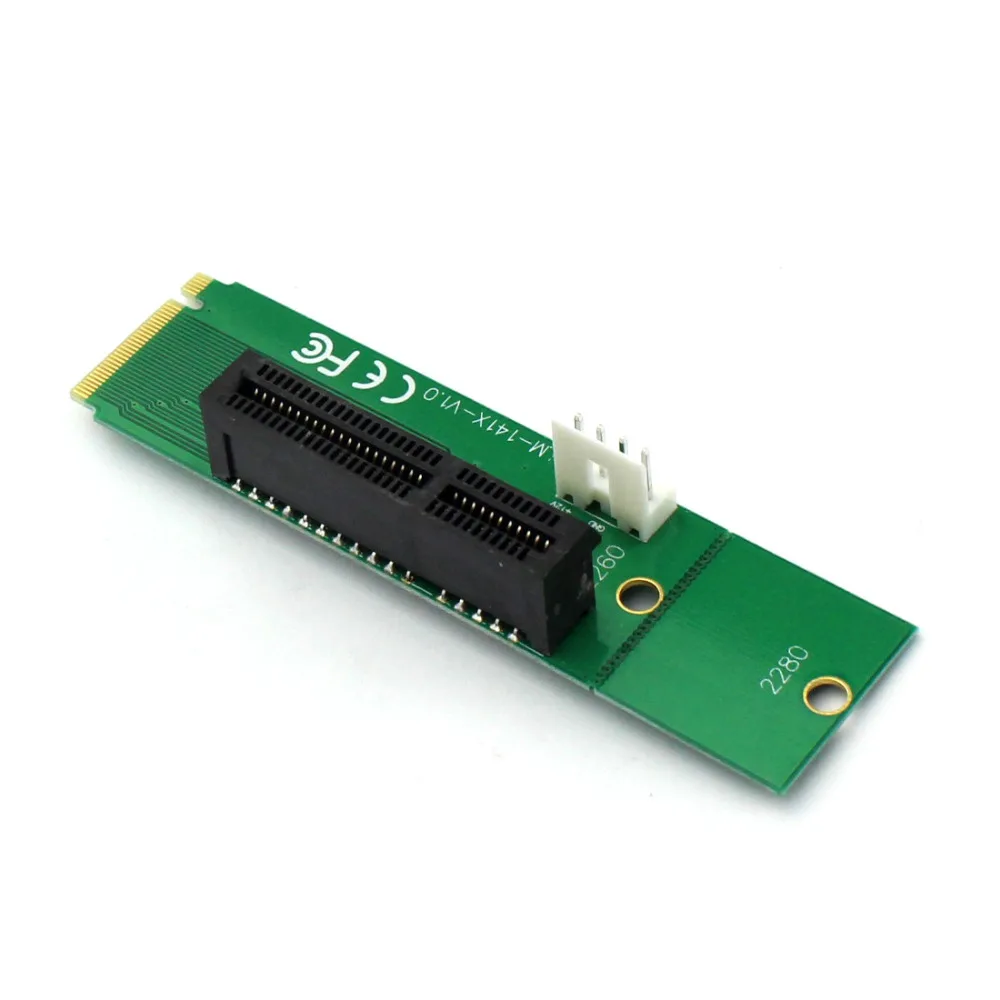

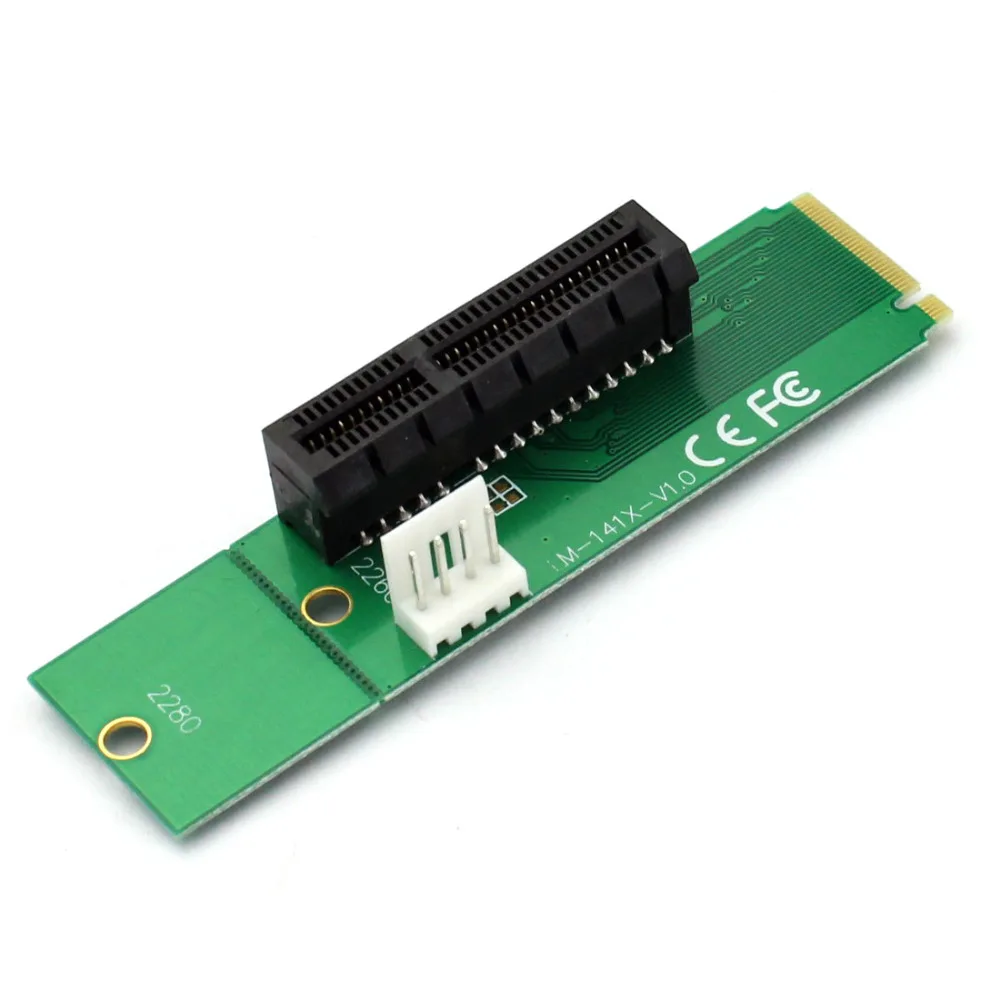

PCI-E 4X Female to NGFF M.2 M Male Adapter Key Power Cable with Converter Card Item NO.: Q13025

PCI-e 4x Card to NGFF M.2 M Key PCIe Slot Adapter

Description :
PCI Express PCI-E 4X Female to NGFF M.2 M Key Male Adapter Converter Card with Power Cable Allows users to use standard PCI-e 1x/4x card in an M.2 NGFF M key slot in the Desktop or Laptop. Transparent to the operating system and does not require any software drivers
Supports data transfer up to 4.0GB/s. Supports socket 3 (M Key). One PCI-E 4X female socket and one NGFF M.2 Key M male connector available

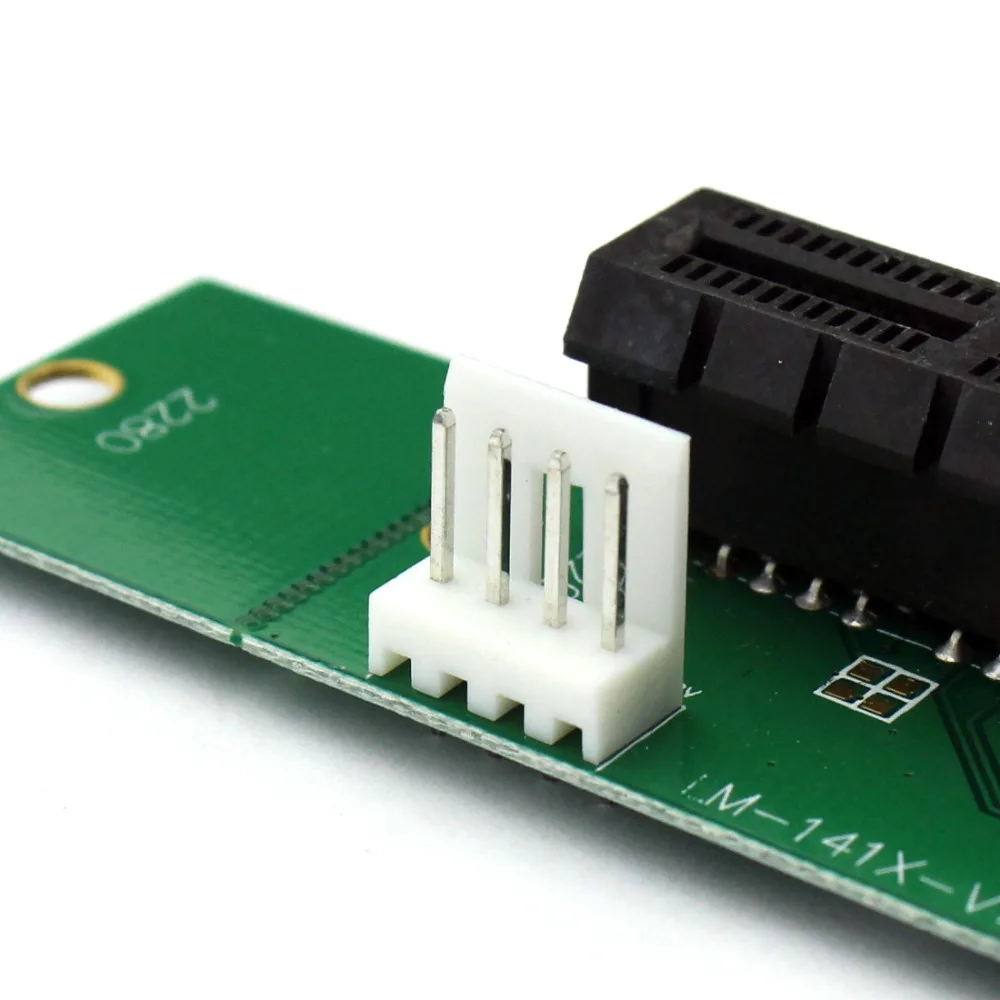

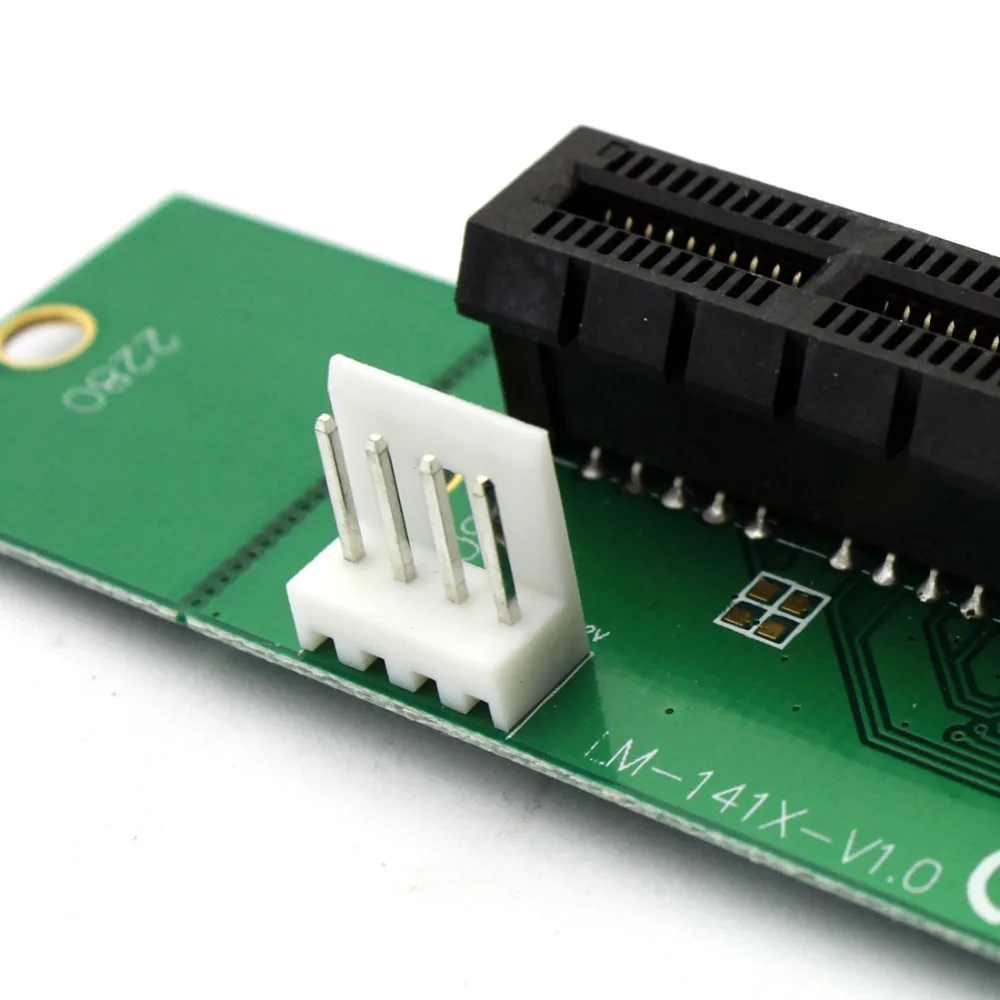

Floppy 4 pin power connector available for stable power. 2 screw holes 2260/2280 available. Easy installation & no driver required. Supports any OS, like Windows, WinCE & Linux etc.
Function :
Allows users to use standard PCI-e 4x card in an M.2 NGFF M key slot in the Desktop or Laptop
Transparent to the operating system and does not require any software drivers
Specifications :
PCI-e X4 to M.2 NGFF Adapter
M.2 Specification Revision 0.9-3
Serial ATA Spec. Reversion 3.2
Support 2260/2280 type M.2 SSD module slot
Only Supports an M.2 Socket 3 PCI-e-based slot
Micro SATA Cables PN # M2-PCIE-1X4X
Quantity:1 Set

Package includes:
1  x  PCI-E 4X to NGFF M.2 B+M Key Adapter Card
1  x  Floppy 4 Pin to Molex Power Cable
1  x  Screw
1  x  Screwdriver
