USB 3.0 Type-C Female to USB 3.0 Internal 19Pin / 20Pin Male USB Data Sync & Charge Cable Cord Connector Adapter FPC FPV Flat

product description:

Brand: ADT-Link

Colour: Black

Size: 15cm

Product model: UTF series products

Product name: USB3.0 USB-C to built-in 19/20P extension cable

Wire length: 3cm-3m (support length customization, if you need other lengths, please contact us to change the price, thank you!)

Adaptation range: USB3.0 type-C to built-in 19P/20P

Speed bandwidth: USB3.0 standard (support 5G/bps within 1 meter)

Current capacity: 3A (measured to support 3A within 50cm, 1.5A within 1 meter)

Product application: ITX motherboard built-in USB device extension adapter, suitable for A4 chassis customized side panel USB type-C seat.

Purchase restriction: This product is designed to connect to built-in USB devices. It is not suitable for general external use. It is limited to the product engineer to specify the purchase. Individual buyers should not place an order for purchase. This product has a fragile structure and is not suitable for civilian use. It is not easy to use for general purposes and does not support return or exchange. Please consider carefully before placing an order.

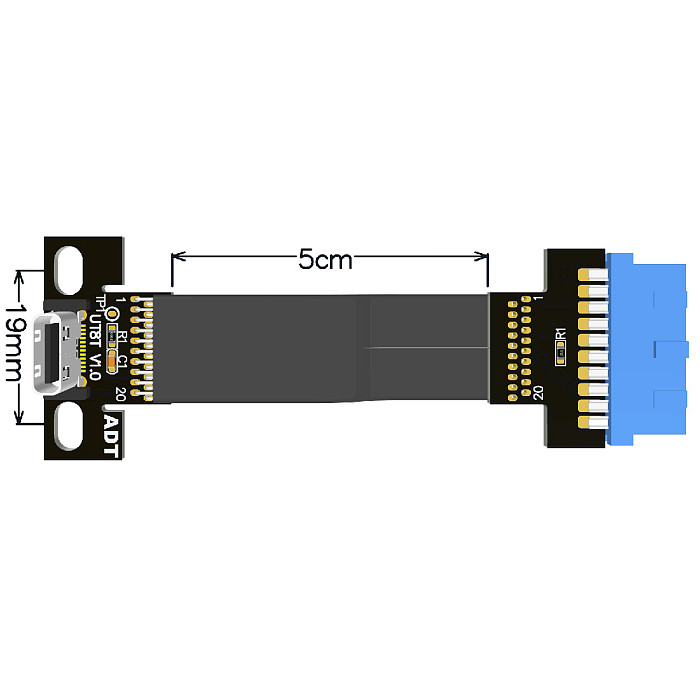

Note: The length of the wire refers to the part of the visible wire, excluding PCB and connectors.

Product advantages:

1. Use German patent imported wire, support USB3.0 5G/bps speed.

2. Cable length advantage, from 3 cm to 3 meters can be customized.

3. The differential signal has no via hole design, the signal is pure, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The PCB power circuit is strengthened and the use of 2 5V power core wires is strengthened to transmit current up to 3A.
