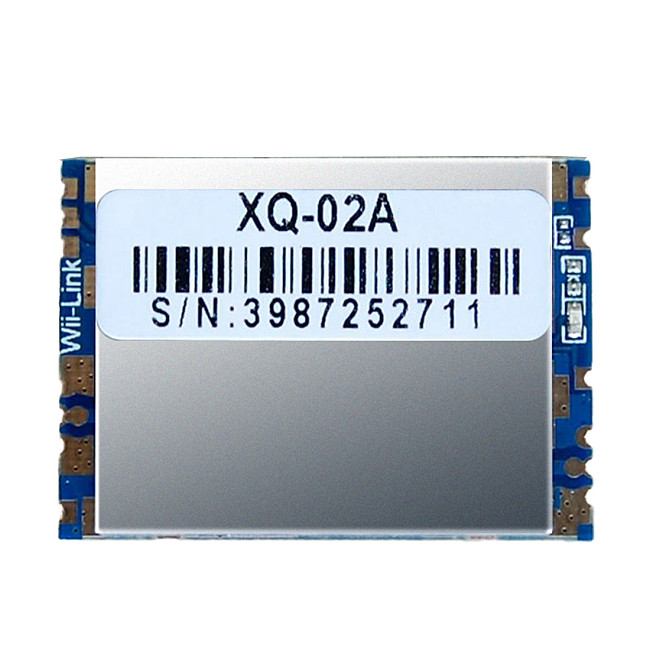

XQ-02A 2.4G 2W Dual Way Wifi Bidirectional Signal Amplifier Module Auto Switch Item NO.: F46707

XQ-02A 2.4G 2W Dual Way Wifi Bidirectional Signal Amplifier Module Auto Switch

Note: The module needs to be soldered to your product, non-quality problems do not support returns.

"XQ-02A" bidirectional signal amplification module is designed for various applications in 2.4GHz band, its compact size and foolproof application make the design of RF part of 2.4GHz wireless products easy. extremely simple, which greatly shortens the product development cycle and reduces the cost of product development!

Built-in high-speed transceiver automatic voltage switching circuit, it can automatically switch the transceiver state, it doesn't need the wifi control chip to give the control signal to work automatically, therefore it is compatible with any WiFi program.

It can be applied to all kinds of special requirements for WiFi signal transmission distance and connection stability, such as: advertising machines, wireless network players, high-power wireless routers, high-power wireless network cards, AP outdoor high power, wireless cameras, etc.

for specifications
Receive gain: 10dB.
Transmission gain: 11dB.
Receive noise factor: {3.0db.
Input power range: 4dBm - 20dBm.
Maximum transmission power (peak power): 33dBm (2W).
Dimensions: 36mm x 26mm x 4.8mm (length x width x height).
Weight: <5g
