USRIOT USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported
USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported

USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported Item NO:Q14870

US$ 12.94 (15% Off)
US$ 15.22 Save US$ 2.28
Qty

Specifications
Product Name USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported
Item NO Q14870
Weight 0.3200 Kg
Category Consumer Electronics
Brand USRIOT
Creation time 2017-08-15

Detail

Features of RS485 Ethernet Server

  • Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
  • Support DNS function
  • Set parameters through webpage
  • Upgrade firmware via network
  • Auto-MDI/MDIX, RJ45 port with 10/100Mbps
  • Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space
  • Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
  • Support virtual serial port and provide corresponding software USR-VCOM
  • Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
  • User-defined registration package mechanism, check connection status and use as custom packet header
  • Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
  • The global unique MAC address bought from IEEE, user can define MAC address
  • Restore factory default
  • Across the gateway, switches, routers
  • Can work in LAN, also can work in the Internet (external network)
  • Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
  • Support customization

Application Field of RS485 Ethernet Server

  • Industrial data transmission, industrial automation
  • security and protection monitoring, public security
  • Smart home, power control, environmental monitoring, intelligent agriculture
  • Door check on work attendance system, POS system, rice selling system
  • Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

Built-in Webpage of RS485 Ethernet Server



aeProduct.getSubject()

Application of RS485 Ethernet Server





aeProduct.getSubject()

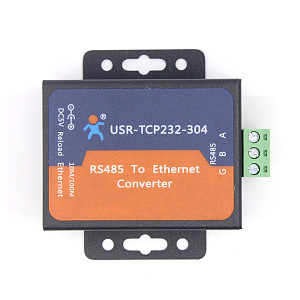

Images of RS485 Ethernet Server





aeProduct.getSubject()

System Information
Processor ARM
Ethernet
Port Number 1
Interface Standard RJ45
Rate 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
Buffer Send: 6K bytes, receive: 4K bytes
Serial
Port Number 1
Interface Standard RS-485: 2 wire (A+, B-)
Data Bits 5, 6, 7, 8
Stop Bit 1, 2
Check Bit None, Even, Odd, Space, Mark
Baud Rate 600 bps ~ 230.4 Kbps
Flow Control Null
Buffer Receive: 800 bytes
Software
Virtual Serial (USR-VCOM) Windows 2000 or higher (32 bit/64 bit)
Configuration Computer set-up software, serial command, built-in webpage
Basic Parameter
Size 71 x 60 x 25 mm
Operating Temp. -25 ~ 75°C
Storage Temp. -40 ~ 105°C, 5 ~ 95% RH
Input Voltage DC 4.75 ~ 7V
Working Current 150mA @ 5V
Power <1W
More

Accessory 5V1A power supply
