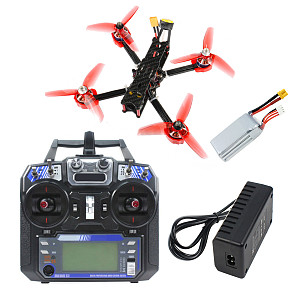

JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter RTF with GHF411AIO Flight Controller Supra-VTX FS I6 Transmitter 750mAh 3S Battery

JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter RTF with GHF411AIO Flight Controller Supra-VTX FS I6 Transmitter 750mAh 3S Battery Item NO.: F37458-I

Write a Review
US$ 181.04
US$ 212.99 Save US$ 31.95 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter RTF with GHF411AIO Flight Controller Supra-VTX FS I6 Transmitter 750mAh 3S Battery
Item NO. F37458-I
Weight 0.59 kg = 1.3007 lb = 20.8116 oz
Category RC Toy Drone > Hot sale brand
Brand JMT
Creation Time 2020-05-16

JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter RTF with GHF411AIO Flight Controller Supra-VTX FS I6 Transmitter 750mAh 3S Battery

FLYSKY version FS i6 AFHDS-2A remote control, Fli14 + receiver 14 channels with PA amplifier and OSD
will come with all the parts welded and assembled and tested.

Package include:
1x JMT F4 X1 Frame Kit
4x XT1806-2500KV Motors (2CW+2CCW)
1x JMT GHF411AIO Flight Controller Built-in 30A ESC
4x 4032 3-blade Props (4Pairs Red)
1x Caddx.us Ratel 2.1mm+ND filter FPV Camera
1x JMT Supra-VTX 25-100-200MW VTX
1x JMT NAZE32 Buzzer
1x RunCam Speedy Bee Antenna RHCP+UFL
1x Antenna tailstock
1x Flysky Fli14+ Receiver
1x Flysky FS I6 Transmitter
1x IMAXRC B3 pro Charger
1x GNB 750mAh 3S 11.1V 80C Lipo Battery


Features
Integrated flight control ESC
Night mode and day mode can be switched between day and night
Support 2-4S battery
The power cord we provide is an XT30 plug. If you need an XT60 or other plug, please contact us to replace it for you

Rack
Wheelbase: 175mm
Weight: 56g
Material: carbon fiber
Color: Matte Twill
Arm thickness: 3.5mm
Thickness of upper plate: 2mm
Floor thickness: 2.5mm
Thickness of other boards: 2mm
Applicable camera size: 19mm
Flight control installation size: 20 * 20mm, 25.5 * 25.5mm

Paddle
Product name: 4032
Hub size: 5mm
Weight: 3.09g
Material: PC
Color: transparent red

Motor
KV: 2500
Stator diameter: Φ18
Motor weight: 21.1g
Power supply voltage: 2-4s

Flight control + ESC
Flight control parameters • CPU: STM32F411CEU6 (100MHZ) • Six axes: MPU6000 (SPI connection) • Size: 32.5 * 32.5mm (25.5mm mounting hole) • Firmware version: Betaflight MATEKF411 (MK41) • OSD: Built-in BetaFlight OSD (OSD chip : AT7456E)
• Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
• Built-in current sensor
• Weight: 6.3g

ESC parameters
• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 30A
• Firmware: BLHELI_S

Image transmission
Project name: 5.8G 40CH 25mW 100mW 200mW switchable FPV transmitter
Input voltage: 4.5-5.2V (DC)
Input current: 500mA @ 200mW
Power: 25mW / 100mW / 200mW (switchable)
Channel: 40CH
Antenna connector: IPEX
Dimensions: 37x24x5mm
Mounting hole: 25.5x25.5mm
Weight: 2g

camera
Lens: 2.1mm
Horizontal resolution: 1200TVL
FOV: 180 degrees
Minimum delay: 8 ms
TV system: NTSC and PAL (can be changed)
Image: 16: 9 and 4: 3 (can be changed)
Language: ENG / FRANCE / RUS / SPA / PU / KOREA / China / Japan
Day / Night: Auto / Color / Black and White / External
Size: 19mm * 19mm * 19mm

Wide power input: DC 5-40V
