Original Tarot TL3T01 Update from T4-3D 3D Metal 3-axis Brushless Gimbal for GOPRO GOPRO4/GOpro3+/Gopro3 FPV Photography


please notice that:

the Shock Ball have 2 version: with Tarot Logo and without Tarot logo, changed by production  batch,

if you have request about the logo, please contact with me after you place the order








Tarot new 3D gimbal developed on the basis of T4-3D is different from the old version.
Designed for GoPro, quick installation, bid farewell to the past, cumbersome operations.
Precision-driven algorithms, precise control of the motor, only to present live moment.
Speed-controlled three-axis.


Support computer interface settings, posture lock mode (AL), point to following mode (PF), first-person mode (FPV).


Built-in independent TAROT PTZ dedicated servo drive module.

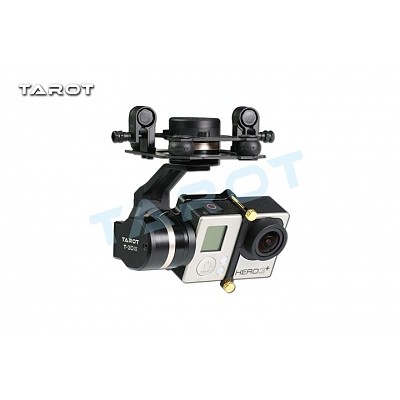

Tarot GOPRO 3D 3 metal three-axis gimbal designed for Canon GOPRO HERO 3/3 + / 4 camera, integrated TAROT series PTZ all high-end technology, with full CNC ribbed slab structure overall industrial design, bringing lightweight and stability of the strongest. Even in extremely harsh environments, it can also lock the camera accurately to maintain a high degree of stability and output ultimate screen. Tarot GOPRO 3D 3 gimbal with excellent math skills triaxial PTZ control system, built-in stand-alone IMU precise attitude control PTZ, and PTZ integrated servo drive module, support for gesture lock, and the first point to follow the regulatory angle three operating modes.

Mechanical / electronic properties:

Applicable Camera Type: GOPRO HERO 3/3 + / 4
Input Power: 3S-6S Li (11V-26V)
Operating Current: 30mA ( 25V) / 50mA ( 12V)
Stall Current: 350mA ( 25V) / 700mA ( 12V)
Attitude control accuracy: ± 0.02 degrees
Maximum controllable speed
The direction of rotation (PAN): ± 200 ° / s
Pitch direction (TILT): ± 200 ° / s
Roll direction (ROLL): ± 200 ° / s
The controllable range of rotation
The direction of rotation (PAN): ± 330 °
Pitch direction (TILT): -135 ° to + 45 °
Roll direction (ROLL): ± 48 °
S-Bus / PPM / DSM receiver supports
Working temperature: -20  ~ + 50Celsius degree
Maximum dimensions (LWH): 60 mm * 75 mm * 100mm

Assistant Software Installation Requirements
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)


Package includes:


3aixs gimbal 160 g × 1
PTZ control module (36 × 25 × 11MM) × 1
8P main controller and cable × 1
5V output receiver and video cable × 1
USB module (27 × 21 × 7MM) × 1
Flight control cable × 1
