HAKRC 3-Axis assembled Brushless Gimbal Frame With Motors & Storm32 Controlller for Gopro 3 4 Xiaomi Xiaoyi SJ4000 SJCAM FPV RTF Item NO.: F39230

US$ 54.27

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	HAKRC 3-Axis assembled Brushless Gimbal Frame With Motors & Storm32 Controlller for Gopro 3 4 Xiaomi Xiaoyi SJ4000 SJCAM FPV RTF
Item NO.	F39230
Weight	0.25 kg = 0.5512 lb = 8.8185 oz
Category	DIY RC Drone Accessories > Gimbal
Brand	Hakrc
Creation Time	2020-07-11

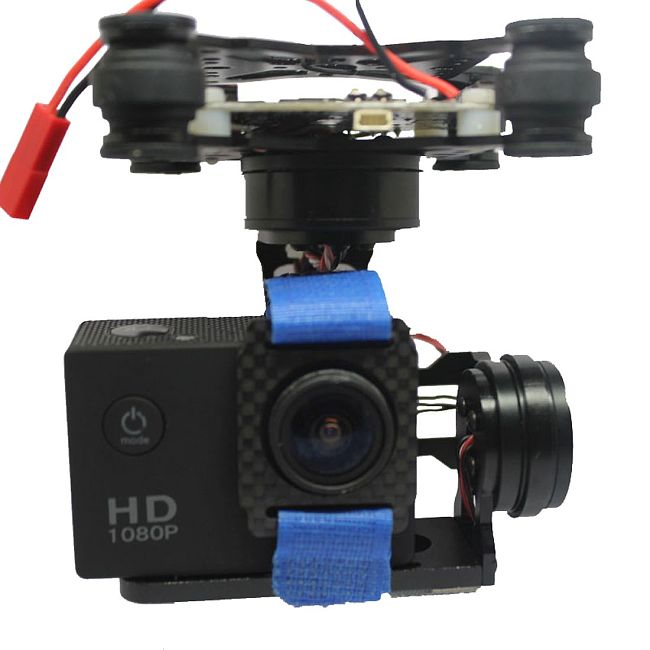

HAKRC 3 Axis assembled Brushless Gimbal Frame With Motors & Storm32 Controlller for Gopro 3 4 Xiaomi Xiaoyi SJ4000 SJCAM FPV RTF Brushless yuntai 3 axis CNC metal

Item description: GOPRO3 / GOPRO4 brushless yuntai 3 axis CNC metal.
T brushless motor motor models: 2206/100:2, only 2805/100 t brushless motor: 1 only
The driver board: STORM32BGC
Firmware version: o323bgc - release - v090
Hardware version: V130
Working voltage: 3-4 s (11.1 to 16.8 V)
Working current: 350 ma
Joystick control Angle: PITCH: 25 + 25 degrees/ROLL: 25 + 25 degrees/YAW: + 90 degrees - 90 degrees.
Switch control mode: lock/follow
Size: 80 * 80 * 100 mm (L * W * H)
Weight: 180 g
Scope of application: GOPRO series is compatible with the camera.
Electrical connections: JST and HX

How to install:
1. Remove vibration ball, open at the top of the mounting plate
2. Lock mounting plate with screws at the bottom of the craft
3. Install the damping ball
4. Install the camera, with a girdle bond compact camera,
Directions for use
Packed the camera (be sure to install cameras, otherwise will be shaking), after electrify stable yuntai about 20 seconds (don't be shaking yuntai, keep yuntai hangs,) from the ground, after hearing a sound, can be normal use
Can control the pitch by a receiver or other individual PWM channels
You can set the following mode or lock mode

Can set the Angle mode or speed
