Tarot 3D V Metal 3 axis PTZ Gimbal Camera Stablizer TL3T05 for GOPRO Action Camera FPV Drone Item NO.: F22383

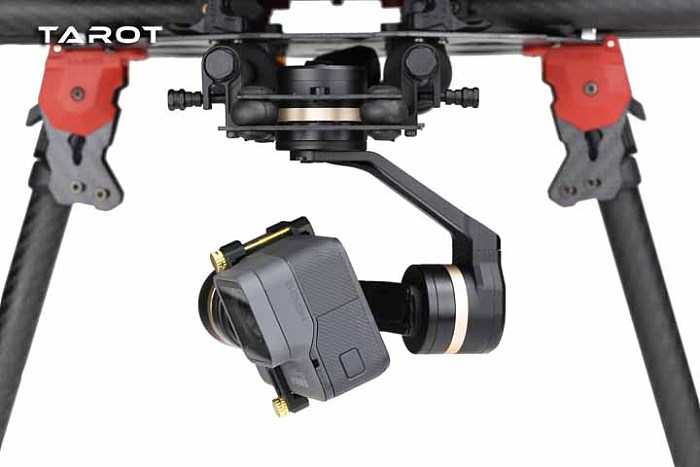

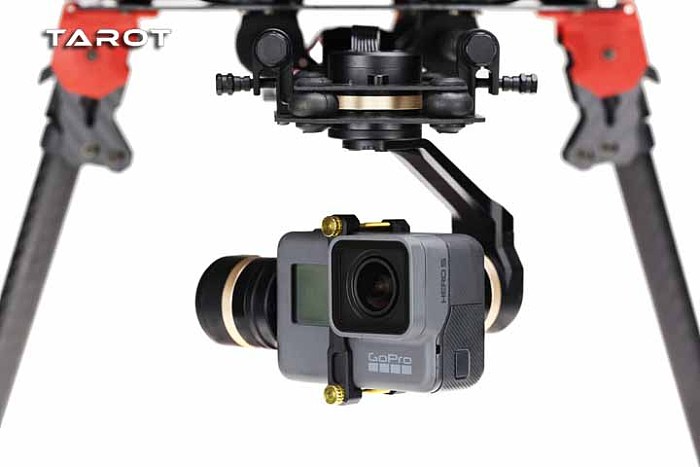

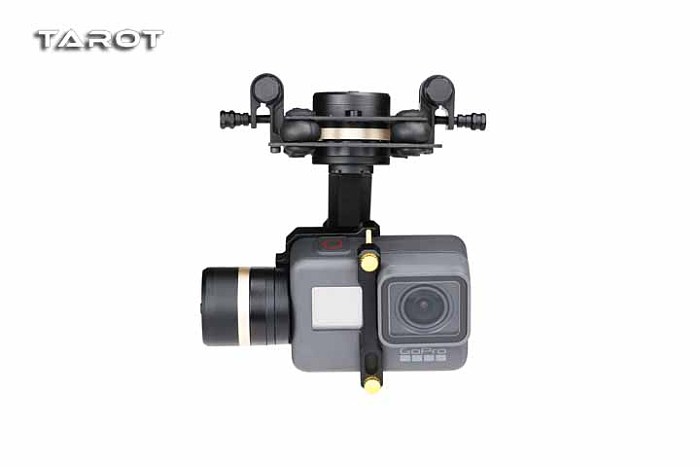

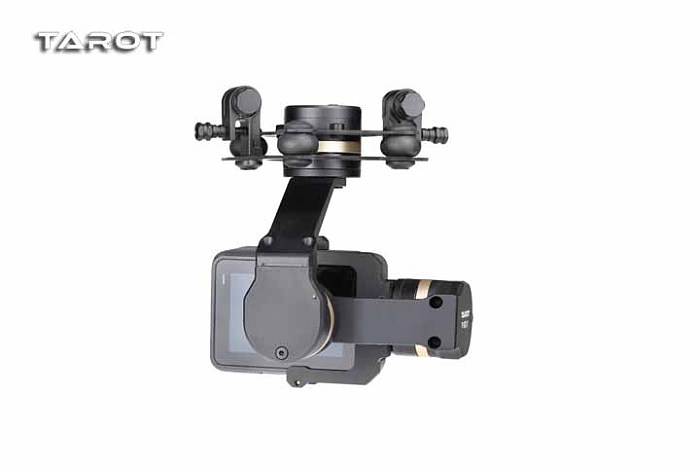

Name: Tarot 3D V Metal 3 axis PTZ Gimbal Camera Stablizer TL3T05 for GOPRO Action Camera FPV Drone
Brand: Tarot
SKU: F22383
Price: 134.55 USD
Availability: InStock

Write a Review Sold (2)

US$ 134.55

US$ 158.29 Save US$ 23.74 (15% Off)

Quantity: Stock ( 999998 )

Estimate Shipping Cost

Add to Cart

Product Specifications:
Metal triple axle 160k × 1

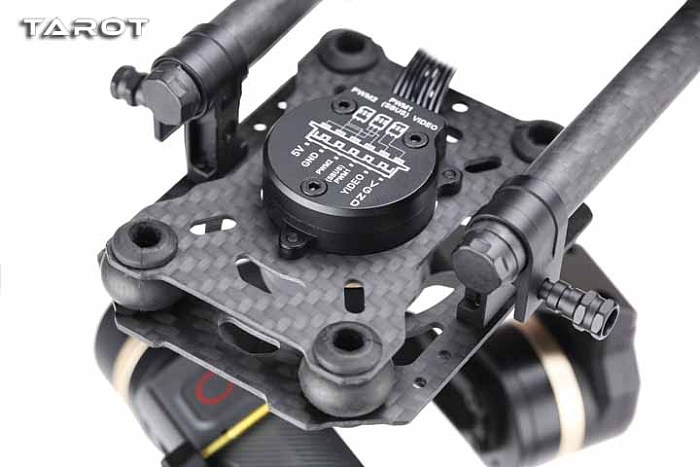

PTZ master module (36 × 25 × 11MM) × 1
8P PTZ master and PTZ main body cable × 1
5V output, receiver and video cable × 1
USB module (27 × 21 × 7MM) × 1
Flight control cable × 1
Manual x 1

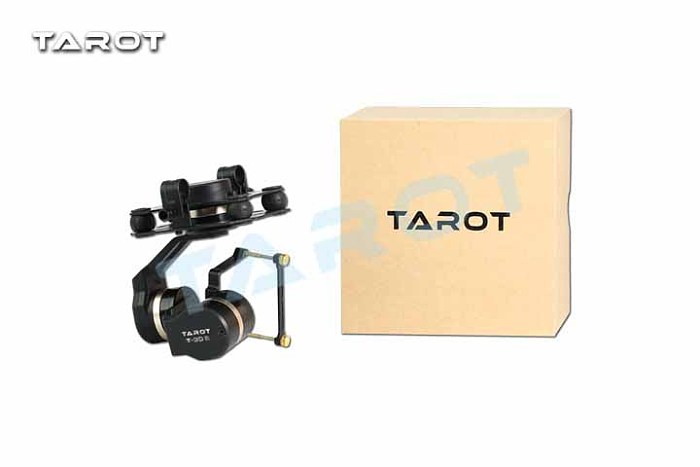

Packing box × 1

Product Name	Tarot 3D V Metal 3 axis PTZ Gimbal Camera Stablizer TL3T05 for GOPRO Action Camera FPV Drone
Item NO.	F22383
Weight	0.4 kg = 0.8818 lb = 14.1096 oz
Category	DIY RC Drone Accessories > Gimbal
Brand	Tarot
Creation Time	2017-07-31

product manual:
Tarot GOPRO 3DIV metal three-axis PTZ designed for GOPRO HERO 5 camera, integrated TAROT series PTZ all high-end technology, the use of the whole CNC integral ribbed wall structure of industrial design, to bring light and the strongest stability The Even in harsh extreme environments, can also accurately lock the camera to maintain a high degree of stability, the ultimate experience of the output of the fine screen. Tarot GOPRO 3D Ⅳ metal three-axis PTZ with excellent computing ability of the PTZ control system, built-in independent IMU precise control PTZ attitude, integrated PTZ and servo drive module to support the attitude lock, point to follow and the first corner of the three operating modes The
Mechanical / electronic characteristics
Applicable Camera Type: GOPRO HERO 5
Input power: 3S-6S Li (11V-26V)
Operating current: 30mA (@ 25V) / 50mA (@ 12V)
Stall current: 350mA (@ 25V) / 700mA (@ 12V)
Attitude control accuracy: ± 0.02 degrees
Maximum controllable speed
Rotation direction (PAN): ± 200 ° / s
Tilt direction (TILT): ± 200 ° / s
Rolling direction (ROLL): ± 200 ° / s
Controllable rotation range
Rotation direction (PAN): ± 330 °
Tilt direction (TILT): -135 ° to + 45 °
Rolling direction (ROLL): ± 48 °
S-Bus / PPM / DSM receiver support
Working environment temperature: -20 ℃ ~ +50 ℃
Maximum dimensions (LWH): 60 mm * 75 mm * 100mm
Adjustment software installation requirements
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
National Intellectual Property has granted TAROT Model Co., Ltd. this product patent. Any unit or individual without the authorization of the holder, manufacturing, copying, use, sale of this product will face patent infringement litigation. The state intellectual property has been awarded the TAROT model., Ltd six patents. Any units orindividual without the license holder manufacture, copy, use and sale the product will be patent lawsuit.
Patent number: 2014201546579
Product Specifications:
Metal triple axle 160k × 1
PTZ master module (36 × 25 × 11MM) × 1
8P PTZ master and PTZ main body cable × 1
5V output, receiver and video cable × 1
USB module (27 × 21 × 7MM) × 1
Flight control cable × 1
Manual x 1

Packing box × 1
