(ISDT) K2Air Smart Charger Dual Mode Dual Channel DC500W*2 UBS Interface Item NO.: F47622-D1F47622-D2 F47622-D3

US$ 128.54

Version: US plug EU plug UK Plug

Quantity: Stock ( 29999997 )

Estimate Shipping Cost

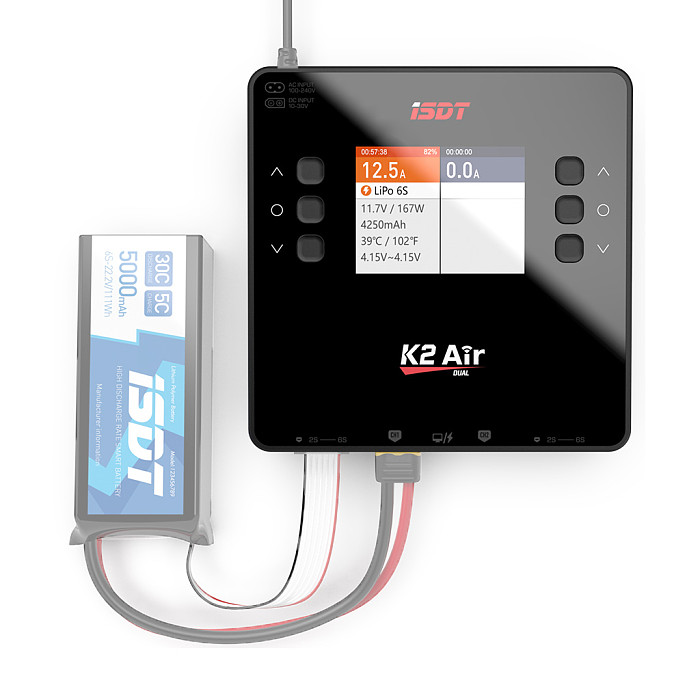

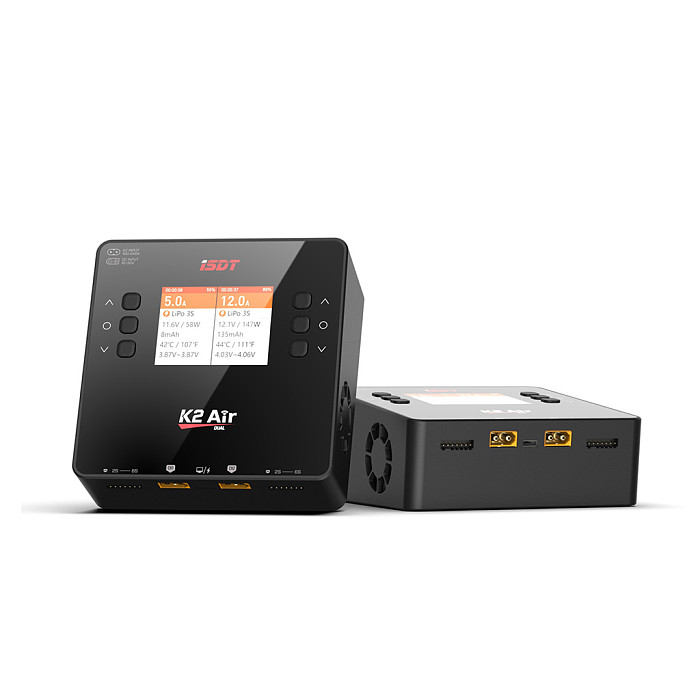

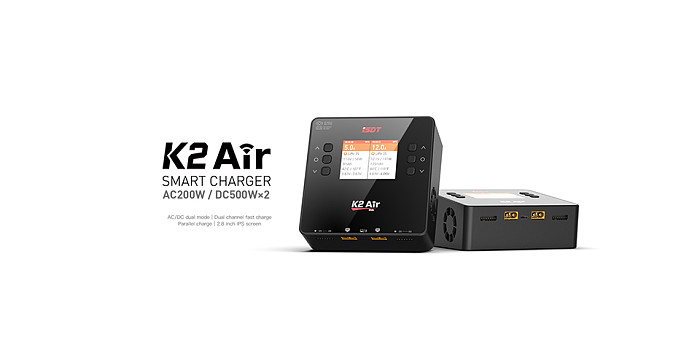

(ISDT) K2Air Smart Charger Dual Mode Dual Channel DC500W*2 UBS Interface

Product Name	(ISDT) K2Air Smart Charger Dual Mode Dual Channel DC500W*2 UBS Interface
Item NO.	F47622-D1F47622-D2 F47622-D3
Weight	0.75 kg = 1.6535 lb = 26.4555 oz
Category	DIY RC Drone Accessories > Charger
Brand	iSDT
Creation Time	2022-06-20

AC/DC Dual mode | Dual channel fast charge
Synchronous Parallel charging | 2.8″ IPS LCD Display

AC/DC dual mode

AC /DC dual input meet different use requirements.
Output ： AC /200W, DC /500Wx2.

AC/DC Safe access

Fool-proof input interface. Smart design
The DC input port and AC input port are mutually exclusive.
Only one input can be selected in one time,
Ensure the safety operation.

AC/DC dual mode

AC /DC dual input meet different use requirements.
Output ： AC /200W, DC /500Wx2.

DC 500Wx2

High Power Synchronous Dual Channel, with Smart Charging.

Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 500W for single port.
Choose ISDT, Powered by Innovation.

2.8″ IPS LCD Display

Low power consumption, 178° visible angle
Display clear and distinct
Even in varies hard environment or angles
As well as in strong sunshine.

Two-way USB interface

By connecting the charger microUSB port to the PC,
all series can acquire latest firmware upgrading.
It can also output 5V/2A power through the USB Type-C interface,
For charging mobile devices.

Support Brand New

Smart Battery Technology

Smartly exchange information with BattAir battery,
Automatically identify the battery type,
match the optimal charging parameters.
Safe and smart.

Wireless Operation,
start with “ISDLink”

K2 Air adds the wireless connection function.
With ‘ISDLink’ APP, you can preset charging tasks,
monitor the charging process at any time.
Also, one click to OTA upgrade.
Wirelessly operate, awesomely simple.

Signature original creative interactive systems

Serve 152 countries and regions
Support on line upgrading for more languager, and better interactive system for global market.

Specifications

Input voltage:	AC 100~240V / DC 10~30V
Output voltage:	DC 1~30V
Max. input current:	DC 35A
Charging current:	0.2~20A x2
Discharging current:	0.2~1.5A x2
Balance current:	1.5A/Cell Max
Max. discharging power:	15W x2
Max. charging power:	AC 200W / DC 500W x2
Abnormal voltage alarm:	Support
Incorrect cell count setting alarm:	Support
Supported battery types and cell count:	LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current:	800W/35A
Parallel discharge power and current:	30W/3A
Working temperature:	0~40℃
Storage temperature:	-20℃~60℃
Dimension:	135x135x64mm
Weight:	About 700g
