Copy| Product Name | JINEKS A3 Small Case Core Display Computer Case ITX Can be Vertical or Horizontal Suitable for Office Games Portable Small Console |
| Item NO. | F54826-A1 F54826-A2 |
| Weight | 2.3 kg = 5.0706 lb = 81.1301 oz |
| Category | Computer Accessories |
| Creation Time | 2025-11-12 |

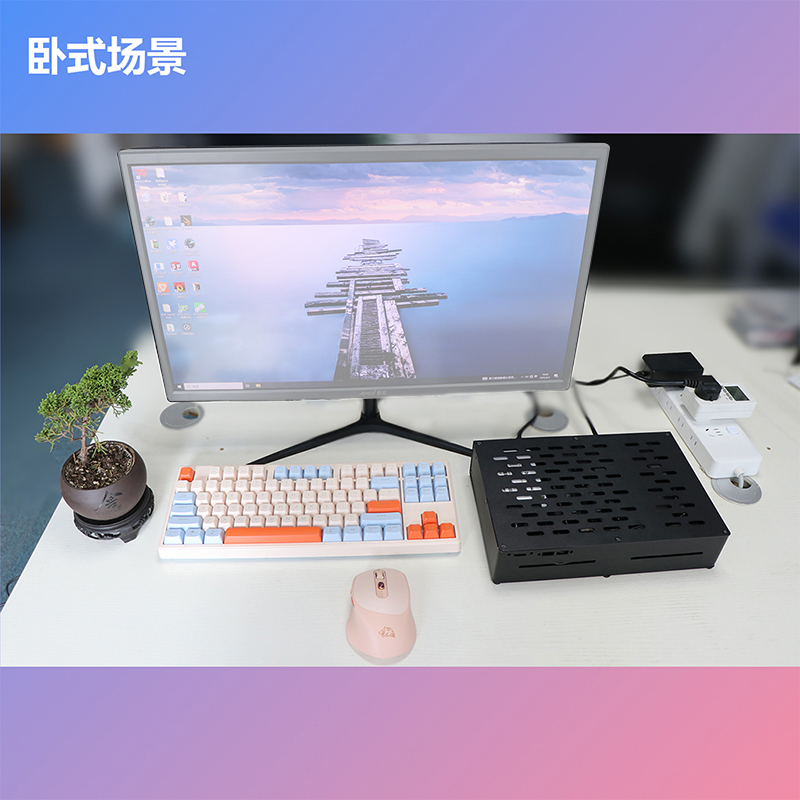

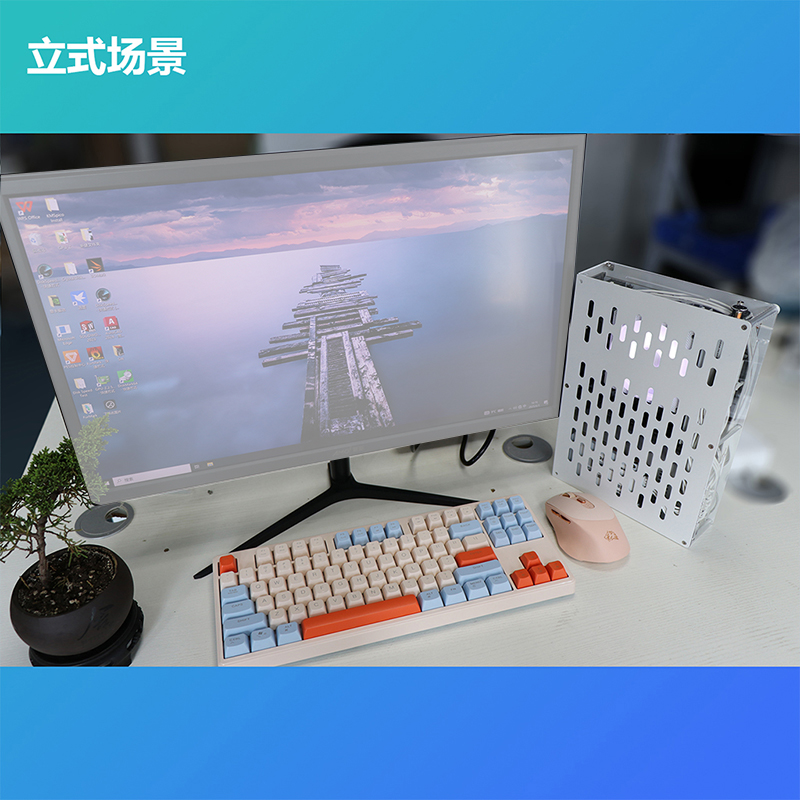

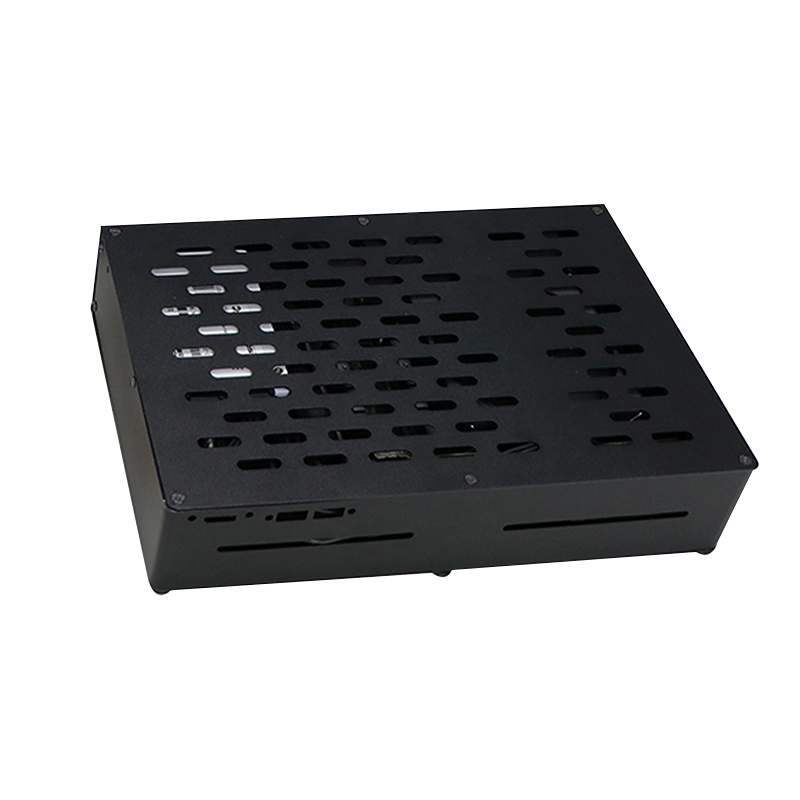

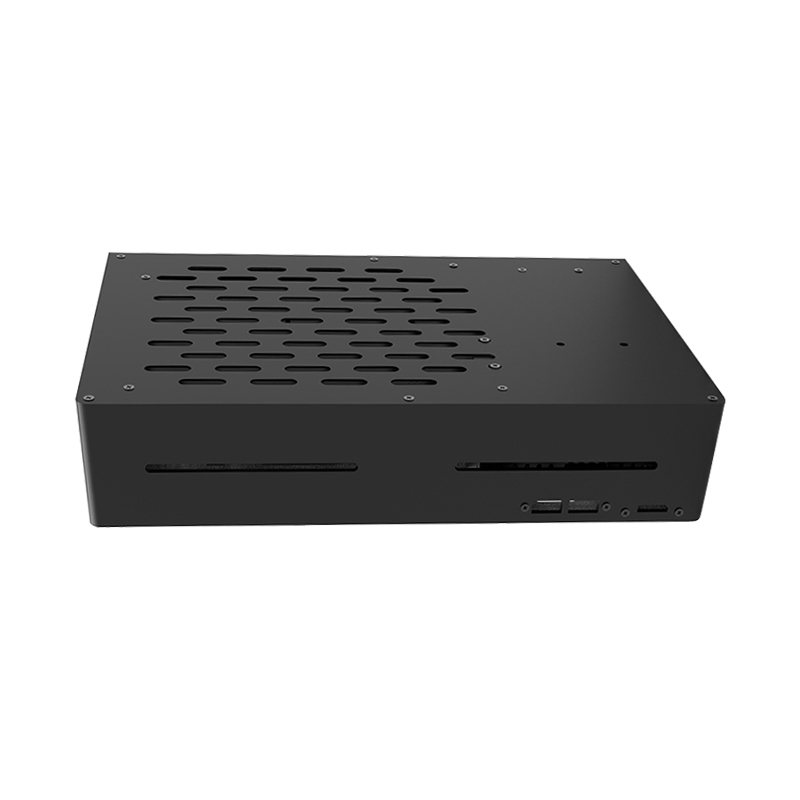

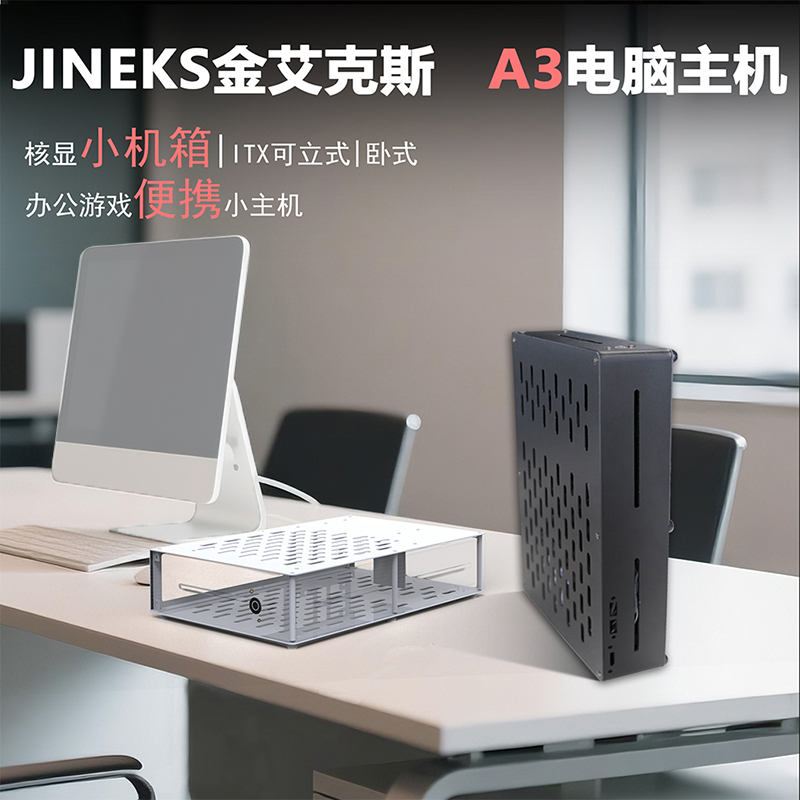

JINEKS A3 Small Case Core Display Computer Case ITX Can be Vertical or Horizontal Suitable for Office Games Portable Small Console
parameter:

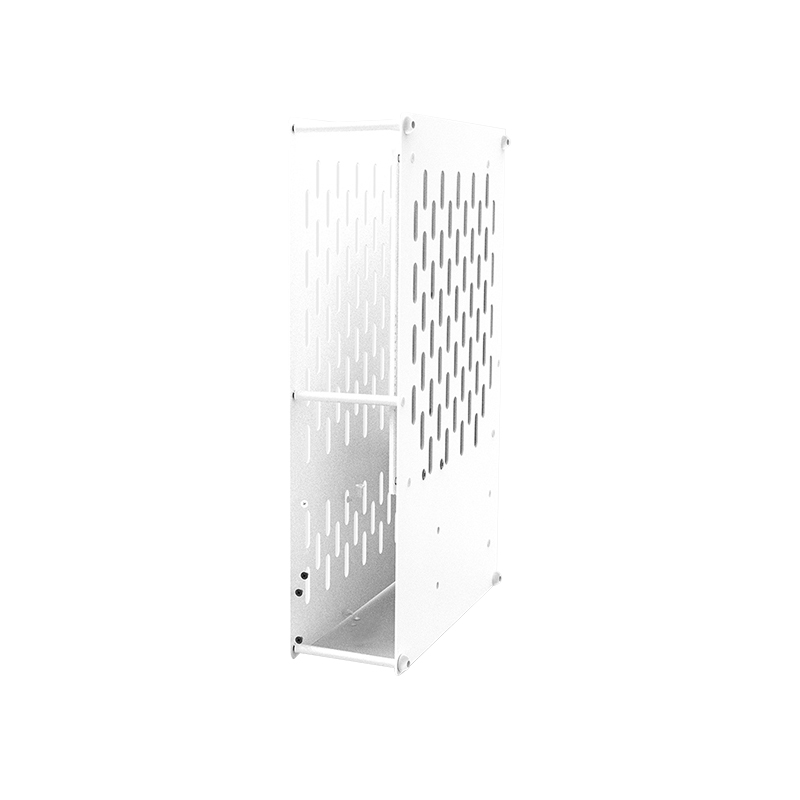

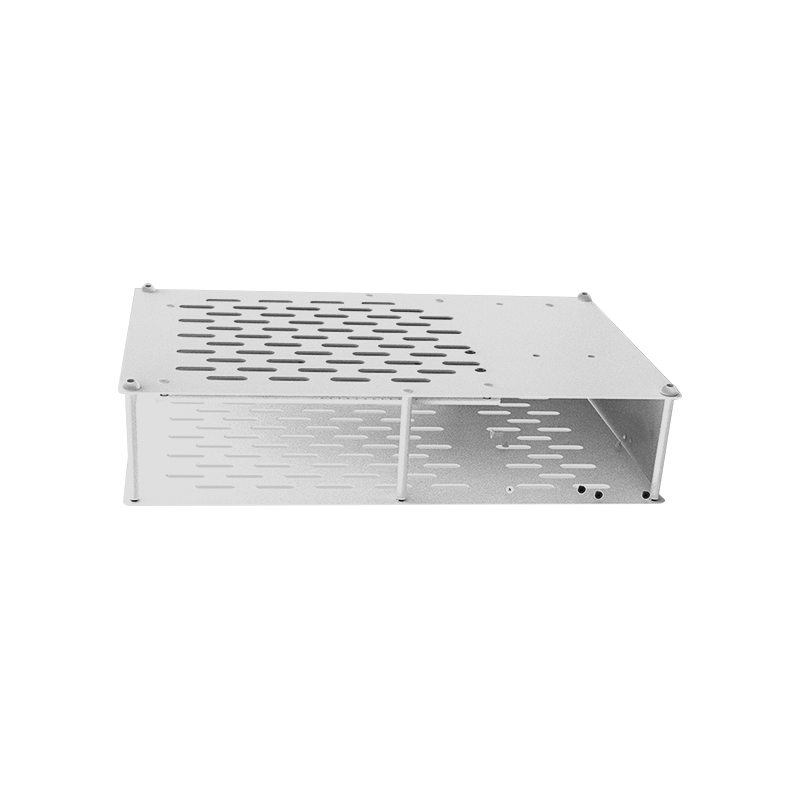

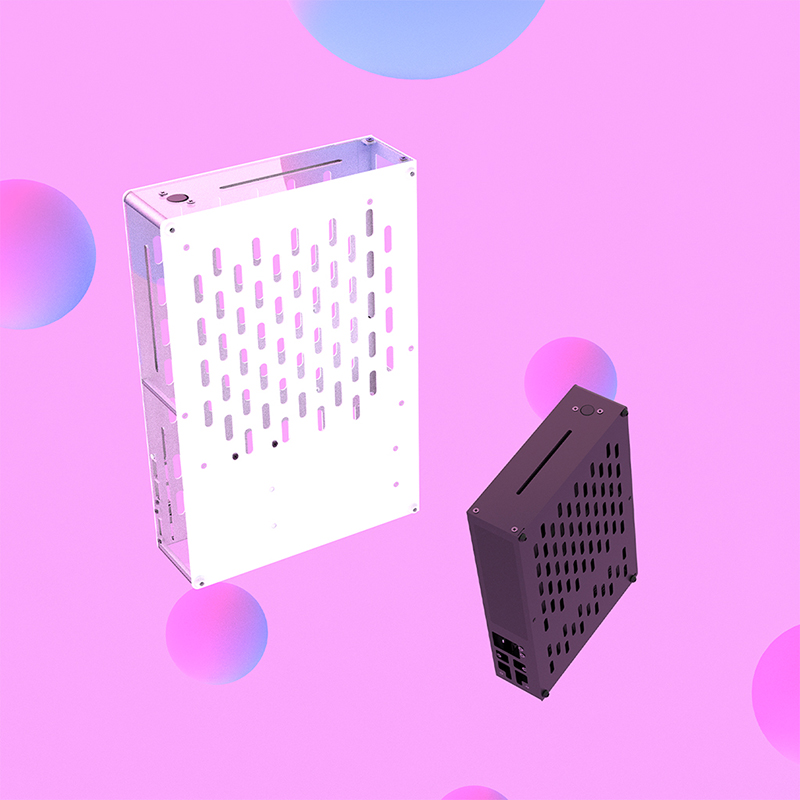

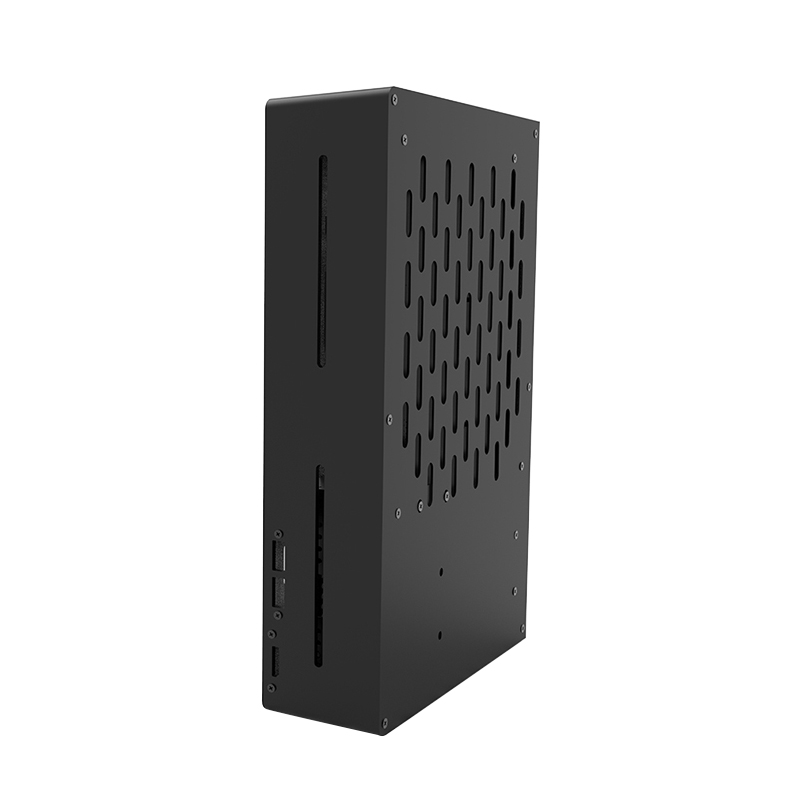

JINEKS A3 chassis

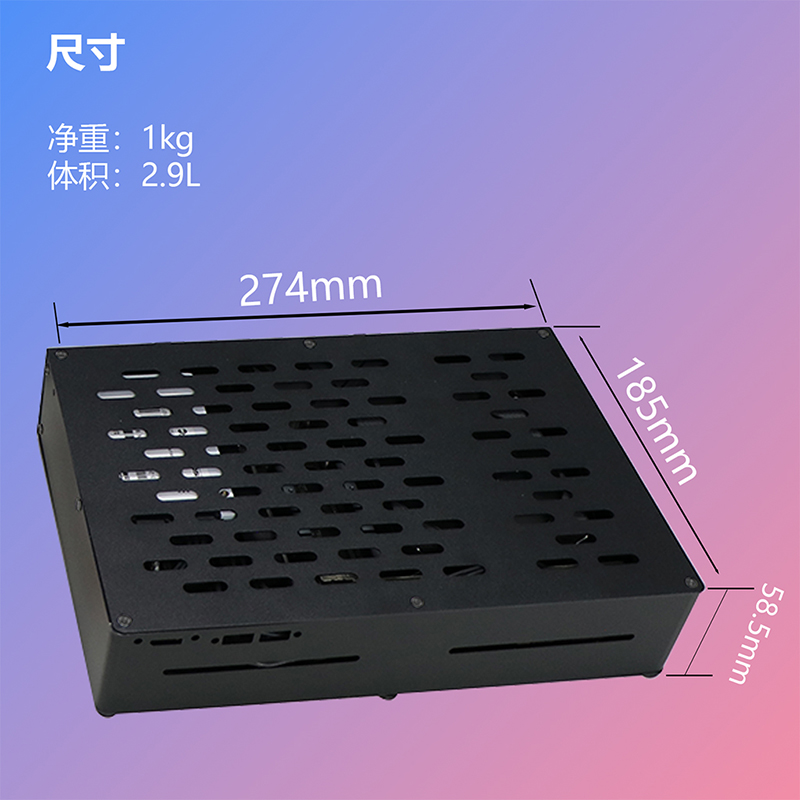

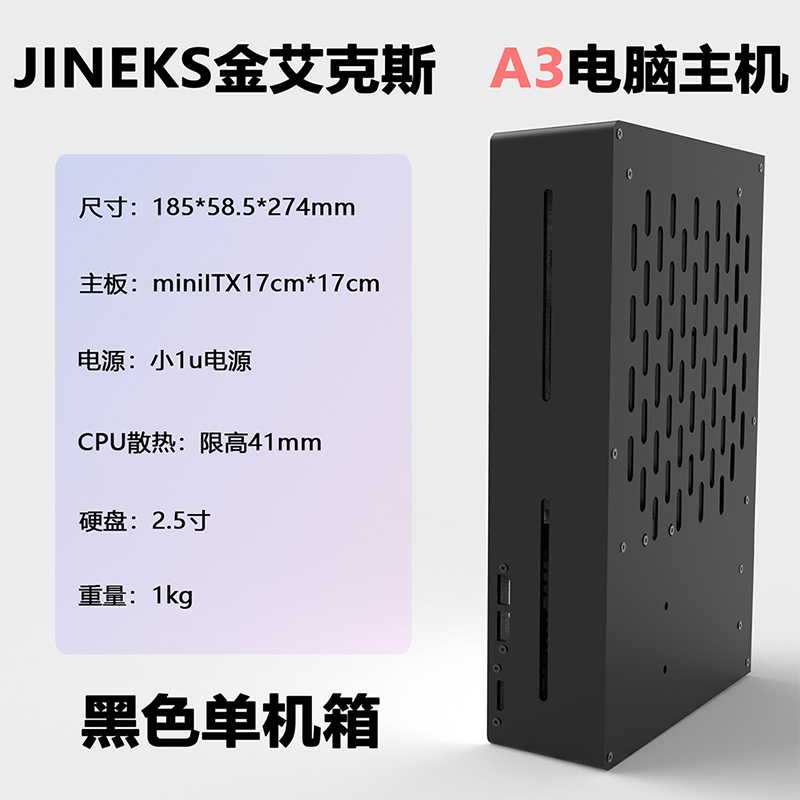

Chassis volume: Length 185mm * Width 58.5mm * Height 274mm=2.9L
Chassis weight: Net weight 0.9KG, gross weight 1.1KG
Packaging box size: 305 * 265 * 90mm

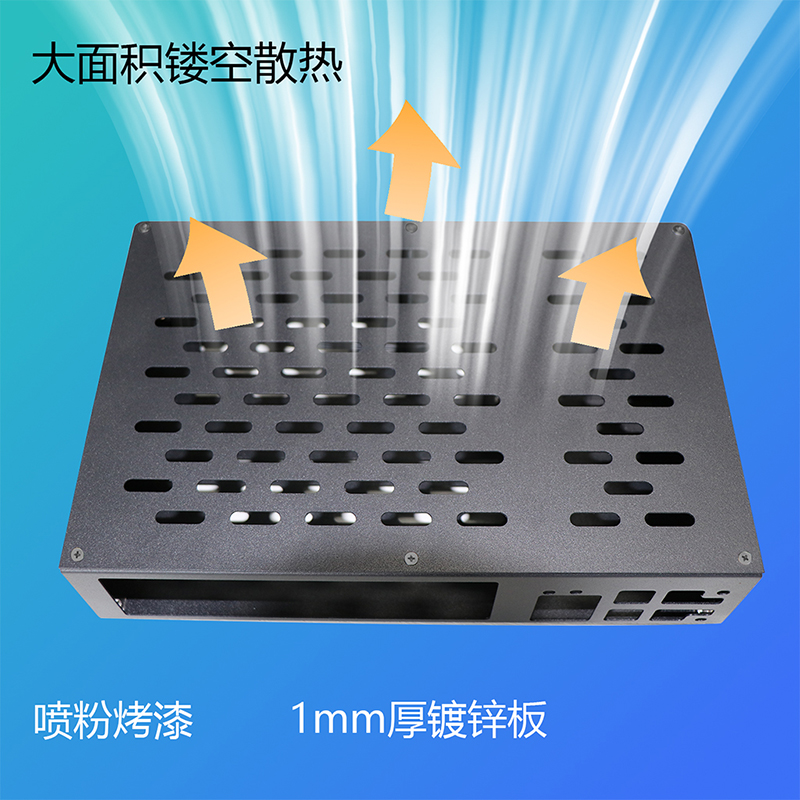

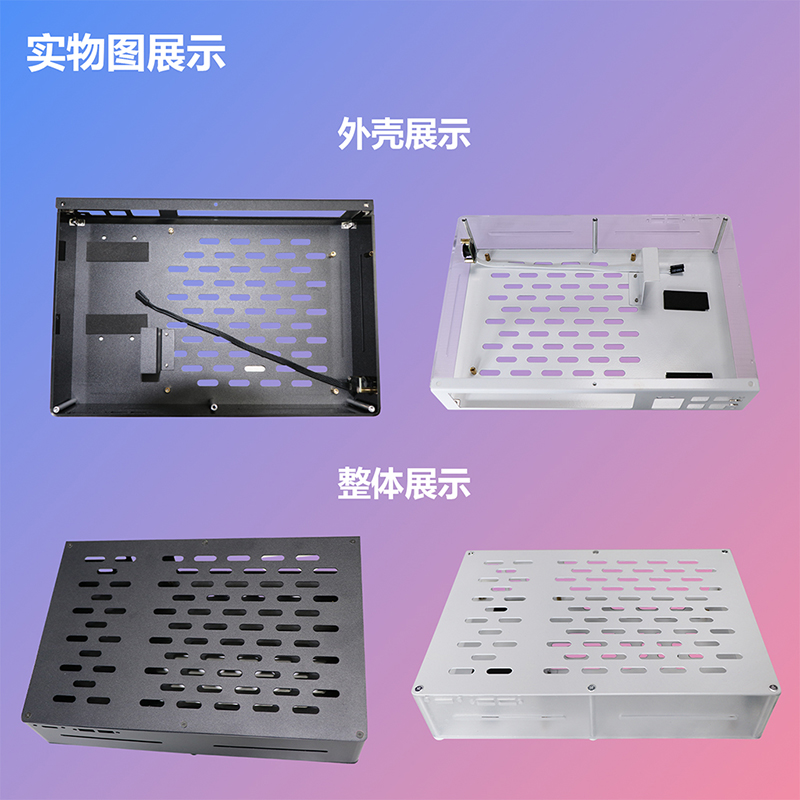

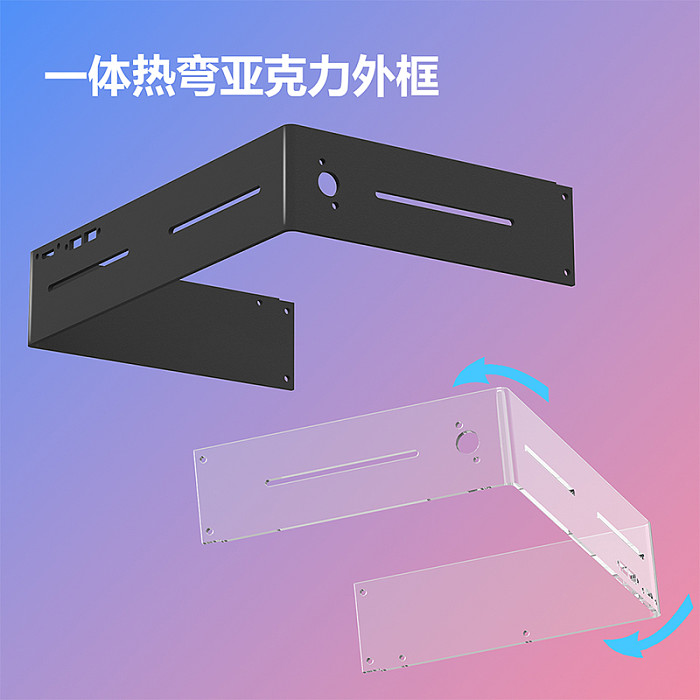

Material: 1mm thick galvanized sheet, 3mm thick acrylic frame, aluminum alloy support column
Process: sheet metal bending, painting and baking, acrylic hot bending process

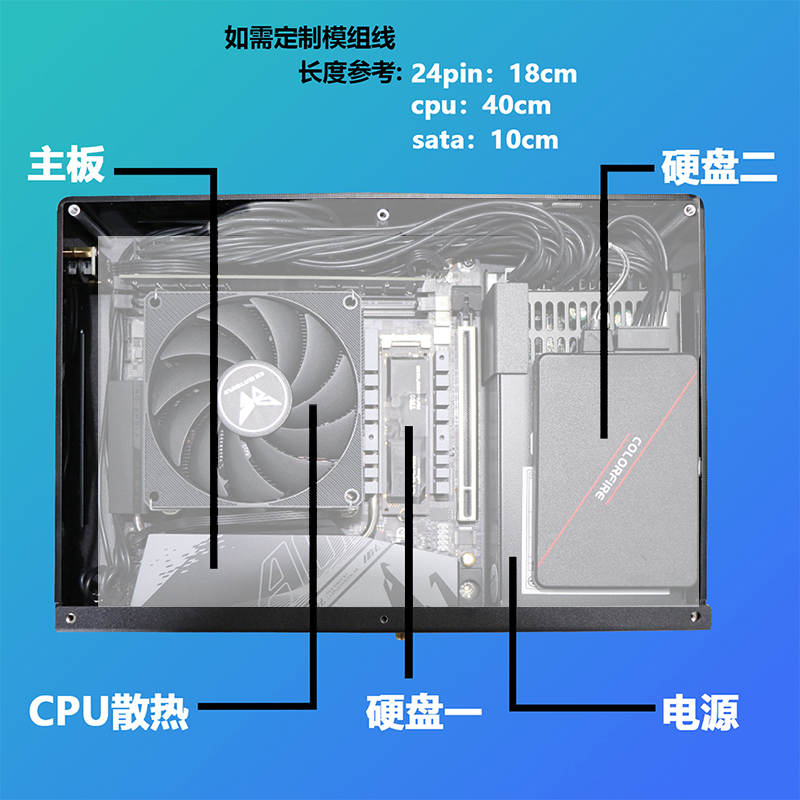

Motherboard specifications: mini ITX 17CM * 17CM
Power specification: FLEX small 1U power supply, 150mm * 81.5mm * 40mm
Hard drive: 2.5-inch 7mm thick solid-state drive * 1
Fan: None
CPU heat dissipation: The height limit of the CPU heat sink is 41mm
Graphics card: does not support built-in graphics cards, external graphics cards can be purchased as components.
Power cord: None

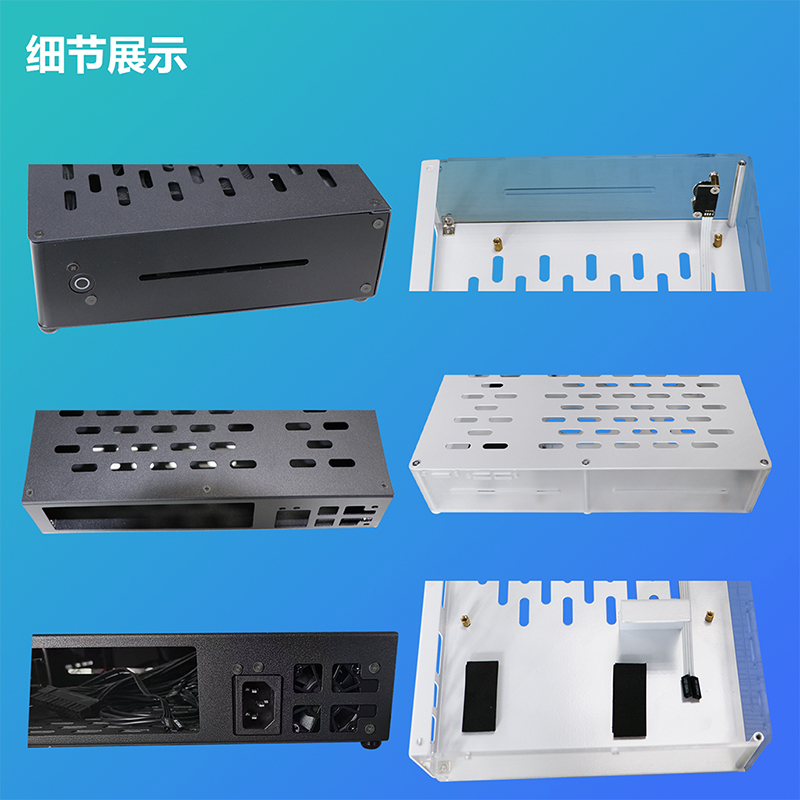

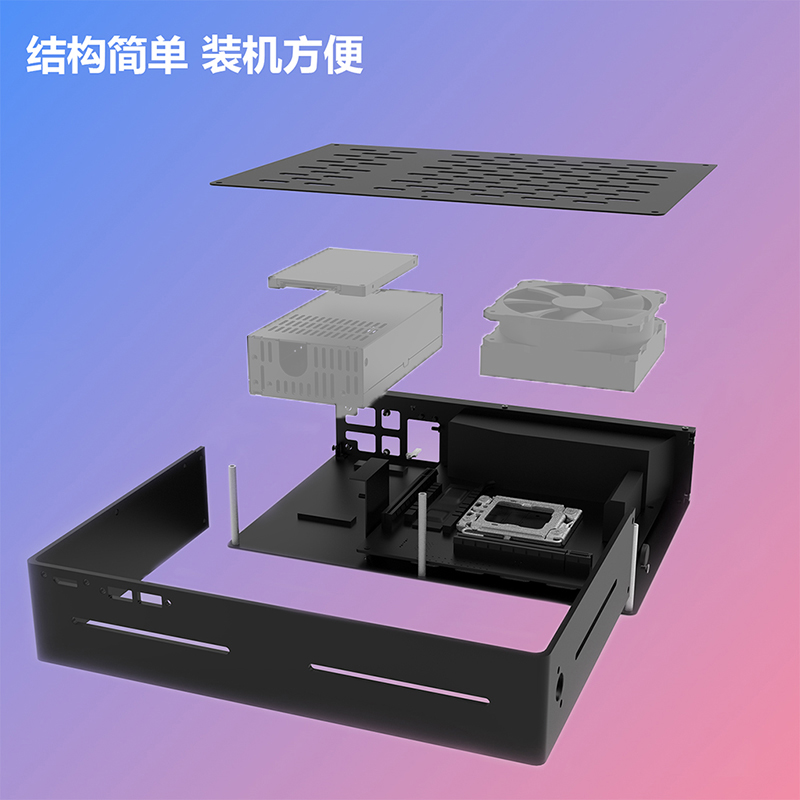

Features of the chassis: simple structure, easy installation, small size and portability, integrated hot bending acrylic frame, easy expansion
