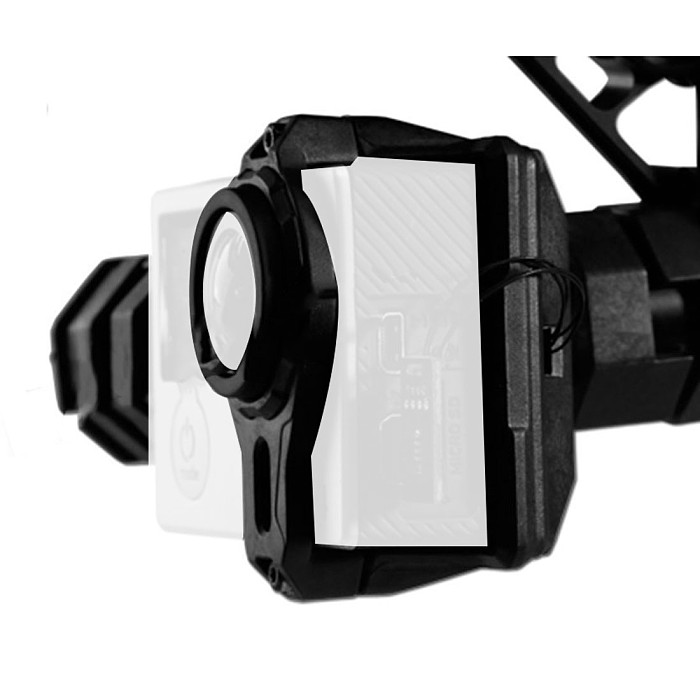

Tarot-RC T4-3D 3-axis Brushless Gimbal TL3D01 for GOPRO 4/3 + / 3 Supports for Multi-axis Drone FPV Accessory Item NO.: F35200

US$ 89.31 ~ US$ 99.23

Quantity	0-3	4-50	51-100
Discount	0% OFF	5% OFF	10% OFF
Price	US$ 99.23	US$ 94.27	US$ 89.31

Quantity: Stock ( 9999 )

Estimate Shipping Cost

Product Name	Tarot-RC T4-3D 3-axis Brushless Gimbal TL3D01 for GOPRO 4/3 + / 3 Supports for Multi-axis Drone FPV Accessory
Item NO.	F35200
Weight	0.2 kg = 0.4409 lb = 7.0548 oz
Category	DIY RC Drone Accessories > Gimbal
Brand	Tarot
Creation Time	2019-12-25

Tarot-RC T4-3D 3-axis Brushless Gimbal TL3D01 for GOPRO 4/3 + / 3 Supports for Multi-axis Drone FPV Accessory

Product description
Product Features:
Support computer operation interface setting
Point-Follow Mode (PF)
First Person Mode (FPV)
Built-in independent IMU module
TAROT dedicated servo drive module
AV output interface
Wide range voltage input support
Support regular receiver / S-Bus receiver / DSM receiver
Mechanical / electronic characteristics:
Angle control accuracy: ± 0.02 °
Maximum controllable speed:
Tilt direction (TILT): ± 200 ° / s
Controllable rotation range
Tilt direction (TILT): -120 ° to + 15 °
Working current: 30mA (@ 25V) 50mA (@ 12V)
Stall current: 350mA (@ 25V) 700mA (@ 12V)
Working environment temperature: -20 ° C ~ 50 ° C
Weight: 178g
Size: 99mm × 88.5mm × 105.6mm
Assistant software installation requirements: Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)

Package list:
3-axis brushless gimbal × 1
PTZ master control module × 1
PTZ main control and PTZ main body connecting line × 1
5V output, receiver and video cable × 1
USB module × 1
Flight control cable × 1
Box x 1
