Copy| Product Name | 5-12V 12CH CRSF/ELRS to PWM Converter Bend Pin Type Adapter Board 50Hz PWM Output 5-12V BEC for TBS Receiver FPV Drone |
| Item NO. | F54395-D1 F54395-D2 |
| Weight | 0.03 kg = 0.0661 lb = 1.0582 oz |
| Category | Computer Accessories |
| Creation Time | 2025-07-07 |
Specifications:
CRSF ELRS 12-channel PWM adapter board Black Sheep to PWMCRSF to PWMELRS to PWM -Compatible with CRSF protocol receivers (Black Sheep and ELRS) only; -12-channel PWM output (12 proportional channels are possible with ELRS 3.0.0 or above firmware); -CRSF signal acquisition LED indication;
-PWM output frequency 50Hz;
-PWM port support high voltage servo;
-BEC power supply range 5-12V (determined by jumper);
-Support maximum 6S battery telemetry voltage (RxBt) return; -Dimension and weight: 32mmX28mm, 5.2g;

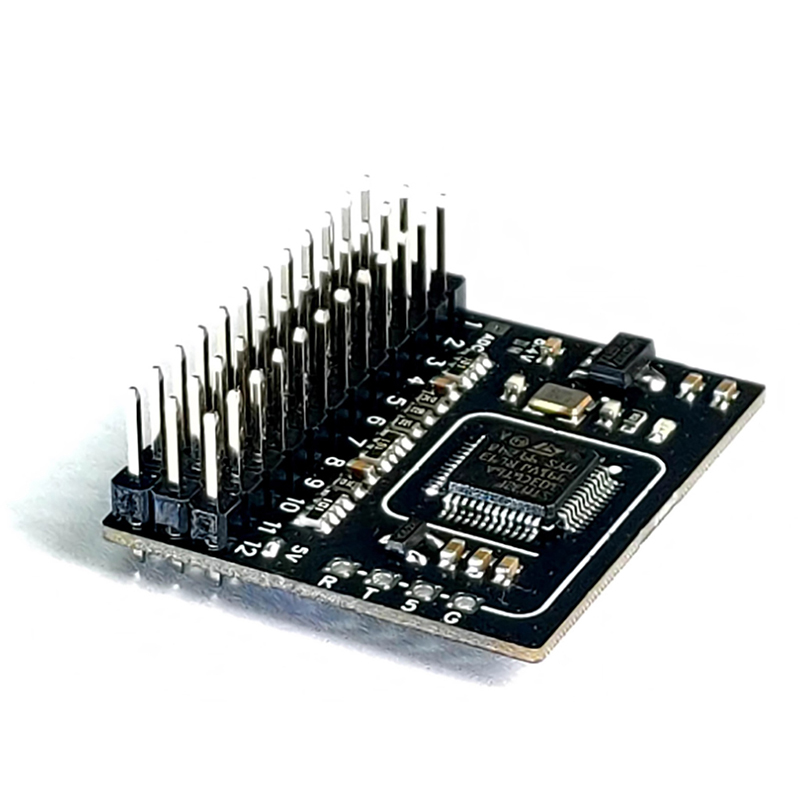

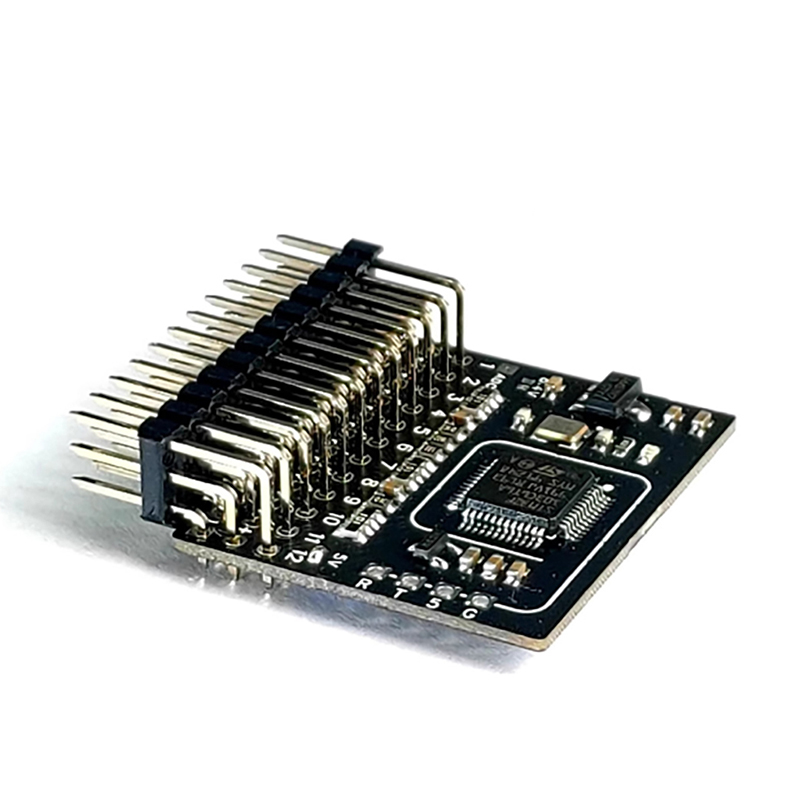

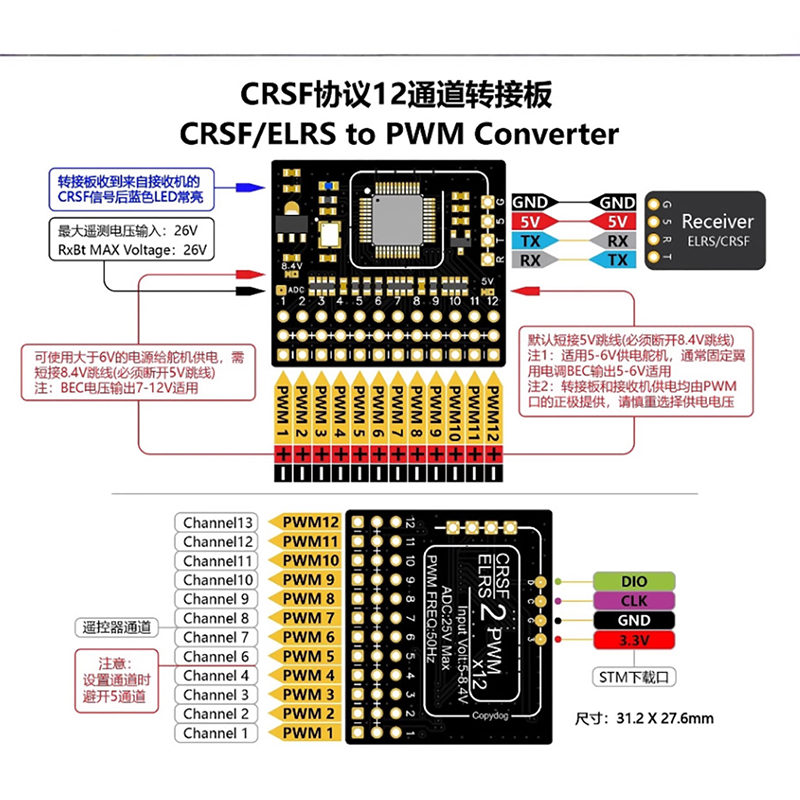

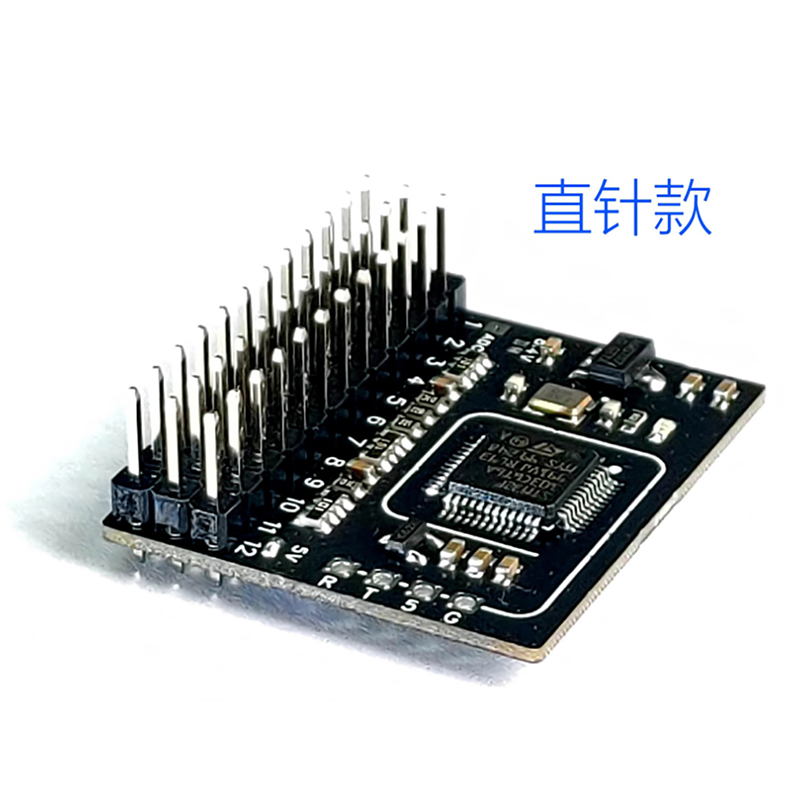

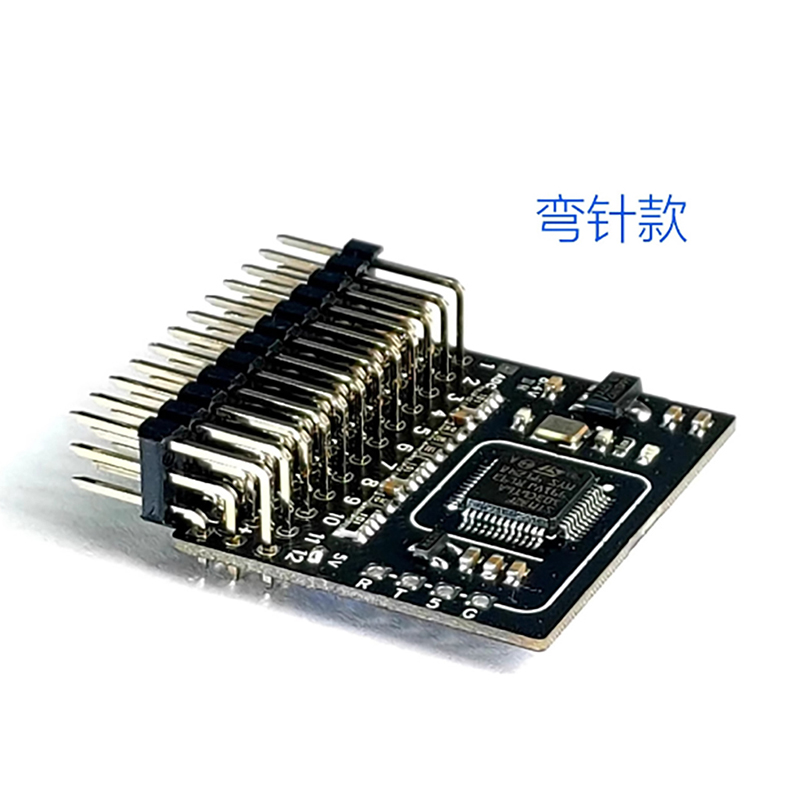

-Can be stacked and combined with our ELRS2.4/915 receiver to form a 12-channel receiver; connected through the serial port and the receiver, the receiver TXRX port and the adapter board TXRX cross-connect (please note that the receiver wire order to determine whether the receiver wire order and the adapter board corresponds to the order of the wires, whether it can be connected with a plug pair); the output row of pins can be selected from the straight pin and the curved pin, soldered by yourself;
Note: the price tag is only for adapter boards Note: The price is only the price of the adapter board, excluding the receiver in the picture
CRSF, ELRS receiver to 12-channel PWM
support 12-channel PWM output
support 8.4V high-voltage servo
support for the maximum 6S battery voltage back to the 8.4V
5V support for the ELRS3.0 full scale channel ADC
CRSF/ELRS to PWM PWM Converter
