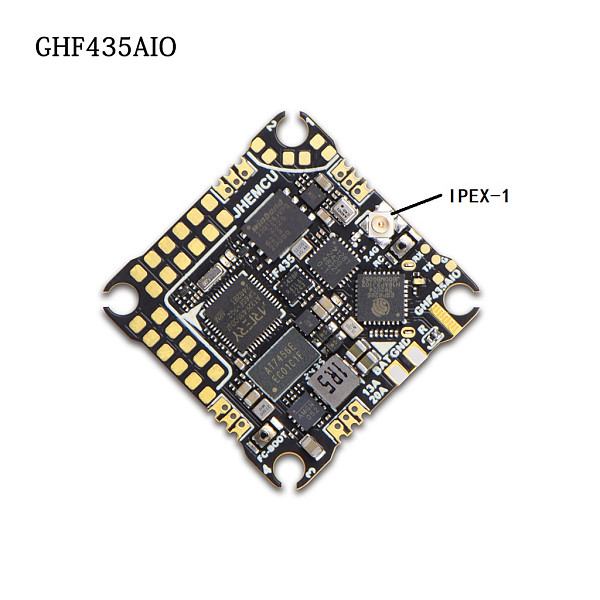

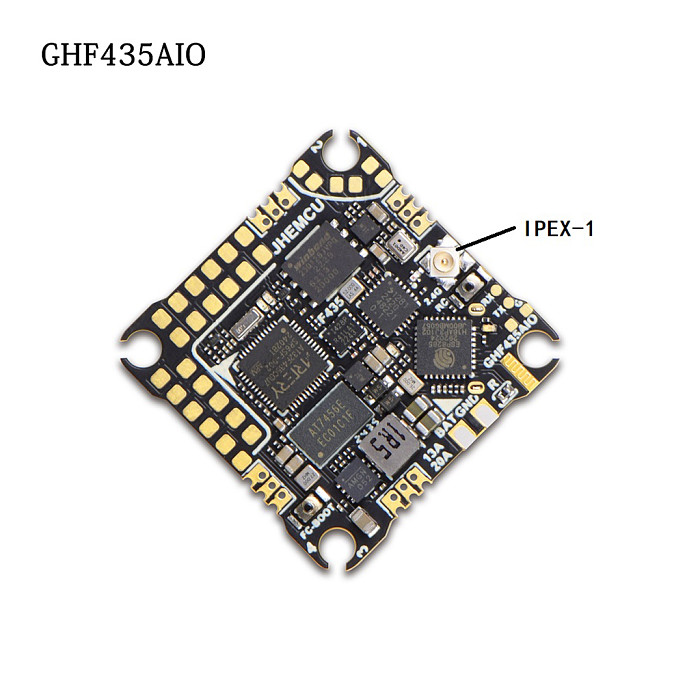

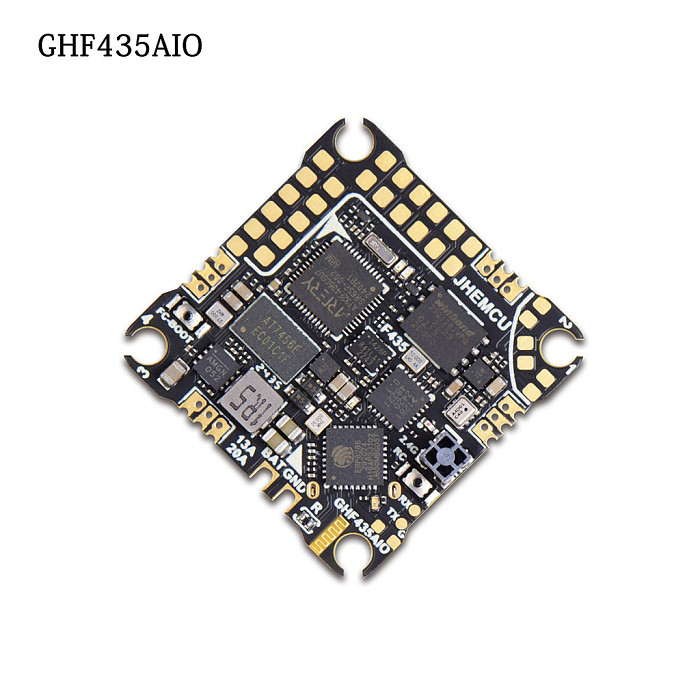

Copy| Product Name | JHEMCU GHF435AIO 20A Flight Controller 2-4S with OSD Baro Blackbox 16MB GPS Built-in ELRS 2.4G CRSF for RC FPV Freestyle Drone |
| Item NO. | F53785 |
| Weight | 2024 kg = 4462.1562 lb = 71394.4990 oz |
| Volume | 1 CBM |
| Category | Computer Accessories |
| Creation Time | 2024-12-25 |

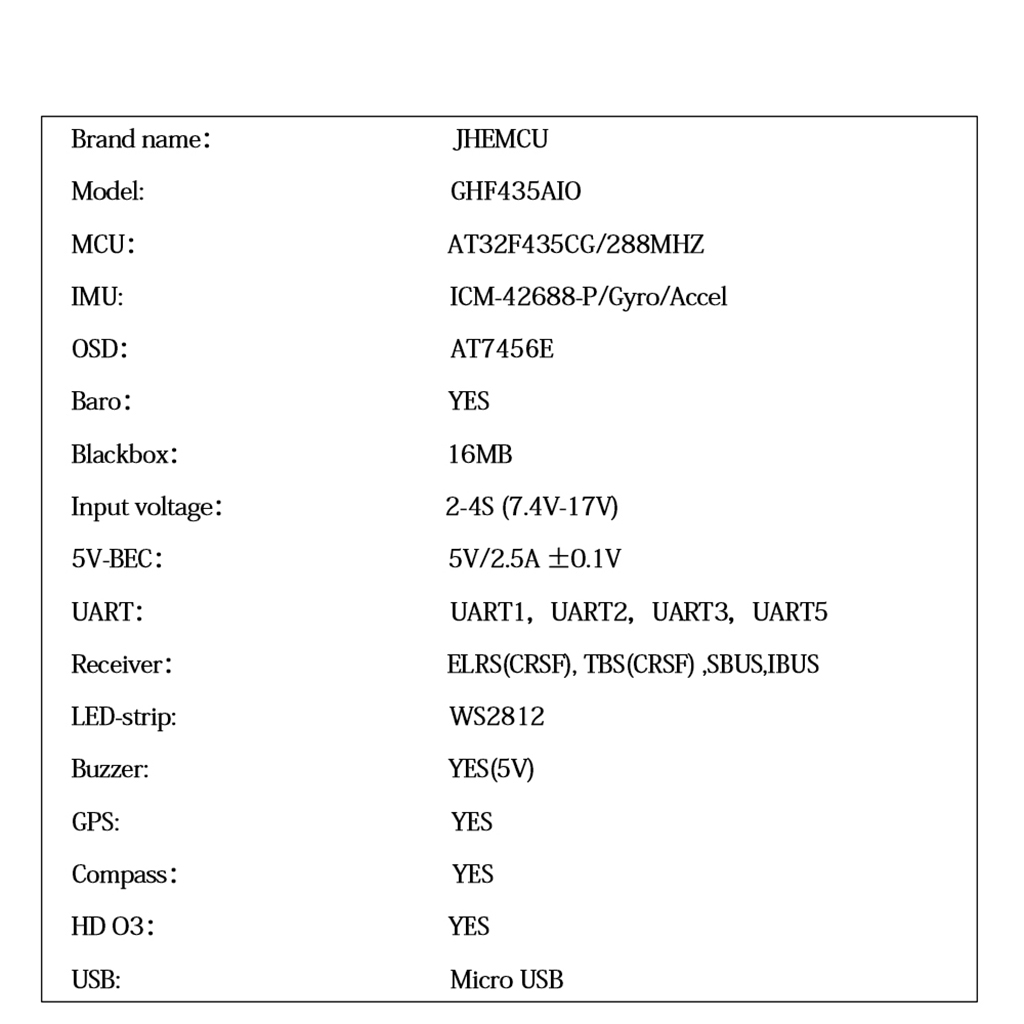

Specifications
Brand Name: JHEMCU
Model: CHF435AIO
MCU: AT32F435CG/288MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Barometer: Yes
Black Box: 16MB
Input Voltage: 2 - 4S (7.4V - 17V)
5V ESC (BEC): 5V/2.5A±0.1V
Serial Port (UART): UART1, UART2, UART3, UART5
Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS
Light Strip: WS2812
Buzzer: Yes (5V)
GPS: Yes
Compass: Yes
HD03: Yes
USB: Micro USB

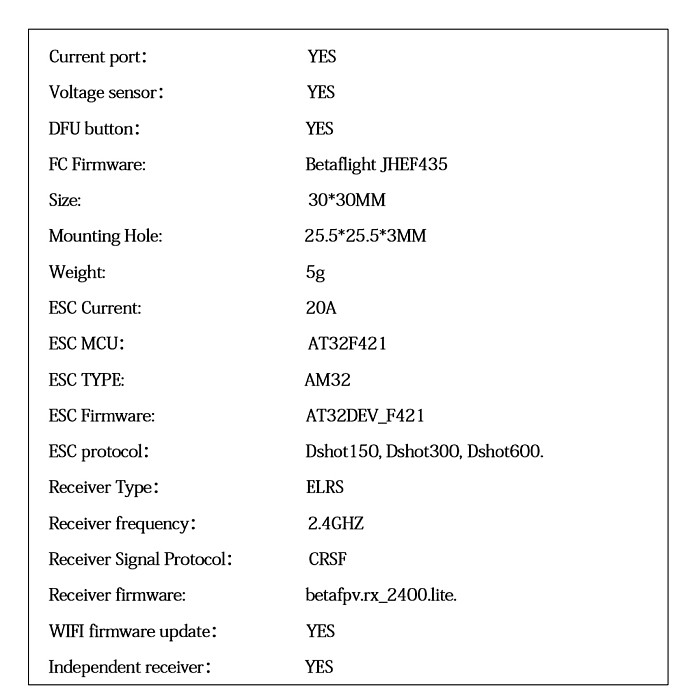

Current port: Yes
Voltage sensor: Yes
DFU button: Yes
Flight control firmware: Betaflight JHEF435
Size: 30*30MM
Mounting hole: 25.525.53MM
Weight: 5g
ESC current: 20A
ESC MCU: AT32F421
ESC type: AM32
ESC firmware: AT32DEV_F421
ESC protocol: Dshot150, Dshot300, Dshot600.
Receiver type: ELRS
Receiver frequency: 2.4GHZ
Receiver signal protocol: CRSF
Receiver firmware: betafpv.rx_2400.lite.
WIFI firmware update: Yes
Standalone receiver: Yes
