(Out Of Stock) IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm for RC Multirotor X-CALSS Cinelifter Drones Taurus X8 Accessory Item NO.: F47742

US$ 231.63

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Product Name	(Out Of Stock) IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm for RC Multirotor X-CALSS Cinelifter Drones Taurus X8 Accessory
Item NO.	F47742
Weight	0.3487 kg = 0.7688 lb = 12.3000 oz
Category	DIY RC Drone Accessories > ESC
Creation Time	2022-07-05

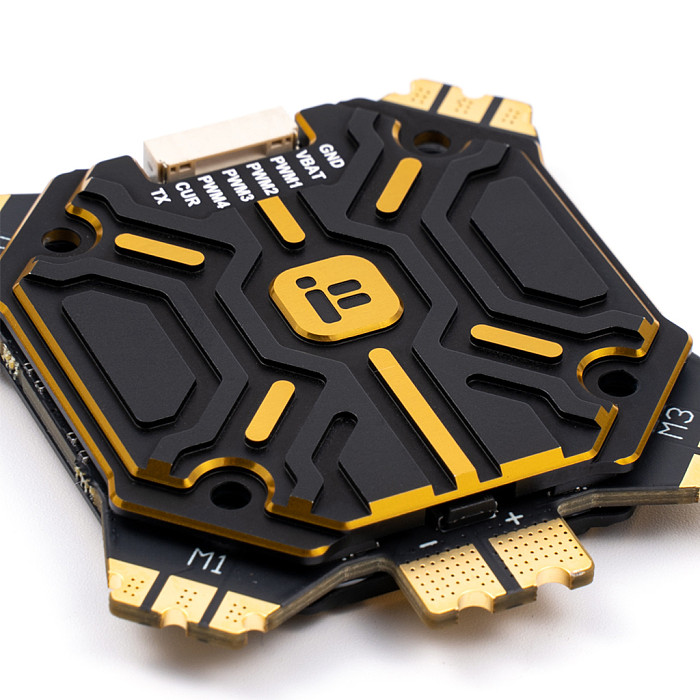

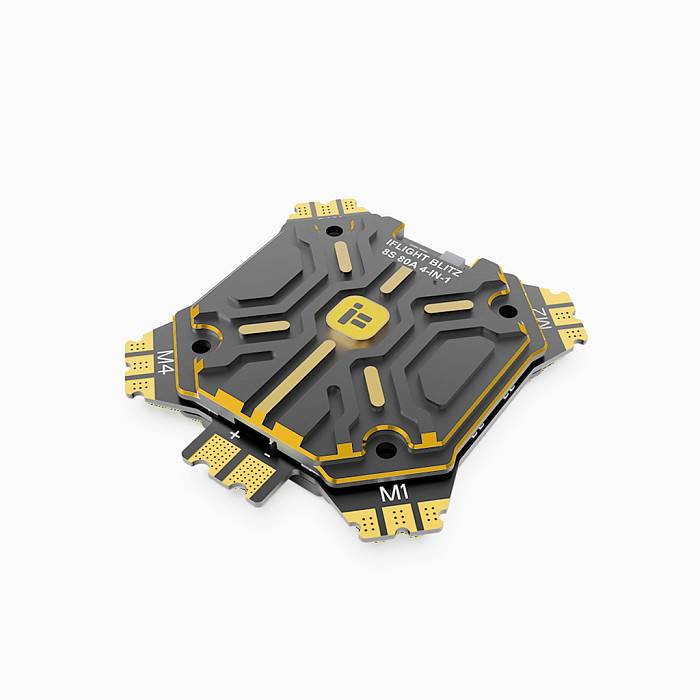

IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm for RC Multirotor X-CALSS Cinelifter Drones Taurus X8 DIY Part

PRODUCT DESCRIPTION

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Features:

All Categories

(Out Of Stock) IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm for RC Multirotor X-CALSS Cinelifter Drones Taurus X8 Accessory Item NO.: F47742

IFlight BLITZ E80 PRO BLHELI32 80A 4in1 ESC 2-8S LIPO 35X35mm for RC Multirotor X-CALSS Cinelifter Drones Taurus X8 DIY Part

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

- G071 MCU, 48mHz maximum clock speed;

- TDK MLCC Low ESR ceramic capacitors;

- Top grade PSMN1R0-40YLD MOSFET;

- 8 layers double-sided PCB board

Specification:

- BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

- Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

- Constant current：80A，100A（Burst）

- Mounting Holes: 35*35mm/Φ3mm

- Current sensor: Yes, scale 100

- Firmware: IFLIGHT_BLITZ_G2

- Telemetry: Supported

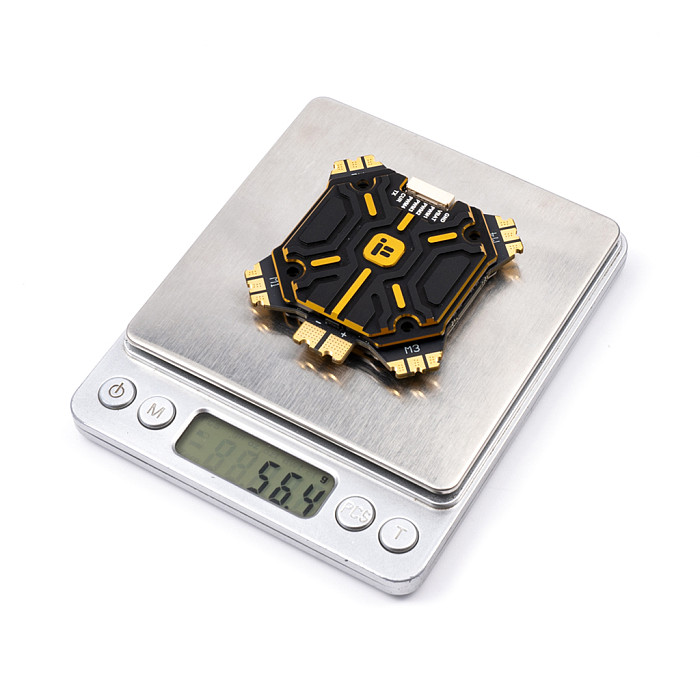

- Weight:65g(±10)

- Volts input: 2-8S

- BEC: No

Package included:

- 1 x BLITZ E80 4-IN-1 Pro ESC (G2）
