ADT-Link PCIe5.0 x16 to Gen-Z 4C+/SFF-TA-1002 EDSFF Adapter Card EDSFF 4C+ Raised Test and Protection Card Support Gen5 PCI-E 5.0 512Gbps

US$ 16.63

Version

Estimate Shipping Cost

Detail

Product Name: ADT-Link PCIe5.0 x16 to Gen-Z 4C+/SFF-TA-1002 EDSFF Adapter Card EDSFF 4C+ Raised Test and Protection Card Support Gen5 PCI-E 5.0 512Gbps
Item NO.: F53932 F53933
Weight: 0.04 kg = 0.0882 lb = 1.4110 oz
Category: Computer Accessories
Brand: ADT-Link
Creation Time: 2025-03-07

ADT-Link PCIe5.0 x16 to Gen-Z 4C+/SFF-TA-1002 EDSFF Adapter Card EDSFF 4C+ Raised Test and Protection Card Support Gen5 PCI-E 5.0 512Gbps

ADT-Link PCIe5.0 x16 to Gen-Z 4C+/SFF-TA-1002 EDSFF Adapter Card EDSFF 4C+ Raised Test and Protection Card Support Gen5 PCI-E 5.0 512Gbps

Product Models: R37C, R77A, R73B

Product Names:

PCIe x16 to EDSFF 4C+ Adapter Card
EDSFF 4C+ Raised Test and Protection Card
EDSFF 4C+ to PCIe x16 Adapter Card

Speed and Bandwidth: PCIe 5.0 x16

Purchase Notice: It is essential to purchase 1 - 2 samples first for testing and verification.

Place large - quantity orders only after ensuring everything is correct.

Product Model Description:

Model	Model Description	Speed and Bandwidth

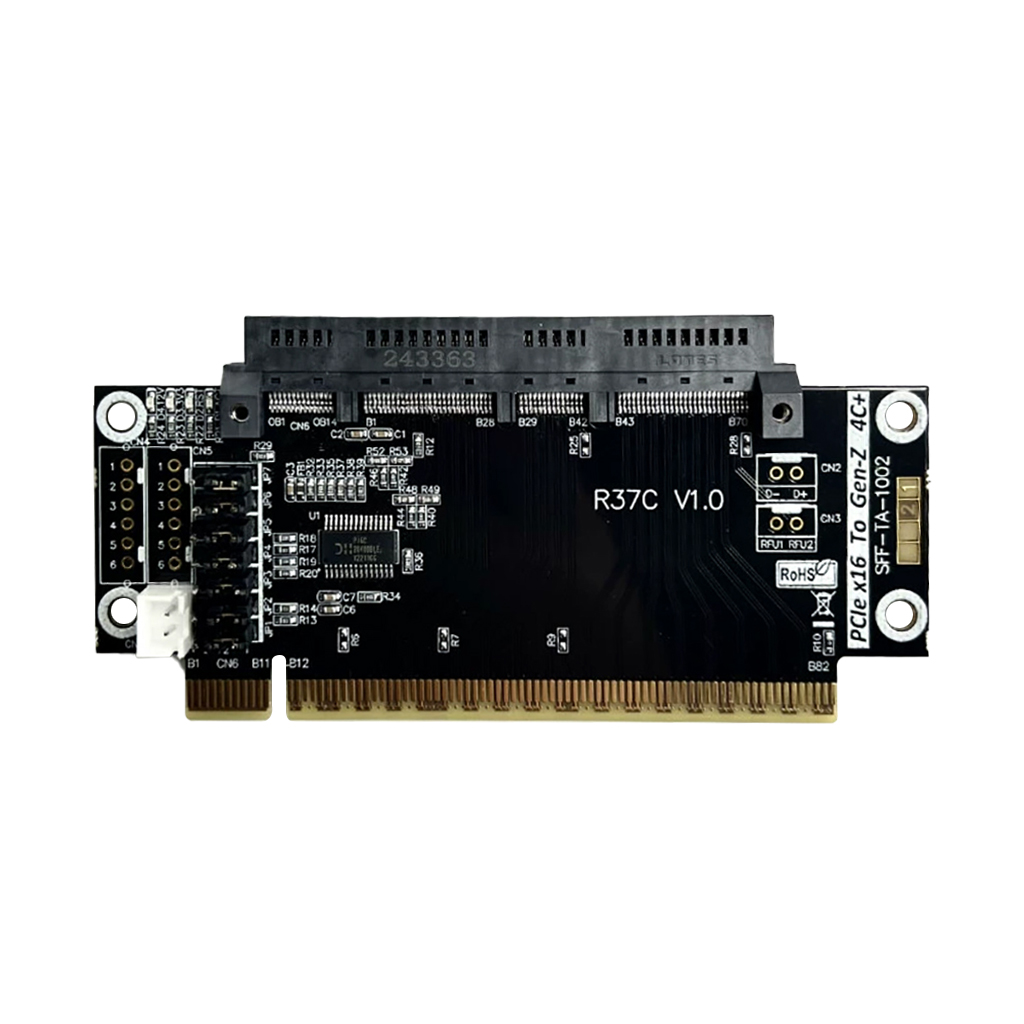

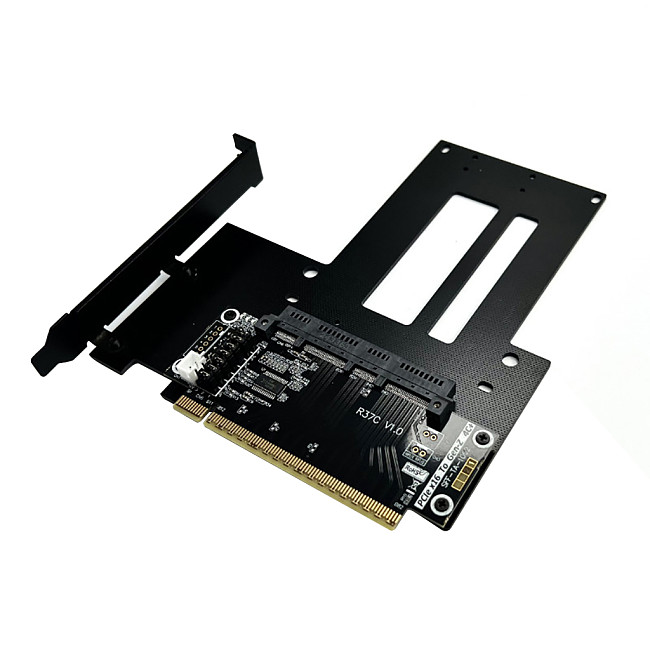

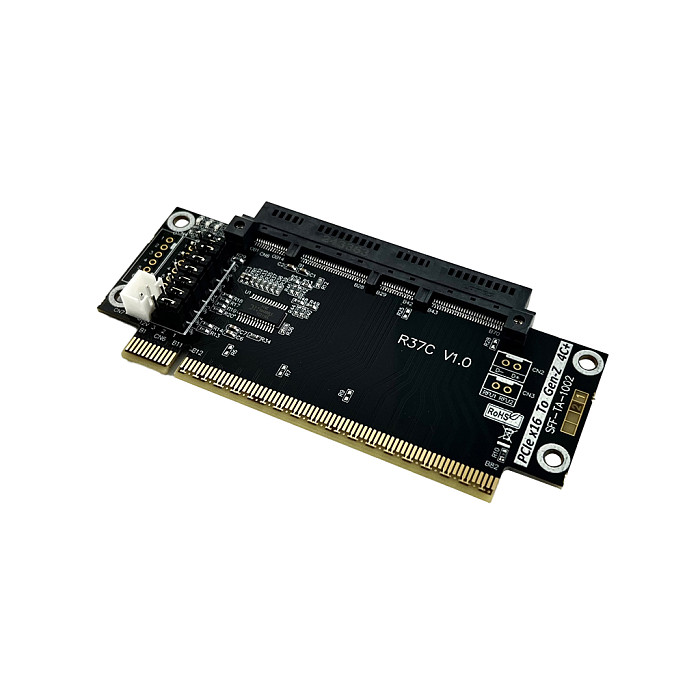

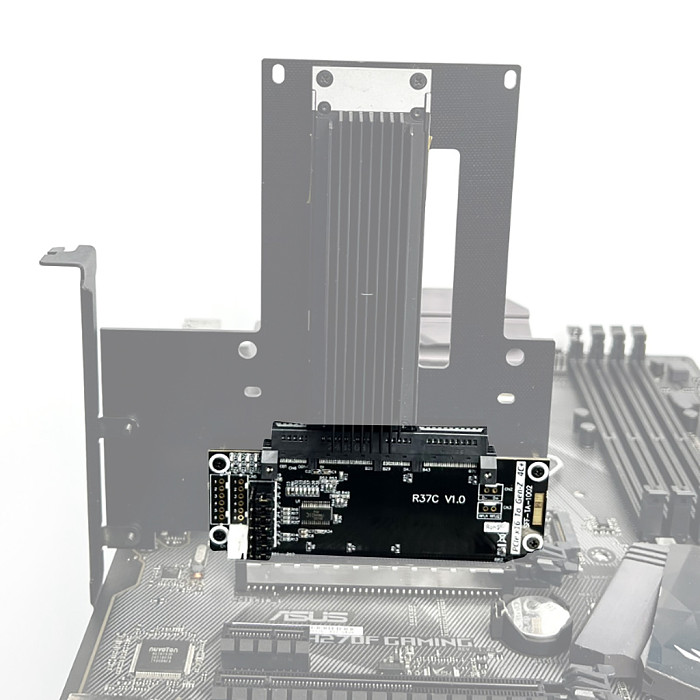

R37C	PCIe5.0 x16 to EDSFF 4C+ Adapter Card	Gen5 x16

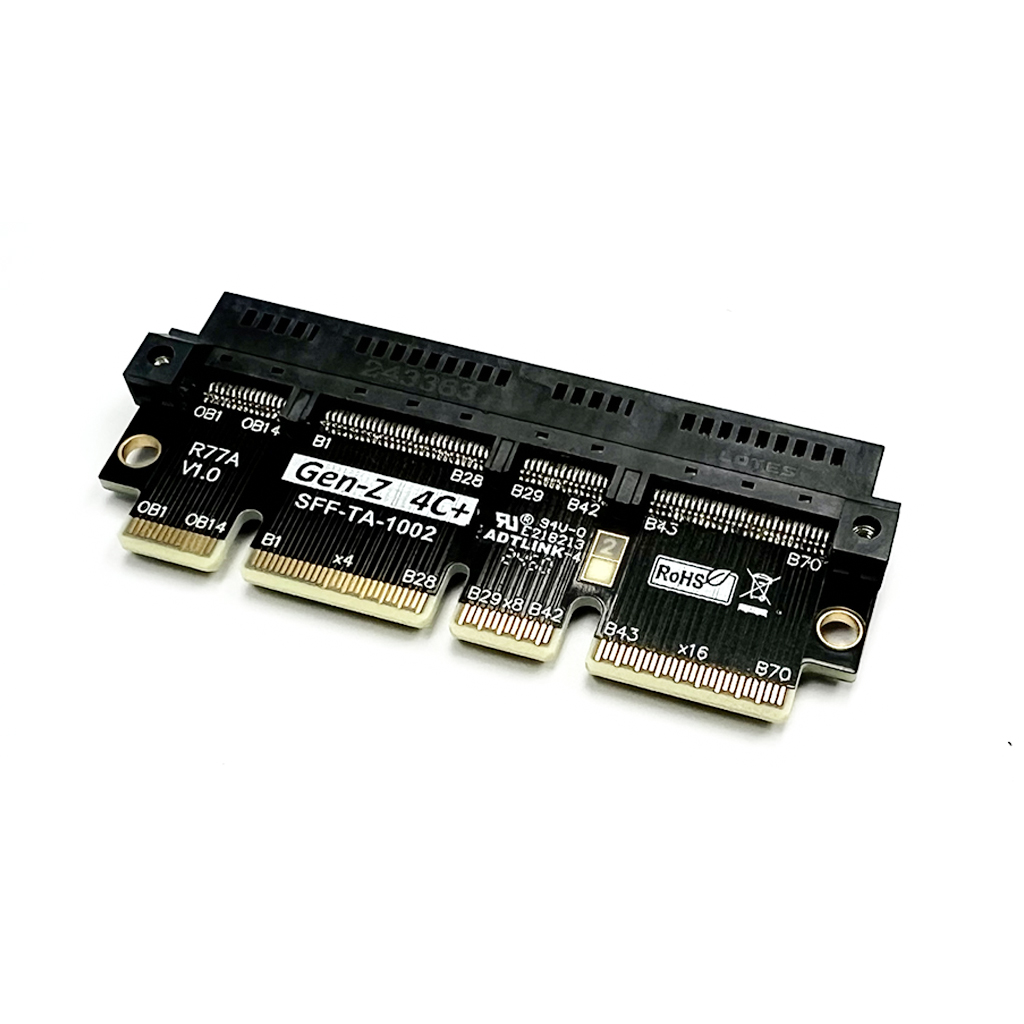

R77A	EDSFF 4C+ Raised Test and Protection Card	Gen5 x16

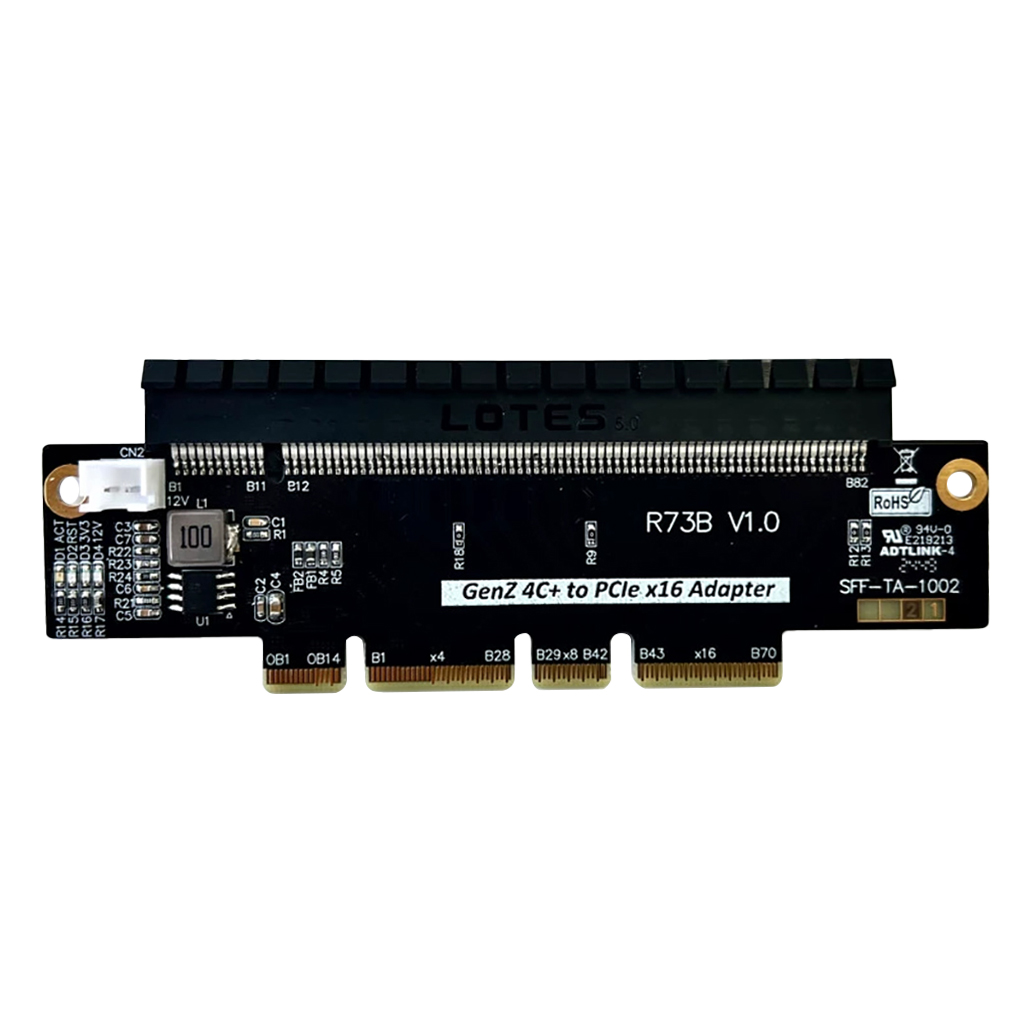

R73B	EDSFF 4C+ to PCIe5.0 x16 Adapter Card	Gen5 x16

Product Advantages:


Supports PCIe 5.0 X16 and is compatible with Gen3/Gen4/Gen5.
The R73B is designed with a DCDC module to ensure stable operating voltage under load conditions.
The R37C supports external power supply and has external power supply protection,
effectively avoiding reverse current issues and ensuring the power supply safety of the motherboard.
The exclusive design of the baseboard perfectly adapts to the different structures of E1.S and E3.S hard drives.
The gold - finger adopts gold - plating technology with a gold thickness of up to 10U, meeting the IPC Class 1 international standard.
LOTES connectors are made of LCP flame - retardant and high - temperature - resistant plastic steel material.
The PCB board is made of high - frequency, low - resistance, high - temperature - resistant, and anti - oxidation material,

which is non - deformable, with a yellow - crystal - like semi - transparent color, and will not turn white or black.
