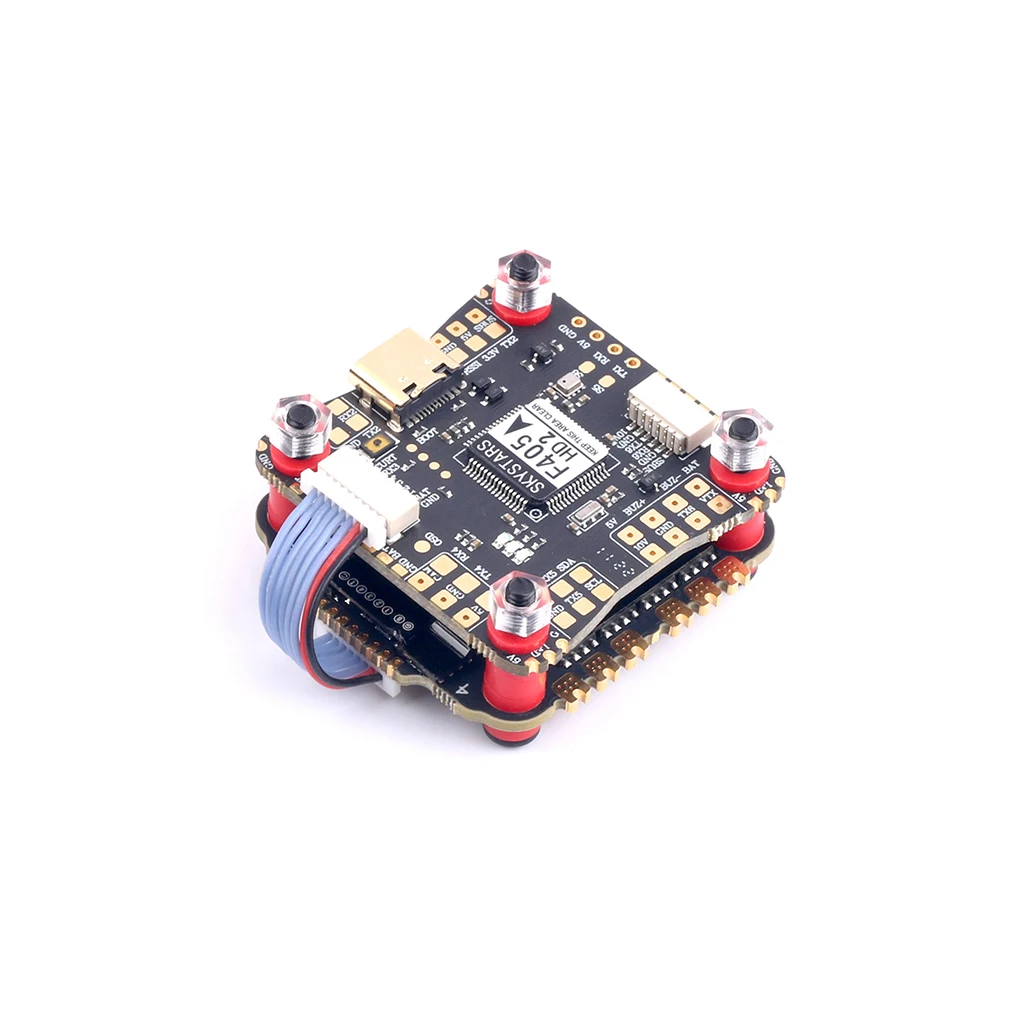

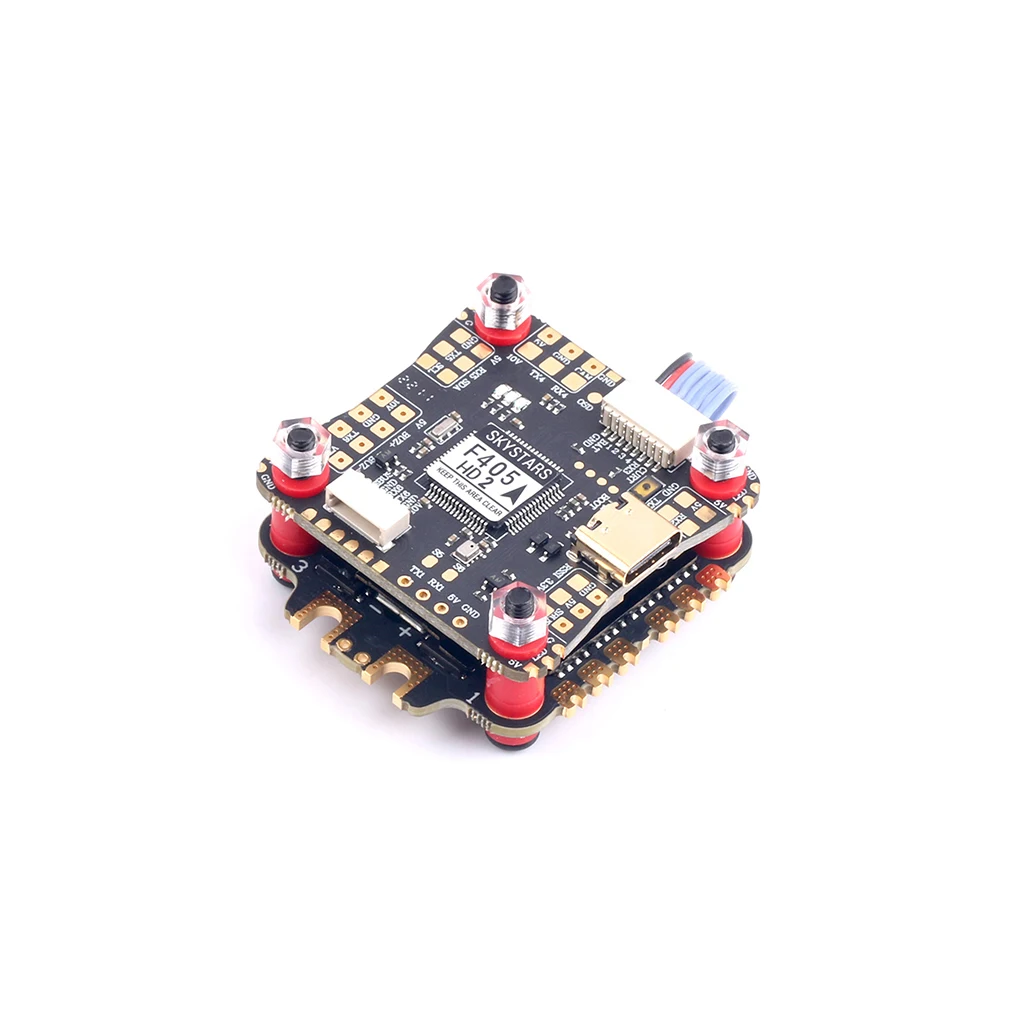

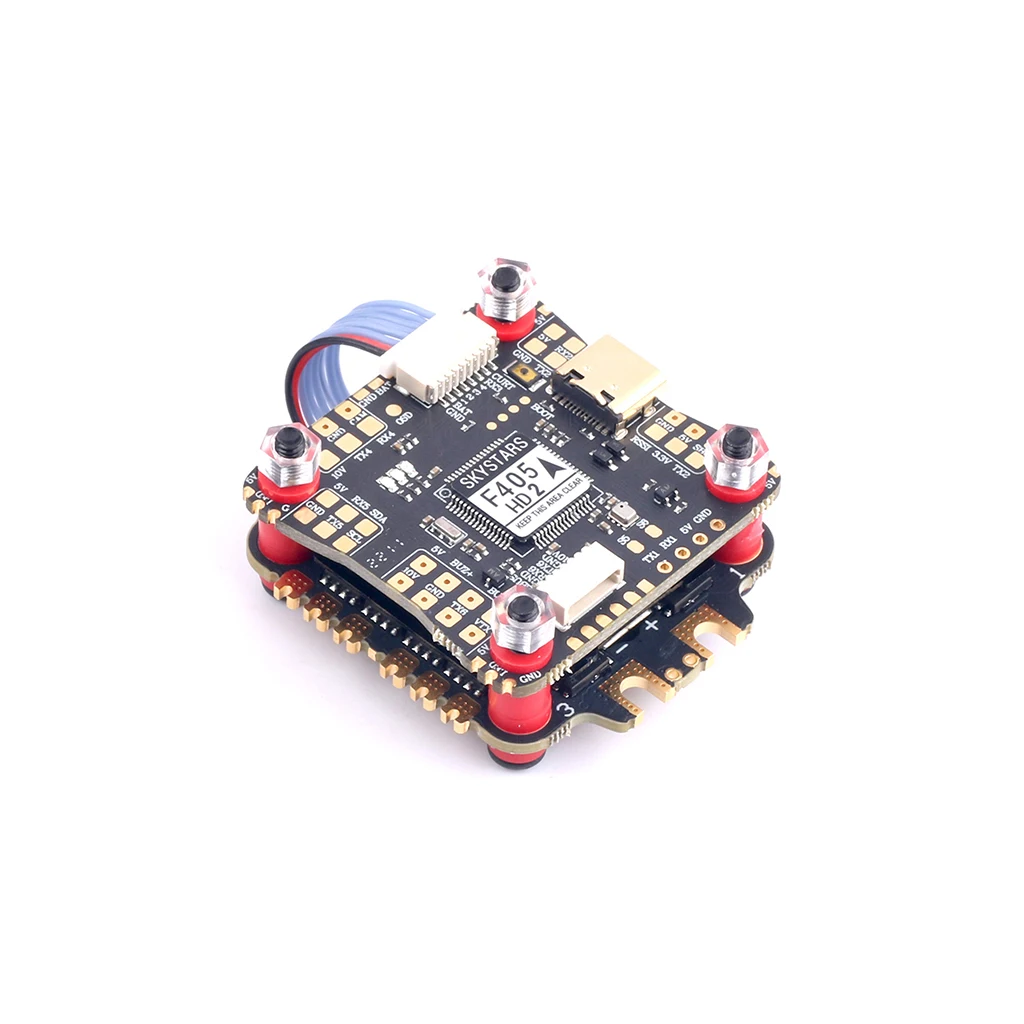

Tarot-RC SkyStars Tower F405-HD2 Flight Control 55A 4-in-1 ESC 3-6S STM32F405 Dshot600 Supports OSD 30.5*30.5mm NO BEC Item NO.: F51950

Product Description:

mini flight control,integrated F405 HD2 Flight Control and 55A 4-in-1 ESC;

·Support 3-6S voltage input, support OSD information overlay;

·Especially suitable for small multi-axis rotorcraft and FPV racing frame use.

Product Parameters:

Skystars-F4 Flight controller Specification:

MCU: STM32F405

IMU: BMI270

OSD: AT7456E

Blackbox: 16MB

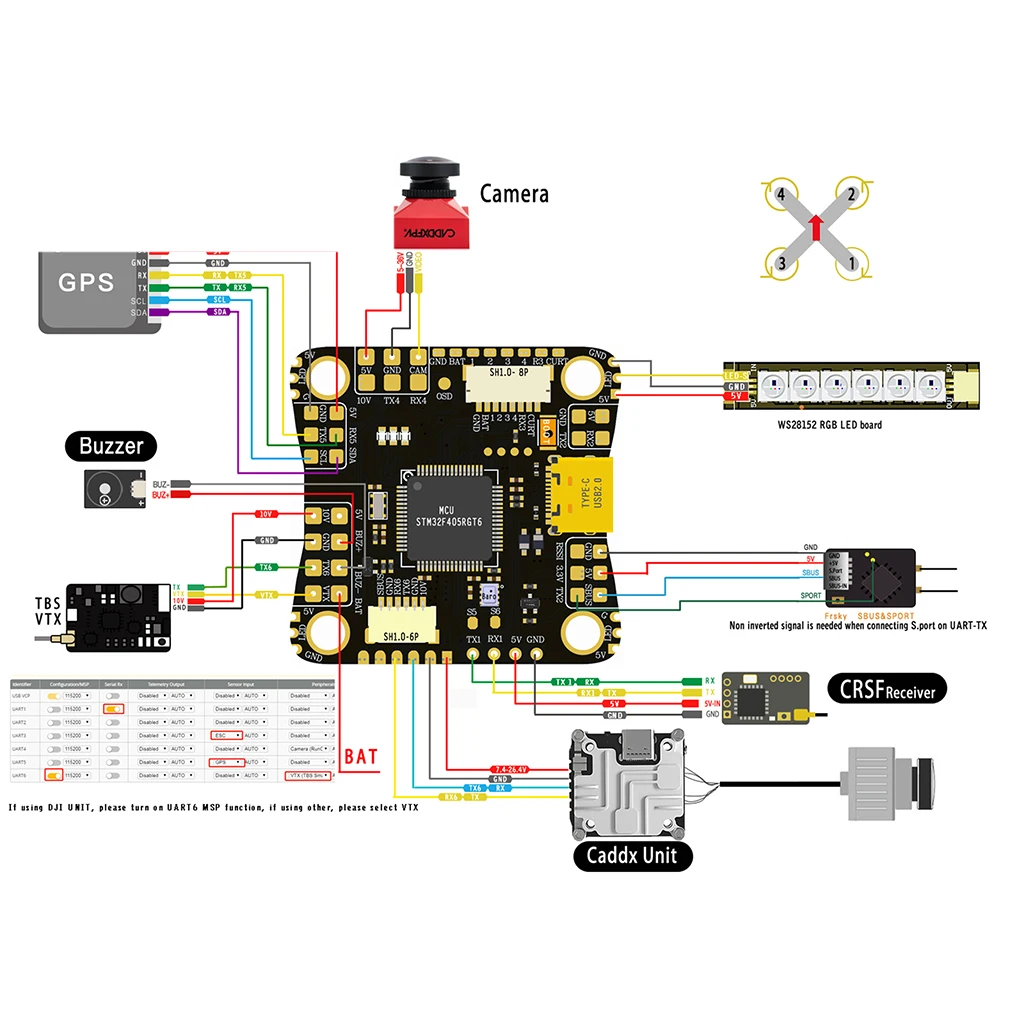

6X Uarts(1 2 3 4 5 6)

WS2812 led Strip: YES

Baro: YES

Beeper: YES

BEC: 5V/3A cont

FC Firmware

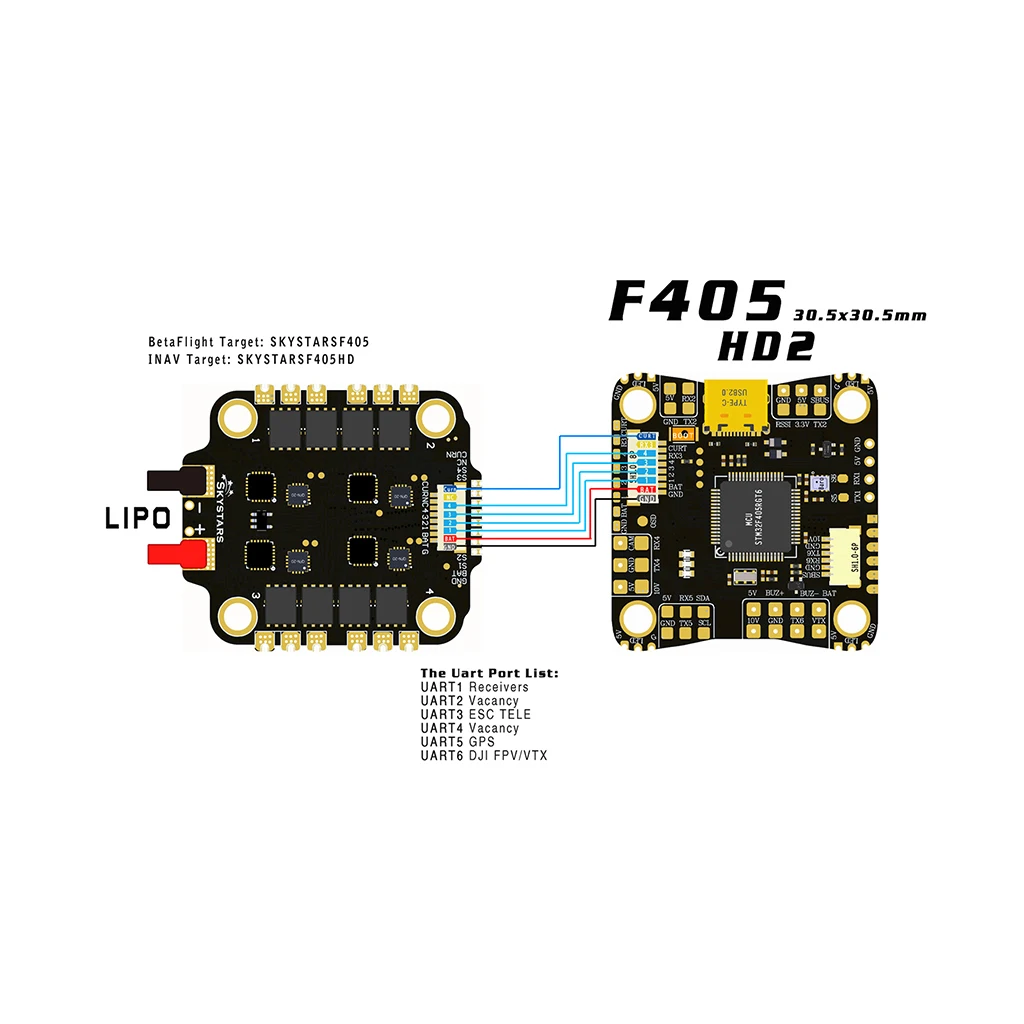

Betaflight FC Target: SKYSTARSF405

INAV FC Target:SKYSTARSF405HD

Physical

Mounting: 30.5*30.5mm, 4mm with Grommets 3mm

Dimensions: 36*36mm

Weight: 6g

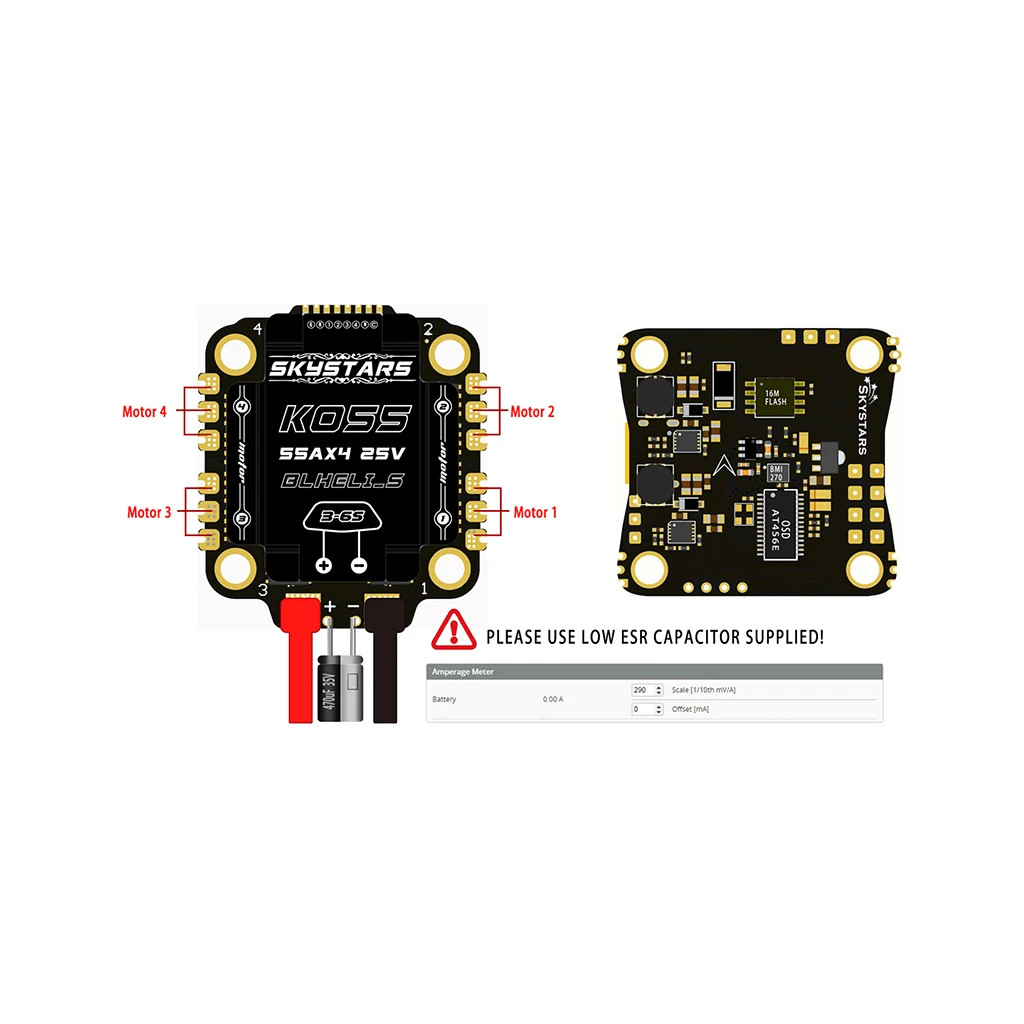

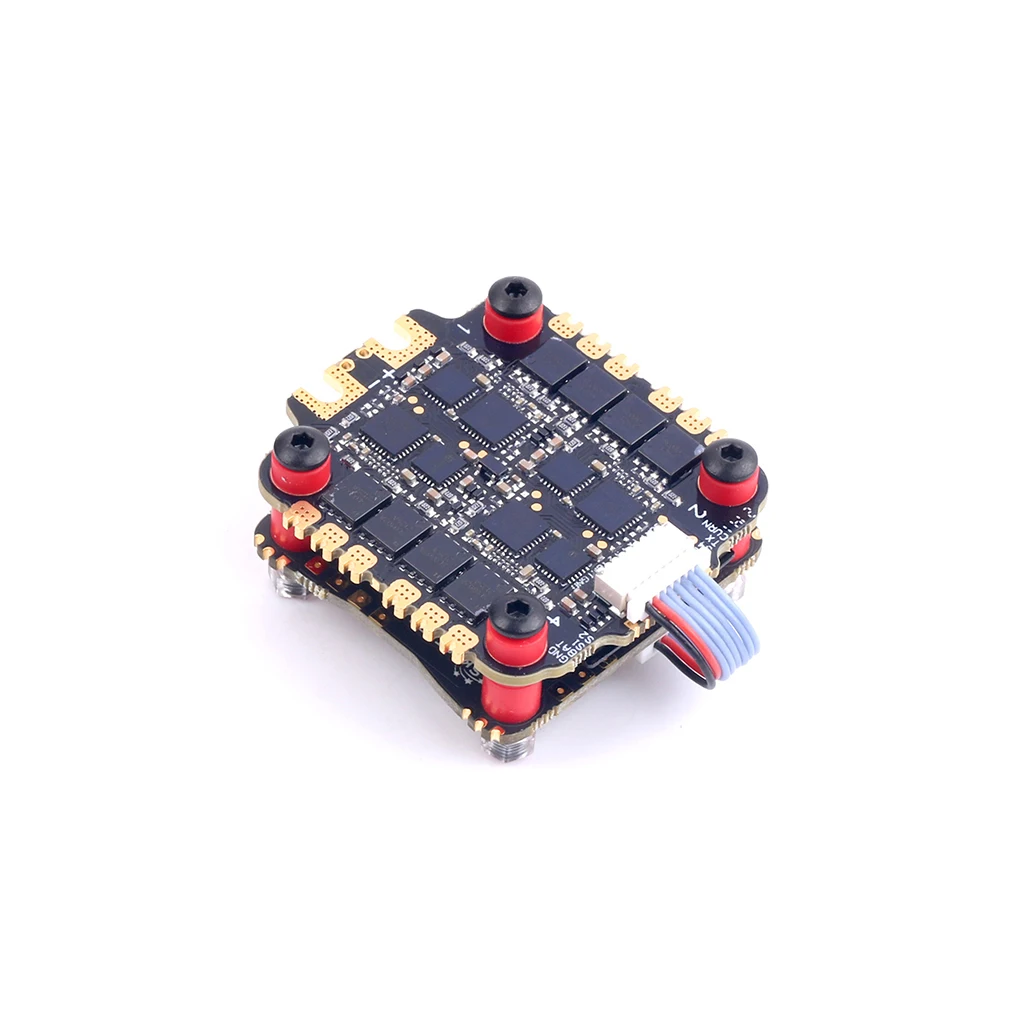

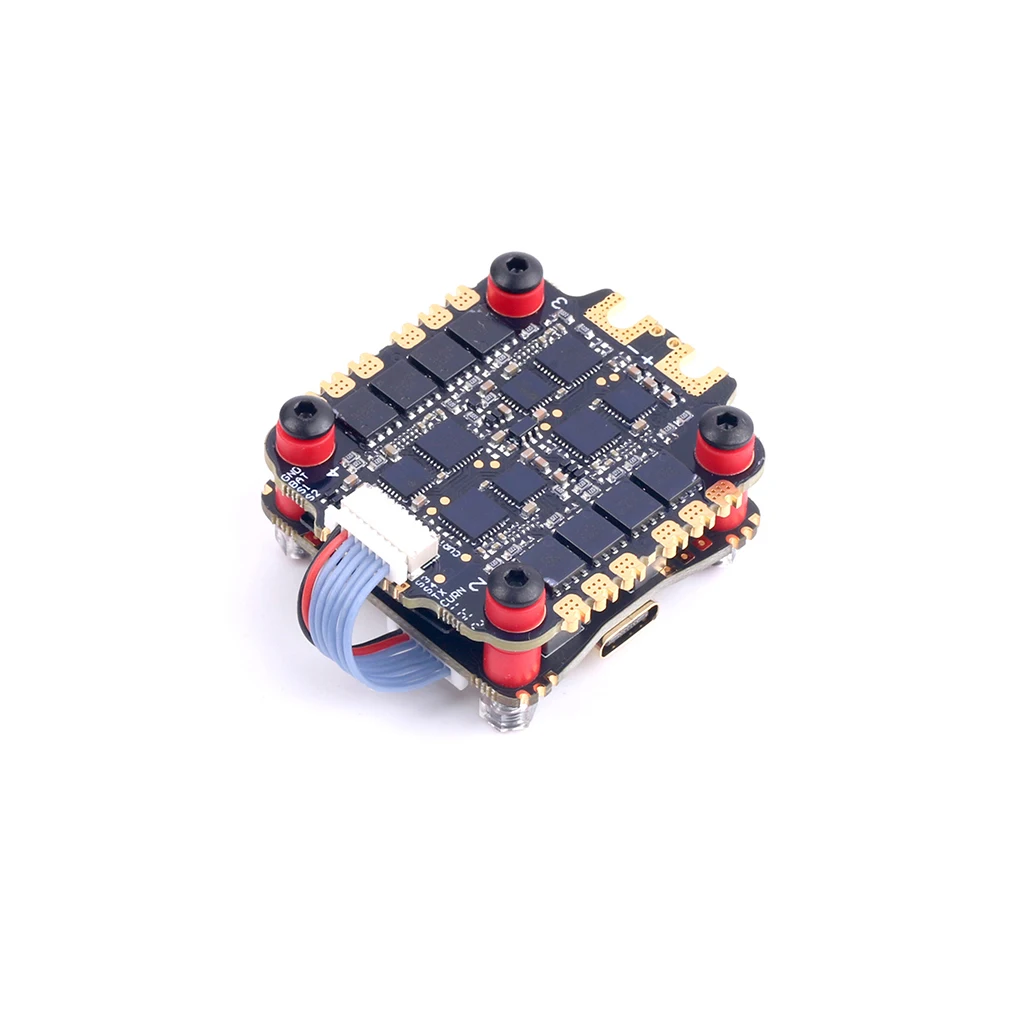

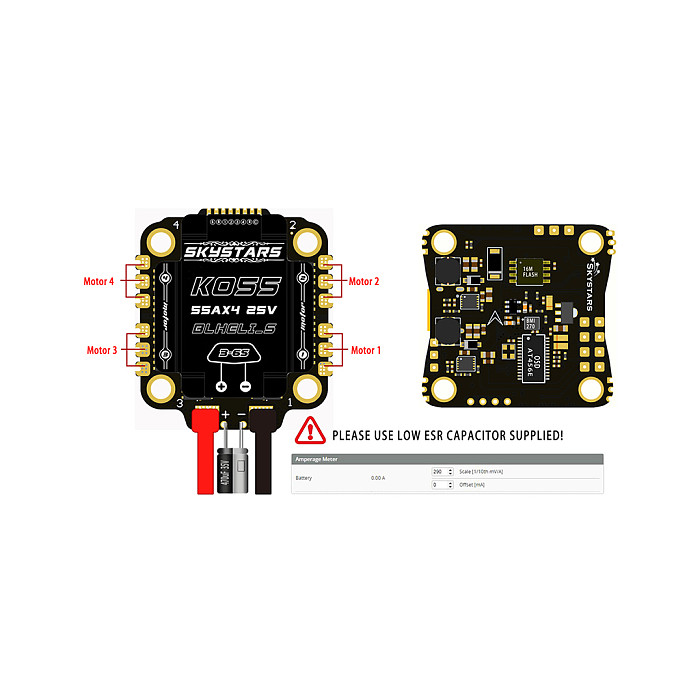

SKYSTARS 55A 4in1 ESC Specification:

Dimension: 41*46mm

Mounting Holes: 30.5*30.5mm/Φ3mm

Weight:13.3g

Supports 3-6S Lipo input

BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware

Current sensor: YES

BEC: NO

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: Q-H-30 BLS 16.7

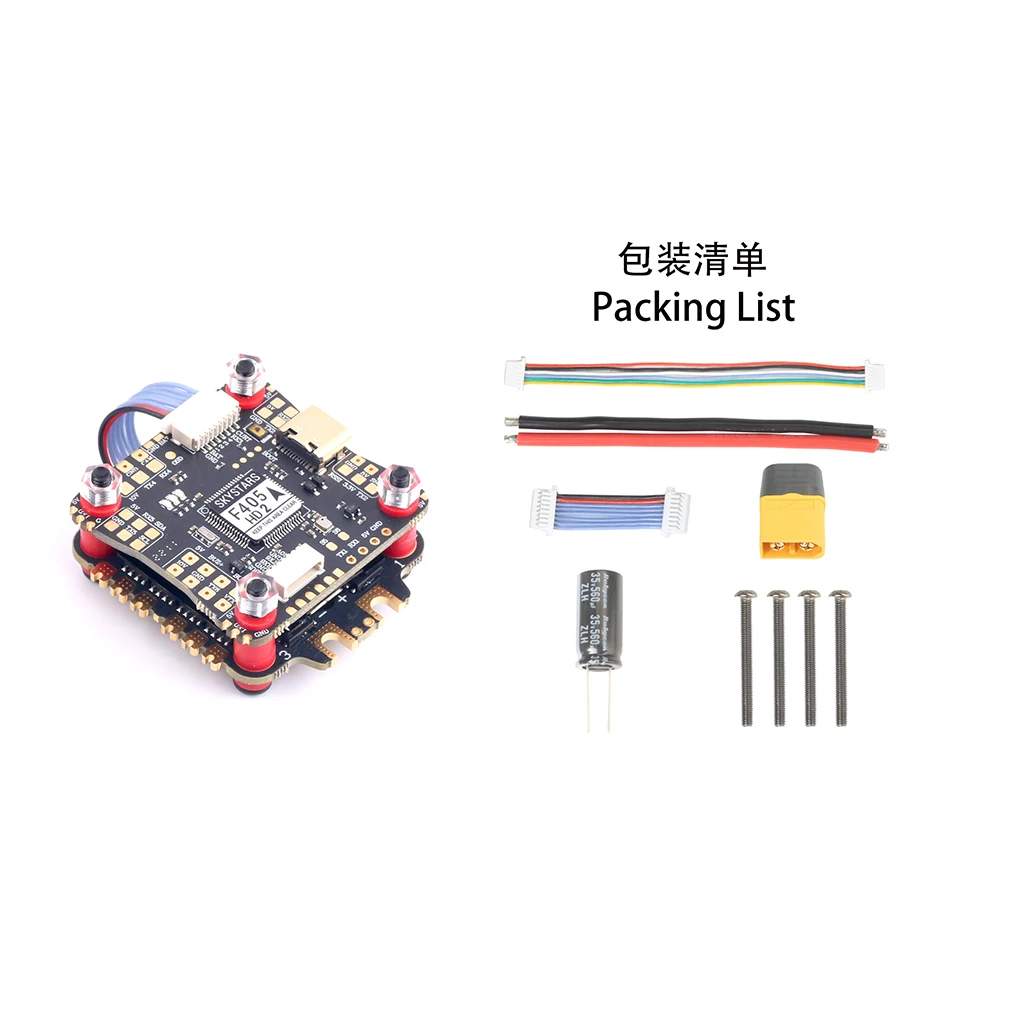

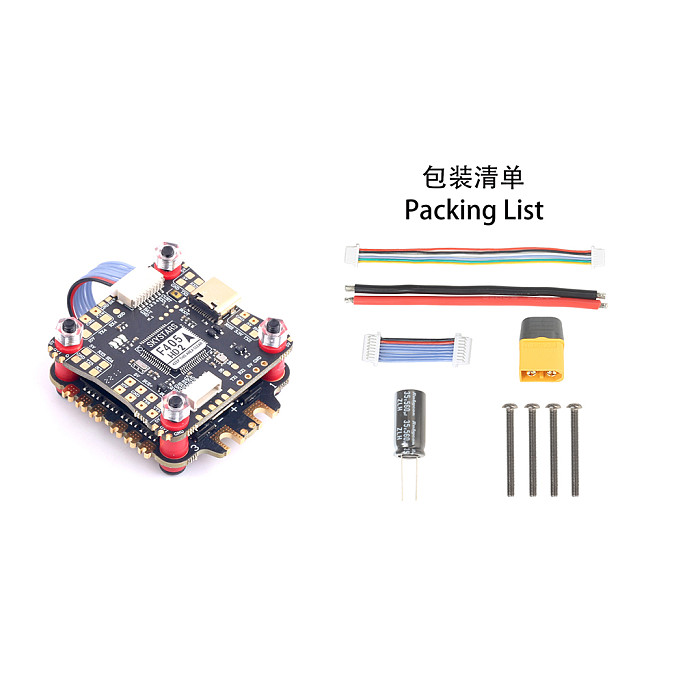

Product Specifications:

Skystars F405 HD2 Flight Control ×1

55A 4-in-1 brushless ESC ×1

Capacitor ×1

14awg power cable ×2

6P connection cable ×1

8P connection cable ×2

Amass XT60 male plug ×1

Half-round head screws(M3*30mm) ×4
