JX PS-5509MG Metal Gear 120°55g/9kg 50Hz Steering Gear Large Torque Servo For RC Helicopter Drone Robot Tank Car Parts Item NO.: F39839

Name: JX PS-5509MG Metal Gear 120°55g/9kg 50Hz Steering Gear Large Torque Servo For RC Helicopter Drone Robot Tank Car Parts
Brand: JX
SKU: F39839
Price: 5.84 USD
Availability: InStock

Write a Review Sold (4)

US$ 5.84

US$ 6.87 Save US$ 1.03 (15% Off)

Quantity: Stock ( 9999999 )

Estimate Shipping Cost

Add to Cart

Product Name	JX PS-5509MG Metal Gear 120°55g/9kg 50Hz Steering Gear Large Torque Servo For RC Helicopter Drone Robot Tank Car Parts
Item NO.	F39839
Weight	0.066 kg = 0.1455 lb = 2.3281 oz
Category	DIY RC Drone Accessories > Servo
Brand	JX
Creation Time	2020-07-21

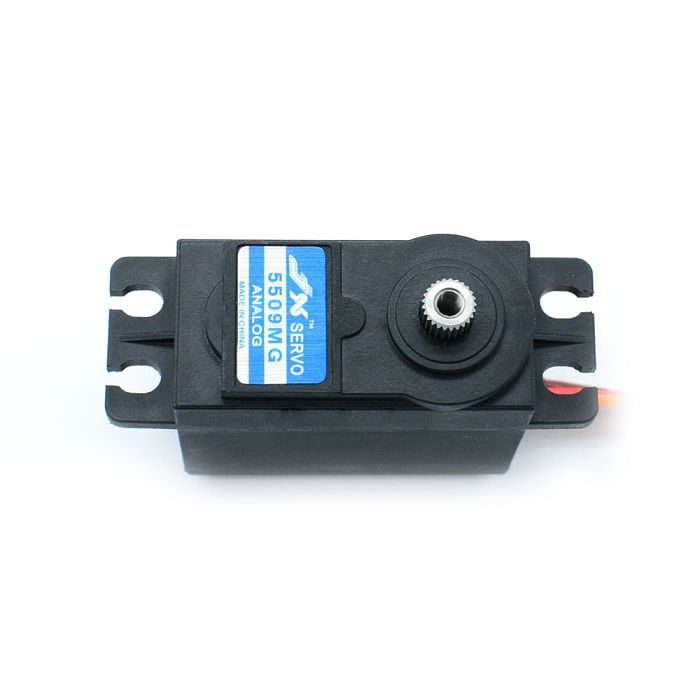

JX PS-5509MG Metal Gear 120°55g/9kg 50Hz Steering Gear Large Torque Servo For RC Helicopter Drone Robot Tank Car Parts

Brand: jx

Model: PS-5509MG
Product name: analog core Metal Gear servo
Working voltage: DC4.8-6.0v
Working temperature: -20to+60℃
Dead setting: 7μs
Maximum pulse width: 900-2100μs subtle
Maximum angle: 120°
Working frequency: 50Hz
Motor or motor: Core Motor iron core motor
Operating speed (4.8v): 0.15sec/60°
Operating speed (6.0v): 0.13sec/60°
Torque (4.8v): 8.65kg/cm(120.11oz/in)
Torque (6.0v): 9.35kg/cm(129.83oz/in)
Size: 40.5mm*20.2mm*38mm
Weight: 55.6g (1.96oz)
Cable length: JR 265MM (10.43inch)
Gear material: Metal Gear
Applicable to: RC car models, fixed-wing aircraft, helicopters, small robots, manipulators and other models

The package contains:
1xservo

1xservo spare parts set
