Tarot Z28 Waterproof Folding Arm Seat Mount TL28A1 Black for 28MM Dia RC 4 /6/8 Axis Multi-rotor Quadcopter Drone Toy

Tarot Z28 Waterproof Folding Arm Seat Mount TL28A1 Black for 28MM Dia RC 4 /6/8 Axis Multi-rotor Quadcopter Drone Toy Item NO: F21748

US$ 25.27 (10% Off)
US$ 28.08 Save US$ 2.81
Quantity:
Shipping Cost:
Estimate Shipping Cost
  • Applicable to the diameter Φ28MM 4-axis / 6-axis / 8-axis multi-rotor Drone, the use of button-type unlock, a key to unlock the automatic folding, easy to use and retractable. Locking mechanism can be based on the arm vibration, automatic one-way locking function.
  • Unique folding seat waterproof seal baffle design, can make this double carbon plate structure of the UAV, no longer worry about waterproofing (edge to be coated with waterproof glue)
  • The overall use of 6061-T6 aluminum alloy super-hard aluminum alloy material, multi-axis CNC machining. X4 Ⅱ / X6 Ⅱ / X8 Ⅱ and other models can be installed directly
Specifications
Product Name Tarot Z28 Waterproof Folding Arm Seat Mount TL28A1 Black for 28MM Dia RC 4 /6/8 Axis Multi-rotor Quadcopter Drone Toy
Item NO F21748
Weight 0.2200 kg = 0.4850 lb = 7.7603 oz
Category DIY RC Drone Kit / RC Drone Accessories > Tarot
Tag
Brand Tarot
Creation time 2017-08-01

Detail

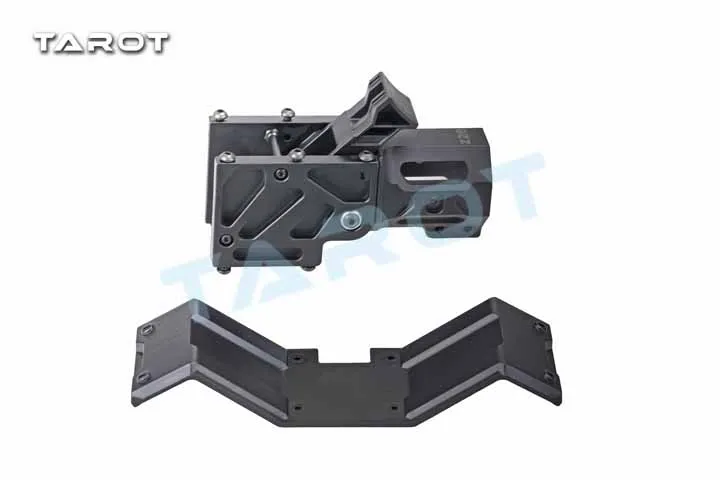

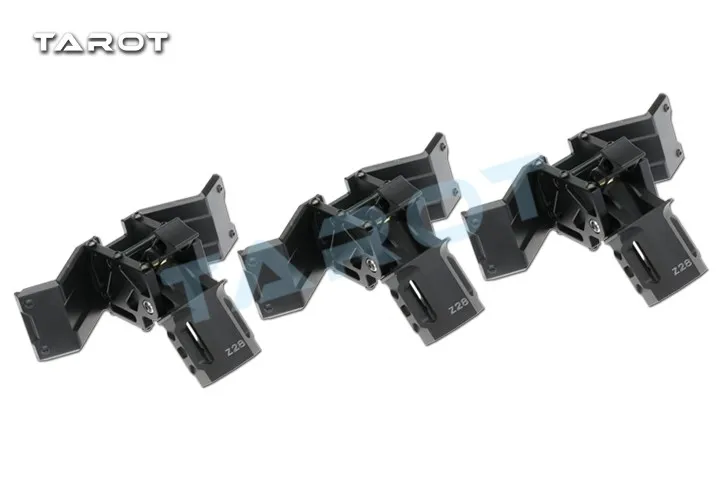

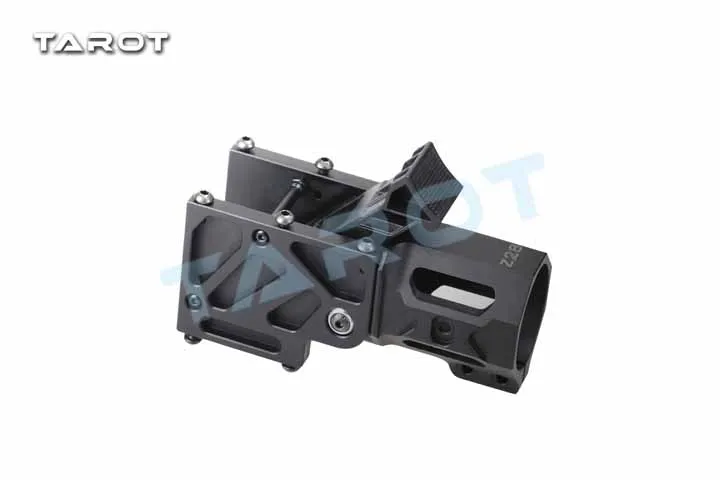

Tarot Z28 Waterproof Folding Arm Mount TL28A1 Black Arm for 28MM Dia RC 4 /6/8 Axis Multicoptor Quadcopter Drone Toy





product description:

    Applicable to the diameter Φ28MM 4-axis / 6-axis / 8-axis multi-rotor Drone, the use of button-type unlock, a key to unlock the automatic folding, easy to use and retractable. Locking mechanism can be based on the arm vibration, automatic one-way locking function.
    Unique folding seat waterproof seal baffle design, can make this double carbon plate structure of the UAV, no longer worry about waterproofing (edge to be coated with waterproof glue)
    The overall use of 6061-T6 aluminum alloy super-hard aluminum alloy material,  multi-axis CNC machining. X4 Ⅱ / X6 Ⅱ / X8 Ⅱ and other models can be installed directly

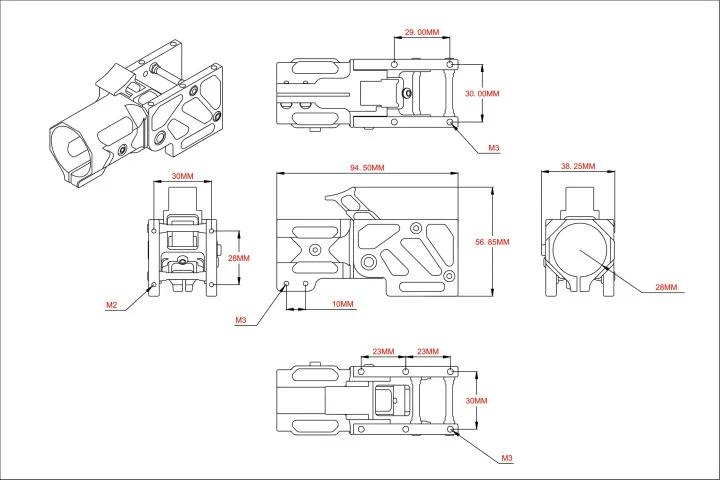

Product Specifications:

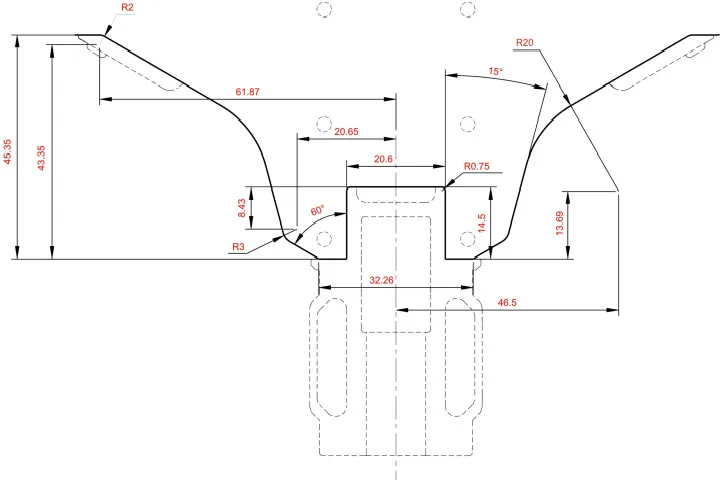

Plastic waterproof baffle × 1 (132 × 24 × 43MM) 8.8G
Metal left support plate × 1 (54.5 × 40 × 5.5MM) 19.0G
Metal right support plate × 1 (54.5 × 40 × 5.5MM) 19.0G
M3.0 × 5MM round head with hexagonal screws × 10
M2.0 × 5MM cup head hexagonal screws × 4
Φ4 × 26MM spring × 2
H5 × 27MM hexagonal aluminum column × 2
M2.0 × 5MM round head with hexagonal screws × 4
Unlock the slider × 1 (70 × 15 × 26.5MM) 10.0G
Self-locking copper pillar × 1 (Φ6 × 32.30MM) 6.5G
Φ28MM metal machine arm clamp × 1 (63 × 36 × 37.5MM) 41G
Φ6 × 33.5MM positioning pin × 1 (Φ7 × 37.5MM) 41G
M3.0 × 6MM round head with hexagonal screws × 2
M3 metal gasket × 1


Related Product :
Z25 folding arm seat / matte black TL25A1
Z25 folding arm seat / 5 degrees tilt TL25A2
Z28 waterproof folding arm seat / matte black TL28A1
Z28 waterproof folding arm seat / 5 degrees tilt TL28A2
Z30 waterproof folding arm seat / matte black TL30A1
Z30 waterproof folding arm seat / 5 degrees tilt TL30A2
Z28 / Z30 metal connection plate TL28A3
