TOOLFREE 3.5 inch SATA/SAS Chassis Optical Drive Bit Hard Drive Extraction Extraction Cassette w/fan Intelligent Temperature Control Item NO.: F39896 F39897

TOOLFREE 3.5 inch SATA/SAS Chassis Optical Drive Bit Hard Drive Extraction Extraction Cassette w/fan Intelligent Temperature Control For Desktop Computer

product description:
Brand: TOOLFREE
Colour: Black
Specifications: MRA210, MRA210Pro
Size: 190*148*42 mm

Features:
MRA210:
3.5 inch SATA/SAS 6.0Gbps optical drive bay hard drive tray
Use an optical drive installed on the chassis
Tool-free replacement of hard disk design, which can quickly replace the hard disk
Built-in NSS connector (50 thousand plugs and pulls will not damage the hard disk interface)
All aluminum alloy body shell, strong, beautiful and durable, a 3.5 cm fan forced convection heat dissipation
Front independent power switch and light indicator, hard disk storage door with lock design to prevent the hard disk from being operated by mistake
Intelligent temperature control design, through the built-in software to control the fan speed; when the fan fails, the indicator and buzzer double alarm
With a guide device, support the vertical installation of the hard disk box and the use of thin hard disks
Built-in power-off memory function, after the product is re-powered, it will automatically restart to restore the previous state, realizing unattended
Compatible with SATA and SAS interface hard drives, SATA36.0Gbps transfer rate (theoretical value)

MRA210-Pro:
3.5 inch SATA/SAS optical drive hard drive extraction bracket
Use an optical drive installed on the chassis
Tool-free replacement of hard disk design, which can quickly replace the hard disk
Built-in NSS connector (50 thousand plugs and pulls will not damage the hard disk interface)
4 points silicone suspension shockproof, protect the hard drive safety
The front LED indicates the working status of the hard disk, and the hard disk storage door has a lock design to prevent the hard disk from being operated by mistake
Metal sliding door, PC material plastic, stainless steel frame, superior materials, durable product
With guide device, support the installation and use of the hard disk box in the vertical direction
Compatible with SATA and SAS interface hard drives, SATA3 6.0Gbps transfer rate (theoretical value)

Please pay attention to the use of SAS hard drives (SATA hard drives ignore this content)
This product can be installed with SAS interface hard drives normally, but you need to confirm that your computer motherboard is a server-level motherboard, and the data interface on the motherboard must support SAS hard drives to be able to work normally. Ordinary personal desktop computer motherboards do not support SAS hard drives; SAS hard drives are enterprise-level hard drives, mainly used in servers. Server motherboards are generally standard SAS data interfaces, while ordinary desktop computers are SATA data interfaces. SATA interfaces are substandards of SAS interface standards. SAS interface technology can It is backward compatible with SATA hard disks, but the SATA interface cannot be upward compatible with SAS hard disks; if you want to use SAS hard disks on ordinary desktop computers, you can install a SAS expansion card + MiniSAS to SATA data cable to connect this product to the SAS expansion card. achieve.
Users of SAS hard disks should make sure that they are clear before taking the picture. If there is still something unclear, please contact the seller for confirmation.

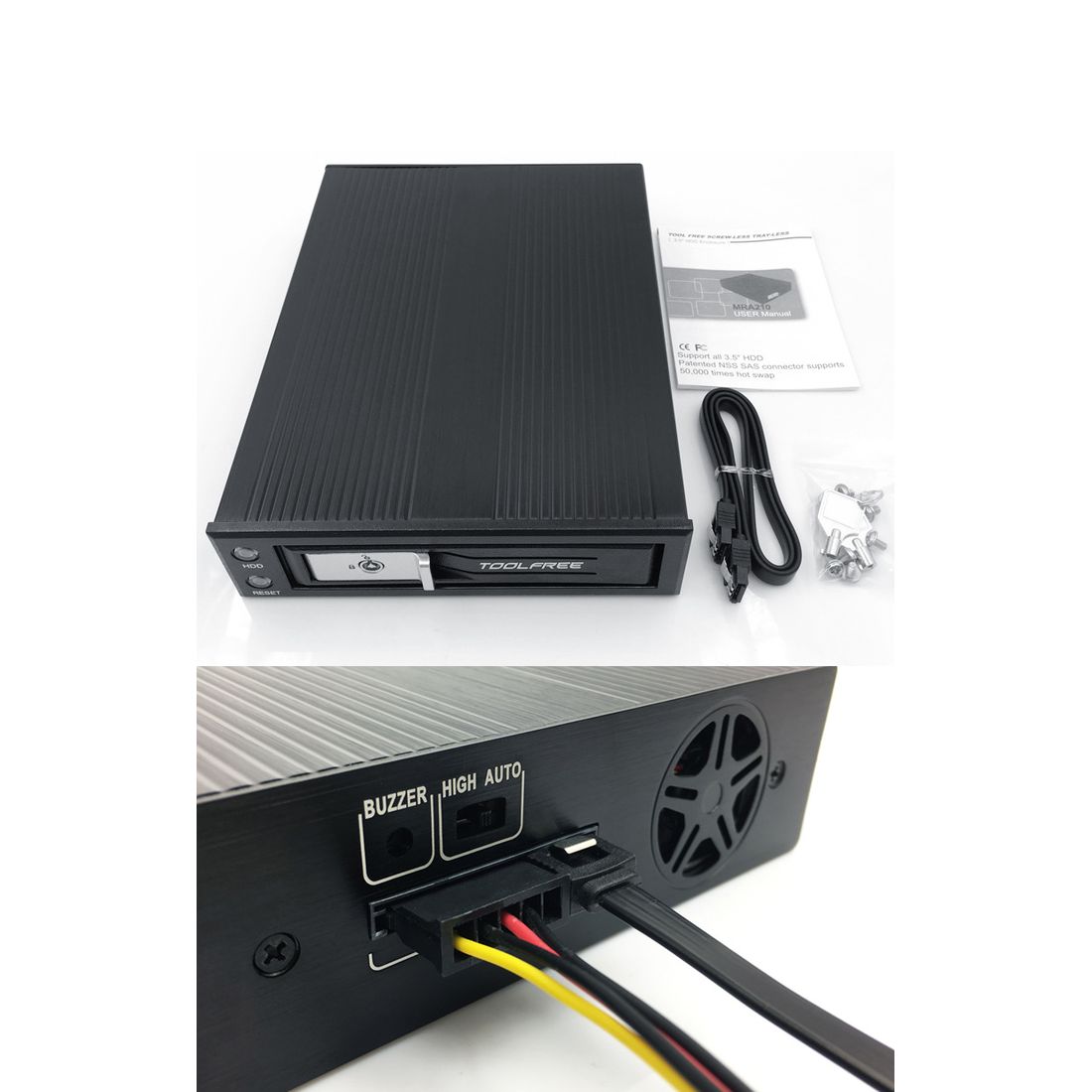

Products include:
MRA210: (with fan Intelligent temperature control)
1*3.5 inch SATA/SAS 6.0Gbps optical drive bay hard drive tray
1*Data cable
8*screw
2*key
1*Instruction

MRA210-Pro:
1*3.5 inch SATA/SAS 6.0Gbps optical drive bay hard drive tray
1*Data cable
1*Power cord
8*screw
2*key
1*Instruction

MRA210：

MRA210-Pro：
