XT-XINTE PCI-E 3.0 Extension Cable x1 Male to Male Female to Female Signal Exchange Cord Gen3 Full Speed PCI-E X1 Signal Docking Cable Item NO.: F45317-B1 F45318 F45319 F45320F45321 F45322 F45323 B1 B2

XT-XINTE PCI-E 3.0 Extension Cable x1 Male to Male Female to Female Signal Exchange Cord Gen3 Full Speed PCI-E X1 Signal Docking Cable

Brand: XT-XINTE

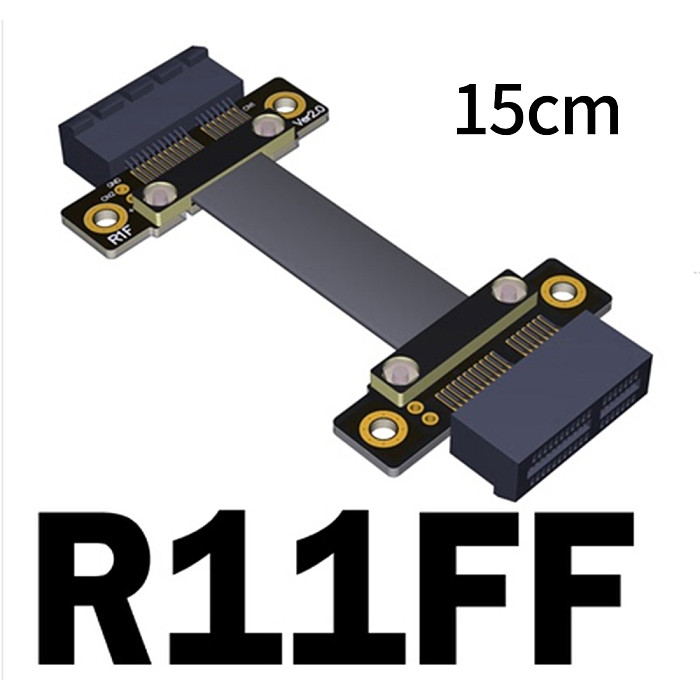

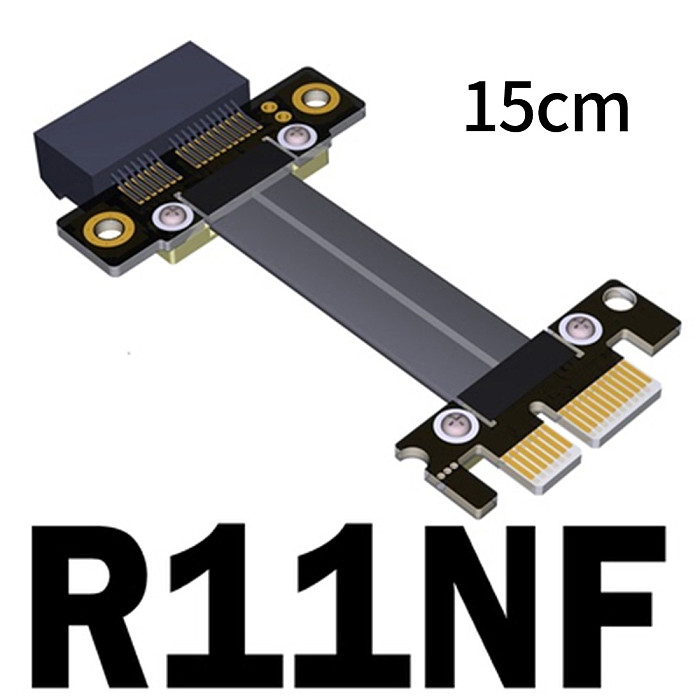

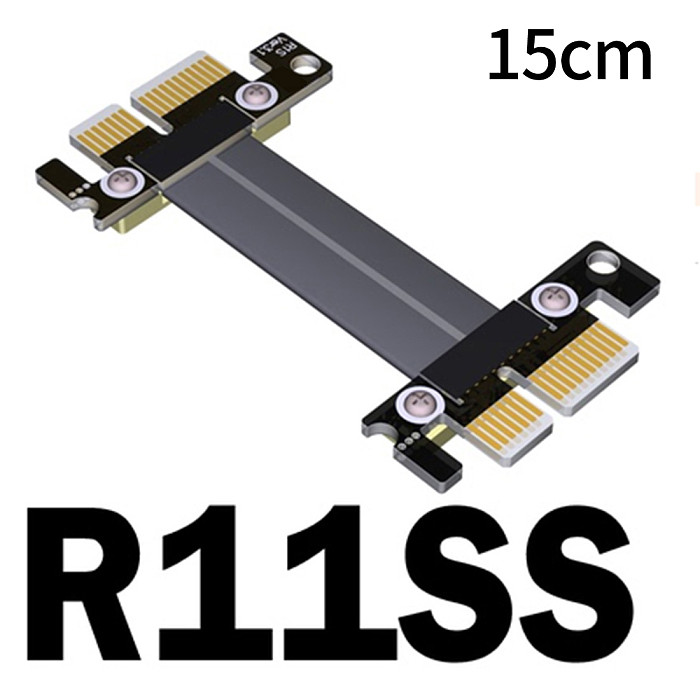

Product model: R11SS, R11FF, R11LR, R11NS, R11NF, R11NL, R11NR, (R11 series)
Product name: PCI-E X1 signal docking cable
Wire length: 3-100cm (supporting wire length customization, different wire lengths have different prices, please contact customer service to change the
price before paying)
Speed bandwidth: PCIe3.0x1 gen3 8G/bps
Product function: industrial control server equipment connection, PCIe signal high-speed transmission
Purchase restrictions:
It is only designated for purchase by professional engineers.
It is not suitable for general purpose and cannot be used.
Ordinary buyers should not purchase.

Procurement tips:
Be sure to buy 1~2 samples before testing and verifying them in large quantities.
Friendly reminder:
There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your device.
Only designated by professional engineers to purchase.
This product is a customized product and cannot be returned or exchanged. Please consider and confirm clearly before placing an order for purchase.

Length description:
The length of the wire in our shop refers to the part of the wire, excluding PCB and connectors.
If it includes PCB and connector, add about 3cm.
The total length is about 11cm, please refer to the 8cm dimension in the figure below.

Product advantages:
1. Cable advantage, use German patented imported cable, use Taiwan imported connector, support PCIe 3.0 8G/bps full-speed stable transfer
2. Cable length advantage, from 3 cm to 1 meter can be customized, the adapter sold in our shop, the cable impedance is low, the cable length within 60 cm
supports PCIe3.0 full speed.
3. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and
there is no CAF micro short circuit phenomenon, and the product is durable
4. The product is made of high-quality materials, the PCB is made of precision, the thickness of the copper material is thickened to 1oz, the gold plated
content of the gold finger is sufficient, and the gold plated foot has good electrical conductivity, which can reduce the blue screen of crash caused by the
increase of oxidation and rust resistance. Stable at full speed, no speed reduction required, and no compatibility issues.
5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm to protect the metal welding points, and lock the screws and
hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break The nail drop problem.
The wire can be bent or folded without affecting the use.
6. The PCB is designed with short and fattening, which will not get stuck on the graphics card. The fat and long design makes the board easier to install
and reduces the chance of damage.

Summary of technical issues:
Is there any exchange of PCIe Tx-Rx signals?
Refer to the following picture for the PCIe signal routing of this product.

Model R11SS has signal extension function, PCIe signal direct connection without conversion, Tx to Tx, Rx to Rx, suitable for Jump and Extension purposes.
Model R11NS Differential signal exchange, PCIe differential signal Tx to Rx, Rx to Tx, suitable for Master-Slave purposes.
