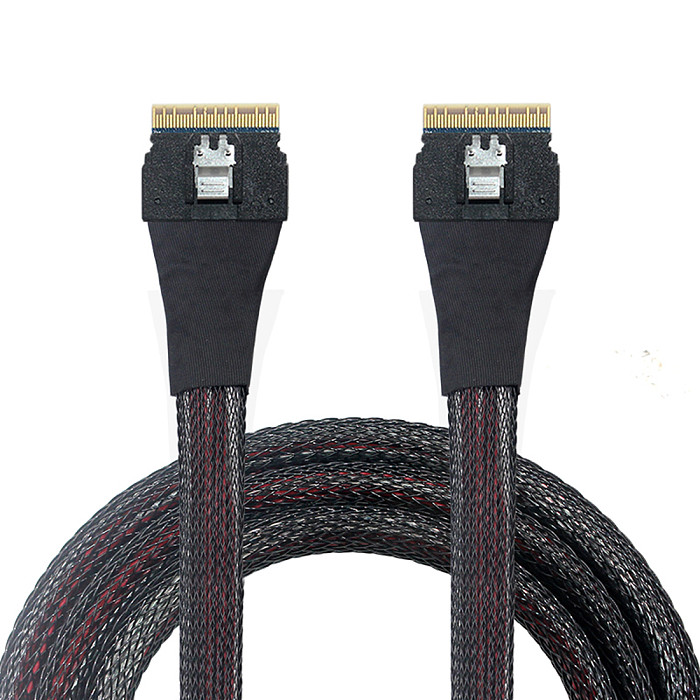

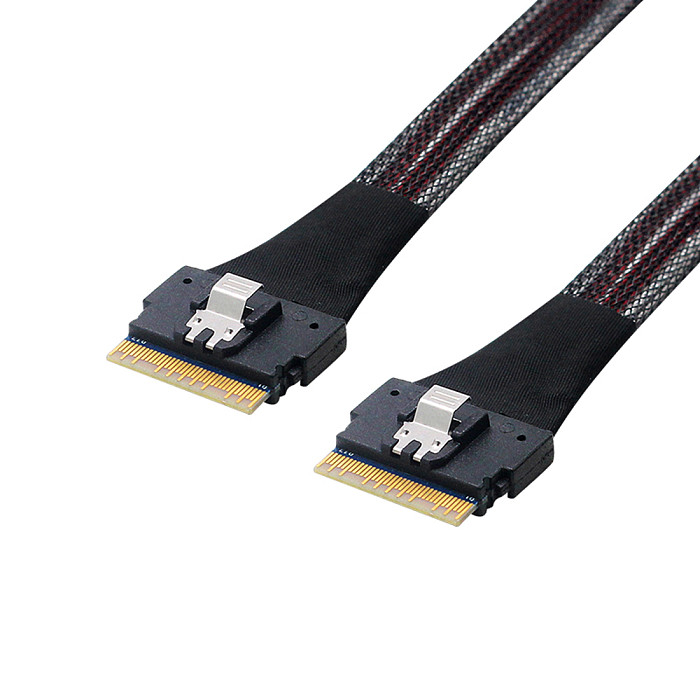

XT-XINTE 24Gbps Internal Mini SAS Cable Server Cable Slim SFF 8654 to SFF 8654 74 Pin Hard Disk Server Storage Array Computer Accessories Item NO.: F45026-D1 F45026-D2

XT-XINTE 24Gbps Internal Mini SAS Cable Server Cable Slim SFF 8654 to SFF 8654 74 Pin Hard Disk Server Storage Array Computer Accessories

Describe:
Host side: Slim SAS 4.0 SFF-8654 8i 74PIN
Target end: Slim SAS 4.0 SFF-8654 8i 74PIN
Ultraport SlimSAS conforms to the T10/Serial Attached SCSI (SAS-4) standard and is applicable to all known protocols.
The Ultraport SlimSAS connector takes up the same space as Mini-SAS.
Typical applications include servers, switches, routers, storage racks, etc.
Cable specifications:
Host/controller connection: 1 x 74-pin HD Mini-SAS SFF -8654-8i male with latch.
SATA drive connection: 1x 74-pin 8654-8i socket-male with latch.
Wire-32 AWG silver-plated copper 85 ohm flat ribbon cable.

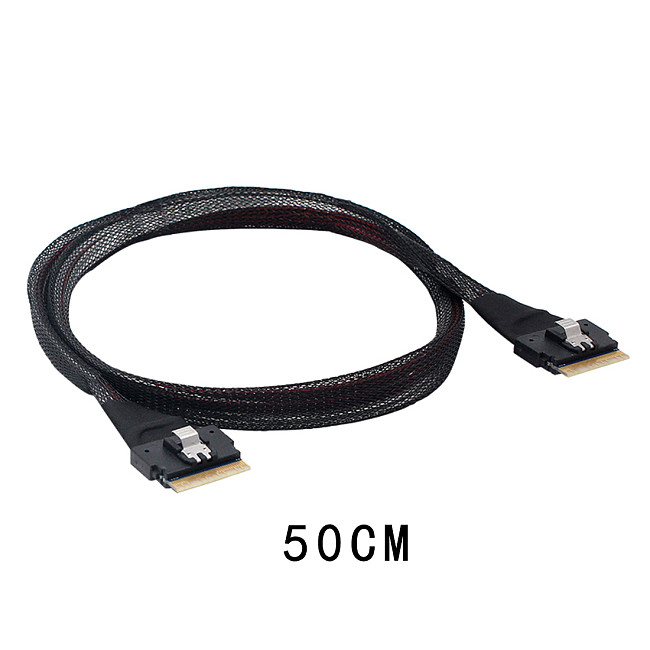

Length: 0.5/0.8 meters optional.
Fire protection: VW-1.
Comply with RoHS.
Using 3M biaxial cable technology, foldable, high bandwidth, low skew cable.
SlimSAS SFF-8654 to SFF-8654 cable, 8 configurations, SAS4.0, up to 24Gbps, 30AWG.
Ribbon cable interface and component options provide low profile and design flexibility.
Application: It is an ideal choice for setting up storage devices, rack stations, disk stations, storage area networks and servers.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Packing list:
1 X Slim SFF-8654 to 8654 8i Server Cable
