PCI-E x4 Extension Cable adapter board PCIe 3.0 x1 8G/bps for Audio Wireless LAN USB Card PCI-E 1x to 4x PCI-E Express Cables

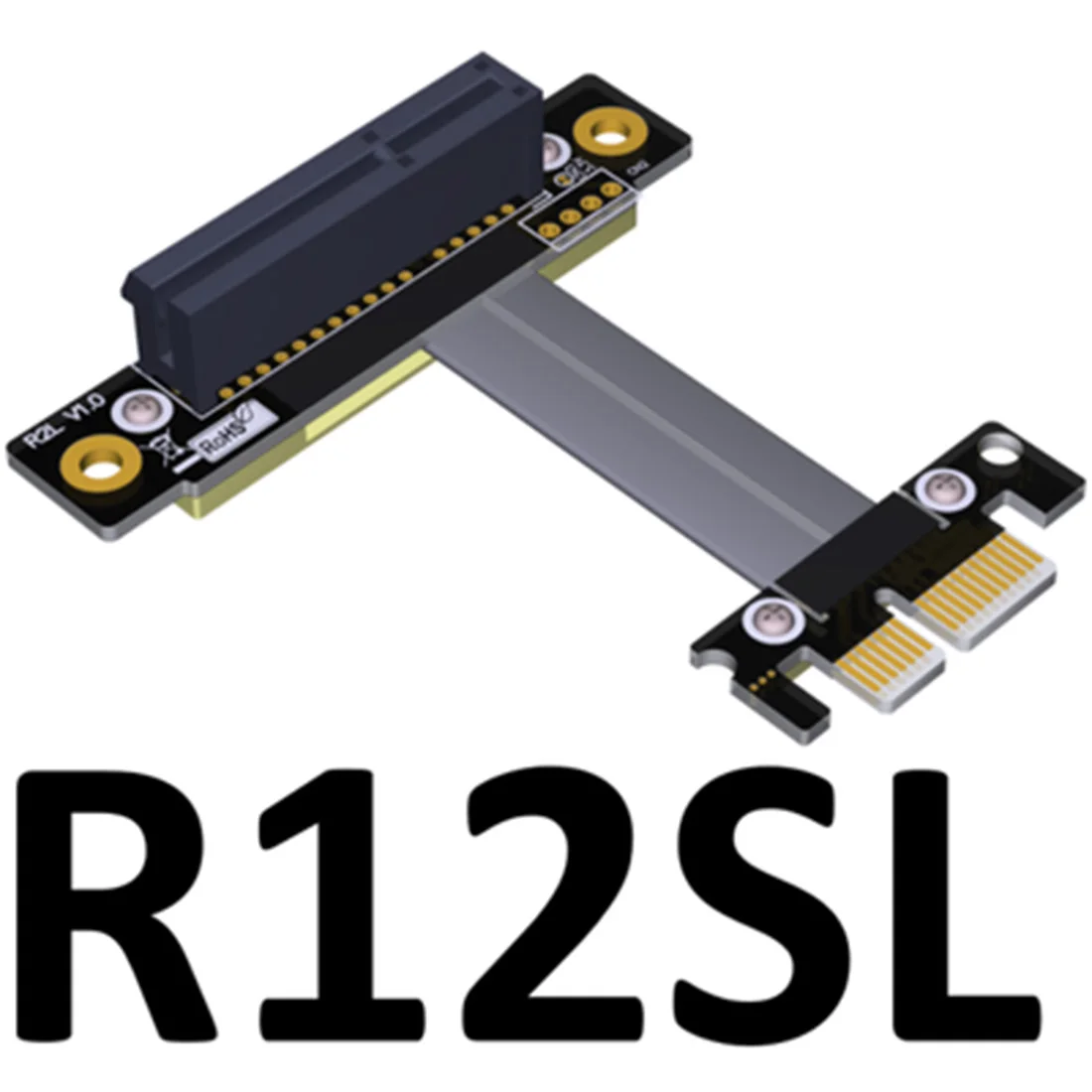

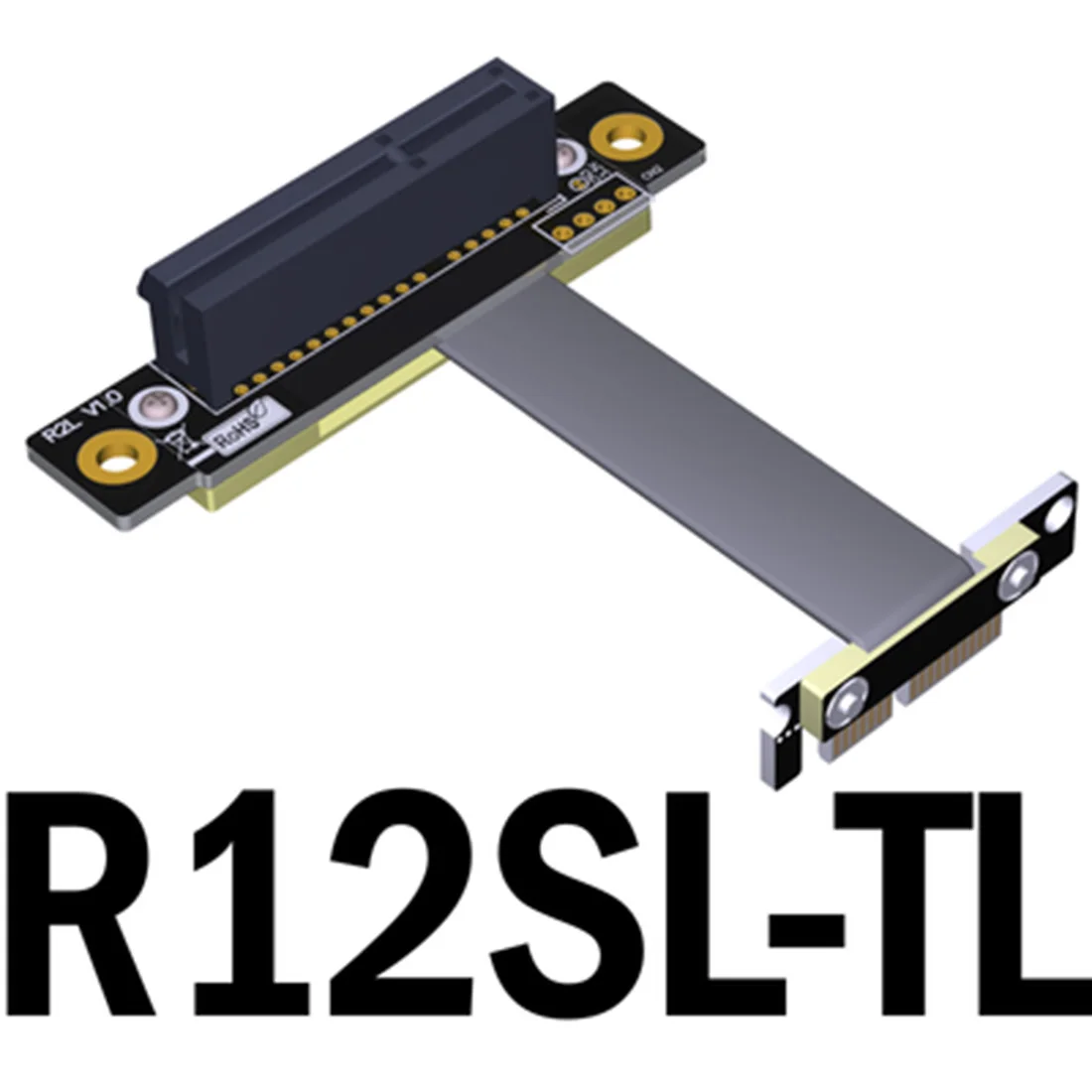

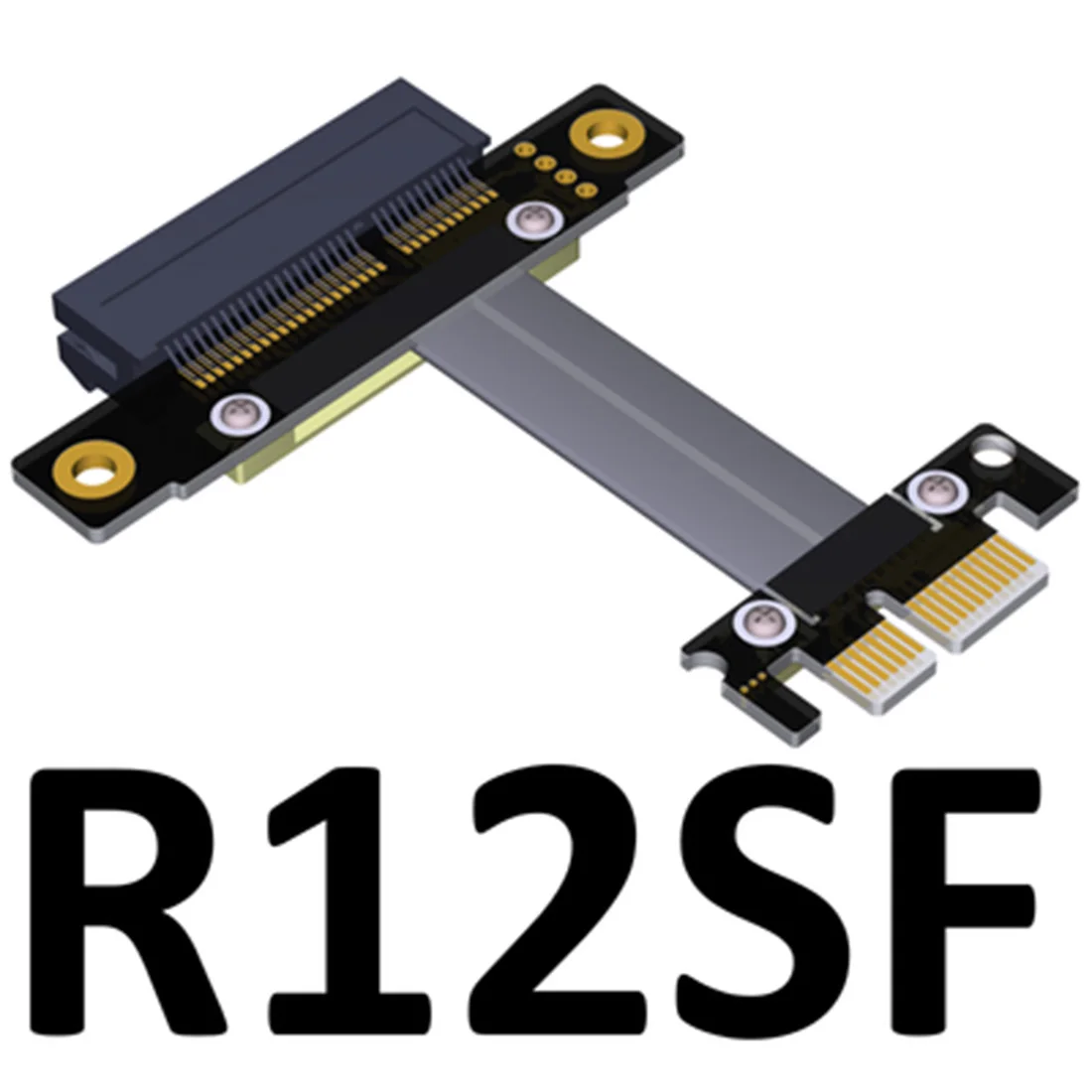

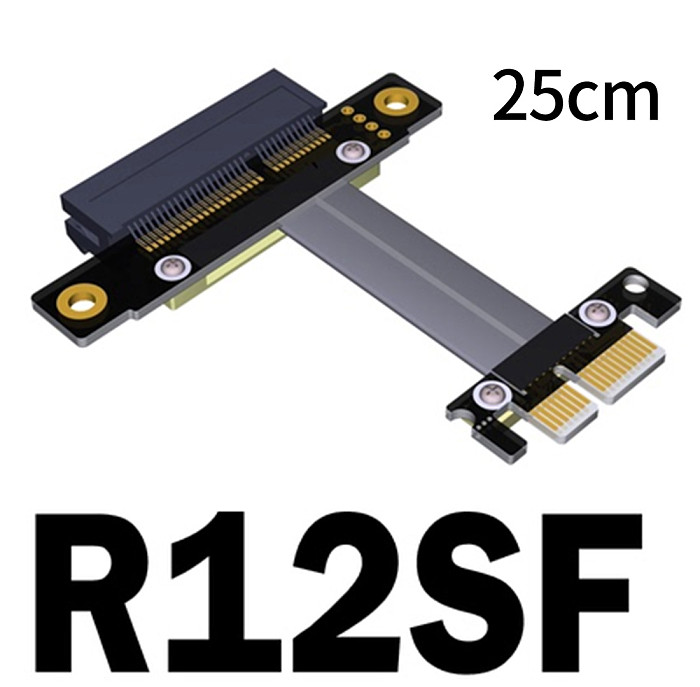

Type :R12SF, R12SL, R12SR, R12SL-TL

PCI express 3.0 x1 Extension Cable

Brand name: XT-XINTE

Product name: PCIe x1 extension cable

Product model: R12SF, R12SL, R12SR, R12SL-TL

Transfer speed: PCIe3.0 x1 full speed, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized,

Application: PCIe x1 audio, LAN, USB cards, extension

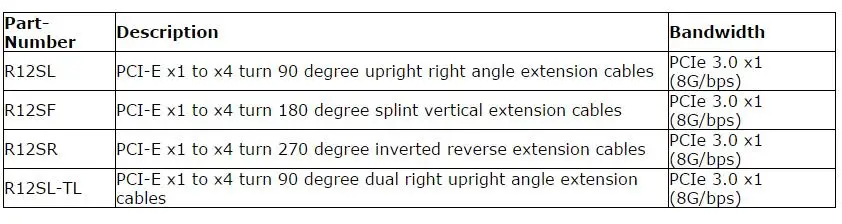

R12 series Part-Number Description:

Cable length ：

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Product advantage:

1. Wire advantage, using German patented imported wire, using Taiwan imported High quality connector, high frequency support PCIe 3.0 stable transfer.

2. Cable length advantage, from 5 cm to 1 m, wire length can be customized according to customer needs.

3. The differential signal has no via design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit, and the product is durable.

4. The product uses high-quality materials, PCB workmanship precision, copper thickness is thickened to 1oz, gold finger gold content is sufficient, gold-plated foot has good electrical conductivity, which can reduce the blue screen of the crash caused by the increase of oxidation and rust resistance. The signal transmission is stable at full speed and there is no compatibility problem.

5. The cable used in the product itself is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and is fastened with screws and hex nuts. The product is strong and reliable, resistant to pulling, anti-interference, and will not be broken. The nail problem. The wire can be bent and folded without affecting the use.

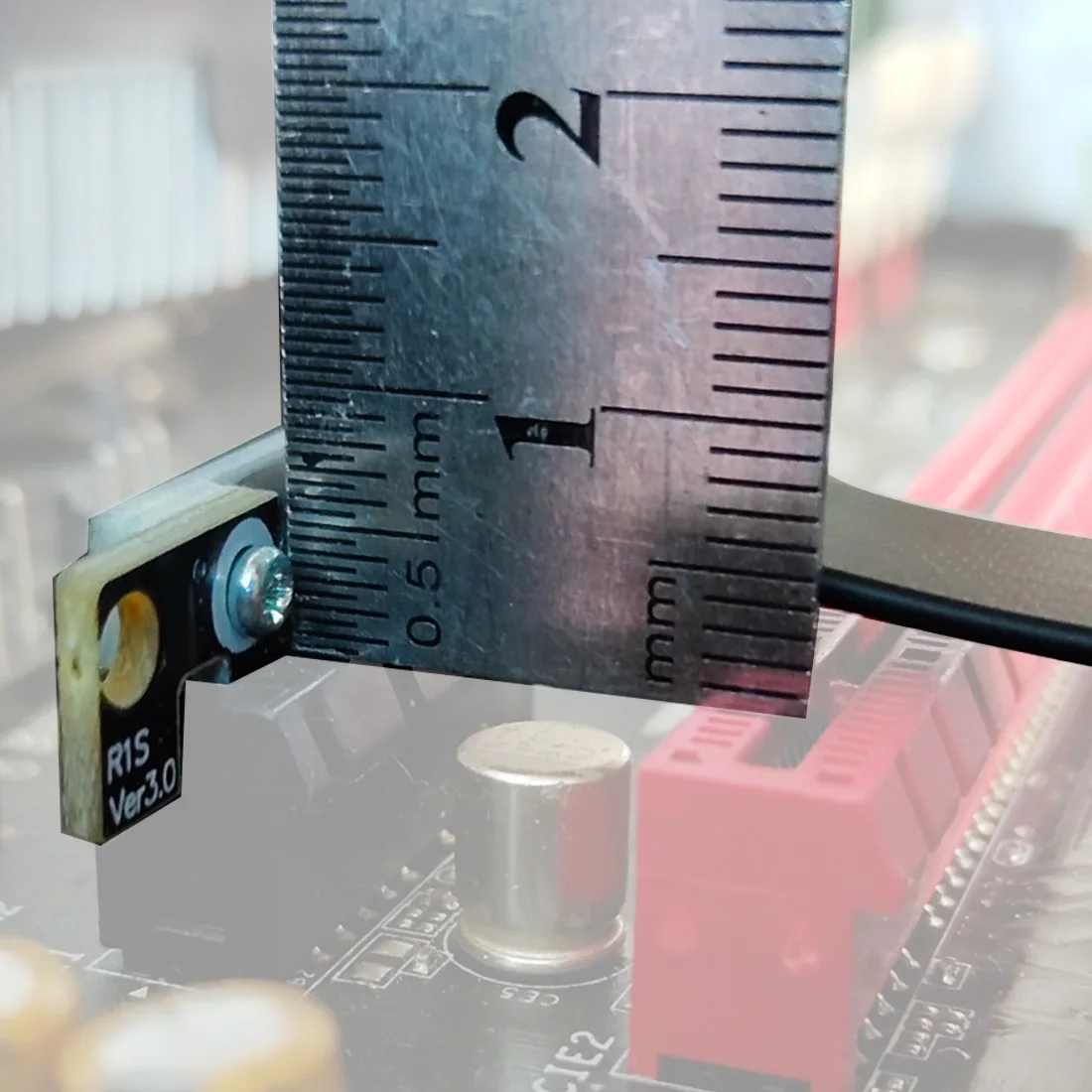

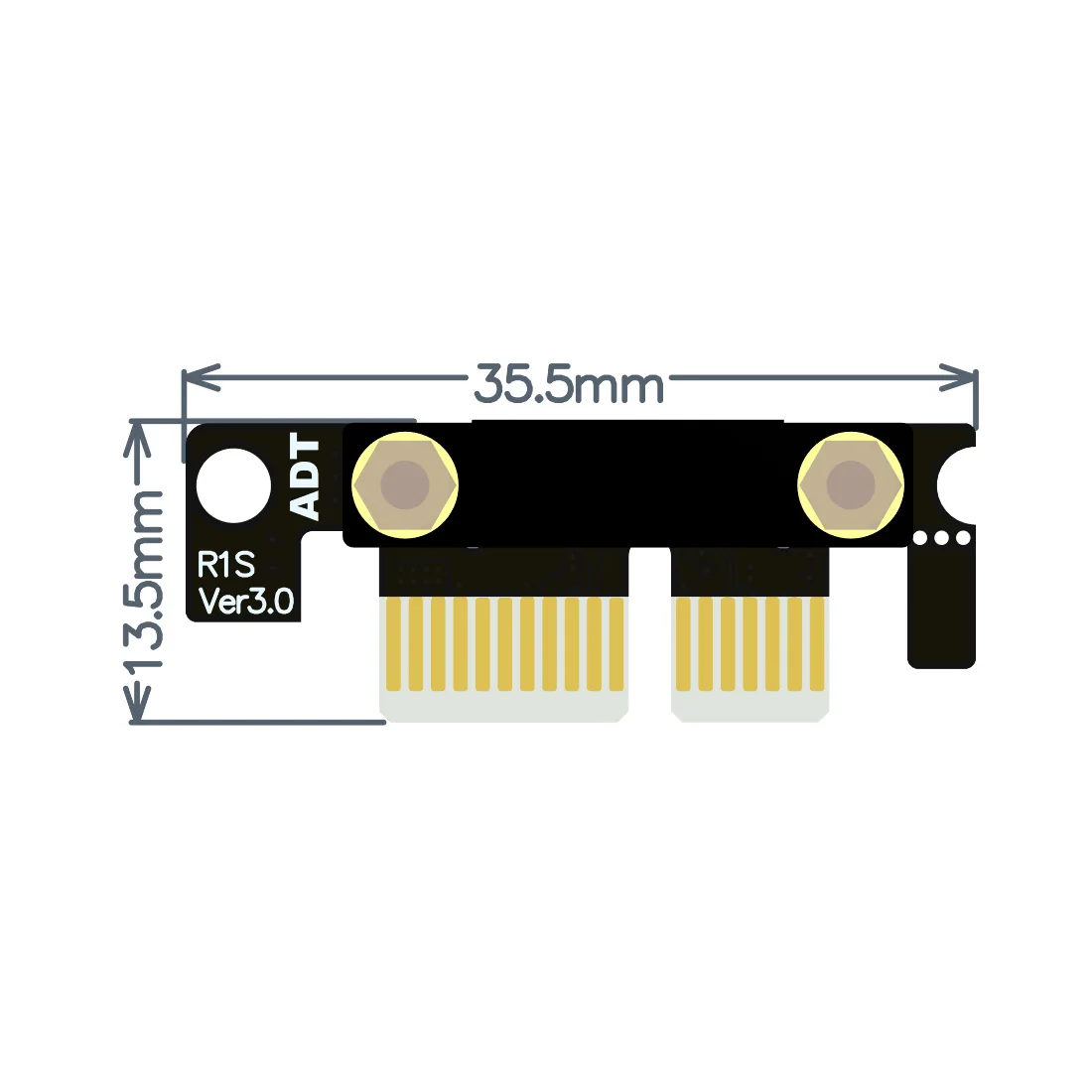

6. PCB dwarf and fat design, dwarf will not get stuck to the graphics card, add fat and long design to make the board easier to install, reducing the chance of damage.

Purchase Notice:

1. You must identify the direction when you plug in this cable. Don’t reverse insert and bend, prevent burning equipment.

2. All kinds of Motherboard and equipment condition such as signal driving ability is different, the results of our test does not guarantee that it is the same as your test results. You need to know, as long as using a extension cable, the signal will have a loss. The buyer who requires perfectly, please don't buy.

3. The graphics card or motherboard is an electronic equipment which will increase over time and oxidant aging. It will become more unstable if plug in an extension cable. Does not support the old equipment. The device which is more than four years, please don't buy.

4. Only use for product testing, If other purposes or don't have DIY ability, please don't buy.
