Dual 90Degree Right Angle PCIe 3.0 to x1 Extension Cable R11SL High Speed PCI Express Sound Riser Card Ribbon Extender 8G/bps

Dual 90Degree Right Angle PCIe 3.0 to x1 Extension Cable R11SL High Speed PCI Express Sound Riser Card Ribbon Extender 8G/bps Item NO.: F29439/F29441/F45304/F45305/F44667/F44668

Write a Review
US$ 4.40
US$ 5.18 Save US$ 0.78 (15% Off)
Type

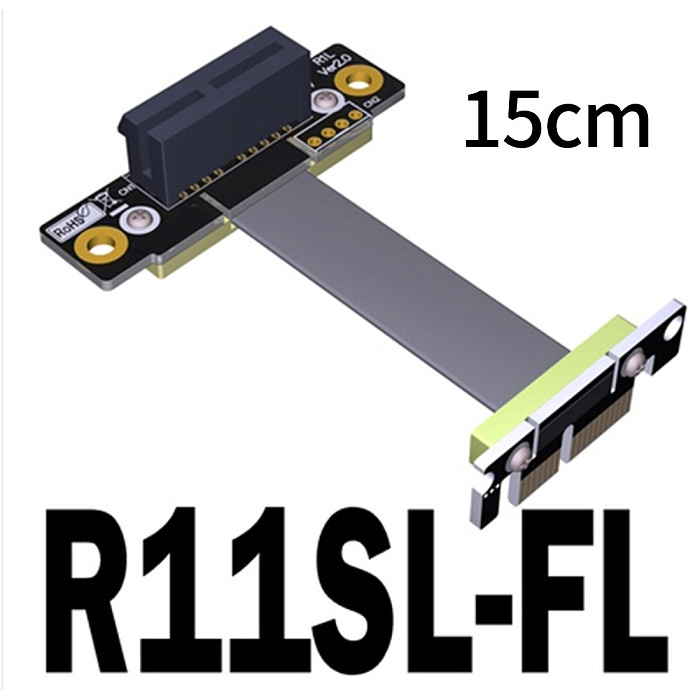

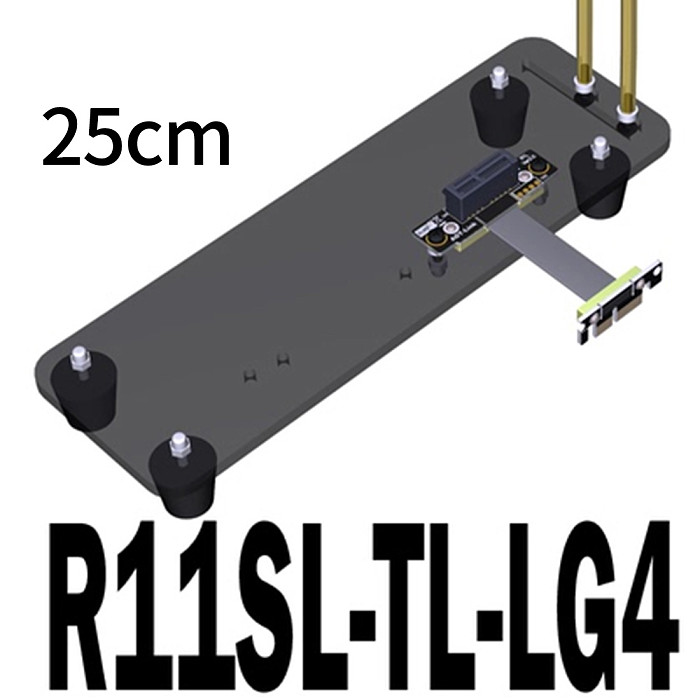

15cm R11SL-TL 25cm R11SL-TL 15cm R11SL-FL 25cm R11SL-FL 15cm R11SL-TL-LG4 25cm R11SL-TL-LG4 15cm R11SL-TL-PA4 25cm R11SL-TL-PA4 15cm R11SL-FL-PA4 25cm R11SL-FL-PA4 15cm R11SL-TL-PA2 25cm R11SL-TL-PA2
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name Dual 90Degree Right Angle PCIe 3.0 to x1 Extension Cable R11SL High Speed PCI Express Sound Riser Card Ribbon Extender 8G/bps
Item NO. F29439/F29441/F45304/F45305/F44667/F44668
Weight 0.033 kg = 0.0728 lb = 1.1640 oz
Category Consumer Electronics > Computer Accessories
Brand XT-XINTE
Creation Time 2021-11-11


Brand: XT-XINTE

Product model: R11 series

Product name: PCI-E sound card adapter board extension cable

Wire length: 15/25cm (3~100cm supports length customization, please consult customer service for specific prices)

Bandwidth speed: PCIe 3.0x1 gen3; 8G/bps

Applicable for: sound card, network card, wireless network card, capture card, as long as it is PCI-E x1 interface.


Product function:

The extension cable can keep the sound card network card away from the graphics card, so that the graphics card heats up well, and the sound card network card can reduce interference. The extension cable does not require power supply.



The sound card extension cable usually chooses R11SL-TL (double right angle, closed socket)-5cm. If your card is far away from the motherboard, please measure the distance yourself and select the appropriate cable length.


Cable length:

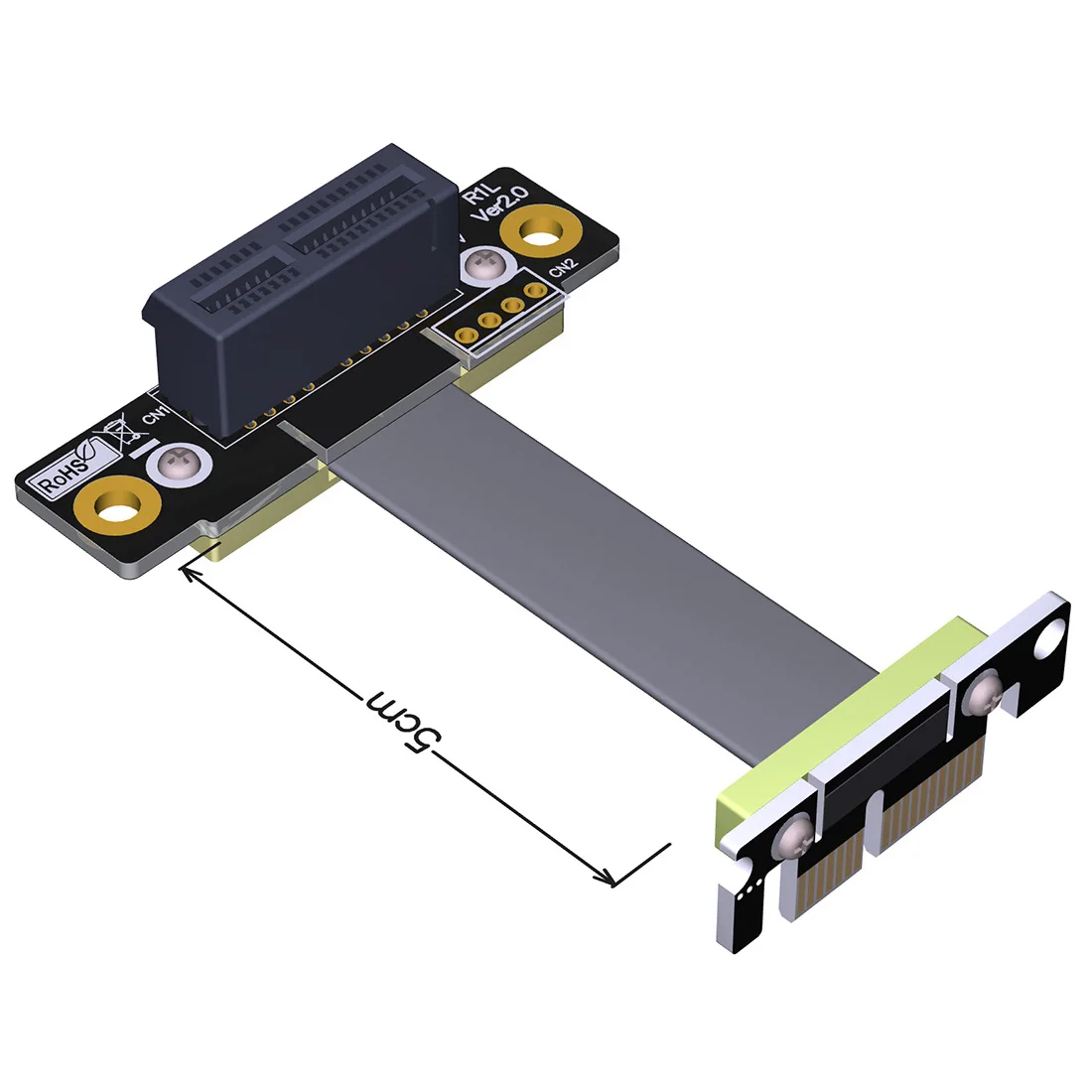

The length of the cable refers to the part of the visible wire, excluding the PCB and the connector, if it contains the PCB and the connector, add about 2cm. The total length is about 7 cm, please refer to the 5cm dimension in the figure below.

Features

1. German patented imported cable, Taiwan imported Lotes connector, high frequency support PCIe 3.0 8G/bps stable transfer

2. It can be customized from 3 cm to 1 meter, the cable impedance is low, and the cable length within 60 cm can stably support PCIe3.0 full speed.

3. The differential signal has no vias, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.

4. The PCB is made of high-quality high-frequency and low-resistance materials, high-TG sheets, and thickened copper to 1oz. The gold fingers have sufficient gold plating content and the gold-plated feet have good electrical conductivity, which can reduce the crash sound caused by the increase of oxidation and rust resistance.

5. The metal welding points are protected by PCB gaskets with a thickness of 3mm, and the screws and hexagon nuts are fastened. The product is strong and reliable, resistant to pulling, anti-interference, and will not break wires or nails.

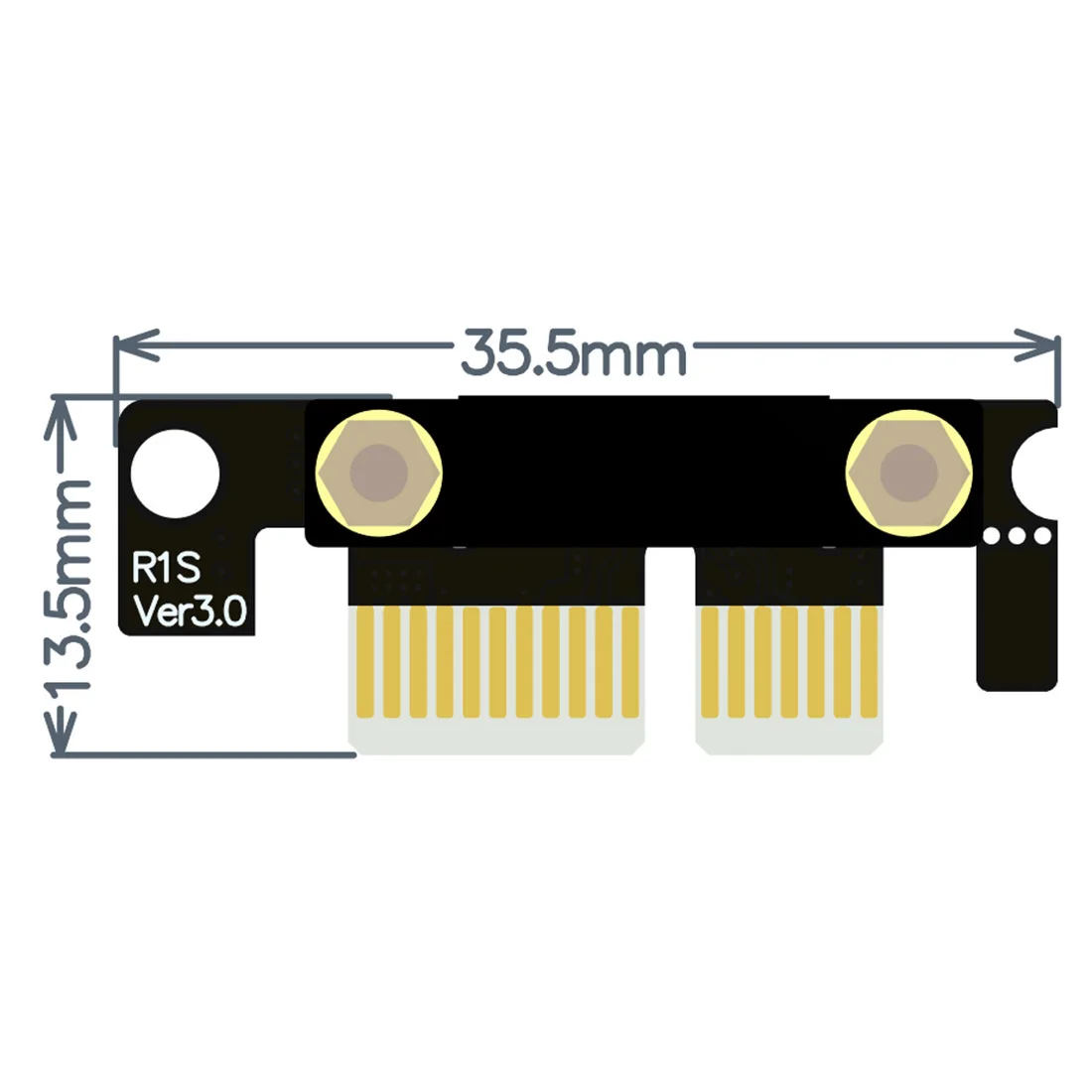

6. PCB dwarfing and widening design, dwarfing will not catch the graphics card. The widened and long design makes the board easier to install and reduces the chance of damage



What is the thickness of the cable? Is it soft? Can it be bent?

The thickness of the cable of this product is 1.4mm, so it is harder. It can be bent or folded, but don't pull it.

What is the quality of the wire? Is there a shield?

EMI shielding conductive polymer is used, new materials are used for EMI shielding, flat cable design. This technology allows each cable to be completely covered by the electromagnetic interference shield of the conductive polymer to prevent the incident or outgoing emission of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight.


Does it need an external power supply?

It does not require an additional external power supply.


What is the difference between connector opening and closing?

The TL closed type is tighter and not easy to fall off after inserting the sound card. Only PCIe X1 board can be inserted

FL open type can be inserted into X4 or above network card, which is more flexible in use.


If the open female socket is inserted incorrectly, the equipment will be burnt. Please choose the closed female socket to be safer.



The PCIe x1 slot is blocked by the graphics card and is located under the graphics card. How much space does the extension cable need to install?

The exposed height of model R11SL-TL after being inserted into the slot at a double right angle is about 6mm


Can the extension cable be plugged into the x16 interface?

This is very dangerous, the motherboard will be burnt if it is inserted incorrectly and inserted in the wrong position.

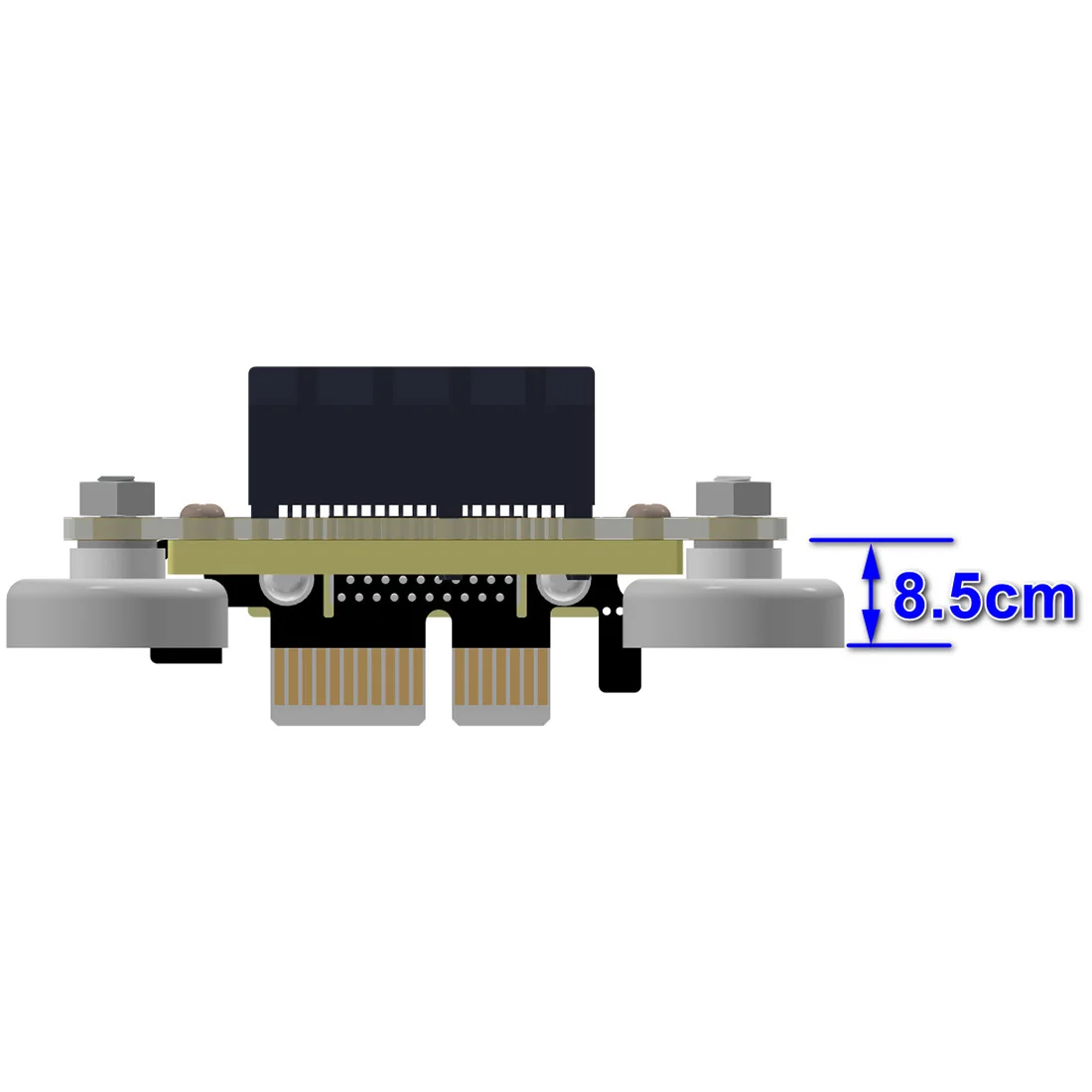

How high is the size of the strong magnetic foot pad?

Magnet 5mm + plastic gasket 3mm + stainless steel washer 0.5mm = 8.5mm
