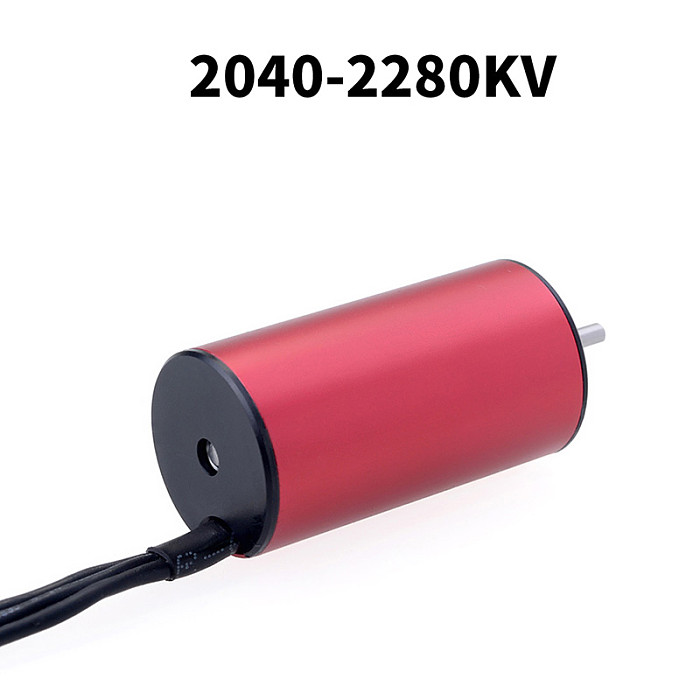

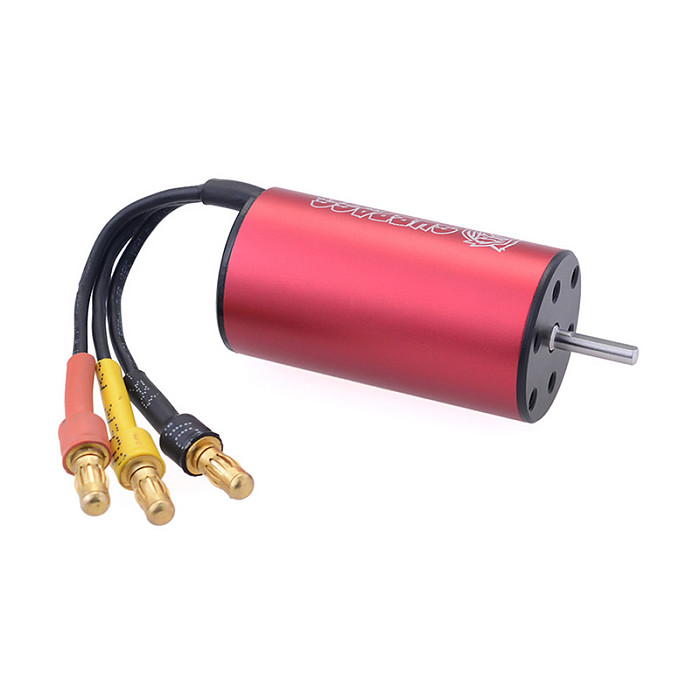

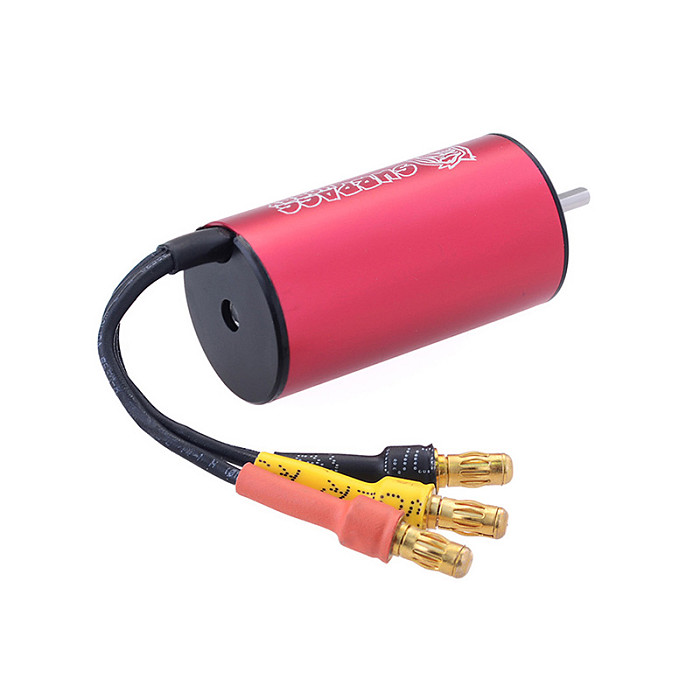

Surpass Hobby 2040 2.3mm 2280KV 3200KV 3900KV 4480KV Brushless Motor for Traxxas HSP Tamiya Axial 1/16 1/18 RC Buggy Car Model

US$ 13.98

Version

Estimate Shipping Cost

Detail
- Product Name: Surpass Hobby 2040 2.3mm 2280KV 3200KV 3900KV 4480KV Brushless Motor for Traxxas HSP Tamiya Axial 1/16 1/18 RC Buggy Car Model
- Item NO.: F43718 F43720 F43721
- Weight: 0.12 kg = 0.2646 lb = 4.2329 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: Surpass Hobby
- Creation Time: 2021-05-07
Surpass Hobby 2040 2.3mm 2280KV 3200KV 3900KV 4480KV Brushless Motor for Traxxas HSP Tamiya Axial 1/16 1/18 RC Buggy Car Model

Features:
1.4 Pole 6 Slot Hi-torque Motor Design.
2.High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings. 3.Universal fit, for all 1:16,1:18 2S RC car.
4.Precision balanced rotor,smoothness for best reliability and maximum RPM.
5.Stator - Super Thin (0.35mm) Laminations.

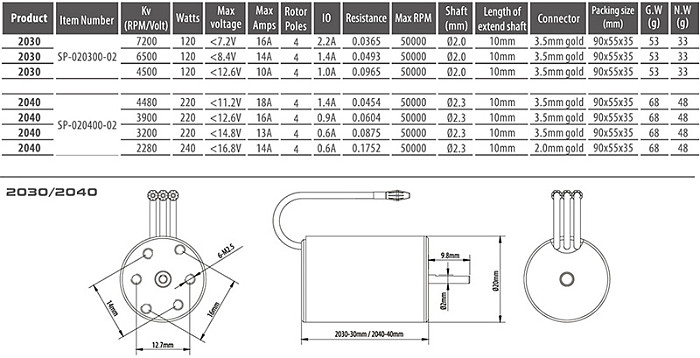

Specifications:
Brand: SURPASSHOBBY
Series: KK
Name: 2040 3900KV RC Motor
Color: red
KV(RPM/Volt): 2280KV/3200KV/3900KV/4480KV
Watt: 220
Max RPM: 50000
Max voltage: <12.6V
Max amps: 16A
Rotor poles: 4
Diameter: 20mm
Length: 37mm
Shaft: 2.3mm
Shaft length: 10mm
Connector: 3.5mm gold
Weight:49g

Package Information:
Package size:90 x 58 x 35mm/3.54 x 2.28 x 1.38in
Package weight:73g/2.57oz
General Box Package

Package Included:
1 x SURPASSHOBBY KK 2040 Brushless Motor
1 x English Manual
