Surpass Hobby Waterproof Brushless Motor 2430 2435 2440 2445 Motor for Traxxas HSP 1/16 1/18 RC Lexus Drift Racing Climbing Car RC Model

US$ 8.74

Version

Estimate Shipping Cost

Detail

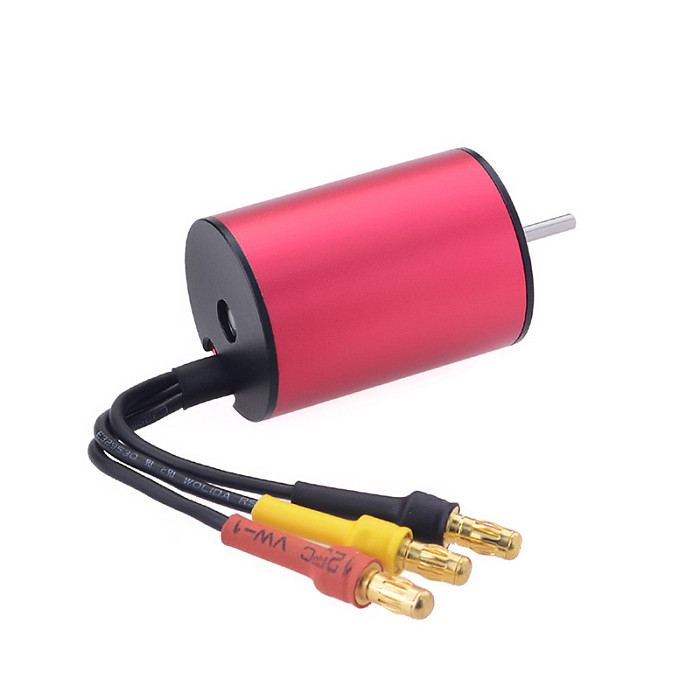

- Product Name: Surpass Hobby Waterproof Brushless Motor 2430 2435 2440 2445 Motor for Traxxas HSP 1/16 1/18 RC Lexus Drift Racing Climbing Car RC Model
- Item NO.: F43722 F43725 F43726 -F43734
- Weight: 0.15 kg = 0.3307 lb = 5.2911 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: Surpass Hobby
- Creation Time: 2021-05-07
Surpass Hobby Waterproof Brushless Motor 2430 2435 2440 2445 Motor for Traxxas HSP 1/16 1/18 RC Lexus Drift Racing Climbing Car RC Model

Features:
1.4 Pole 12 Slot Hi-torque Motor Design.
2.High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
3.Universal fit, for all 1:16 2S RC car.
4.Precision balanced rotor,smoothness for best reliability and maximum RPM.
5.Stator - Super Thin (0.35mm) Laminations.

Description：
1.This professional brushless motor comes with high quality.
2.Removable/Replaceable Rotor, Precision Engineered for Maximum Energy Conversion.
3.It is a good choice for RC fans.

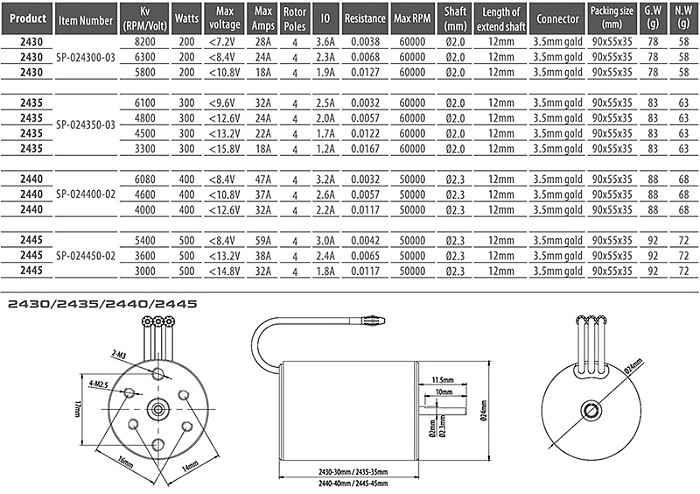

2430
KV(RPM/Volt): 5800KV/6300KV/8200KV
Watt:200
Max RPM: 50000
Max voltage: <7.2V
Max amps: 28A
Rotor poles: 4
Diameter: 24mm
Length: 30mm
Shaft: 2.0mm
Shaft length: 12mm
Connector: 3.5mm gold
Weight:45g

2435
KV(RPM/Volt): 3300KV/4500KV/4800KV/6100KV
Watt:300
Max RPM: 60000
Max voltage: <13.2V
Max amps: 22A
Rotor poles: 4
Diameter: 24mm
Length: 34mm
Shaft: 2.0mm
Shaft length: 12mm
Connector: 3.5mm gold
Weight:59g

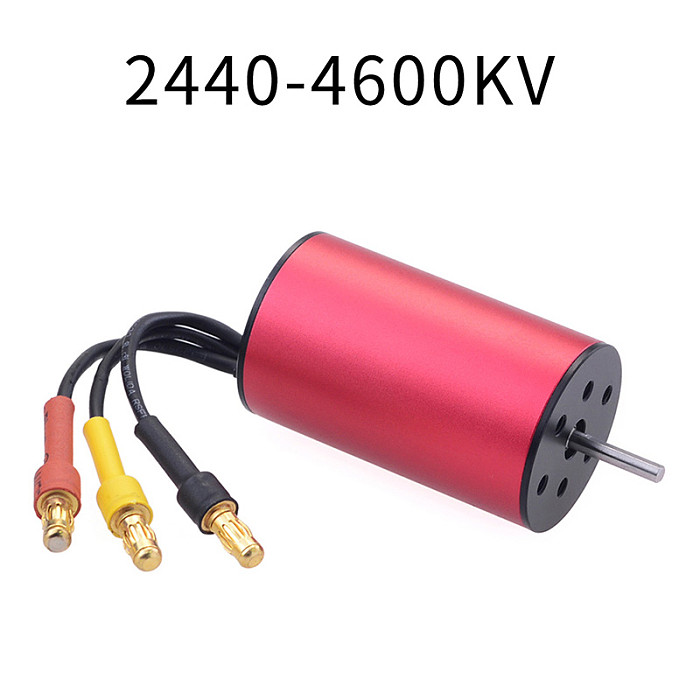

2440
KV(RPM/Volt): 4000KV/4600KV/6080KV Optional
Watt:400
Max RPM: 50000
Max voltage: <8.4V
Max amps: 47A
Rotor poles: 4
Diameter: 24mm
Length: 39.5mm
Shaft: 2.3mm
Shaft length: 12mm
Connector: 3.5mm gold
Weight:70g

2445
KV(RPM/Volt): 3000KV/3600KV/5400KV Optional
Watt:500
Max RPM: 50000
Max voltage: <14.8V
Max amps: 32A
Rotor poles: 4
Diameter: 24mm
Length: 44.5mm
Shaft：2.3mm
Shaft length: 12mm
Connector: 3.5mm gold
Weight:83g

Package Information:
Package size:90 x 58 x 35mm/3.54 x 2.28 x 1.38in
Package weight:107g/3.77oz
General Box Package

Package Included:
1 x SURPASSHOBBY KK Brushless Motor

1 x English Manual
