JMT FPV Split Camera 1/4 5inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft

US$ 22.17

Add to Cart

Estimate Shipping Cost

Detail
- Product Name: JMT FPV Split Camera 1/4 5inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft
- Item NO.: F26078
- Weight: 0.044 kg = 0.0970 lb = 1.5521 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: JMT
- Creation Time: 2018-09-18
- JMT FPV Split Camera 1/4 5inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft
JMT FPV Split Camera 1/4 5 inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft

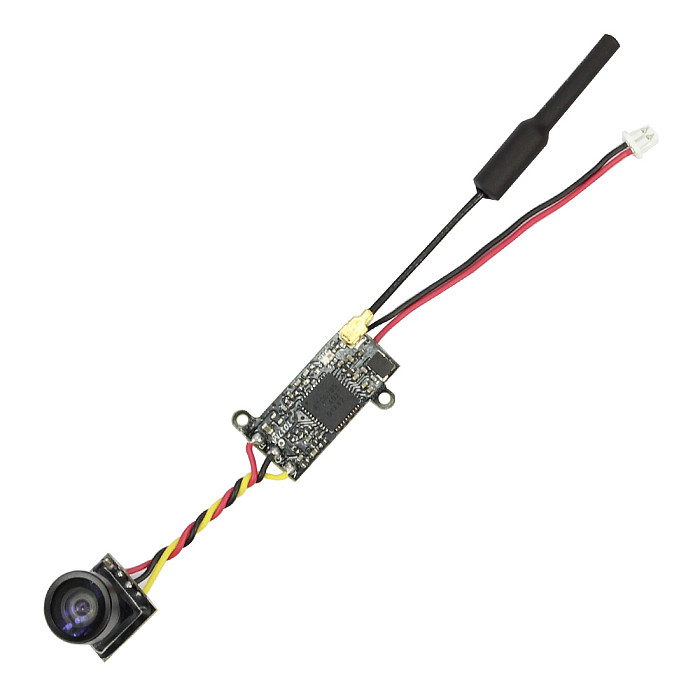

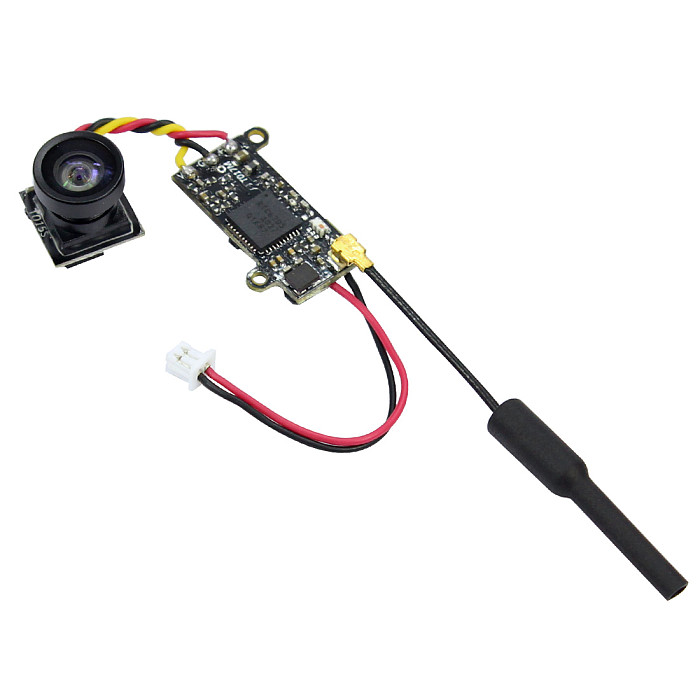

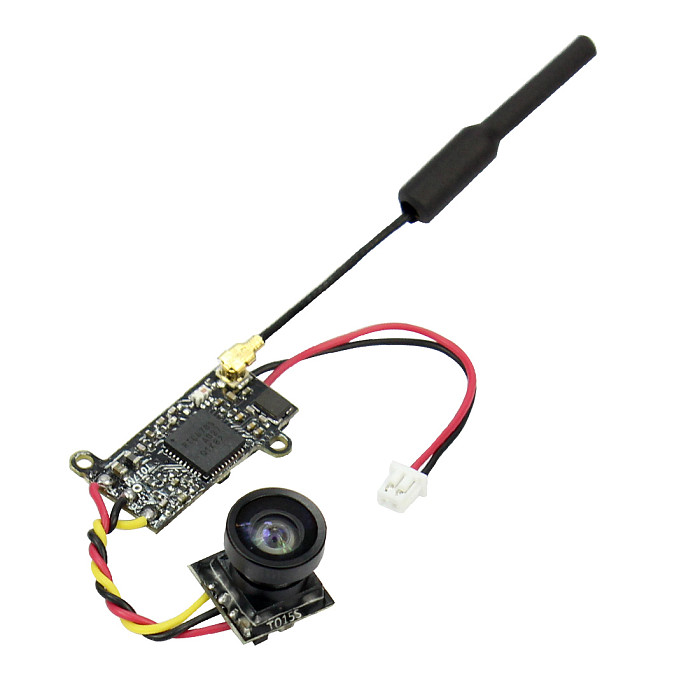

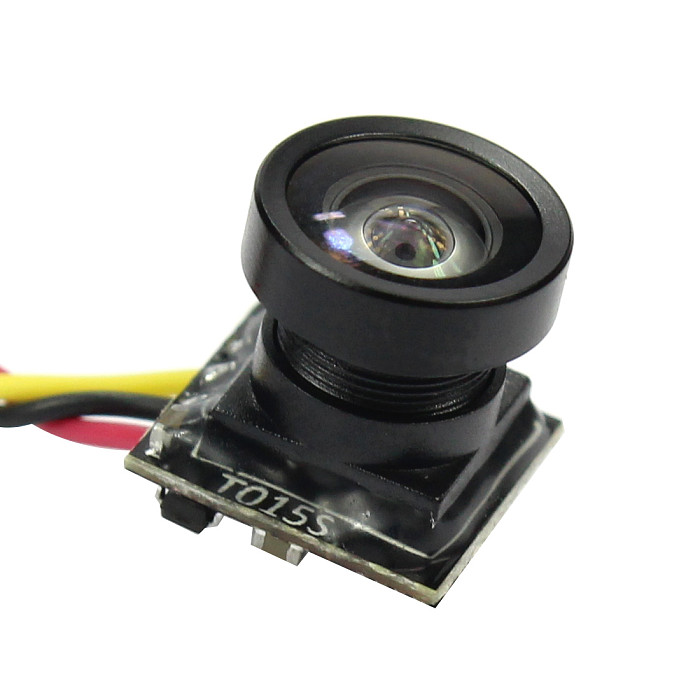

FPV split camera
Image sensor: 1/4.5 inch CMOS image sensor
Video format: NTSC
Resolution: 700 TVL
Lens:
FOV: 120° FOV, 150° DFOV

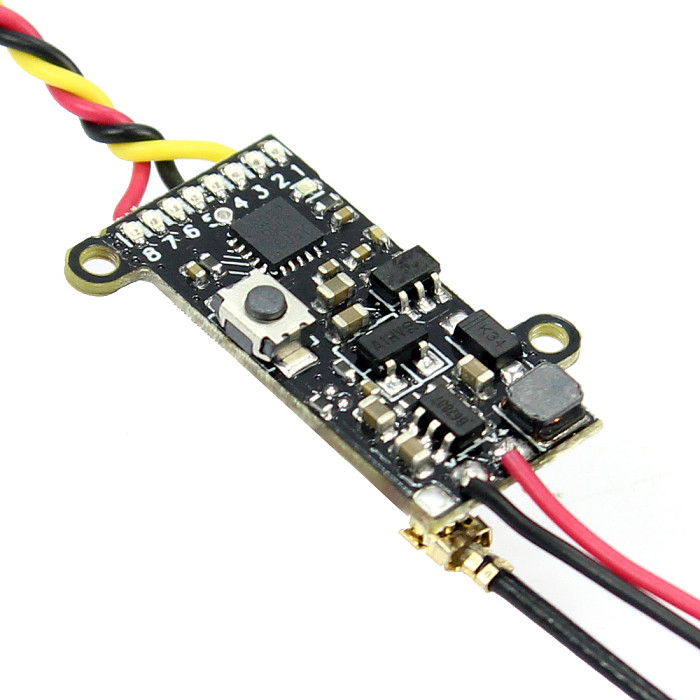

transmitter
Working voltage: 3.0V ~ 5.5V
Boost current: 220Ma ~ 400 mA @ 3.0V~5.0V
Output power: 0.1MW/25MW switchable
Output frequency: 54 7MHz ~ 5917MHz
Channel: 48

Operating temperature: - 20 ° C ~ 85 ° C
Weight: 3.3g
Size: camera = 11mm × 11mm × 1.6mm; video transmitter = 18mm × 14mm × 4mm

Channel list (48 channels)
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5665 5885 5905 5905 5905
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Band O 5474 5492 5510 5528 5546 5564 5582 5600
*Note: There are 3 super-standard frequency points replaced by pre-frequency (E4, E7, E8)

Share:: >

Adding to cart succeed

JMT FPV Split Camera 1/4 5inch CMOS Image Sensor 700TVL NTSC 25MW 48CH for FPV Racing Drone Quadcopter Aircraft

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Customer Reviews

4.0

2019-11-23

s****g

BEWARE! Mine come with REVERSE POLARITY! You need to swap + and - or you will burn it - but check yours first - maybe it is OK on your.
So, 4 stars... Othervise it would be 5.
