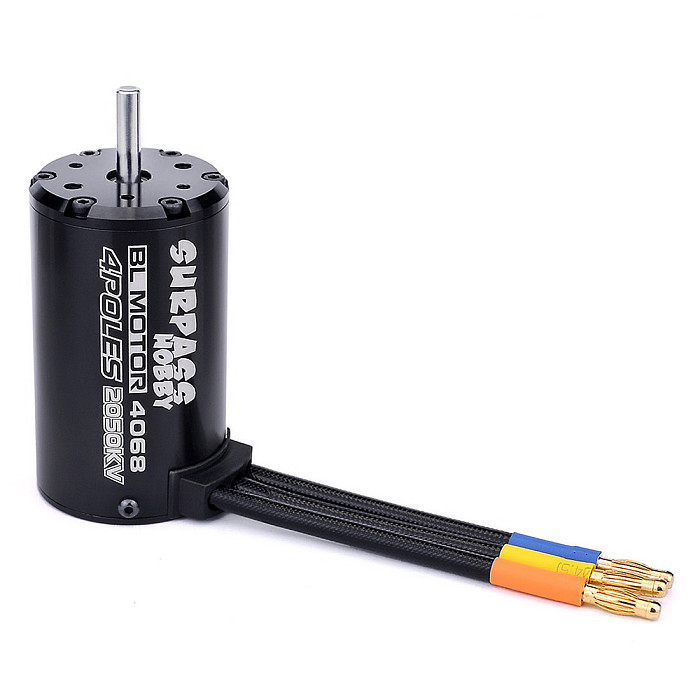

SURPASS HOBBY Waterproof 4068 2050KV 2650KV 1900KV 1700KV 1400KV Sensorless Brushless Motor for 1/8 RC Drift Racing Car Parts
-
Detail
- Product Name: SURPASS HOBBY Waterproof 4068 2050KV 2650KV 1900KV 1700KV 1400KV Sensorless Brushless Motor for 1/8 RC Drift Racing Car Parts
- Item NO.: F33659 --F33662
- Weight: 0.38 kg = 0.8378 lb = 13.4041 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: Surpass Hobby
- Creation Time: 2019-12-16
SURPASS HOBBY Waterproof 4068 2050KV 2650KV 1900KV 1700KV 1400KV Sensorless Brushless Motor for 1/8 RC Drift Racing Car Parts
Specifications:
4068 classic series motor:
4 stage 12 slot high torque motor design
CNC machined billet, 6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
High-purity copper coil, maximize efficiency, temperature resistance 180-200 °
High-speed ABEC5 ultra-durable sealed bearings with low friction, low noise, high accuracy and long-lasting use.
4.0mm gold-plated connector, 5.0mm shaft, using M3 screws, multiple installation styles.
High-balance explosion-proof rotor, high smoothness, high accuracy and high speed, dynamic balance control within 10mg, and removable and replaceable in the later stage
Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance
Motor adopts precision waterproof design, maximum power conversion
Compatible with most brands on the market
Feature:
100% brand new and high quality.CNC machining billet, alloy heat sink
High purity copper wire, maximum efficiency.High speed ABEC5 large size bearing
Universal connection, suitable for all 1/8 brushless cars.
Multiple installation system, can use M3 or M4 screw.
High balance rotor, Gaoping, high accuracy and high speed.Ultra thin (0.2mm) stator sheet.Removable / replaceable rotor.Precision designmaximum energy conversion.
Product specification (MM): motor shaft 5.0MM motor wide 40MM long 68MM
Motor Kv value: 2050KV
Product ratio: suitable for car models 1 than 8 all models
Product features: 12 4 slot high torque motor design
Maximum power: 2200
Max speed: 50000
Plug type: 6.5 connector
Maximum voltage: 2050kv (Less than 21v)/1900KV(23V)/2650KV(16.8V)
Maximum current: 2050kv (Less than 105A)/1900KV(95A)2650KV(122A)
Material: alloy
Color: black
Package includes:
1 X motor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
