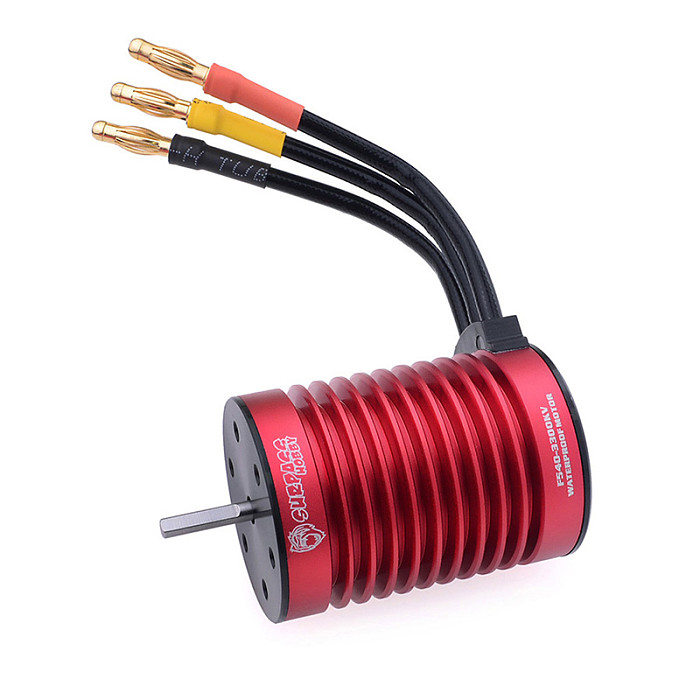

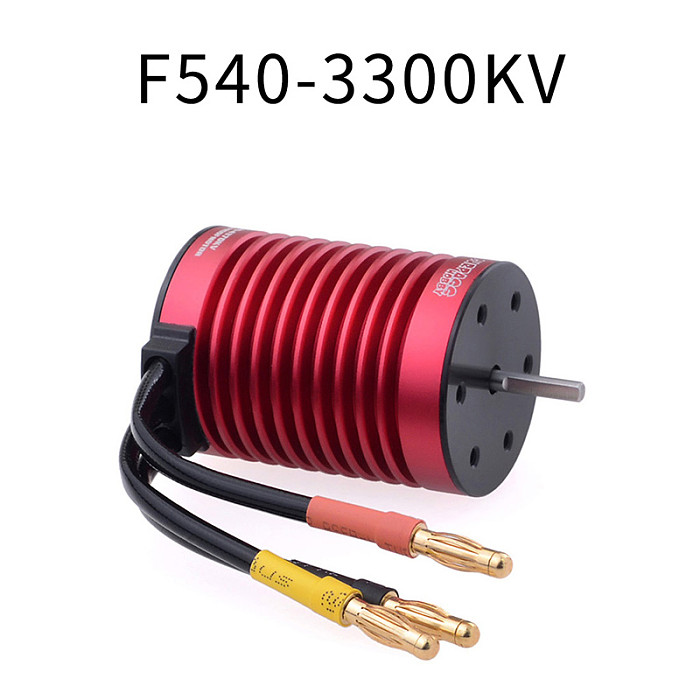

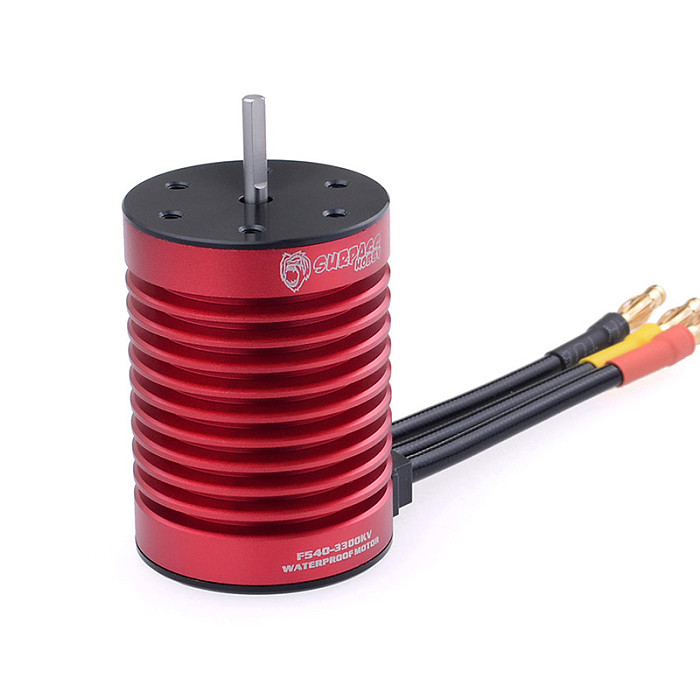

Surpass Hobby F540 3.175mm Brushless Motor 3000KV 3300KV 3930KV 4370KV for 1/10 RC Tamiya Axial Redcat HSP Drift Racing Off-road Car

US$ 16.93

Version

Estimate Shipping Cost

Detail
- Product Name: Surpass Hobby F540 3.175mm Brushless Motor 3000KV 3300KV 3930KV 4370KV for 1/10 RC Tamiya Axial Redcat HSP Drift Racing Off-road Car
- Item NO.: F43747 F43750
- Weight: 0.21 kg = 0.4630 lb = 7.4075 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: Surpass Hobby
- Creation Time: 2021-05-07
Surpass Hobby F540 3.175mm Brushless Motor 3000KV 3300KV 3930KV 4370KV for 1/10 RC Tamiya Axial Redcat HSP Drift Racing Off-road Car

Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
Universal fit, for all 1/10 Brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable rotor
Precision Engineered for maximum Energy Conversion

Specifications:
Brand: SURPASSHOBBY
Series: KK
Name: F540RC Motor
KV(RPM/Volt): 3000KV/3300KV/3930KV/4370KV
Watt: 820
Max RPM: 50000
Max voltage: <18V
Max amps: 66A
Rotor poles: 4
Diameter: 35mm
Length: 50mm
Shaft: 3.175mm
Shaft length: 15mm
Connector: 4.0mm gold
Weight: 148g

Package Information:
Package size:110 x 70 x 42mm/4.33 x 2.76 x 1.65in
Package weight:184g/6.49oz
General Box Package

Package Included:
1 x SURPASSHOBBY KK F540 Brushless Motor
1 x English Manual
