Happymodel Moblite7 HDZERO 1S 75mm Digital HD Brushless 1002 KV20000 Motors Bwhoop V3 SuperX HD ELRS AIO Flight Controller Drone
-
Detail
- Product Name: Happymodel Moblite7 HDZERO 1S 75mm Digital HD Brushless 1002 KV20000 Motors Bwhoop V3 SuperX HD ELRS AIO Flight Controller Drone
- Item NO.: F51459
- Weight: 0.19 kg = 0.4189 lb = 6.7021 oz
- Category: RC Toy Drone
- Brand: Happymodel
- Creation Time: 2024-01-01
Happymodel Moblite7 HDZERO 1S 75mm Digital HD Brushless 1002 KV20000 Motors Bwhoop V3 SuperX HD ELRS AIO Flight Controller Drone

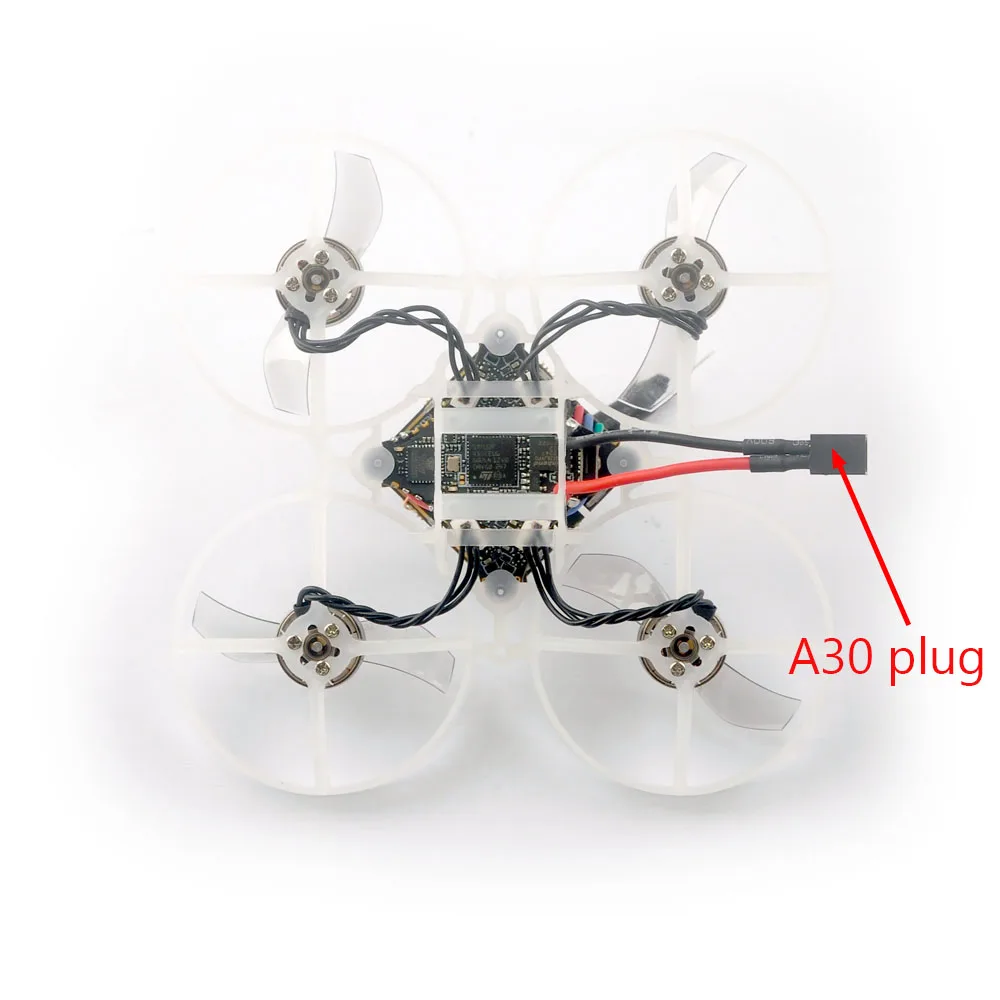

Notes: Recommend use the battery with lead wire, both A30 and BT2.0 plug battery are compatible.
Specifications:
Brand Name: Happymodel
Model: Moblite7 HDZERO V3
Frame wheelbase: 75mm

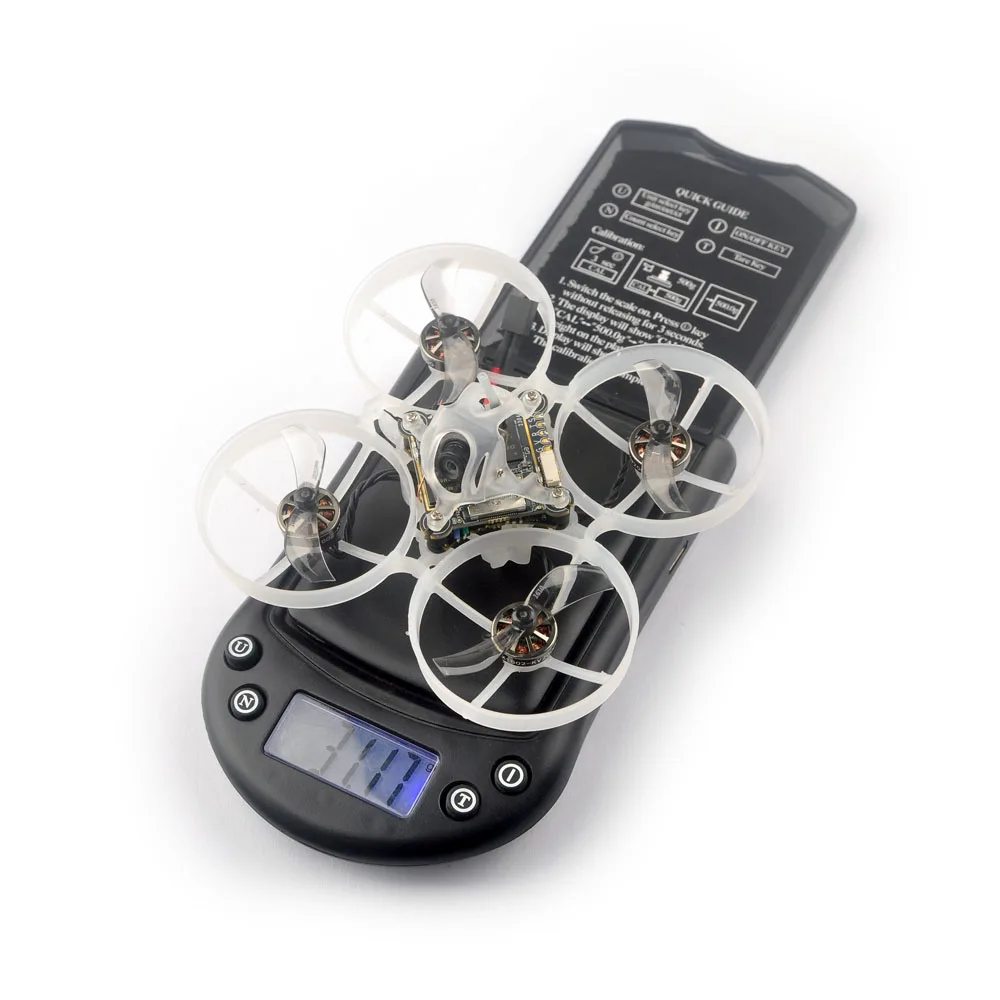

Weight: 31.5 gram without battery
Size: 98mm*98mm*50mm
UART ELRS v3.0 ready
Compatible with 1S Lipo battery or Lihv battery
Battery Plug: GNB A30
Onboard blackbox readyPackage includes:
Item Name
Qty
Mobula7 v4 75mm frame +Canopy
1
SuperX HD ELRS AIO flight controller
1
Happymodel 1002 KV20000 Unibell brushless motor
4
Gemfan 1610-2 bi-blades propeller(4cw+4ccw)
1
HDZero Nano Lite Camera
1
HDZero Whoop Lite VTX
1
Spare Canopy
1
Propeller disassemble tool
1
Screw driver
1
Flight controller
SuperX HD ELRS
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chipOnboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300Onboard UART ExpressLRS 2.4GHz Receiver
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-throughMotor
Model: EX1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S onlyPropeller Gemfan 1610-2 Bi-blades
Weight:0.24g
Material: PC
Pitch:1 inch
Props Dia:40mm
Center Hole Dia:1.5mmHDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°HDZero Whoop Lite VTX
1S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)Default factory dump file:
Moblite7 HDZERO 1S 75mm digital HD brushless whoop v3 dump filePort setting:
