QWinOut F550  550mm  unassembled Frame Kit RC Simonk 30A ESC With 920KV Motor 1045 Propeller for DIY RC Hexacopter Drone

QWinOut F550 550mm unassembled Frame Kit RC Simonk 30A ESC With 920KV Motor 1045 Propeller for DIY RC Hexacopter Drone Item NO.: F05114-BD

Write a Review
US$ 97.37
US$ 114.55 Save US$ 17.18 (15% Off)
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • QWinOut F550 550mm unassembled Frame Kit RC Simonk 30A ESC With 920KV Motor 1045 Propeller for DIY RC Hexacopter Drone
Product Name QWinOut F550 550mm unassembled Frame Kit RC Simonk 30A ESC With 920KV Motor 1045 Propeller for DIY RC Hexacopter Drone
Item NO. F05114-BD
Weight 1.315 kg = 2.8991 lb = 46.3853 oz
Category RC Toy Drone > Qwinout
Brand QWinOut
Creation Time 2021-08-24

QWinOut F550  550mm  unassembled Frame Kit RC Simonk 30A ESC With 920KV Motor 1045 Propeller for DIY RC Hexacopter Drone

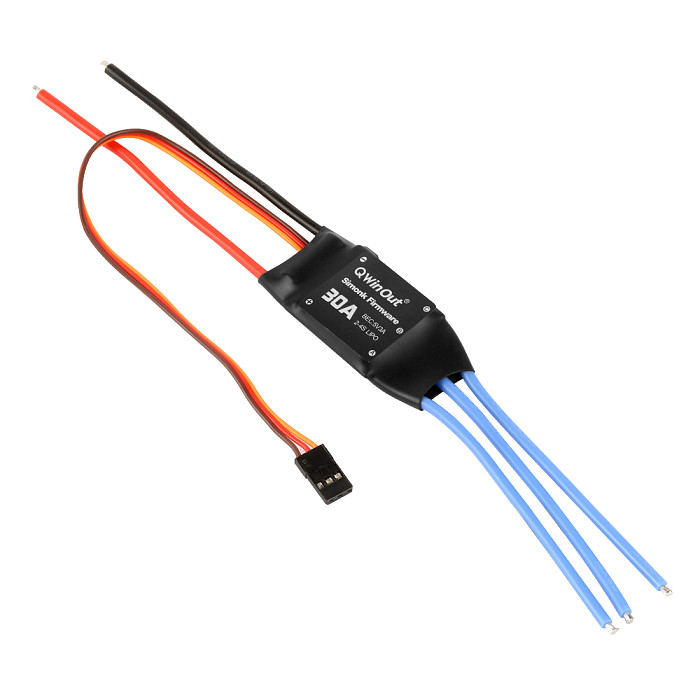

30A Brushless ESC Speed Controller For RC Quadcopter Hexacopter
Before Producing, The Manufacturer Have Set Up The Program, The Esc Do Not Need Additional Program.
1045 Carbon Fiber Propeller Props for RC Drone Heli Hexacopter

Packing including :
1* F550 Hexa-Rotor Air Frame FlameWheel Kit 550 mm
3* D2212 920KV Clockwise Counter-clockwise CW Brushless Motor
3* D2212 920KV Clockwise Counter-clockwise CCW Brushless Motor
6* 30A 2-4S ESC Electric Speed Controller with 5V 3A BEC
4 pair * 1045 Carbon Fiber Propeller

Airframe:
Materials: glass fiber+ABS plastics
Wheelbase symmetrical motor: 550 mm

920KV Brushless Motor with Motor Cap
KV: 920kv
Outer Diameter: 28 mm
Height: 24.0 mm (Without Shaft)
compatible for DJI Phantom Cheerson CX-20 Drone 3-4s F330 F450 F550 X525

2-4S 30A Brushless ESC
Working current: 30A
Output: Continuous 25A, Burst 40A up to 10 Secs
Input Voltage:2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
BEC:5V 3A
Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM,35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)

10X4.5 1045 carbon fiber propellers
for DIY Drone Hexacopter
