features
1. Brand new rotor appearance design, anodized two-color process
2. 7075 aviation aluminum material, high-strength one-piece rotor
3. Customized N52H curved magnetic steel, strong magnetism, high torque
4. Super high temperature resistant 200° copper wire winding, the motor runs more stably

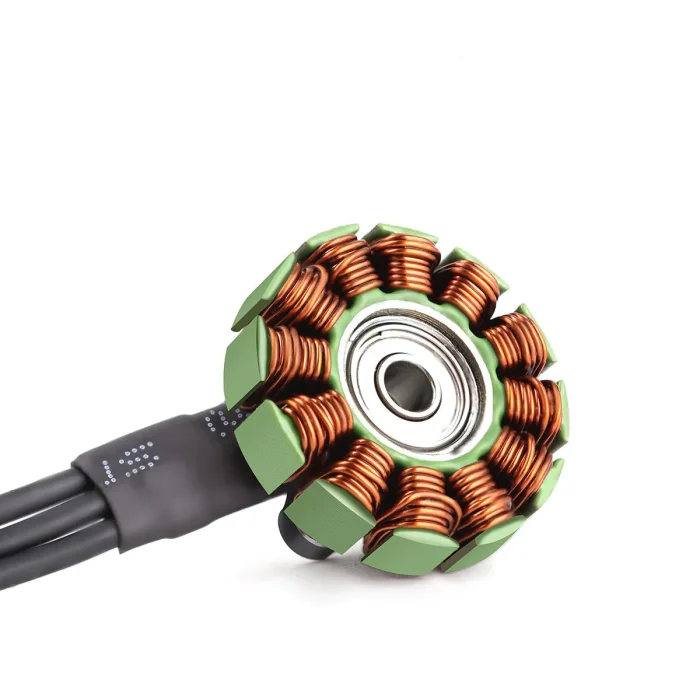

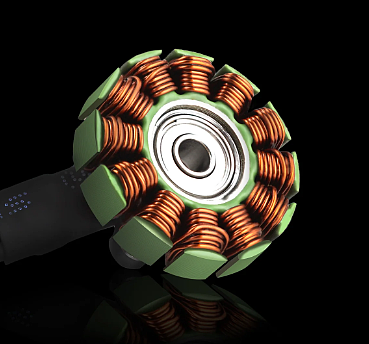

5. Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency
6. New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning
7. Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage
8. 3-6inches

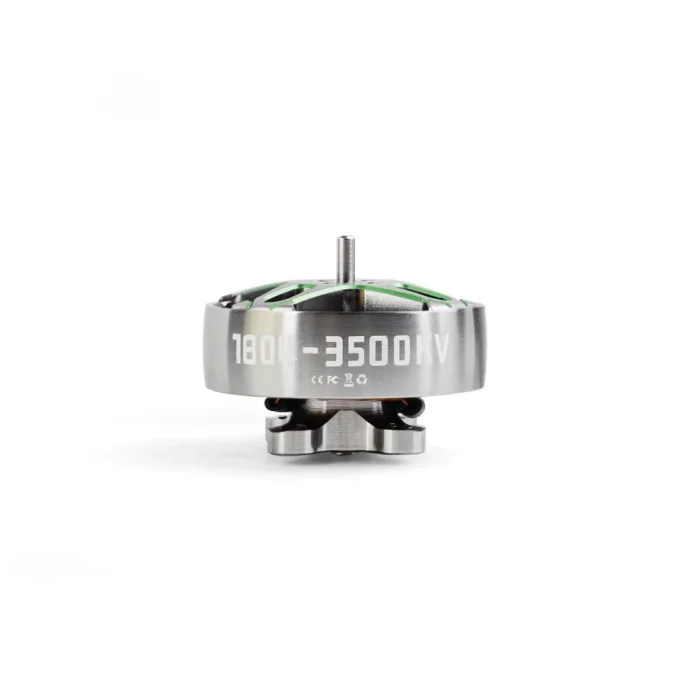

SPECTER 1804-3500KV brushless motor
Motor: 3500KV
Slot pole: 12N14P
Maximum continuous current: 14A (5s)
Maximum power: 432W
Input voltage: 14.8VV (4S)
ESC:> 25-35A
Recommended propeller: 3-4 inches
Motor size: Φ22.68*13.2mm
Mounting hole: 4*M2-∅12
Weight: 13.3±0.3g (including wire)
SPECTER 1804-2450KV brushless motor
Motor model: 1804
KV value: 2450KV
Magnetic pole: 12N14P
Magnetic steel: N52H
Stator: Kawasaki 1200
Rotor: 7075
Bearing: ISC
Winding: 260° high temperature resistant copper wire
Output shaft: M1.5x3.8mm
Max current: 18A
Max power: 432W
Suitable propeller: 3-3.5 inch
voltage: 4-6S
Outlet specification: 26AWG-150mm
Motor size: Φ22.68x13.2mm
Mounting hole: 12x12（M2）
Weight: 13.3g (including wire)
