FrSky RXSR-FC OMNINXT F7 FPV Drone Flight Controller for RC Racing Drone Aircraft

FrSky RXSR-FC OMNINXT F7 FPV Drone Flight Controller for RC Racing Drone Aircraft Item NO.: F27667

Write a Review
US$ 68.12
US$ 80.14 Save US$ 12.02 (15% Off)
Customized Requirements
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • FrSky RXSR-FC OMNINXT F7 FPV Drone Flight Controller for RC Racing Drone Aircraft
Product Name FrSky RXSR-FC OMNINXT F7 FPV Drone Flight Controller for RC Racing Drone Aircraft
Item NO. F27667
Weight 0.05 kg = 0.1102 lb = 1.7637 oz
Category DIY RC Drone Accessories > Motor
Brand FrSky
Creation Time 2019-03-01

FrSky RXSR-FC OMNINXT F7 FPV Drone Flight Controller for RC Racing Drone Aircraft

File name: RXSR-FC (OMNINXT F7) -manual.pdf
Download address: http://us01.imgcdn.ymcart.com/25850/2019/03/01/a/a/aa6bf03f2640698b.pdf

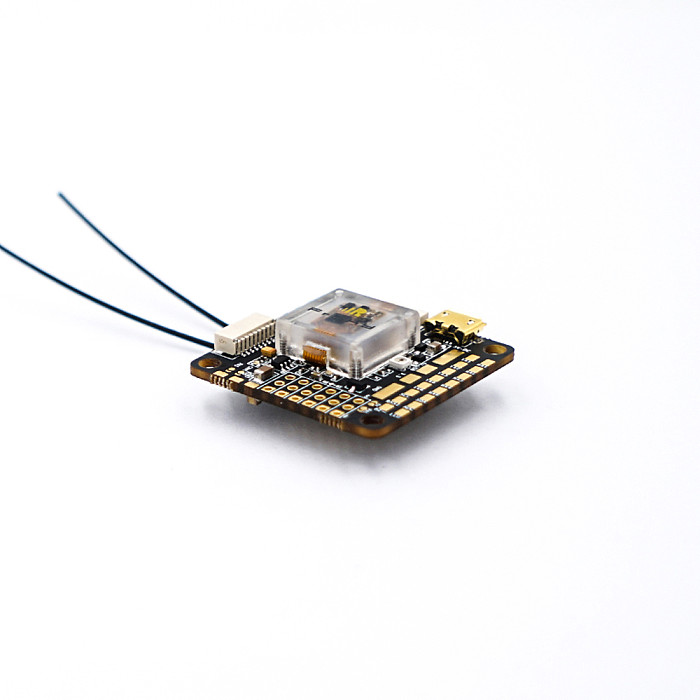

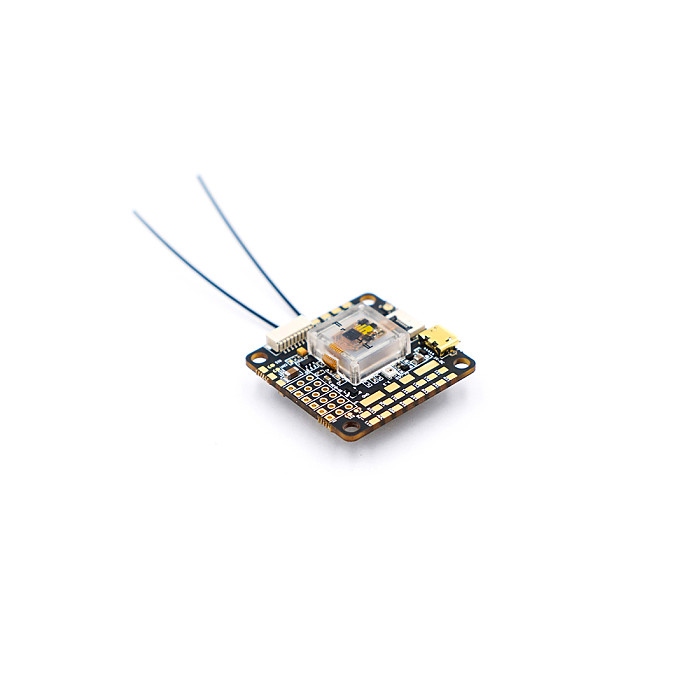

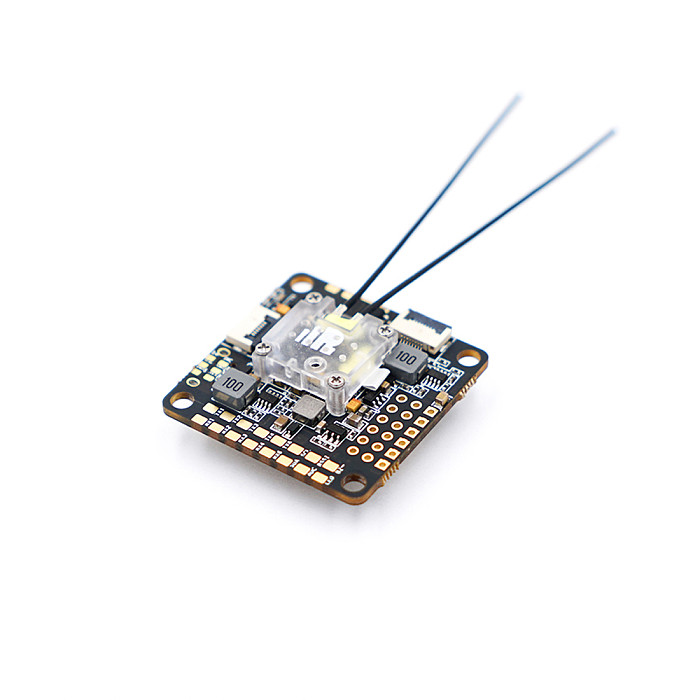

The FrSky RXSR-FC (OMNINXT F7) is developed based on the newly designed NXT architecture. It is integrated with the RXSR receiver mounted in a protection box, and uses the trusty MPU6000 Gyro with an additional ICM20608 on top. With the onboard dampening box, the gyros run perfectly on 32k loop time.  The NXT also comes with 2 different BECs and 6 UARTs.

The RXSR-FC (OMNINXT F7) supports 3-6s Lipo direct input, built-in BEC for camera / VTX and Power Filter. This FC is designed to be able to pair with 4in1 ESCs to form a powerful combo, and also has pins for individual ESCs.

SPECIFICATIONS :
● F7 MCU processors
● FrSky RXSR receiver in protection box
● Two gyros onboard: MPU6000 for sampling up to 8khz and ICM20608 for sampling up to 32khz
● 30.5×30.5 mm mounting holes
● Supports 3-6S Lipo
● More caps to reduce power noise
● Built-in sensor damper
● Built-in 5V 1A BEC output (Buck)
● Built-in 8V 1A BEC with LC filter output for the camera and VTX (Buck)
● STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
● Port for easy connection to 4-in-1 esc (SH1.0 8P)
● Solder pads added for VTX and Camera Control (next to Video pads)
FEATURES :
● RXSR Receiver
● STM32 F7 MCU Processor
● Gyro #1: MPU6000 8kHz
● Gyro #2: ICM20608 32kHz
● Integrated PDB & OSD (SPI/DMA)
● 6 UART Ports
● Direct plug-in 3-6S Lipo
● 5V 1000mA BEC
● 8V 1000mA BEC with LC filter
● 3.3V max. 200mA
