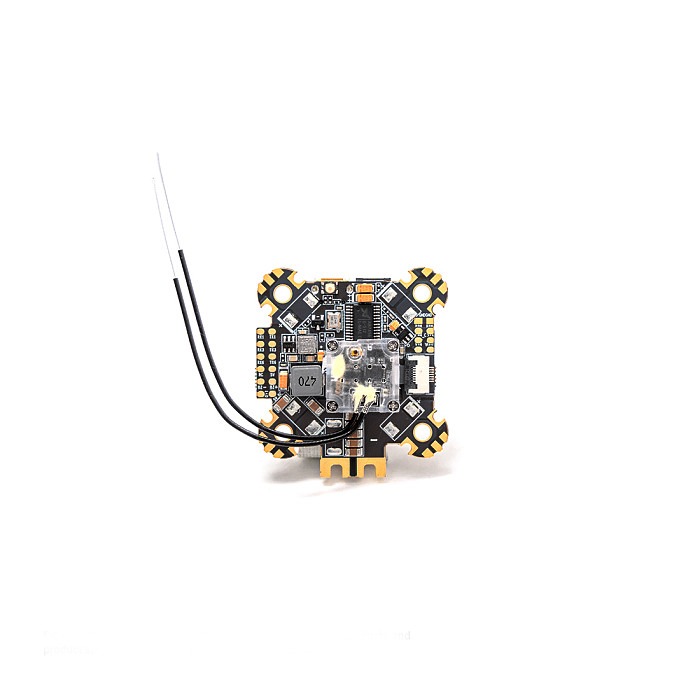

FrSky RXSR-FC OMNIBUS F4 Firework V2 FPV Drone Flight Controller for RC Aircraft
-
Detail
- Product Name: FrSky RXSR-FC OMNIBUS F4 Firework V2 FPV Drone Flight Controller for RC Aircraft
- Item NO.: F27665
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: FrSky
- Creation Time: 2019-03-01
- FrSky RXSR-FC OMNIBUS F4 Firework V2 FPV Drone Flight Controller for RC Aircraft
FrSky RXSR-FC OMNIBUS F4 Firework V2 FPV Drone Flight Controller for RC Aircraft
File name: RXSR-FC (OMNIBUS F4 Fireworks V2) -manual.pdf
Download address: http://us01.imgcdn.ymcart.com/25850/2019/03/01/b/6/b638d999d3e996c2.pdf
The FrSky RXSR-FC (OMNIBUS F4 Fireworks) uses the ICM20608 over SPI to produce stable flight performance. Integrated with the RXSR receiver mounted on-board in a protection box, and the ICM20608 runs perfectly under 32k Gyro loop. Also onboard are a barometer and AB7456 OSD chip for the Betaflight integrated OSD.
The RXSR-FC (OMNIBUS F4 Fireworks) supports 3-6s Lipo direct input, built-in hall Current Sensor and Power Filter as well. The on Board PDB is tweaked by using 12-Layer PCB design. There is only 0.2-0.5 mohm internal resistance from input to each output pad.
SPECIFICATIONS :● STM32 F405 MCU, Runs Betaflight firmware (supported from v3.2)● FrSky RXSR receiver in protection box● ICM20608 over SPI Bus in dampening box (optional MPU6000)● 30.5×30.5 mm mounting holes● Supports Lipo direct plug-in (3-6S)● Built-in sensor damper● Supports 5V 1A BEC output (Buck)● Supports 8V 1A BEC with LC filter output for the camera and VTX (Buck)● STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)● Built-in hall Current Sensor● Built-in Professional Level PDB● More caps to reduce power noise.FEATURES :● Tantalum Capacitors can be added to the board (not included)● Solder pads added for VTX and Camera Control (next to Video pads)● The orientation of IMU FPC optimized● Gyro ribbon cable redesigned to fit without extending outside the board● Added an 8v BEC and LC Filter for the camera and VTX power● This board now has 5 UART ports
