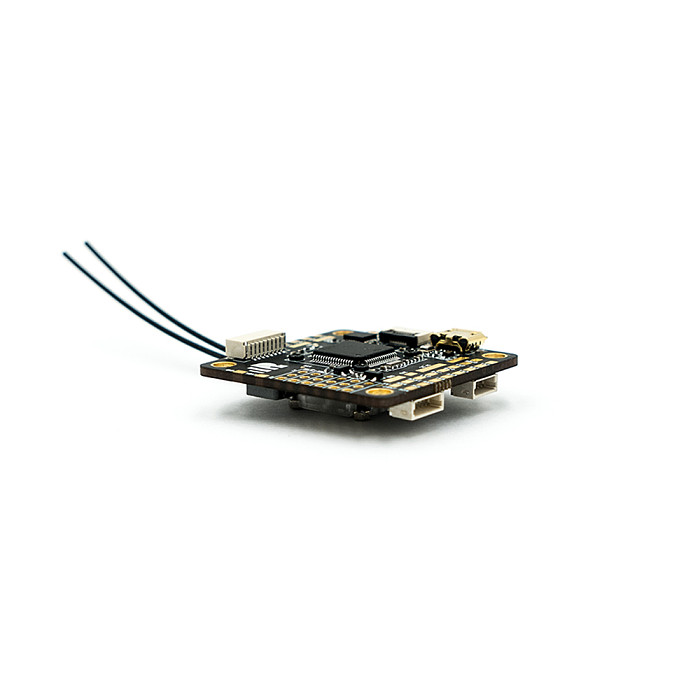

FrSky RXSR-FC OMNIBUS F4 V6 FPV Drone Flight Controller for RC Racing Drone Aircraft
-
Detail
- Product Name: FrSky RXSR-FC OMNIBUS F4 V6 FPV Drone Flight Controller for RC Racing Drone Aircraft
- Item NO.: F27666
- Weight: 0.05 kg = 0.1102 lb = 1.7637 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: FrSky
- Creation Time: 2019-03-01
- FrSky RXSR-FC OMNIBUS F4 V6 FPV Drone Flight Controller for RC Racing Drone Aircraft
FrSky RXSR-FC OMNIBUS F4 V6 FPV Drone Flight Controller for RC Racing Drone Aircraft
File name: RXSR-FC (OMNIBUS F4 V6) -manual.pdf
Download address: http://us01.imgcdn.ymcart.com/25850/2019/03/01/7/2/72fac1d780e480e3.pdf
The FrSky RXSR-FC (OMNIBUS F4 V6) uses the MPU6000 over SPI to produce stable flight performance. Integrated with the RXSR receiver mounted on-board in a protection box. It also features a barometer and AB7456 OSD chip for the Betaflight integrated OSD.
The RXSR-FC (OMNIBUS F4 V6) supports 3-6s Lipo direct input, and has 5 hardware UARTs.
SPECIFICATIONS :
● STM32 F405 MCU, Runs Betaflight firmware (supported from v3.2)
● FrSky RXSR receiver in protection box
● MPU6000 over SPI Bus
● 30.5×30.5 mm mounting holes
● Supports Lipo direct plug-in (3-6S)
● Supports 5V 1A BEC output (Buck)
● Supports 8V 1A BEC with LC filter output for the camera and VTX (Buck)
● STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
FEATURES :
● RXSR Receiver
● STM32 F4 Processor
● MPU6000 Gyro via SPI
● BMP280 Barometer
● Integrated Betaflight OSD
● 5 UART Ports
● Direct plugin 3-6S Lipo
● Built in LC Filter
● 5V 1000mA BEC
● 8V 1000mA BEC
● More caps to reduce gyro power noise.
