Tarot 3115 900KV Long Endurance High Efficiency FPV Racing Drone Brushless Motor TL1618 For 9 inches-10 inches Quadcopter

US$ 12.41

Color: 1pcs 18AWG 250mm 1pcs 16AWG 300mm 4pcs 18AWG 250mm 4pcs 16AWG 300mm

Estimate Shipping Cost

Detail
- Product Name: Tarot 3115 900KV Long Endurance High Efficiency FPV Racing Drone Brushless Motor TL1618 For 9 inches-10 inches Quadcopter
- Item NO.: F53142 F53151 F53142-4 F53151-4
- Weight: 0.146 kg = 0.3219 lb = 5.1500 oz
- Category: DIY RC Drone Accessories > Motor
- Brand: Tarot
- Creation Time: 2024-09-24
Tarot 3115 900KV Long Endurance High Efficiency FPV Racing Drone Brushless Motor TL1618 For 9 inches-10 inches Quadcopter

18AWG 250mm
Product Description:
The new long-range 3115 brushless motor developed and designed by Tarot adopts 52H grade magnet and high-speed imported NSK-5x11x5mm bearing, which continues to inherit the superior characteristics of long life, high efficiency, low power consumption, low noise and stable control of Tarot brushless motor. The mounting hole is Φ19mm, which is compatible with the rack installation of the mainstream traverser in the current market. The Tarot 1050 three-bladed propeller is recommended.

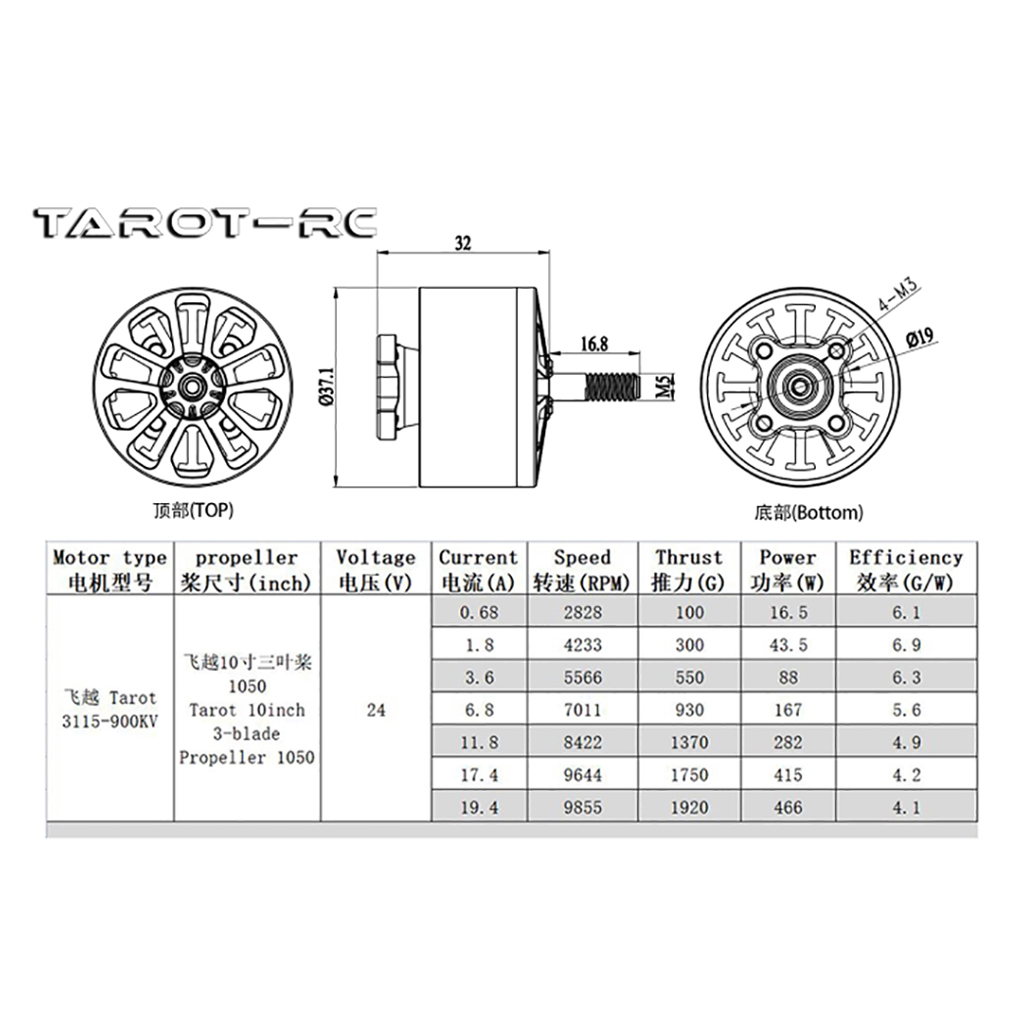

Specifications:
Motor KV value: 900KV
Motor size: Φ37.1*32mm
Magnet: 12N14P
Motor shaft: 5mm
Silicone wire: 18# AWG 250mm
Weight: 116g
Maximum pulling force: 4080g
Support lithium battery sections: 6S
Recommended propellers: 9 inches-10 inches
Peak current (6S): 60-80A
Max Power (6S): 1592W

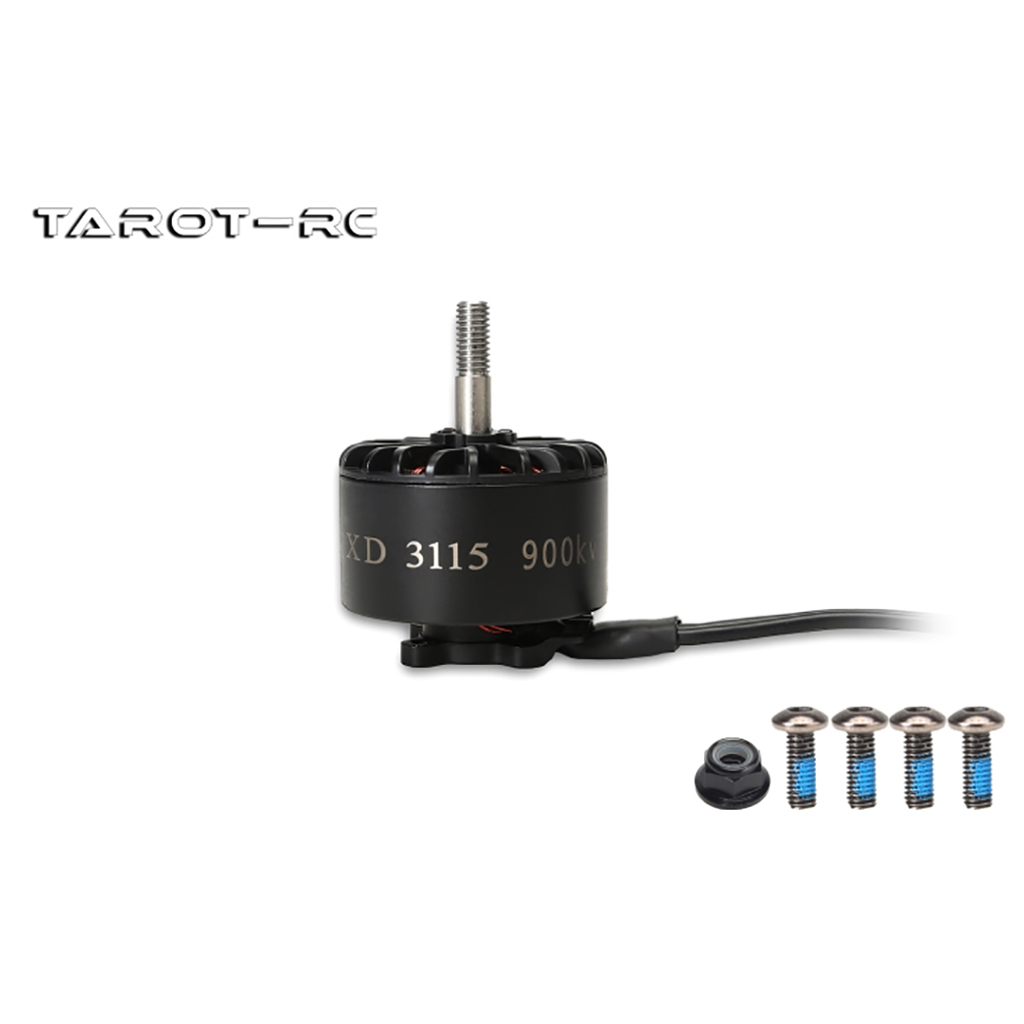

Packing List:
3115 brushless motor/900KV ×1
Half round head screw(M3*8mm) ×4
Aluminium lock nut/M5 ×1

16AWG 300mm
Product Description:
The new long-range 3115 brushless motor developed and designed by Tarot adopts 52H grade magnet and high-speed imported NSK-5x11x5mm bearing, which continues to inherit the superior characteristics of long life, high efficiency, low power consumption, low noise and stable control of Tarot brushless motor. The mounting hole is Φ19mm, which is compatible with the rack installation of the mainstream traverser in the current market. The Tarot 1050 three-bladed propeller is recommended.

Specifications:
Motor KV value: 900KV
Motor size: Φ37.1*32mm
Magnet: 12N14P
Motor shaft: 5mm
Silicone wire: 16# AWG 300mm
Weight: 113g
Maximum pulling force: 4080g
Support lithium battery sections: 6S
Recommended propellers: 9 inches-10 inches
Peak current (6S): 60-80A
Max Power (6S): 1592W

Product List:
3115 brushless motor/900KV ×1
Cup head screw(M3*10mm) ×4
Aluminium lock nut/M5 ×1
