Copy| Product Name | STEAM-RC 4730/4725 520KV 4025 1100KV Gold Fourth Generation Brushless Motor 1.4mm 1.2mm Wire Diameter MD4730 D4725 MD4025 |
| Item NO. | F49145-F49148 |
| Weight | 0.6 kg = 1.3228 lb = 21.1644 oz |
| Category | DIY RC Drone Accessories > Motor |
| Brand | STEAM |
| Creation Time | 2024-11-27 |
Φ7.0 gold-plated banana mother× 3 pieces
Note:
The specially customized motor shatf diameter is 5mm for Miao550 Helicopter. 6mm shaft diamter for other helicopter.The new 4025-1100KV is a process improvement, upgrading 1.2 double strands, high torque, and more power-saving.
The new batch is available in both 25 and 30 holes. (30mm=M4 / 25mm=M3)
Description:

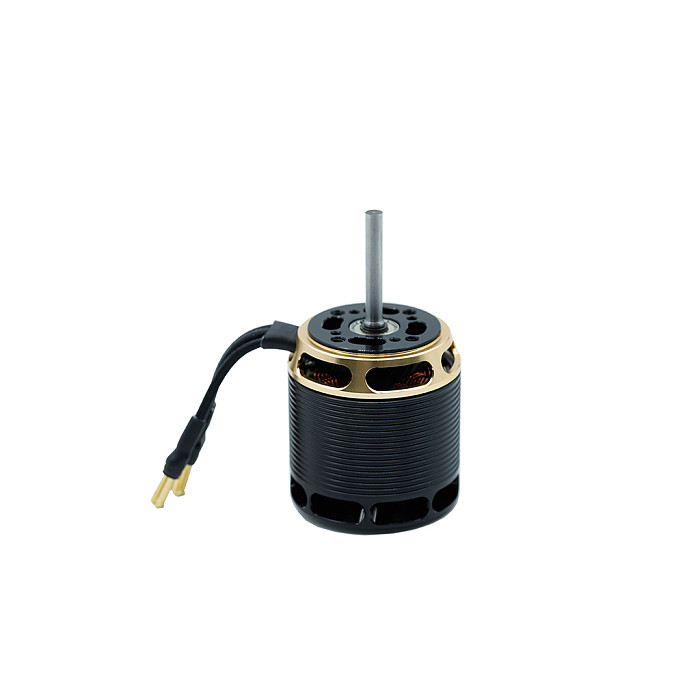

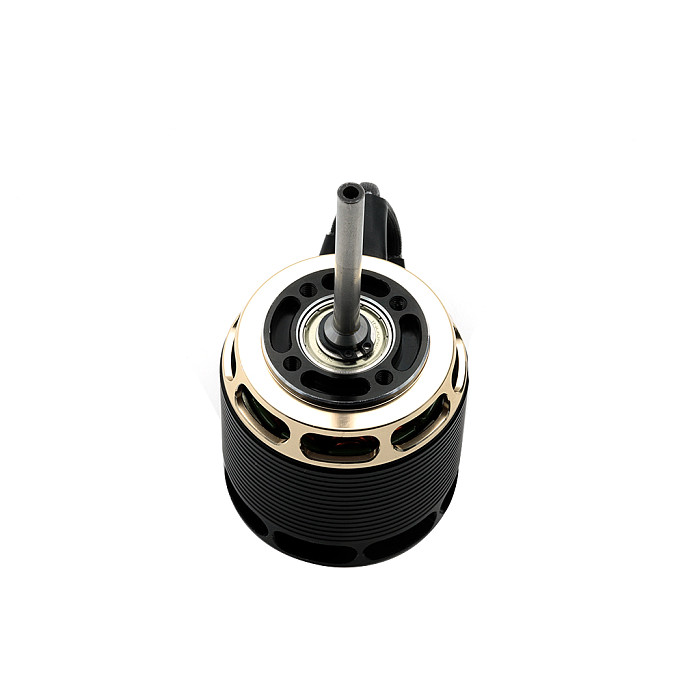

4725-520KV/Gold 4th generation brushless motor is suitable for Steam Dancer 700 helicopter, using 6061T6 aluminum alloy high-precision CNC machining. The unique design of three large-size bearings, 180 degrees of high-quality NdFeB strong magnetism, and built-in high-efficiency active heat sink bring ultra-low temperature and effectively improve energy conversion efficiency.
The fourth generation of golden brushless motor adopts 1.4mm single-stranded thick copper wire, 7T+6T YY precision winding method, pure manual high slot full rate winding, strong power, but the vibration value is extremely small, can stand on the plane coin, specially designed for 700 class competition helicopters standard power motor.
Parameters:
Stator diameter 47 mm
Stator thickness 25 mm
Stator arm 12
Stator pole 10
Number of motor windings 6+6T+6T+5T delta
Motor red line 1-Strand 1.4 mm
Motor KV value 520KV
No-load current (Io/10V) 2.1A
Motor resistance (RM) 0.0132 ohms
Maximum continuous current 120 A
Maximum continuous power 4800 watts
Weight 500 grams
Outer diameter 58.5 mm
Shaft diameter 5.98 mm
Body length 57 mm
Total shaft length 110 mm
Maximum support is 12s
Maximum peak current 238A (2 seconds)
Maximum peak power 10800 watts (2 seconds)
Motor power 5° ~ 15°
Drive frequency 5kHz or 8kHz

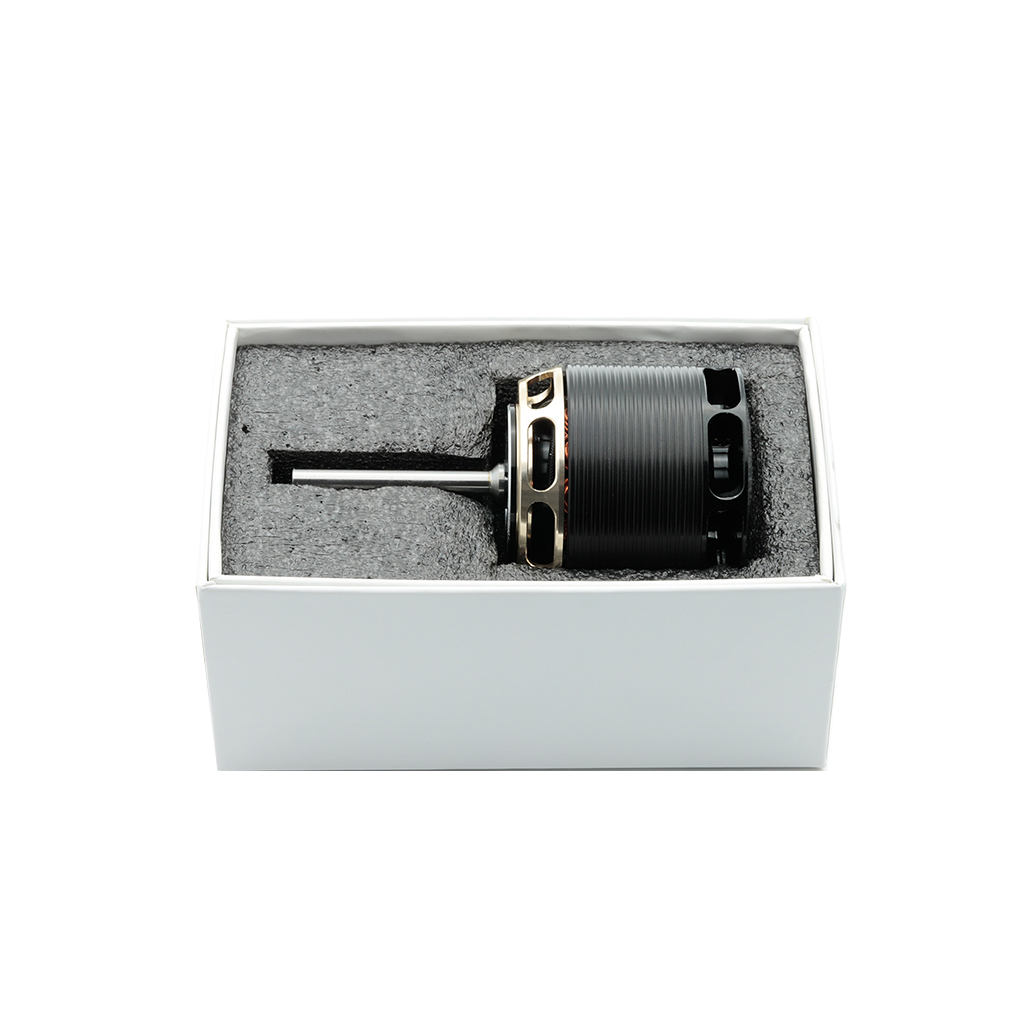

Packaging List:
4725-520KV brushless motor/wire diameter 1.4mm×1
M4× 4 Allen screws in the 7.5mm cup head×
4
Φ7.0 gold-plated banana male ×3
Φ7.0 gold-plated banana female× 3
