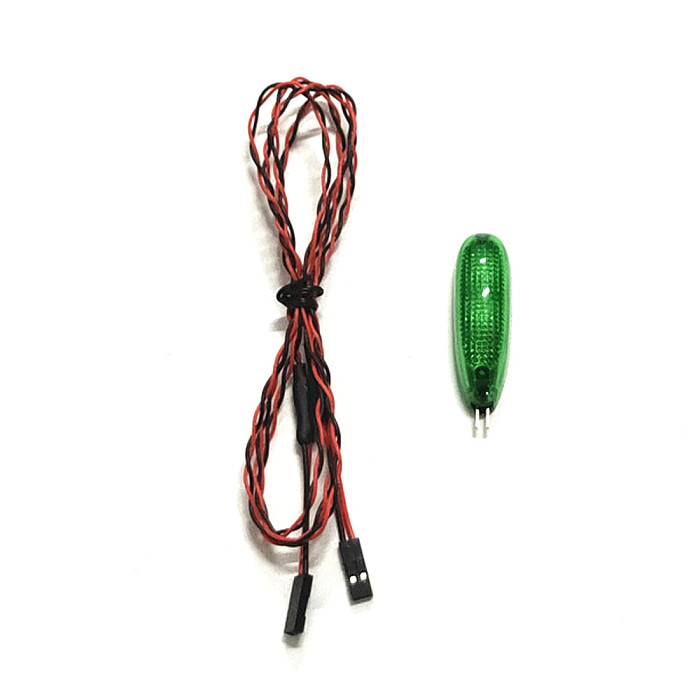

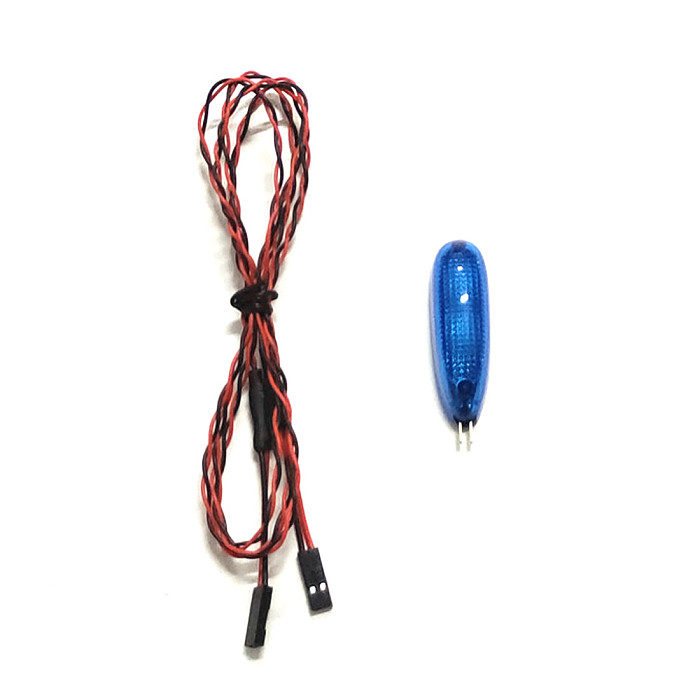

ZMR Simulation Navigation Lamp Lights 2S-3S Voltage Ducted LED Light for RC Fixed wing Aircraft Drone

ZMR Simulation Navigation Lamp Lights 2S-3S Voltage Ducted LED Light for RC Fixed wing Aircraft Drone Item NO: F27064-F27065

US$ 13.13
Version:
Basic Version with 4pcs LED Lights Upgrade Version with 8pcs LED Lights
Remark:
Customized Requirements
Quantity:
Shipping Cost:
Estimate Shipping Cost
Specifications
Product Name ZMR Simulation Navigation Lamp Lights 2S-3S Voltage Ducted LED Light for RC Fixed wing Aircraft Drone
Item NO F27064-F27065
Weight 0.1320 kg = 0.2910 lb = 4.6562 oz
Category DIY RC Drone Kit / RC Drone Accessories > Battery and Charger
Brand ZMR
Creation time 2019-01-03

Detail

Simulation Navigation Lamp Lights 2S-3S Voltage Ducted LED Light for RC Fixed wing Aircraft Drone



Please Note :

Basic Version with 4pcs LED Lights ,suit for Single vertical tail and haven't 3pcs beacon lights.

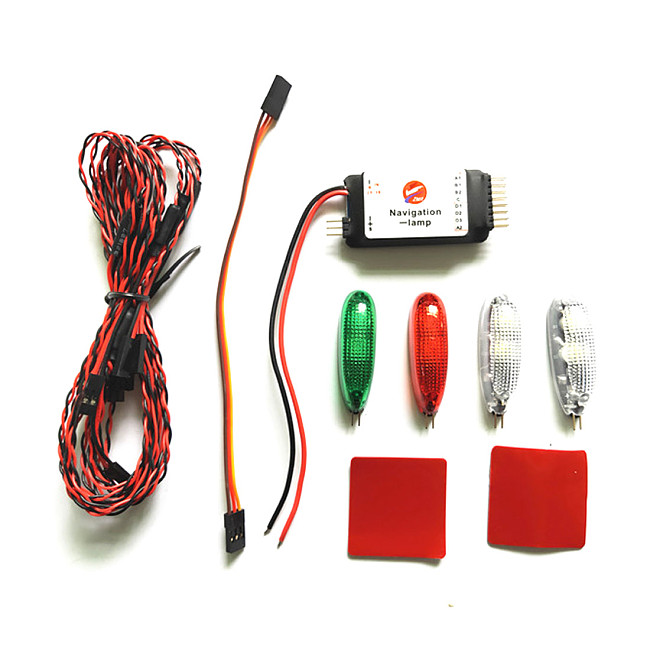

Upgrade Version with 8pcs LED Lights ,suit for  double vertical tails and with 3pcs beacon lights .



Features:

1.work voltage : 2-6S (due to temperature different , recommend 2-3S)

2. 6 types work modes:

(1) Fighter blinking mode

(2) Civil aviation flashing mode

(3) Flash mode

(4) Slow flash mode

(5) Full light mode

(6) Close mode



3.Function switching method

After the module signal line connected to the receiver switch channel,
the corresponding channel switch on the remote controller can be switched from A -- B -- A (the switch is toggled one cycle) ,
Then ,Switch between different working modes .

4. Light input Voltage : 3V

5.  Each time the navigation module is powered back on, the module will be in the first mode of operation.
