PCIe 4.0 x16 FFC Graphics Card Extension Cable Support Motherboard Bifurcation PCI-E 4.0 x4x8 gen4 256G/bps GPU Extension Cable
-
Detail
- Product Name: PCIe 4.0 x16 FFC Graphics Card Extension Cable Support Motherboard Bifurcation PCI-E 4.0 x4x8 gen4 256G/bps GPU Extension Cable
- Item NO.: F53428 F53429 F53430 F53431 F53432 B1 B2 F53433 F53434
- Weight: 2024 kg = 4462.1562 lb = 71394.4990 oz
- Volume: 1 CBM
- Category: Computer Accessories
- Brand: ADT-Link
- Creation Time: 2024-11-20
- PCIe 4.0 x16 FFC Graphics Card Extension Cable Support Motherboard Bifurcation PCI-E 4.0 x4x8 gen4 256G/bps GPU Extension Cable
PCIe 4.0 x16 FFC Graphics Card Extension Cable Support Motherboard Bifurcation PCI-E 4.0 x4x8 gen4 256G/bps GPU Extension Cable

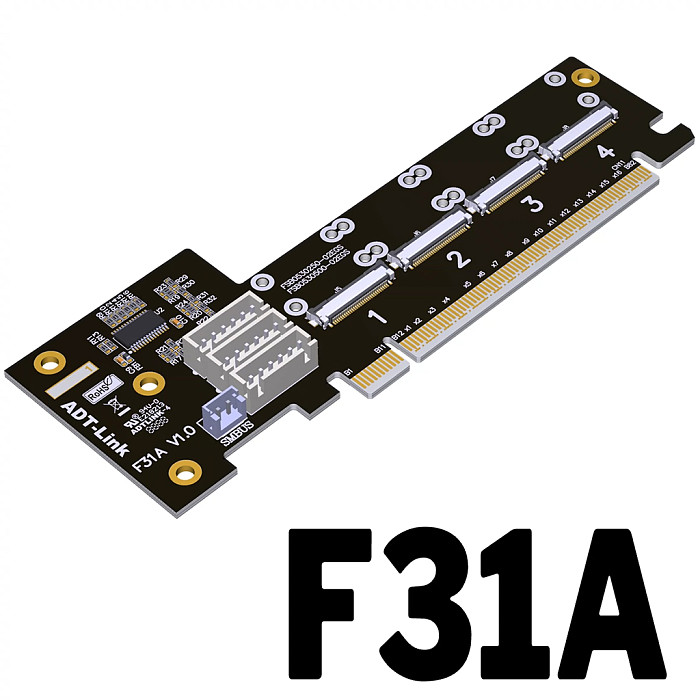

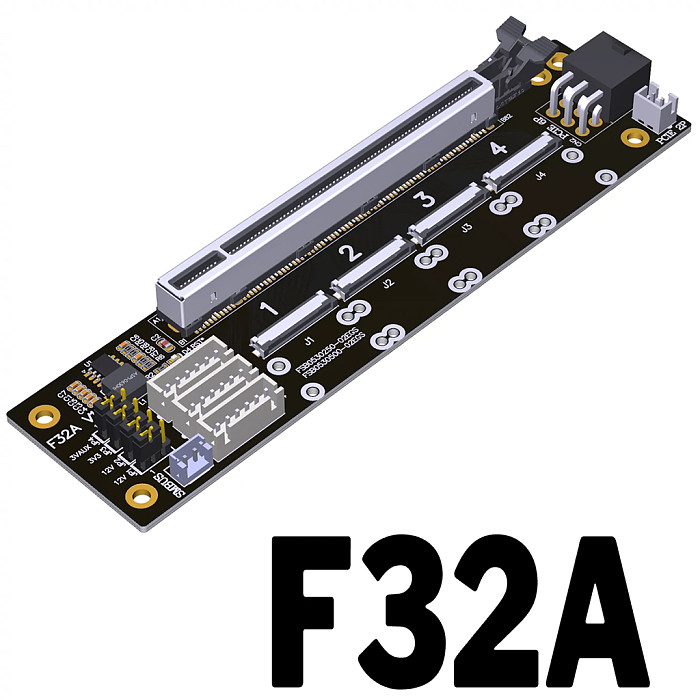

Product Model:F3312A Series Products (F31A-F32A)
Product Name：PCI-E 4.0 X16 Extension Cable
Cable Length: 25cm, 50cm
Speed bandwidth:
PCIe 4.0 x16, gen4 256G/bps, backward compatible with gen3 gen2
Purchase Tips:
Be sure to buy 1~2 samples first to test and verify that there is no problem before purchasing large quantities.
Friendly reminder:
incorrect assembly or improper operation will burn your device, limited to professional engineers specified purchase.
Wire length and hole spacing description.
Wire length refers to the part of the visible wire, excluding boards and connectors.

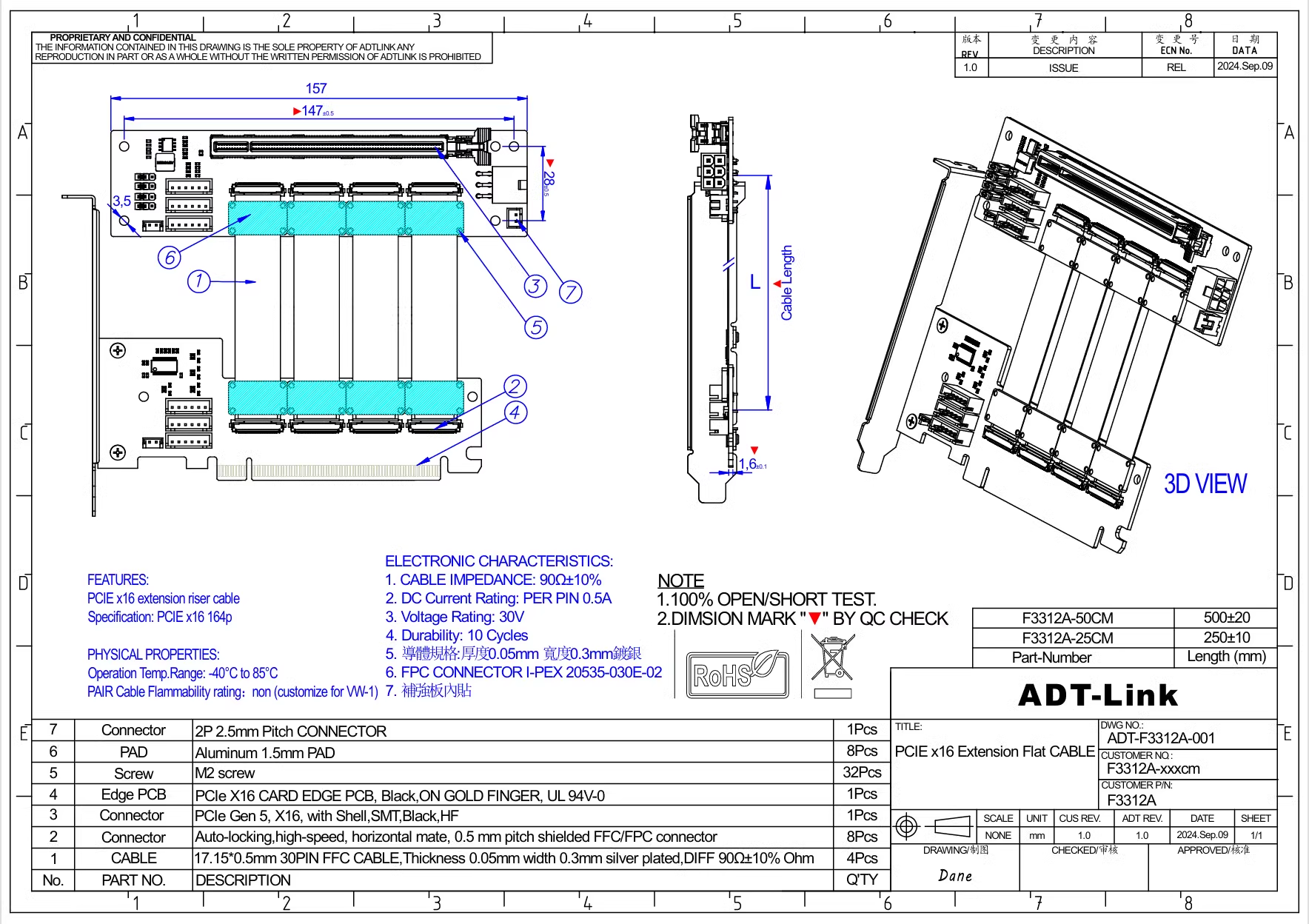

Screw hole distance refer to the following picture size marking,
the length of the line will have some error:
Accessory Note: Comes with a SATA power adapter cable that
must be connected to the white seat for 12V power.
Model Description.
Model Number Description Bandwidth

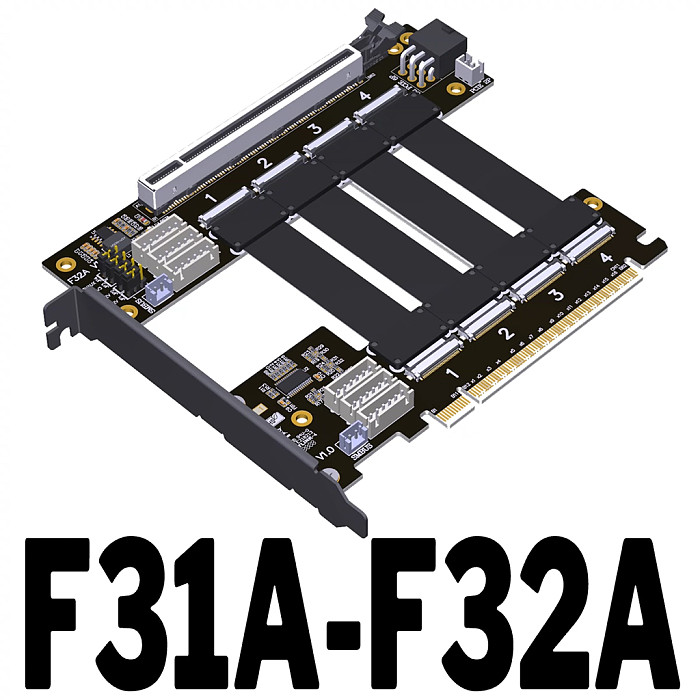

F31A-F32A PCIE 4.0 x16 to x16 Extension Cable 1 to 1 PCIe 4.0 x16
F31A-F32A-D8S PCIE 4.0 x16 to x8x8 Extension cable 1 to 2 PCIe 4.0 x8x8

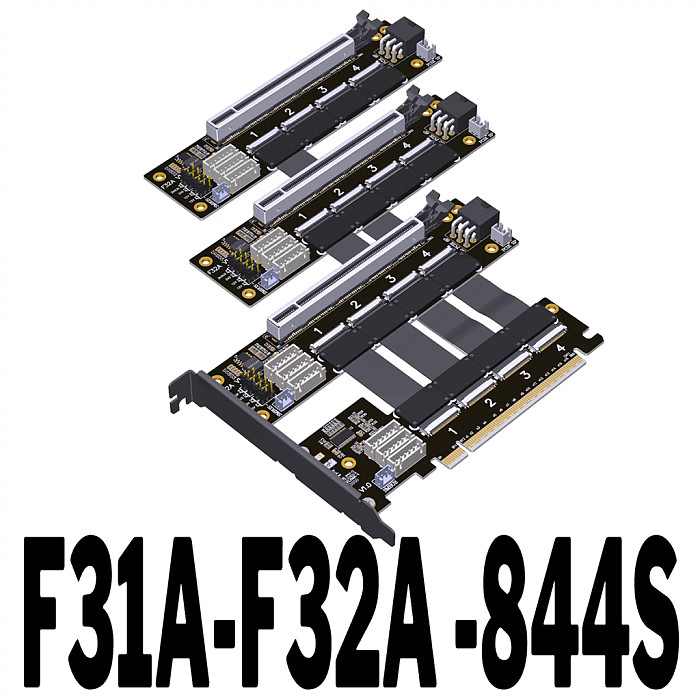

F31A-F32A-844S PCIE 4.0 x16 to x8x4x4 Extension Cable 1 to 3 PCIe 4.0 x8x4x4
F31A-F32A-Q4S PCIE 4.0 x16 to x4x4x4x4 Extension Cable 1 to 4 PCIe 4.0 x4x4x4x4
Product Advantage.
1, Using 1.5mm aluminium alloy spacer, strong and durable,
can effectively block interference and noise.

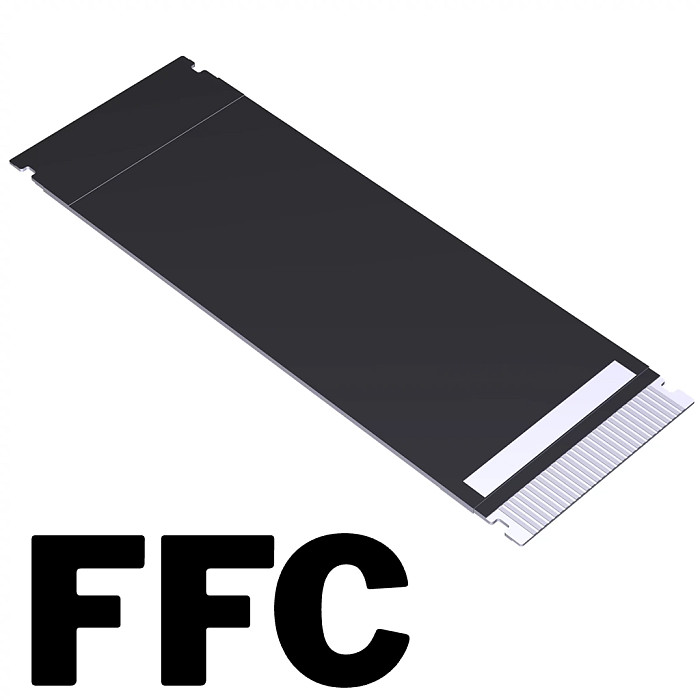

2, UL certified wire, 5th generation FFC flat cable design full coverage shielding,
ultra-thin thickness of only 0.5mm.
3, UL certified PCB board, gold finger gold plating 10µ’, good conductivity,
can reduce oxidation and rust impedance rise caused by the problem of blue screen of death.
4、Connector shell material is PA10T/LCP, gold-plated 15µ"-terminal resistance to
insertion and removal, high-frequency in line with RoHS/Free (HF) requirements.
5, four-layer PCB board, advanced design, exquisite craftsmanship, stable and fast signal,
excellent wiring, good isolation, high-frequency impedance board up to PCIe 5.0 standard,
to meet a variety of needs.
6, this PCIe adapter cable can be freely split, support motherboard Bifurcation
PCIE support 1 to 1, 1 to 2, 1 to 3, 1 to 4, flexible design, widely used.
Completed 1 to 1 and 1 to 2 installation of PCIex16 slots
Summary of technical questions.
How much speed can the product reach?
Tested PCIex16 slot one tow two, two devices can be used at the same time,
up to PCIe4.0x8 full speed transfer.
What is the quality of the cable? Is there any shielding?
Flat cable design, full coverage shielding, new EMI materials to reduce
electromagnetic interference and solve performance degradation challenges.
The product wire itself is flexible and durable, the welding is reinforced with
1.5mm aluminium spacers to eliminate wire breakage and drop problems.
Bendable and foldable for greater wire flexibility, these cables are easy to
manage compared to traditional round cables. Using FFC cables as a solution
to the problem of space constraints in compact equipment, they are easy to
install and use in tight spaces without affecting electronic components.
Wire thickness? Soft? Bendable?
The wire thickness of this product is 0.5mm, which is very thin, and the wire can
be bent or folded without affecting the use, but it cannot be pulled.
Is the wire detachable?
The FFC cable is detachable at both ends, which makes it convenient.
In order to avoid the loss of plugging and unplugging, FFC cables are
only allowed to be disassembled and reassembled 10 times.
How do I check if my motherboard supports Bifurcation PCIE splitting?
Please check your motherboard manual, the manual or BIOS option will explain
the Bandwidth PCIE channel split or Bifurcation option,
if it is not mentioned then it is not supported.
Please select 4x4 or x4x4x4x4x4 option.
