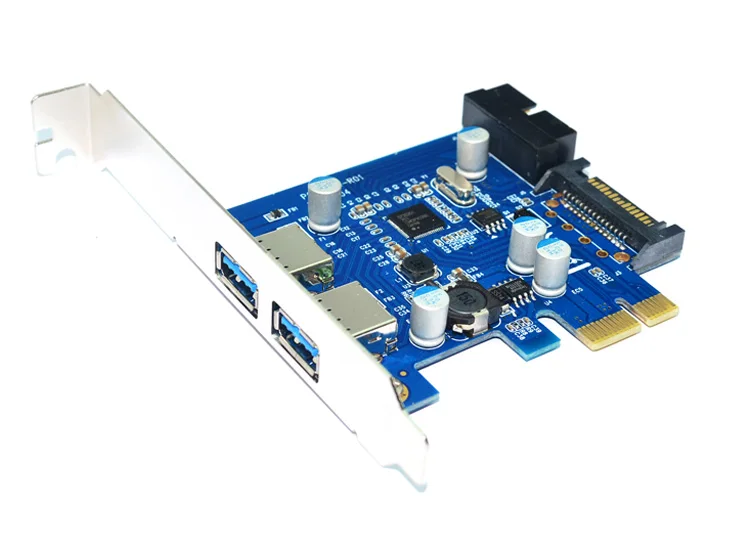

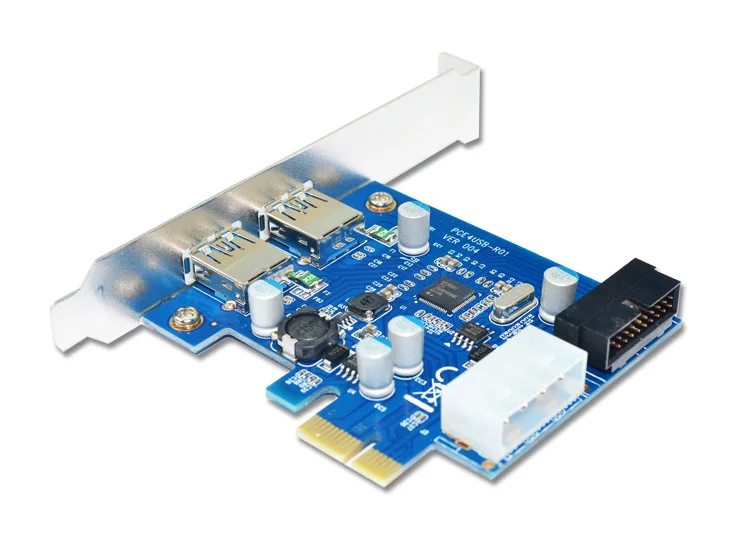

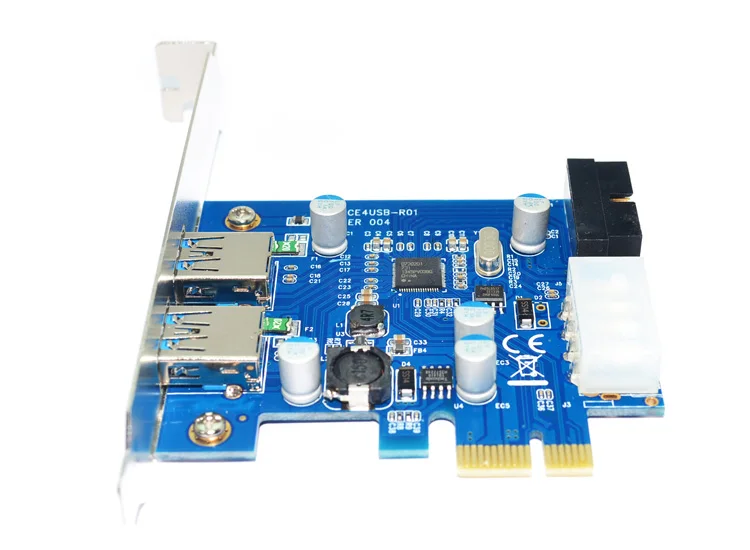

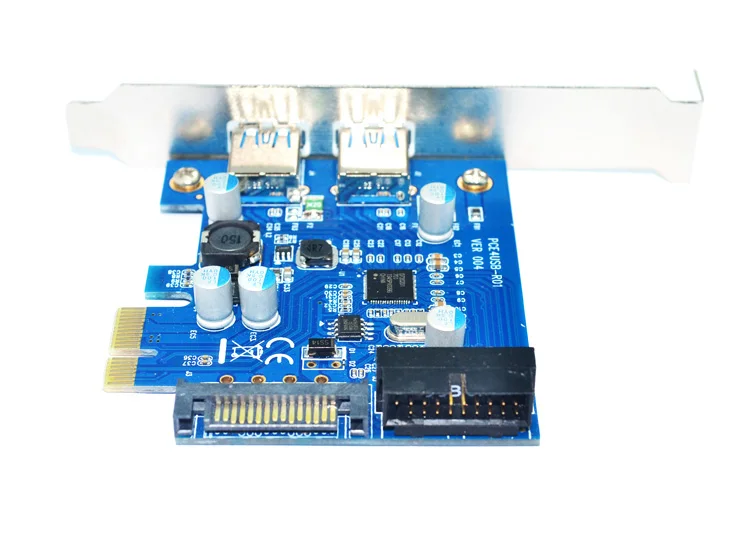

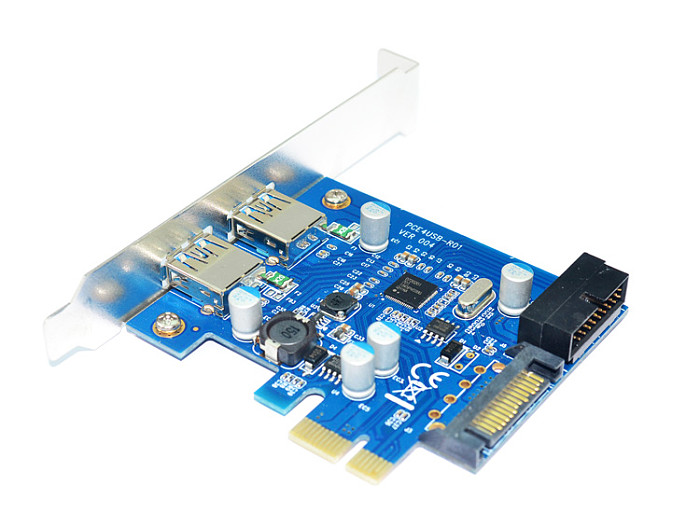

USB 3.0 PCIe Expansion Card External 2 Ports USB3.0 + 2 Internal 19Pin Header 4Pin IDE Power Connector for PCI-E x1 x4 x8 x16

Copy and share this link on social network or send it to your friends

Copy

USB 3.0 PCIe Expansion Card External 2 Ports USB3.0 + 2 Internal 19Pin Header 4Pin IDE Power Connector for PCI-E x1 x4 x8 x16 Item NO.: F24097

Write a Review
US$ 5.84 (5% Off)
US$ 6.15 Save US$ 0.31
Quantity:
Shipping Cost:
Estimate Shipping Cost

Product Name USB 3.0 PCIe Expansion Card External 2 Ports USB3.0 + 2 Internal 19Pin Header 4Pin IDE Power Connector for PCI-E x1 x4 x8 x16
Item NO. F24097
Weight 0.1001 kg = 0.2207 lb = 3.5309 oz
Category Consumer Electronics > Computer Adapter
Brand XT-XINTE
Creation Time 2018-03-15

USB 3.0 PCIe Expansion Card External 2 Ports USB3.0 + 2 Internal 19Pin Header 4Pin IDE Power Connector for PCI-E x1 x4 x8 x16


Specifications:
Type: 2 External USB3.0 Port + Interal 19Pin Header Expansion Card
Chipset: for Renesas uPD720201
Bus Modes: PCI-E x1
Compatible Slot: PCI-E x1/x4/x8/x16
USB Interface: 2 External USB3.0 Port + 19Pin Header(2 Internal USB3.0 Port)
Built-in large PIN enhanced power interface
Transfer Rate: USB3.0 5Gb/s
USB power output: up to 5V 2A (increased current type)
Current: 2A for 4 Ports USB3.0, Not connect the SATA Power, can normal use
Supports Windows XP/2003/Vista/win7/win8/2003/MAC10.8 systems, etc.
Compatible with USB2.0, USB1.1, USB1.0
Support USB plug-and-play

Hardware requirements:
Support One PCI-E motherboard
This product is a desktop PCI-E expansion card. It requires a free PCI-E slot on the motherboard to be installed and used, but also to determine whether the slot is blocked by the graphics card, and the other PCI slot cannot be installed and used. Never plug into a PCI slot.

Product Usage:
With the popularity of USB3.0, you can plug in the riser card and install the driver on the motherboard with PCI-E slot, and expand the four USB 3.0 ports! Can meet you to use 4 USB3.0 devices to copy data!

Package included:
1 x USB3.0 PCI-E Expansion Card
1 x CD Driver

Driver installation instructions:
Open the CD-ROM folder---/NEC/D720201-2 --- double click on the .exe file to install
