Laptop eGPU Case for Oculink / M.2 NVMe External Graphics Card GPU Dock PCIE 4.0 X4 Gen4 Notebook ATX SFX Expansion Card Adapter Item NO.: F51620-D1/F51620-D2/F51620-D3

Laptop eGPU Case for Oculink / M.2 NVMe External Graphics Card GPU Dock PCIE 4.0 X4 Gen4 Notebook ATX SFX Expansion Card Adapter

Product Description:

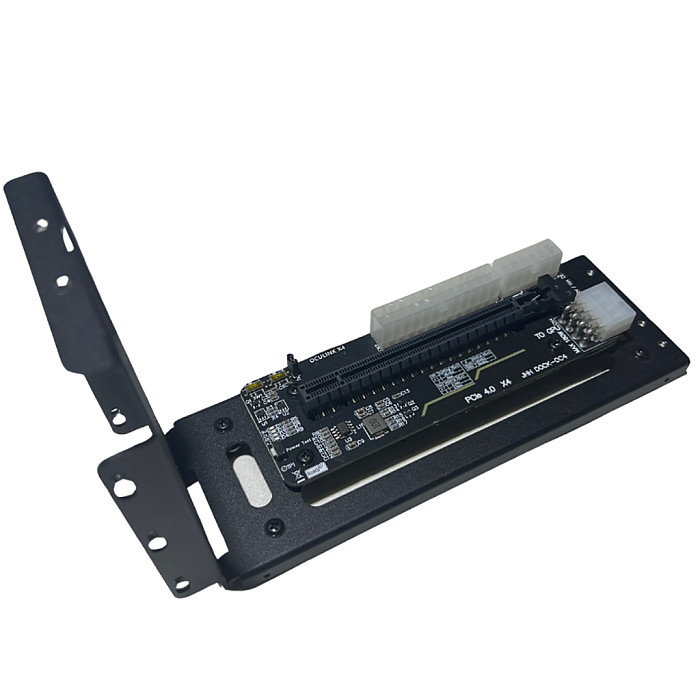

1, oculink adapter board, support devices with oculink port to expand PCIE card.

2, support M.2 port, through the standard oculink extension cable to PCIE card.

3, support expanding GPU graphics card, PCIE network card, PCIE sound card,

PCIE capture card, etc. PCIE array card only supports X4 devices.

4, the maximum bandwidth speed is PCIE 4.0 X4 GEN4, backward compatible with GEN3.

5, support ATX\SFX\small 1U power supply, the adapter board only needs to be inserted into

the 24P power supply, the graphics card power supply is provided by other power supplies.

Power supply should be 500W and above.

6, support synchronous start and stop following the host, does not support hot-swap.

7, only GDP handhelds with oculink ports have been successfully tested for compatibility,

other hosts with oculink ports are still being collected.

Other hosts with oculink ports are still collecting test results.

8, the successful compatibility rate is 90% for laptops with M.2 ports,

95% for small hosts with M.2 ports, and 95% for other hosts.

9, this series of kit products do not include oculink extension cable, need to purchase separately.

10, this series of boxes do not support built-in power supply, and limit the size of the graphics card.
