Home>DIY RC Drone Accessories>Receiver>Flysky FS-A8S 2.4G 8CH Mini Receiver w/ PPM Output For RC Helicopter Quadcopter

Flysky FS-A8S 2.4G 8CH Mini Receiver w/ PPM Output For RC Helicopter Quadcopter Item NO.: F23274

Name: Flysky FS-A8S 2.4G 8CH Mini Receiver w/ PPM Output For RC Helicopter Quadcopter
Brand: Flysky
SKU: F23274
Price: 8.67 USD
Availability: InStock

Write a Review Sold (11)

US$ 8.67

US$ 10.20 Save US$ 1.53 (15% Off)

Quantity: Stock ( 9999988 )

Estimate Shipping Cost

Add to Cart

Product Name	Flysky FS-A8S 2.4G 8CH Mini Receiver w/ PPM Output For RC Helicopter Quadcopter
Item NO.	F23274
Weight	0.022 kg = 0.0485 lb = 0.7760 oz
Category	DIY RC Drone Accessories > Receiver
Brand	Flysky
Creation Time	2017-11-29

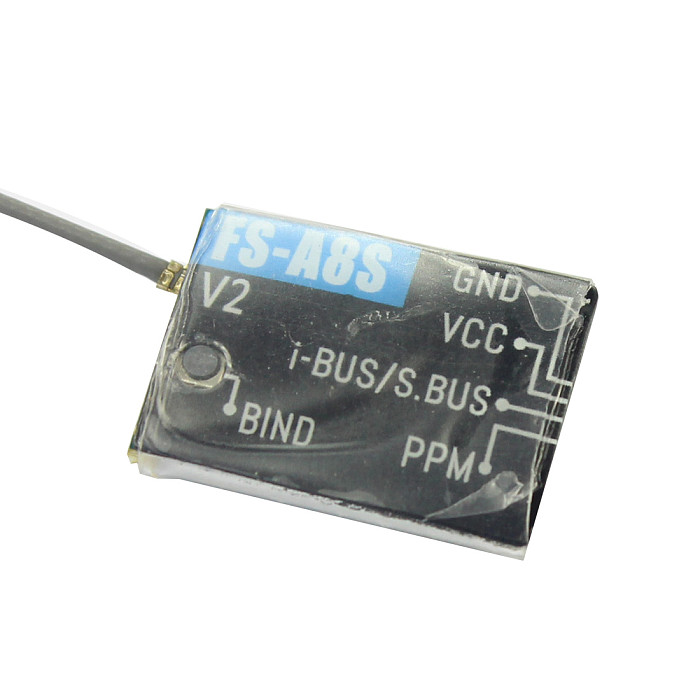

Flysky FS-A8S 2.4G 8CH Mini Receiver w/ PPM Output For RC Helicopter Quadcopter

The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and supports standard PPM output and has i-BUS support for up to 18 channels. It's compact, easy to install and boasts a rich easy to use interface. The FS-A8S supports 8 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface. Sophisticated workmanship based on reliable materials greatly ensures the excellent performance and high quality of this receiver. So, you'd better have a try!

Features:
1. A mini sized receiver module with PPM signal output
2. Precise fit, fairly easy to install
3. Deliver a high performance signal transmission and receiving
4. Bring you a smooth and joyful piloting experience
5. Stable performance, high reliability
6. Lightweight design won't add extra burden
7. Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

Specifications:
1. Brand Name: Flysky
2. Item Name: FS-A8S Receiver
3. Channels: PPM 8CH, i-BUS 18CH
4. Model Type: Multi-rotor
5. Frequency Range: 2.408-2.475GHz
6. Band Width: 500KHz
7. Band Number: 135
8. RX Sensitivity: -92 dBm
9. 2.4GHz System: AFHDS 2A
10. Modulation Type: GFSK
11. DSC Port: PPM/i-BUS/S.BUS
12. Antenna Length: 26mm (Not including brass contacts)
13. Input Power Supply: 4.0-8.4V
14. No Ground Interference ( Transmitting and receiving 1 m from the ground): >300m
15. Working Current: 40mA
16. Channel Delay: <15mS
17. Certificate: CE0678, FCCID: N45ZA8S00
18. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
19. Dimensions: (0.79 x 0.55 x 0.28)" / (2 x 1.4 x 0.7)cm (L x W x H)
20. Weight: 0.1oz / 2.9g

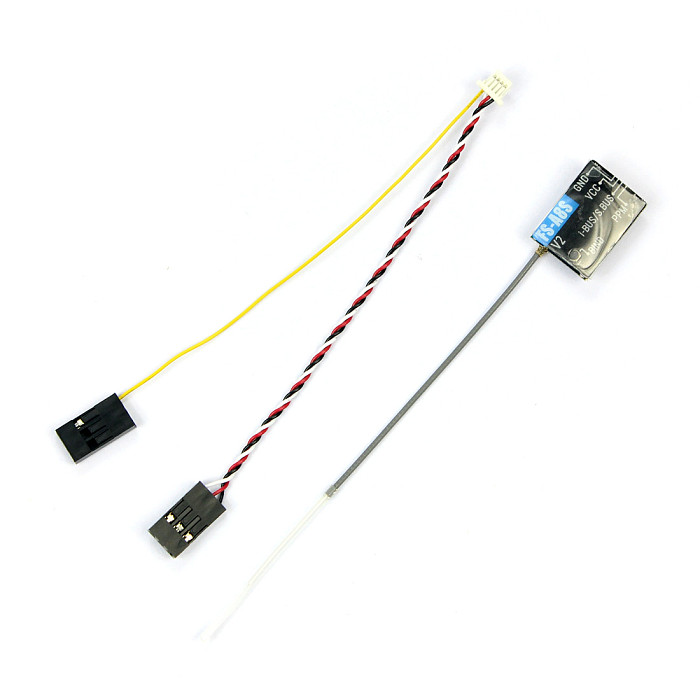

Package Includes:
1 x Flysky FS-A8S Receiver
1 x Cable
