Copy| Product Name | For NVMe M.2 to PCI Express 5.0 x4 Extension Cable High Speed Silver-Plated Wire GEN5 PCIe 5.0 4X to M.2 For NVMe 2242 2280 SSD |
| Item NO. | F54463-B1 F54464-B1 F54463-B2 |
| Weight | 0.04 kg = 0.0882 lb = 1.4110 oz |
| Category | Computer Accessories |
| Creation Time | 2025-08-08 |
Product Model: K42 Series

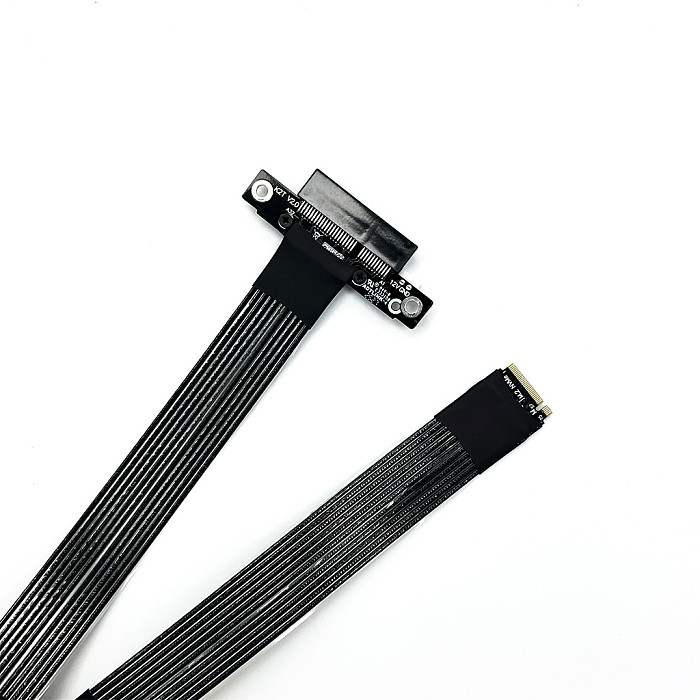

Product Name: PCIe 5.0 M.2 NVMe to PCI-E x4 Signal Extension Adapter Cable
Bandwidth Speed: PCIe 5.0 x4 Gen5; 128 Gbps (Max.)
Cable Length: 5 cm to 100 cm (custom lengths available)
Purchasing Note: Please purchase 1-2 samples for testing and verification before placing a bulk order.
Wire Length Specifications:
The wire length specified by our store refers solely to the wire itself and does not include the PCB or connectors. Please refer to the wire length dimensions in the diagram below.
Accessory description: A SATA power adapter cable is included with the product. It must be connected to provide 12V power.
产品图片:
Product image:

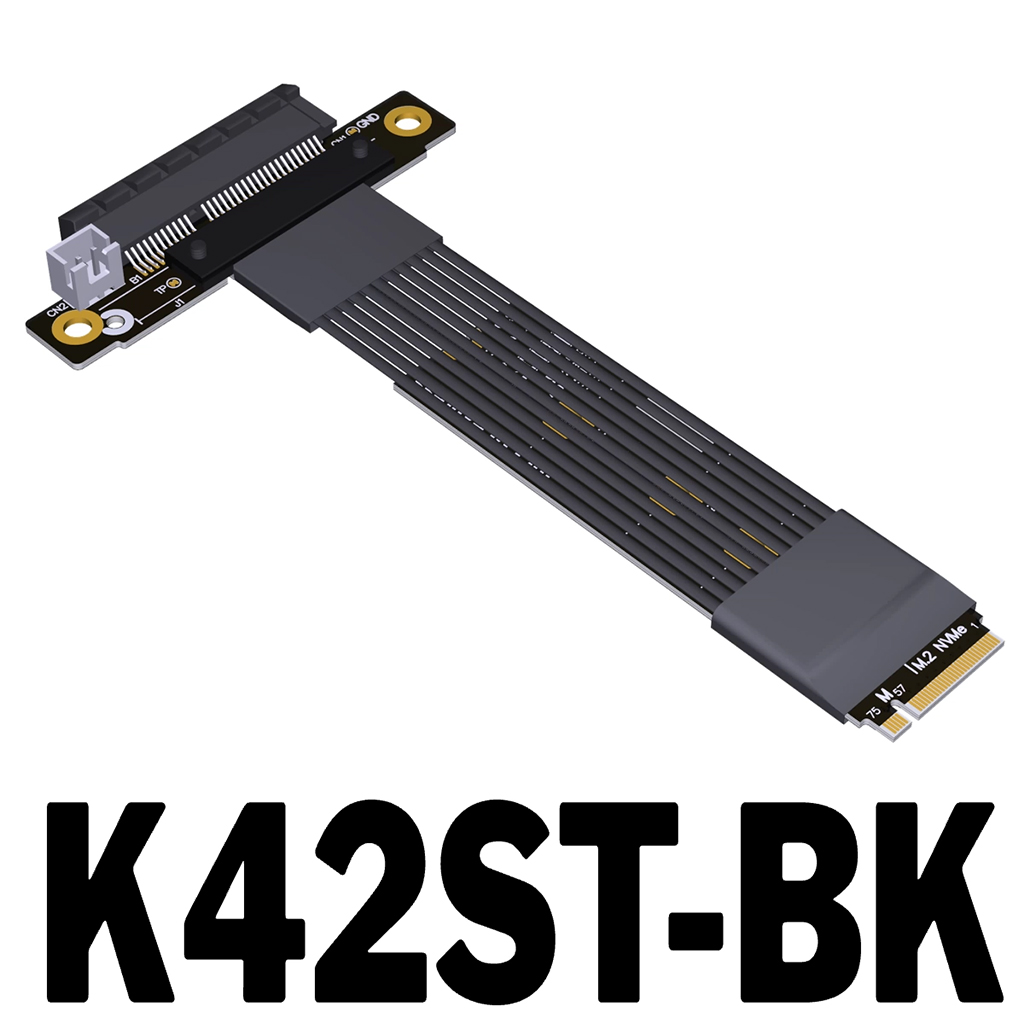

K42ST-BK-5.0:
Technical Issues Summary:
Does the ADT model K42ST support PCIe 5.0?
Laboratory tests show that it can reach full PCIe 5.0 speed.
Our store's test data is as follows:
What is the quality of the wire? Is it shielded?
It has a metal layer shielding, using advanced EMI shielding conductive polymers, new materials for EMI shielding, and a flat cable design. This technology allows each cable to be completely covered by electromagnetic interference shielding conductive polymers to prevent the incidence or emission of electromagnetic frequencies, minimise interference and performance degradation, and reduce the weight of the wiring.
Is the cable flexible? Can it be bent?

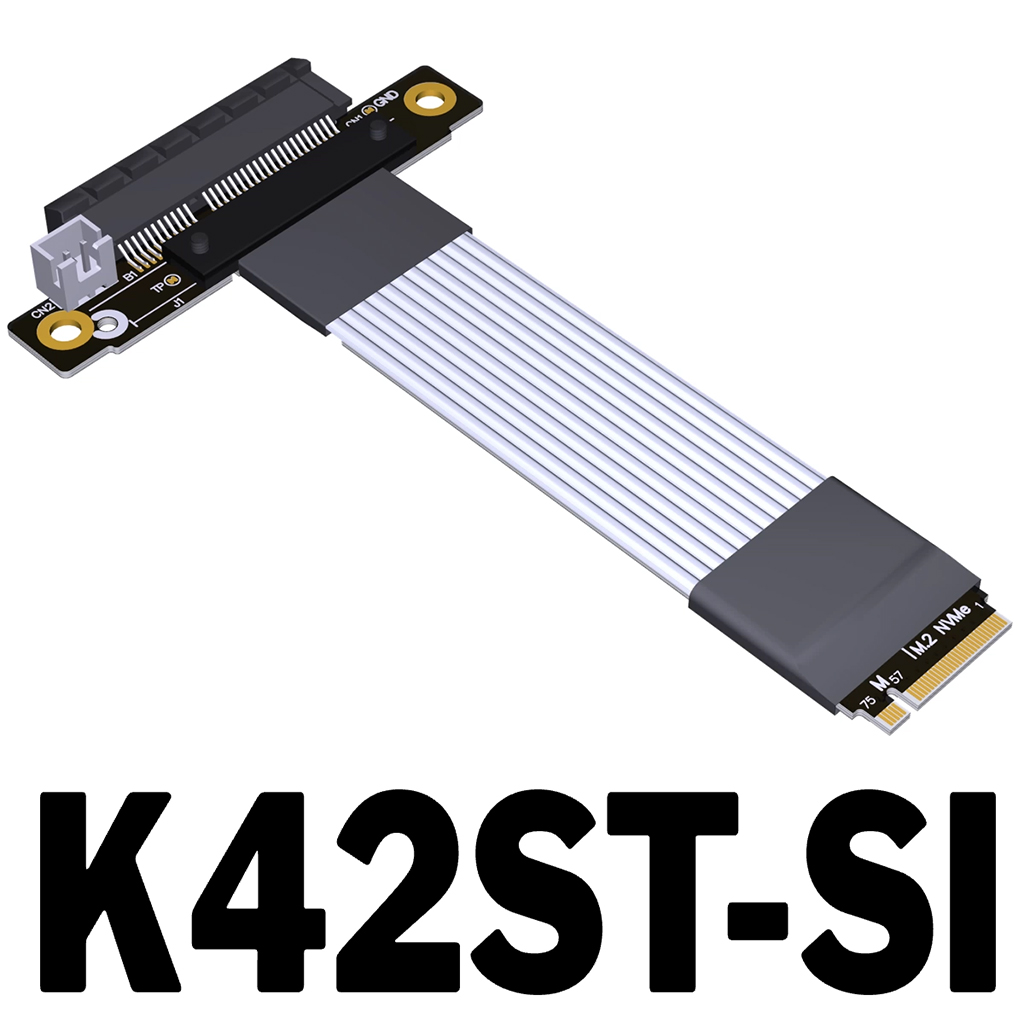

The cable is ADT's independently developed fifth-generation PCIe-dedicated cable, available in black and silver:
The black thin version has a thickness of 0.8mm, making the cable very flexible and bendable without affecting performance.
The silver hard version has a thickness of 1.1mm, making it more robust. While the cable is stiffer, it remains bendable.

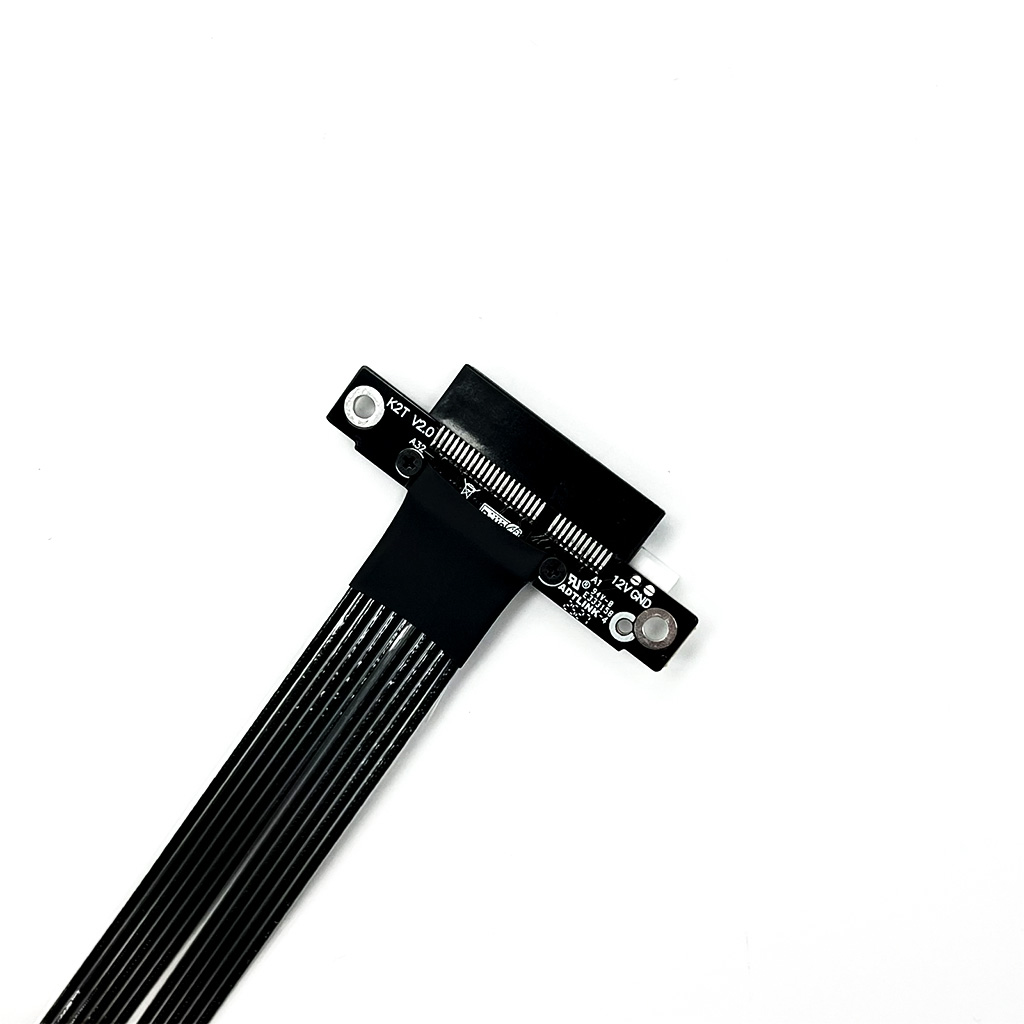

The PCB is too long. Can it be shortened?
The PCB can be cut along the white line indicated by the arrow, and it has good structural compatibility.
Technical Data Download Link:
Open the 3D PDF file. Please use Adobe Reader DC software.
3D Step & 3D PDF files download
https://www.adtlink.cn/download/ADT_K42xx_5.0_3D.zip
Cable specification files download
https://www.adtlink.cn/download/ADT K42ST-BK 5.0 Cable specification 20250801.pdf
https://www.adtlink.cn/download/ADT-Cable 24P 5.0 specification 20250625.pdf
