iFlight Albatross V2 SMA 5.8G Image Transmission Antenna 60mm/100mm long LHCP/RHCP SMA Antenna

iFlight Albatross V2 SMA 5.8G Image Transmission Antenna 60mm/100mm long LHCP/RHCP SMA Antenna Item NO.: F52891-D1/D2/D3 F52892-D1/D2 F36558-D2/D3

Write a Review
US$ 6.99
US$ 8.22 Save US$ 1.23 (15% Off)
Color
60mm 100mm 150mm
Version
RHCP SMA RHCP RP-SMA LHCP RP-SMA
Quantity

Copy and share this link on social network or send it to your friends

Copy
Product Name iFlight Albatross V2 SMA 5.8G Image Transmission Antenna 60mm/100mm long LHCP/RHCP SMA Antenna
Item NO. F52891-D1/D2/D3 F52892-D1/D2 F36558-D2/D3
Weight 0.03 kg = 0.0661 lb = 1.0582 oz
Category DIY RC Drone Accessories > antenna
Brand iFlight
Creation Time 2024-08-19

iFlight Albatross V2 SMA 5.8G Image Transmission Antenna 60mm/100mm long LHCP/RHCP SMA Antenna


Description

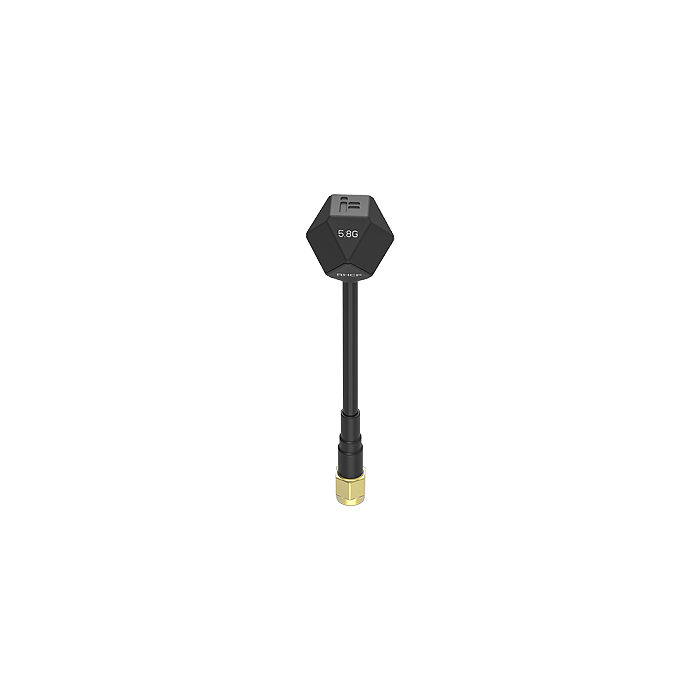

Introducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.

Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!

Features

A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.

Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.

Achieves higher consistency in antenna gain, thereby improving device performance and stability.

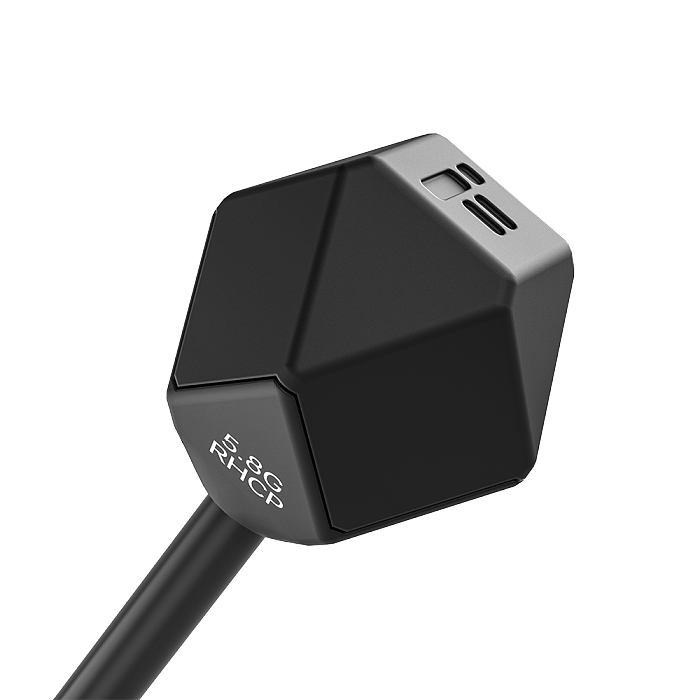

RHCP Specifications

Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna

Interface: RHCP SMA

Frequency range: 5.3GHz-6GHz

Max Gain: 2.65dBi (5695MHz)

MIN Gain: 2.06dBi (5362MHz)

AVG Gain: 2.4dBi

MAX VSWR: 1.76(5917MHz)

MIN VSWR: 1.46(5621MHz)

AVG VSWR: 1.75

MAX radiation efficiency: 86%(5436MHz)

MIN  radiation efficiency: 76%(5917MHz)

AVG radiation efficiency: 83%

Polarization: RHCP

Cross polarization suppression: -25dB

Axial Ratio:≤3

Cable: RG141

Weight: 7g

Size: Total length: 85mm, cable length:60mm

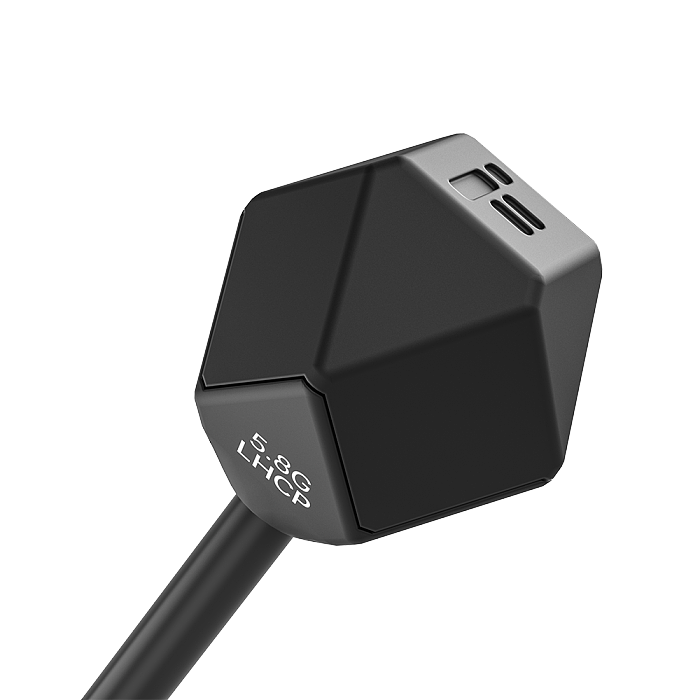

LHCP Specifications

Model: Albatross 5.8GHz LHCP RP-SMA FPV Antenna

Interface: LHCP

Frequency range: 5.3GHz-6GHz

Max Gain: 2.72dBi (5621MHz)

MIN Gain: 2.12dBi (5436MHz)

AVG Gain: 2.42dBi

MAX VSWR: 1.72(5326MHz)

MIN VSWR: 1.35(5917MHz)

AVG VSWR: 1.62

MAX radiation efficiency: 84.25%(5917MHz)

MIN  radiation efficiency: 73.5%(5326MHz)

AVG radiation efficiency: 80.3%

Polarization: LHCP

Cross polarization suppression: -26.7dB

Axial Ratio:≤3

Cable: RG141

Weight: 7g

Size: Total length: 85mm, cable length:60mm


Packing List


2 x Albatross V2 5.8GHz 60mm Antenna

Note: FPV frame not included!
